Phoenix Gold SX5CS

5.25" 250W Component Speaker Set (SX Series)

Phoenix Gold
Shop all Phoenix Gold
highlight-star-icon

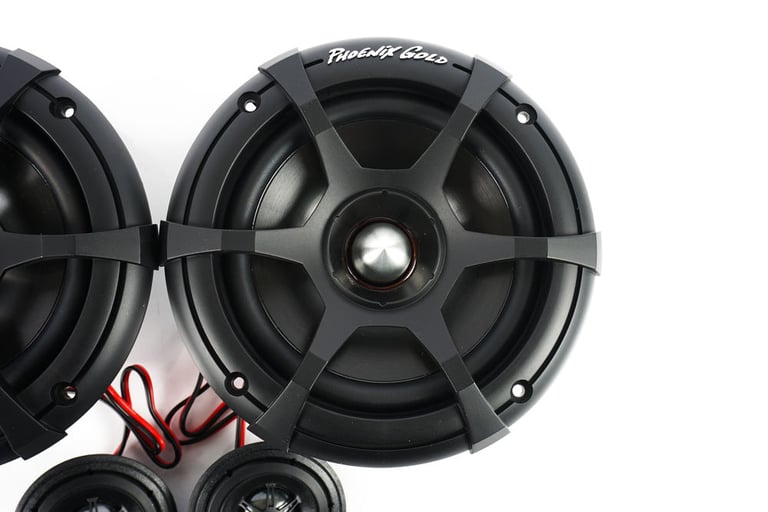

• 5.25" SX Series Component Speakers
• 125W RMS Power per speaker
• Tweeter Flush Mount or Surface Mount Capability
• 24dB External Audiophile Crossover with Tweeter Level Adjustment
• Aluminum Plated Grained Polypropylene Cone
• 20mm Pivoting Silk Dome Tweeter
• One pair of speakers

Learn more about the sx5cs

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-3412 main

Metra 82-3412

Speaker Adapter Bracket for select 1998-2024 vehicles from Chevrolet, GMC, Subaru

1
-34.63%

$16.99

List price $25.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

JBL Stage3 637F (STAGE3637FAM)

270W Peak (90W RMS) 6.5" Stage3 Series 3-Way Coaxial 3-Ohm Speakers

2
-18.19%

$89.95

List price $109.95

Description


Phoenix Gold brand icon

Authorized dealer

General Features:

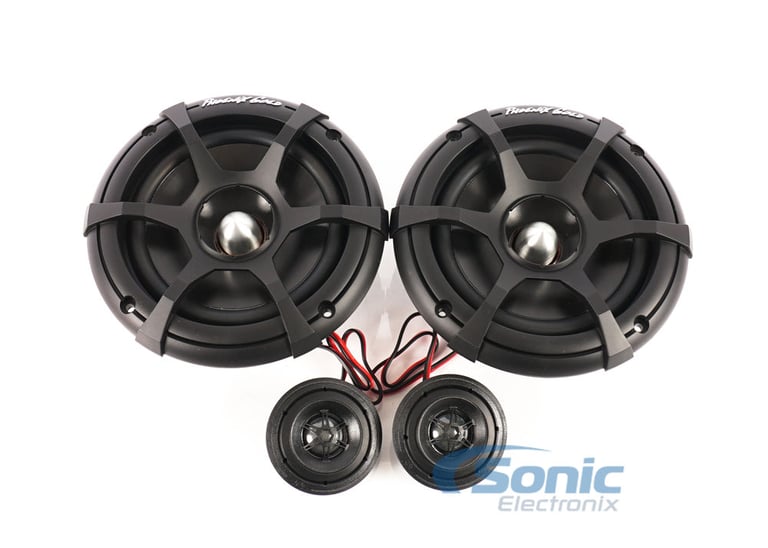

  • 5.25" SX Series Component Speaker
  • Power Handling:
    • RMS: 250 watts per pair / 125 watts each
    • Peak: 500 watts per pair / 250 watts each

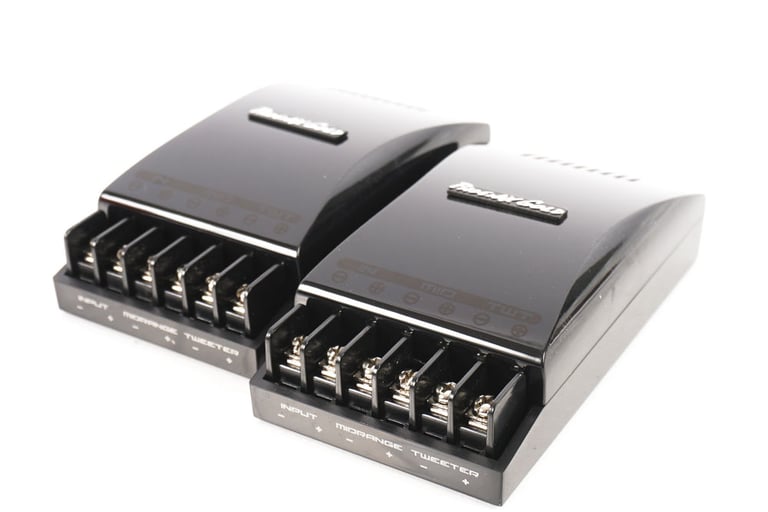

  • 24dB External Audiophile Crossover with Tweeter Level Adjustment

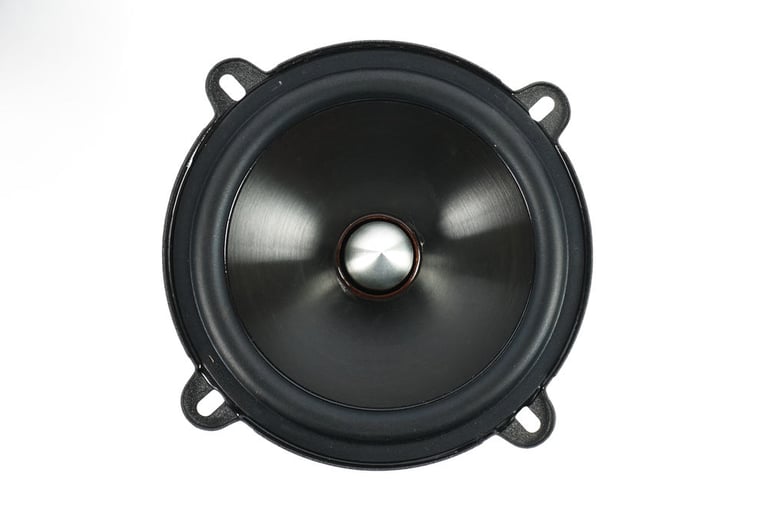

  • Injection Molded Aluminum Plated Polypropylene Cone - Injection molded to be very light and rigid for excellent signal tracking
  • Butyl Rubber Surround - Advanced butyl rubber surround is more rugged than foam, resists moisture and UV, and is extremely well damped

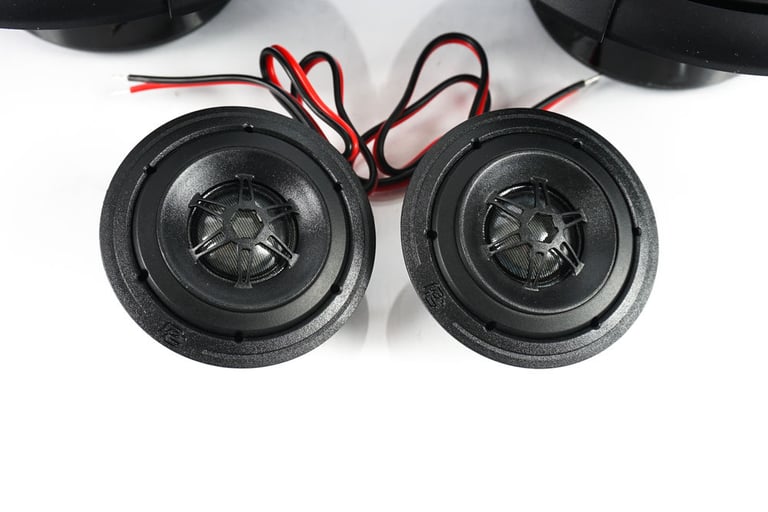

  • 20mm Pivoting Silk Dome Tweeter - Provides smooth, detailed and warm high frequency response
  • Interwoven Tinsel Leads - Tinsel leads woven directly into the spider provide added strength and reliability
  • Integrated Phase Plug
  • Rigid Powder Coated Steel Frame - Designed for precise motor alignment

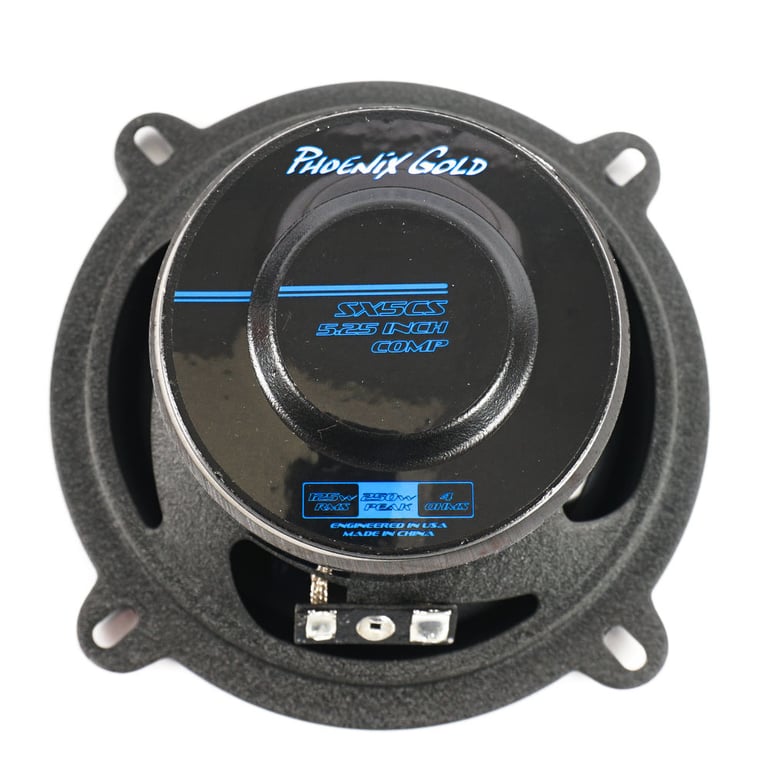

  • Optimized Magnet/Motor Structure - For high efficiency and clarity of sound reproduction
  • Impedance: 4-Ohm

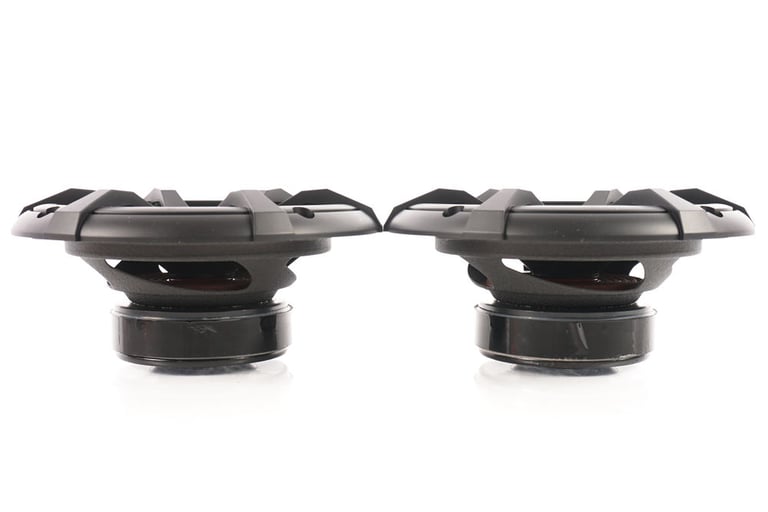

  • Mounting Depth: 2.4in - 61mm
  • Mounting Diameter: 4.5in - 118mm
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Priced Per Pair

View the SX Series Product Manual for detailed specs, installation help, and more!


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

55
RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00


Best selling similar products

Reference 5030cx small

Infinity Reference 5030cx (REF5030CX)

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(2)

$99.95

List price $249.95

VSP525KIT small

NVX VSP525KIT

• 375 watts Peak Each, 125 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 86 dB
• Mounting Depth: 2.04"

(27)

$99.99

List price $119.99

DSK 130.3 small

Hertz DSK 130.3

• 120 watts Peak Each, 60 watts RMS Each
• 1" PEI (Polyetherimide) Dome-Cone tweeters with high-energy neodymium magnets
• Water-repellent Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

$199.99

List price $230.00

DB5252 small

Polk Audio DB5252 (DB 5252)

• 300 watts Peak Each, 100 watts RMS Each
• 3/4" dual Silk Dome tweeters
• UV-Resistant Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 91 dB

(25)

$200.00

List price $209.99

C2-525 small

JL Audio C2-525

• 60 watts RMS Each
• 3/4" Silk Dome tweeters
• Mica Injected Polypropylene - MIPP cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB

(9)

$254.99

List price $329.99

THUNDER51 small

MTX Audio THUNDER51

• 180 watts Peak Each, 90 watts RMS Each
• 1" Silk Soft Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(9)

$199.96

List price $239.95

XED525C small

Cerwin-Vega XED525C

• 250 watts Peak Each, 30 watts RMS Each
• 1/2" Metal Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 94 dB

(8)

$59.99

List price $71.99

51KSS504 small

Kicker KSS5 (51KSS504)

• 200 watts Peak Each, 100 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

(2)

$249.99

List price $279.99

H525C small

Cerwin-Vega H525C

• 300 watts Peak Each, 100 watts RMS Each
• 1" PEI (Polyetherimide) Balanced Dome tweeters
• Responsive Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 86 dB

$189.99

List price $227.99

Specifications & Details


Speaker Specifications
Priced Per
Pair
Number of Speakers
2
Speaker Size
5-1/4"
Design
2-way Component System
Tweeter Design
Dome
Tweeter Size
3/4"
Tweeter Composition
Silk
Woofer Composition
Injection Molded Carbon Filled Polypropylene w/ Aluminum Deposition
Woofer Surround
Butyl Rubber
Peak Power Handling
250 watts
RMS Power Handling
125 watts
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Bottom-Mount Depth
2.4"
Cutout Dimensions
4.5"
General specifications
Marine Certified
No
Hi-Res Certified
No
Color
Black
Speaker Grilles
Yes
What is in the box?
Paperwork
User manual
WITB: Speakers
Speakers (2)
Tweeters (2)
Crossover networks (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SX5CS

Weight:

5.00lbs

Internal SKU:

sx5cs

Internal Product ID:

165337
