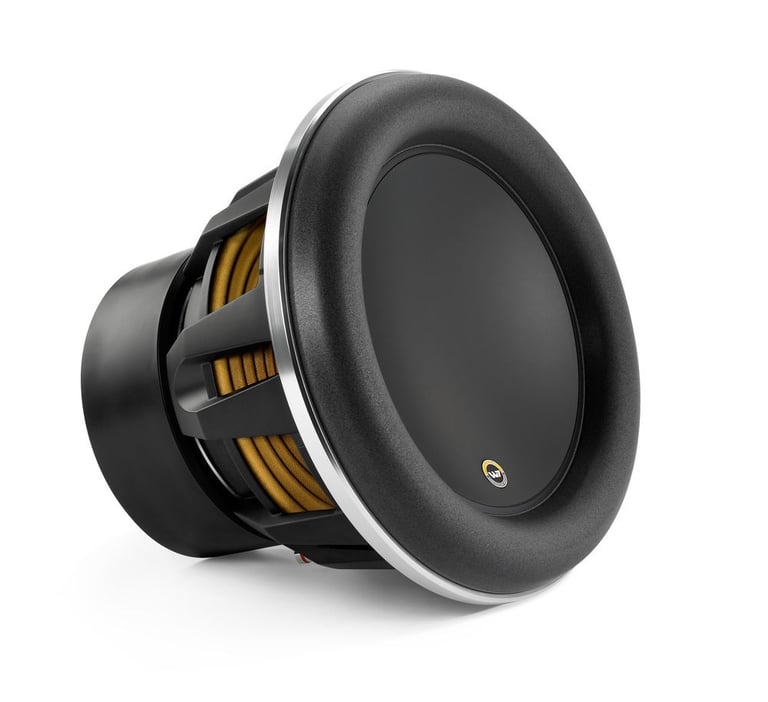

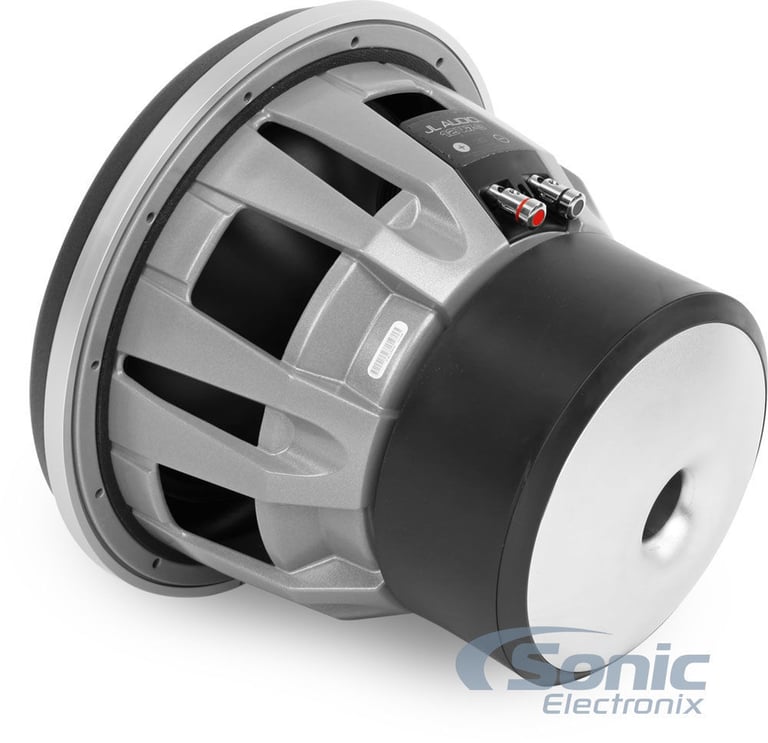

JL Audio 13W7AE-D1.5 - New (Damaged Packaging, Product A+)

3000W Peak (1500W RMS) 13.5” W7 Series Dual 1.5-ohm Subwoofer

JL Audio
Shop all JL Audio
highlight-star-icon

10th Anniversary Edition
•Satin-Black Powdercoated Baskets
• Bright Anodized Surround Clamp Ring
• OverRoll™ Surround
• W-Cone
• Forced-Air-Cooled Aluminum Alloy Frame
• Radially Cross-Drilled Pole Piece
• Dual Ultra-Long Voice Coils
• Black Powder-Coating

Learn more about the 13w7aed15_ob

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Description


JL Audio brand icon

Authorized dealer

Item Condition - New, Damaged Packaging:

The product is brand new with only the packaging not being in perfect condition. This occurs sometimes because our warehouse teared the box or it was slightly damaged during shipment to our warehouse.

Product Features:


  • 13.5" W7 Series Subwoofer Driver
  • Power Handling:
    • RMS: 1500 watts
  • Recommended Power Range: 500 - 1500 watts
  • 10th Anniversary Edition:
    • Satin-Black Powdercoated Basket
    • Bright Anodized Surround Clamp Ring
    • Anniversary Edition Cone Badge
    • Anniversary Edition Terminal Label
  • Impedance: Dual 1.5 Ohm
  • Polypropylene W-Cone assembly
  • Polyester foam OverRoll surround
  • Floating-cone attach method
  • Plateau-reinforced spider attachment
  • Radially cross-drilled pole piece
  • Massive forced-air-cooled aluminum alloy frame
  • Highly linear, DMA-Optimized motor system
  • Huge diameter, progressive roll spider
  • Co-extruded double lead wires
  • Dual ultra-long voice coils
  • Aluminum Bar Grille Available: JL Audio SGR-13W7
  • Precision-built in USA at JL Audios Miramar, Florida factory
  • Mounting depth: 10.5 "
  • Cutout dimensions: 11.9 "
  • Free Air Resonance (Fs): 23.5 Hz
  • Sensitivity: 86.3 dB
  • Xmax: 32 mm
  • Reference Efficiency (no): 0.2700%
  • Frequency response: ~15 ~ 200 Hz
    • 85 Hz LPF recommended
  • Matching Amplifiers:
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

PDF Icon Check out the JL Audio W7AE Owner's Manual

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Frequently Asked Questions (FAQ)


You cannot wire this to exactly 1 ohm. Wiring the voice coils in parallel results in a 0.75-ohm load, which may trip protection on many amps. Wiring them in series results in a 3-ohm load. Most users choose 3 ohms for stability and sound quality.
Not necessarily. This is often the voice coil hitting the back plate due to "bottoming out." Ensure your subsonic filter is set to 25-30Hz if using a ported box, and verify that your enclosure volume isn't larger than the recommended 2.375 cu. ft.
No. The 13W7 uses a patented OverRoll Surround that hides the mounting holes. You must use the specific JL Audio-provided hardware and follow the manual to remove the trim ring properly, or you risk puncturing the surround.
The 13W7 is extremely sensitive to box leaks. Because of its massive displacement, any air leak in the terminal cup or seams will ruin performance. Double-check your seals with wood glue or silicone and ensure the sub is bolted down tight.
It will move, but it won't perform. The 13W7 requires significant "motor force" to control its heavy cone. For the "W7" experience, use an amp capable of 1000W to 1500W RMS at 3 ohms (like the JL Audio HD1200/1).
This is likely an impedance issue. At 0.75 ohms (parallel), the amp sees too much demand. Re-wire the coils in series for 3 ohms. If it still happens, check your ground wire; a 13W7 setup requires at least 4 AWG or 1/0 AWG pure copper.
You cannot use a standard 12" or 15" box. The 13.5" diameter is unique. You must use a custom-built enclosure or a JL Audio ProWedge. A standard hole will be either too small to fit or too large to seal.

Subwoofer Wiring Guide


Specifications & Details


Subwoofer Specifications
Series
W7 Series
Subwoofer Size
13.5"
RMS Power Handling
1500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
1.5 ohm
Frequency Response
15 - 200 Hz
Sensitivity
86.3 dB
Xmax (millimeters)
32 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Polyester Foam
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.875 cubic feet
Optimum Ported Box Volume
2.375 cubic feet
Top-Mount Depth (Mounting Depth)
10.50"
Cutout Diameter
11.90"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
23.50 Hz
Equivalent Compliance (Vas)
104.3 liters
Total Speaker Q Value (Qts)
0.448
Electrical Q Value (Qes)
0.476
Electrical Resistance of Voice Coil (Re)
2.41 ohm
Mechanical Q Value (Qms)
7.517
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

13W7AE-D1.5

Weight:

75.50lbs

Internal SKU:

13w7aed15_ob

Internal Product ID:

165659

Customer Ratings & Reviews


JL Audio 13W7AE-D1.5   - New (Damaged Packaging, Product A+) thumbnail image

5 star
89%
4 star
5%
3 star
0%
2 star
0%
1 star
5%



Durability
4.8
Value
4.3
Features
4.7
Design
4.8
Usability
4.6

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

I dont't get what all the hype is about JL ! ! !

The following review is for 13W7AE-D1.5, which is a part of the bundle you are viewing.

SQ sound quality subwoofer made. This makes me laugh as I have competed since 1994 and if this is sound quality then im Santa Clause! I have had the 13W6 and the 13W7 and have to say that I have found many better subs for way less. I switched to the RE Audio XXX and am much happier and payed less than my W7. I feel JL is just living off the reputation they built as the subs have not changed in about 7 years. 500 to 1100 dollars for these subs is robbery but if you just have to have JL then have at it.

By MACS on August 9, 2011

83 found this helpful


wow

The following review is for 13W7AE-D1.5, which is a part of the bundle you are viewing.

I have 3 of these subs in my yukon running on a rf bd1500 1 at .75 ohms. Each sub is getting a lil over 2100 watts absolutely clean and loud. there is a reason JL has not changed theses subs in 10 years there is no need i play at full volume all the time an for the first time in 6 years i blew one. 365$ to jl and i get re-coned back in business all i can say is this sub is the best sub ive ever heard. There are alot of other subs out there that claim to be louder an most of them are 18's an need 6000 watts. I promise 3 jls running on 2000 watts each is gonna be louder then any 18.

By mcds on January 6, 2012

72 found this helpful


good buy

The following review is for 13W7AE-D1.5, which is a part of the bundle you are viewing.

These subs are beasts they are probably the loudest and best sounding sub for the money. they have a well rounded range of bass and the clarity of it is amazing.

By alonzo on August 10, 2011

68 found this helpful


Great sound!!

The following review is for 13W7AE-D1.5, which is a part of the bundle you are viewing.

Would recommend this to whoever wants bass. looks good and sounds good. i am thinking of getting another one.

By Luis on August 10, 2011

68 found this helpful


damn fine sounding sub

The following review is for 13W7AE-D1.5, which is a part of the bundle you are viewing.

This sub is pricey, but is extremely loud and sounds good too. Paired with a spec vented enclosure, this thing rocks any type of music. A single 13w7 with a true 1000 watts rms will make your windows flex and I still don't have mine set up properly yet nor is it even broken in. Expensive, but well worth it. It's money you won't regret spending. Gave 4 stars for value because of price, and 4 stars for features and ease of use because of the odd dual 1.5 ohm voice coils.

By Larry on August 30, 2014

63 found this helpful


13W7 review

The following review is for 13W7AE-D1.5, which is a part of the bundle you are viewing.

I purchased a 13W7 and a ported box tuned to jl specs and this one sub hits very hard! In a 01 civic the 13 hits pretty tight when needed and super low and very deep. The sound quality is pretty remarkable! I'm running a JL 1000 on it and it loves it. I previously was running two MTX thunder 12 7500's and this one sub destroys them on the same amp. However on some music I still miss the MTX's sound. The only real drawback to the 13w7 would be the weight in a good box is close to 100 pounds, I would recommend a high output alternator and a XS Power battery and 1 gauge wire to maximize the full potential.

By Jstall7543 on September 3, 2012

63 found this helpful


Awesome

The following review is for 13W7AE-D1.5, which is a part of the bundle you are viewing.

This is one of the best subwoofers ive ever heard. I have one hooked up in my car with a 1000/1v2 and it bangs hard! ive never heard anything like it. The only down side is they are a little spendy and are really heavy. But are definatly worth the money. If you can get your hands on one of these, they sound great and bump hard. Plus it will make everyone in your neighborhood jealous.

By rajs on October 19, 2011

61 found this helpful


W7 Rocks

The following review is for 13W7AE-D1.5, which is a part of the bundle you are viewing.

This is my second review of this sub. I now have it "broken in" and have switched up my amp to a JL 1000/1 amp from an Alpine PDX1.1000. There is a noticeable difference, but not a drastic difference. The difference is only in the fact that the JL amp maintains its 1000 watts over a range of voltage(from 11.6 to 14.4) whereas the Alpine amp puts out its 1000 watts at 14.4 volts and starts to drop as your voltage drains(which it will unless you have multiple batteries AND a cap). I have come to the conclusion that JL has a wicked good marketing department, and is very much like Apple Inc. They both charge TOP dollar for their products, which are top notch, but you can find a comparable product for a fraction of the price. In hindsight, if I had the room, I would have gotten an RE Audio XXX15 or a Skar Audio TXL15 for less money and had extra cash to beef up my electrical system more(Mechman Alternator, 3rd Battery). But, I didn't have the room for the box requirements for the RE or Skar subs. That being said, it still amazes me of the output of this 13w7 in only 2.375 ft3 vented. There is no other sub that can come close to the output of the 13w7 AND do it in less than 2 and half cubes. If your looking for extreme output and have limited space, then this is most definitely the best choice out there, but if you have the room for 5 or 6 cubes of sub box, I would go with the Skar TXL18 for half the money, twice the power handling and more output. But, that is comparing an 18" competition woofer to a 13.5"(more like 15" because of the way the surround goes all the way to the edge of the frame, instead of having a visible frame using up what could have been another inch of cone area). So, with that said, to the people that say"I wish JL made a 15w7", they pretty much are a 15" woofer. After using this sub and after having owned two 10w3v3's and using countless other brands of subs, this one is one of the most musical sounding I have ever used. It hits lows effortlessly and doesn't sound like a "giant bass hum or buzz" as a lot of other woofers sound. Plays music with authority and accuracy. I would recommend this sub to anyone looking for extreme output with a moderate sized enclosure(vented) and SMALL enclosure(sealed). I just wish JL would come down on their price a little. If this sub was in the $500-$700 range, I would have 2 of them in a sealed enclosure and still be at only 3.6 ft3 total box volume. To sum this up, great sub. Works awesome in Small enclosure sizes. A bit overpriced.

By Larry on September 20, 2014

59 found this helpful


This Speaker Knocks Hard

The following review is for 13W7AE-D1.5, which is a part of the bundle you are viewing.

I have this thing in a custom 13w7 box in the back of my Toyota Land Cruiser, and it is ridiculous!!! That truck has a lot of air space inside, and that speaker fills it up and then some. It's just small enough to keep up with the double bass drums in metal (and it sounds like a machine gun), but so deep that it sounds like an earthquake from down the street when I'm listening to rap or whatever thumps. I would buy another but I dont want to go deaf and shatter my windows.

By Wesley on August 24, 2012

56 found this helpful


Bringing the thun

The following review is for 13W7AE-D1.5, which is a part of the bundle you are viewing.

I gotta say if you are a sound quality guy or a spl guy this sub can do both depending on what enclosure you use. You want to get lows and have a wide frequency response put It in a small business x. If you want to crack your windshield put it in about 3.0 cubic foot tuned to 34hzt and whatch out. You don't even need two these things can destroy a car all by themselves. But if you want a 150db daily monster with superb sound quality at the same time get two and feed them with there own HD1200/1. I would absolutely recommend these for anyone wanting the best. Yes I know there are louder subs mostly huge 18's in giant 7 cubic foot boxs but you want find but a handful of subs that can sound this good and give this level of spl at the same time. This ant n one trick pony here boys. We had a guy here in Kentucky doing 151.3 with 12's on 2k. He said he was tired of people saying JL couldn't get just as loud as other brands. And all thes people saying you need battery's and Alta to run this you don't unless it's going in a old civic with a 60amp half dead alt. I run mine in a 2013 Dodge Avenger with stock 130amp alt 4 gauge ran back to a 1k watt capable batt and no big three. Never had a shut down and amp never gets over Luke warm. It's a HD1200/1 which is a perfect match for the 13w7.

By Tammy on May 4, 2017

34 found this helpful
