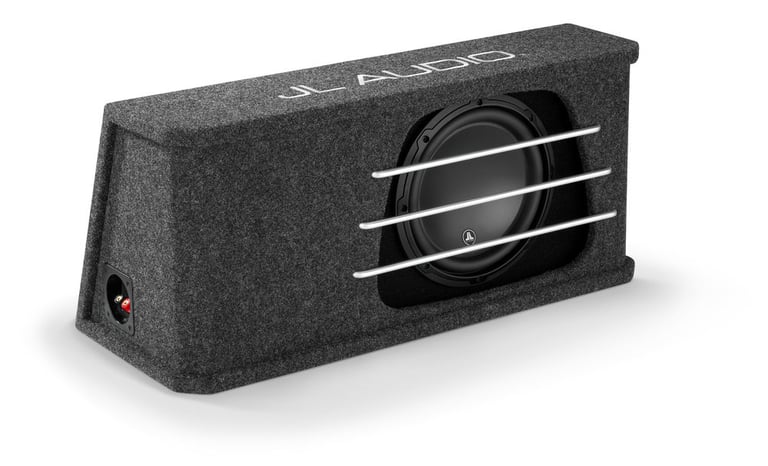

JL Audio 10W3v3 | 10" W3v3 Subwoofer Ported Enclosure

JL Audio 10W3v3 H.O. Wedge - HO110RG-W3v3

500W H.O. Wedge Series Single 10" W3v3 Subwoofer Loaded Ported Enclosure

500W H.O. Wedge Series Single 10" W3v3 Subwoofer Loaded Ported Enclosure

• 500 Watts RMS
• Sensitivity: 84.87 dB
• 2 Ohms Final Impedance
• Injection-molded, mineral-filled polypropylene cone
• Nitrile butadiene rubber surround
•Customization trim ring
• Floating Cone Attach Method
• DMA Optimized Motor
• JL Audio's patented, chamber-coupled port design
• Gray carpet wrap
• fine-tuned through extensive real-world listening

10% Rewards
Free 2-day Shipping
Free Return Shipping
Extended Warranty
Learn More

4.9

(8)

$519.99

Out of Stock - Backorder with warranty
vip-image
Thanks , You Pay:

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for
4 years for

Shipping
Fast, Free Shipping

Within the US 48

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
JL Audio

Authorized dealer


W3v3 H.O. Wedge

The benefits of JL Audio’s patented, chamber-coupled port design are now available in five outstanding W3v3-based high-output ported systems. These potent systems deliver outstanding impact and sound quality in medium power applications.

The JL Audio HO110RG-W3v3 is an insanely powerful H.O. (High Output) system that delivers a very high SPL while retaining excellent sound quality. It uses a patented, chamber-coupled port design to minimize turbulence and maintain excellent sound quality at all listening levels. The system also includes a solid aluminum bar grilles for woofer protection. JL Audio's H.O. systems are designed specifically to provide excellent sound quality and amazing output. You will not be disappointed with a JL H.O. subwoofer system.

Loaded with what is easily the best selling subwoofer driver, next to the W6v3, the JL Audio W3v3 provides phenomenal performance at moderate power levels with superb sound quality. The W3 series is in its 3rd iteration, embodying the series' pursuit for providing outstanding output and world-class sound quality. This is accomplished by utilizing a whole suite of advanced technologies originally developed for JL Audio's flagship W7. An Elevated Frame Cooling design helps in delivering enhanced power handling and sound quality. The DMA-optimized, long linear excursion capability minimizes distortion and increases output, while multiple patented technologies enhance performance and reliability. Such advances make the v3's the best sounding, most reliable W3's yet.

Although the W3v3 Subwoofer can be driven with as little as 150 Watts, for best audio performance it is recommended to run an amplifier capable of between 400 - 500 Watts of continuous power per driver, like the JL Audio XD600/1v2 or JL Audio JX1000/1D.

JL Audio Patented Cooling Technology

JL Audio's patented Elevated Frame Cooling design delivers cool air into the heart of the subwoofer in ways no other manufacture's driver can. Purpose-engineered slots located directly above the top-plate stream air to the voice coil. In addition, the upper surface of the top-plate is directly exposed to this air flow, whereas on a conventional design it is isolated from this flow by the lower flange of the frame. This technology not only increases thermal power handling, but also sound quality by minimizing dynamic parameter shifts and power compression. In plain English, this driver keeps itself cool so you can play your system longer, safer and without having to worry about frying the motor.


Tight, Clean, Articulate Bass

DMA is JL Audio's proprietary Dynamic Motor Analysis system and is aimed at improving dynamic motor behavior. As a result of DMA optimization, W3v3 motors remain linear in motor force over an extreme range of excursion and also maintain a highly stable fixed magnetic field in the gap over a wide power range. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass. Its main catalyst is the driver's Ultra-long Voice Coil, that allows extreme linear excursion, phenomenal power handling and control, control, control.




Subwoofer Features:

















  • Single 10" W3v3 Series H.O. Wedge Loaded Ported Enclosure
  • Power Handling:
    • RMS: 500 watts
  • Recommended Power Range: 150 - 500 watts
  • Nominal impedance: 2-Ohm
  • Injection-molded, mineral-filled polypropylene cone
  • Nitrile butadiene rubber surround
  • Stamped steel basket
  • Customization trim ring
  • Floating-cone attach method
  • Highly linear, DMA-Optimized motor system
  • Insert molded suspension, coil and terminal sub-assembly
  • Patented vented reinforcement collar (VRC)
  • Elevated frame cooling design
  • Nickel plated brass spring terminals
  • Engineered lead-wire design and attachments
  • Precision-built in USA at JL Audio Miramar, Florida factory
  • Sensitivity: 84.87 dB
  • Xmax: 14.0 mm
  • Reference Efficiency (no): 0.1900%
  • Frequency response: ~25 ~ 250 Hz
  • Matching Amplifiers:
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty
    Subwoofer Only

Enclosure Specifications:

  • JL Audio's patented, chamber-coupled port design (U.S. patent #6,625,292)
  • Engineered to the optimum ported alignment for driver
  • Fine-tuned through extensive real-world listening
  • Chamber-coupled, slot-ported enclosure
  • Finished Dark gray, high-grade automotive carpet
  • Black carpet, woofer baffle with JL AUDIO embroidery
  • CNC-Cut High-Grade MDF enclosure material
  • Pre-installed, three bar grille included
  • Shipped wired, loaded and ready to connect
  • Weight: 34.7 lbs (including the subwoofers)
  • Dimensions: 12"D1 x 7-1/2"D2 x 29-1/2"W x 13-1/2"H

Check out the JL Audio 10W3v3 Owner's Manual

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

FEATURES & SPECS
Subwoofer Specifications
Subwoofer Series
W3v3 (JL Audio)
Subwoofer Size
10"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 ohms
RMS Power Handling
500 watts
Total RMS Power Handling
500 watts
Peak Power Handling
1000 watts
Total Peak Power Handling
1000 watts
Woofer Composition
Mineral-Filled Polypropylene
Woofer Surround
Nitrile Butadiene Rubber NBR
Sensitivity
84.87 dB
Frequency Response
25 - 250 Hz
Xmax (millimeters)
14 mm
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Vented / Ported
Number of Subs/Speakers
1
Box Style/Shape
Hatchback Style, Angled Back
Height
13-1/2"
Width
29-1/2"
Depth
12"
Second Depth
7-1/2"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts
Box Exterior Color
Gray
Box Finish
Carpet
Specials with this Item
Deals
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer
VIDEOS AND HOW - TO
REVIEWS
JL Audio 10W3v3 H.O. Wedge - HO110RG-W3v3

JL Audio 10W3v3 H.O. Wedge - HO110RG-W3v3

4.9

(8)

Write a review

Overall rating distribution

5 star
88%
4 star
13%
3 star
0%
2 star
0%
1 star
0%

By feature average rating

Durability
4.8
Value
4.8
Features
4.8
Design
4.7
Usability
5

mike

October 23, 2010

awesome value

This box rocks. It takes up hardly any room, looks sweet, and sounds great. i have it in my Infiniti G37 running off the factory head unit. it drops like a 12, and is as musical as an 8. great output off of only a 300w JL amp. If you're looking for a very musical sounding sub, this is it.

21

found this helpful.

BigWill1323704

February 27, 2010

Lincoln MKZ

Purchase this sub to replace my 15" Kicker Solo Baric L7

This sub will get the job done if you dont want to blow your trunk off and still keep your car luxury.

Have it in my 07 Lincoln MKZ, Powered With a 1000watt sound stream mono d amp. and it really bangs.

when i heard it in the audio store i was like this little may have some knock to it, when i got everything install i was very impressed

18

found this helpful.

Talan7

October 10, 2012

JL Audio HO110RG-W3v3; awesome sub

I purchased the JL Audio HO110RG-W3v3 a few months ago and am extremely happy with my purchase. They sounded good right out of the box but the sound just kept getting better and better as they broke in. They need ample power to sound their best. Highly recommended.

16

found this helpful.

The Rockman

August 22, 2013

Tight Bass

Love My Sub. The only limit is the quality of the recording....

16

found this helpful.

William

October 15, 2011

Excellent subwoofer

I have had multiple JL Subs and this one is as i would expect from them. The sub and enclosure looks and more importantly sounds amazing. I am powering it with a 400w mono Boston amp and am extremely satisfied. The lows are solid with plenty of "boom" without being sloppy. I listen primarily to rock but branch out from time to time.

15

found this helpful.

Thomas

April 1, 2010

Sub

Its a powerful sub, it has a soft sound which makes it best when its playing faster music. I think its a great buy. Beautiful, no? Clean design.

15

found this helpful.

DD

December 1, 2017

Great sound from small 10" sub

I replaced 2 Orion 10" HCCA subs (powered by a 4000 watt amp) with this sub and a 500 watt JL amp (HD900/5v2). This setup sounds great. The mid-volume to high volume bass is powerful and accurate. I'm really happy with the amp/wedge combination. The size is not too bad and it's not too heavy to remove when you're looking to save some weight (i.e. track days for racing). What I don't like is the carpeting. it doesn't match my trunk interior, but that's not a deal breaker. The other negative is the low volume bass. This sub needs POWER to perform. Don't expect to get a low end amp or low powered amp and be happy with this sub. I think 400 watts RMS is as low as you want to go.

Professor J

January 26, 2016

SQ and SPL

2015 Honda Accord Sedan Sport. This sub is brilliant! I drive 1.5 hours to campus every day so music and sound quality is a critical part of my day. I have had MTX, ALPINE, and FOSGATE in my trunk and they all took up way too much space, were too heavy making the car drive awful and adding fuel consumption, were too boomy, thuddy, or could hit low but would not fill in the mid bass my Alpine Type-R separates lacked. This High Output enclosure with the W3 is absolute perfection. My trunk and back deck are heavily dampened so a sealed sub just doesn't have the SPL to resonate through it properly. I love hip-hop, EMD, but also listen to acoustical music too and I am so thrilled with this sub I am at a loss for words and I am an English professor! Thank you so much JL Audio!
