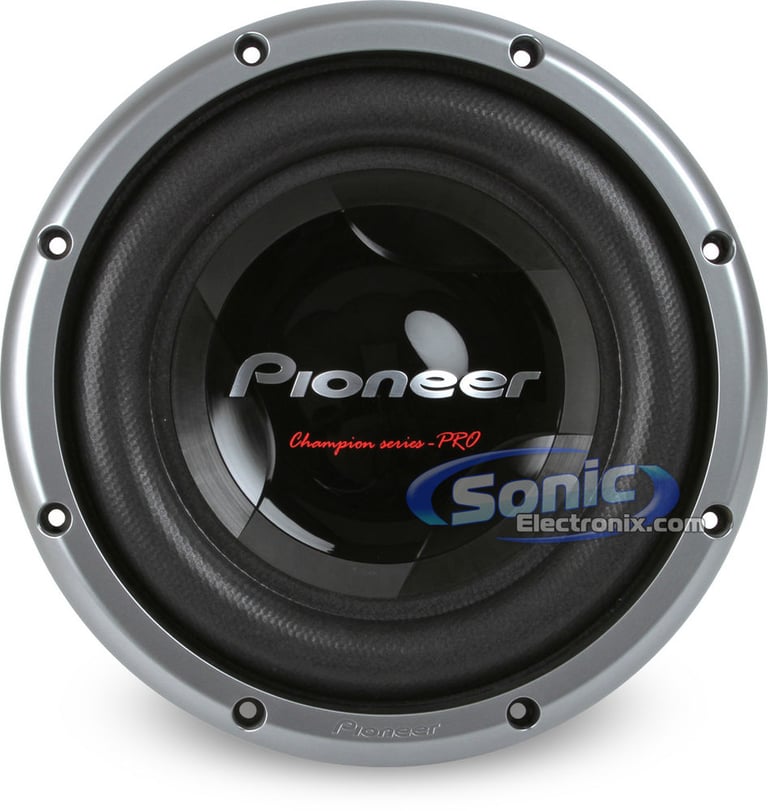

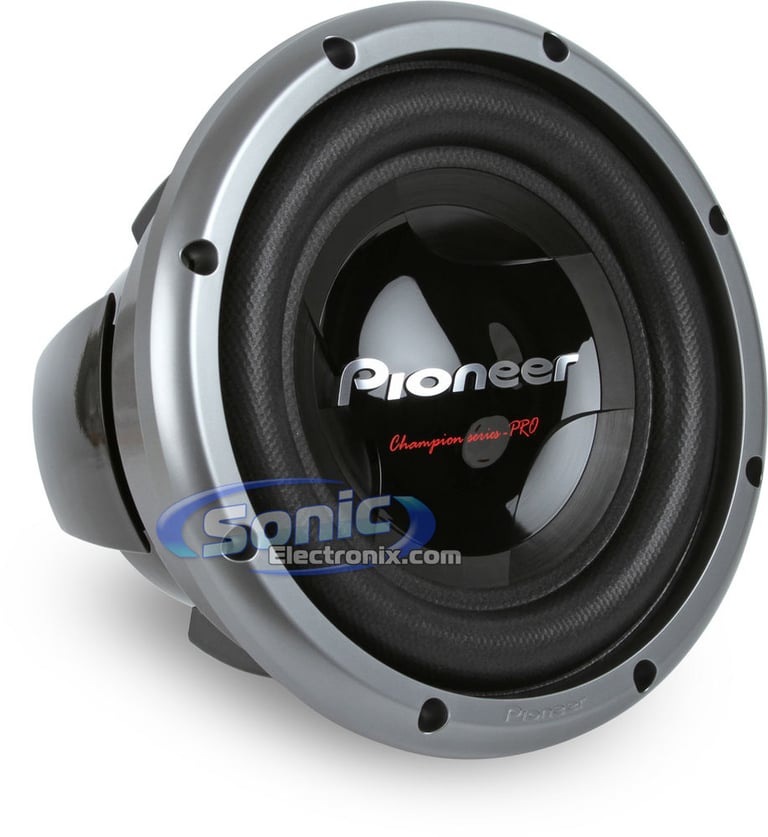

Pioneer TS-W3002D2

12" Dual 2 ohm Champion PRO Series Car Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• 3500W Peak
• 1000W RMS
• Basalt/Carbon Fiber Reinforced IMPP Cone
• Dual 4 Ohm
• Double Stacked (110oz) Magnet
• Fiber Woven Aramid Radial With Honeycomb Cloth Surround

Learn more about the tsw3002d2

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

5
-17.65%

$139.95

List price $169.95

PNW-69CS2 main

AudioControl PNW-69CS2

250W RMS 6x9″ PNW Series 2-way 3-ohm Component Speaker System

1
-5.42%

$349.00

List price $369.00

TERMINATOR69 main

MTX Audio TERMINATOR69

240W Peak (120W RMS) 6x9" Terminator Series 2 Way Coaxial 4-ohm Speakers

1
-11.12%

$79.95

List price $89.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

51KSC3504 main

Kicker KSC35 (51KSC3504)

200W Peak (100W RMS) 3.5" KS Series 2 Way Coaxial 4-ohm Speakers

4
-11.11%

$79.99

List price $89.99

Product Highlights


• 3500W Peak
• 1000W RMS
• Basalt/Carbon Fiber Reinforced IMPP Cone
• Dual 4 Ohm
• Double Stacked (110oz) Magnet
• Fiber Woven Aramid Radial With Honeycomb Cloth Surround

Description


Pioneer brand icon

Authorized dealer

Champion Series PRO: Powerful by Design

Introducing the series that changed the way Pioneer makes subwoofers: The Pioneer Champion PRO Series. The patented technologies behind the PRO series of subwoofers bridge the gap between quality bass and an affordable price. They feature an air suspension system that creates a spring-like effect and a compressed air chamber within the subwoofer. The result is powerful, deep bass. They are developed to utilize the air space surrounding the subwoofer so that they can be installed in smaller boxes, yet still retain that solid low bass. For the Champion PRO series of subwoofer, Pioneer uses high-grade materials that will last a long time. The wide-roll 3-layer fiber radial surround improves the power handling of the sub, while reduces the distortion. At the bottom of the chassis sits two double-stacked magnets to provide excellent power and response. The Pioneer Champion PRO series delivers incredible booming bass that is loud, powerful, and accurate.

Subwoofer Features:
  • 12" Dual 2 ohm Champion PRO Series Subwoofer
  • Power Handling:
    • Peak: 3500 watts
    • RMS: 1000 watts
  • Impedance: Dual 2 ohm
  • Interlaced basalt/carbon fiber reinforced IMPP cone
  • Wide-roll, 3-layer fiber woven aramid radial with honeycomb cloth surround
  • Phenol resin coated glass cloth bobbin
  • Copper voice coil wire
  • Dual 4-layer, long voice coil

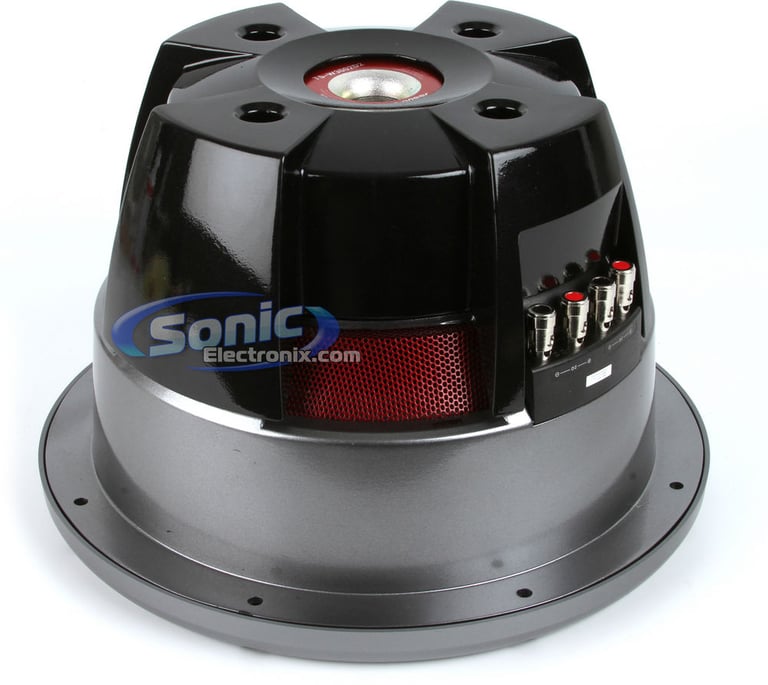

  • Double stacked (110oz) magnet
  • Frequency response: 20-150 Hz
  • Sensitivity: 90 dB
  • Aluminum die-cast rigid chassis basket design
  • 1-Piece rubber gasket
  • Integrated single-sided silver compression wire terminals
  • 1-year SonicElectronix.com warranty

Product history:

Pioneer TS-W3002D2 thumbnail
(newest, current model)
Pioneer TS-W3001D2 thumbnail
(previous model, replaced by Pioneer TS-W3002D2)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-W3002D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-W3002D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-W3002D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-W3002D2 Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Series
Champion PRO Series
Subwoofer Size
12"
Peak Power Handling
3500 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Frequency Response
20 - 150 Hz
Sensitivity
90 dB
Xmax (millimeters)
12.3 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Carbon Fiber
Woofer Surround
Wide-Roll 3-Layer Fiber Radial
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Minimum Sealed Box Volume
.50 cubic feet
Optimum Sealed Box Volume
0.8 cubic feet
Maximum Sealed Box Volume
1.0 cubic feet
Minimum Ported Box Volume
0.8 cubic feet
Optimum Ported Box Volume
1.2 cubic feet
Maximum Ported Box Volume
1.6 cubic feet
Top-Mount Depth (Mounting Depth)
7-1/2"
Cutout Diameter
10-15/16"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-W3002D2

Weight:

28.50lbs

Internal SKU:

tsw3002d2

Internal Product ID:

16666
