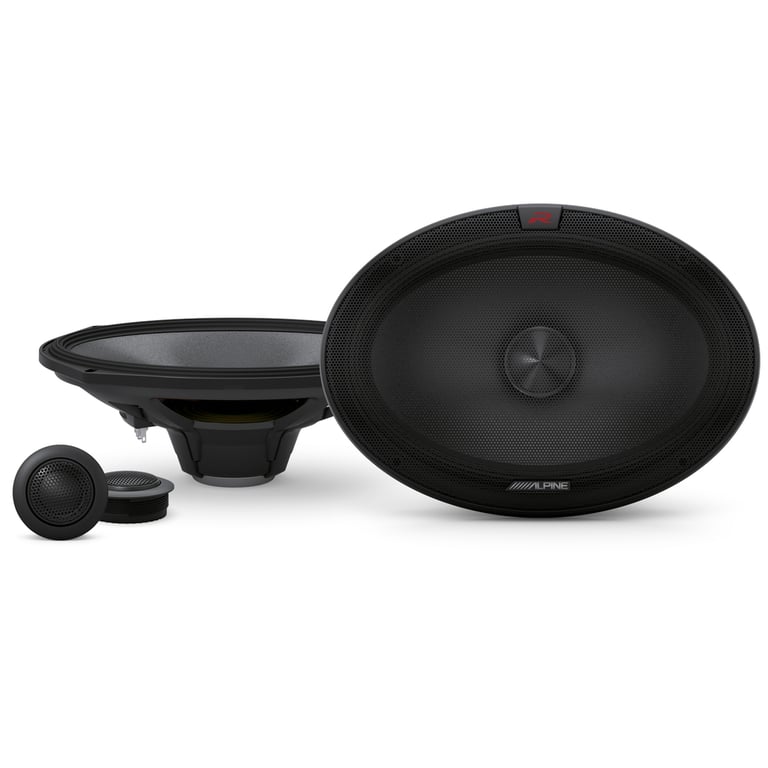

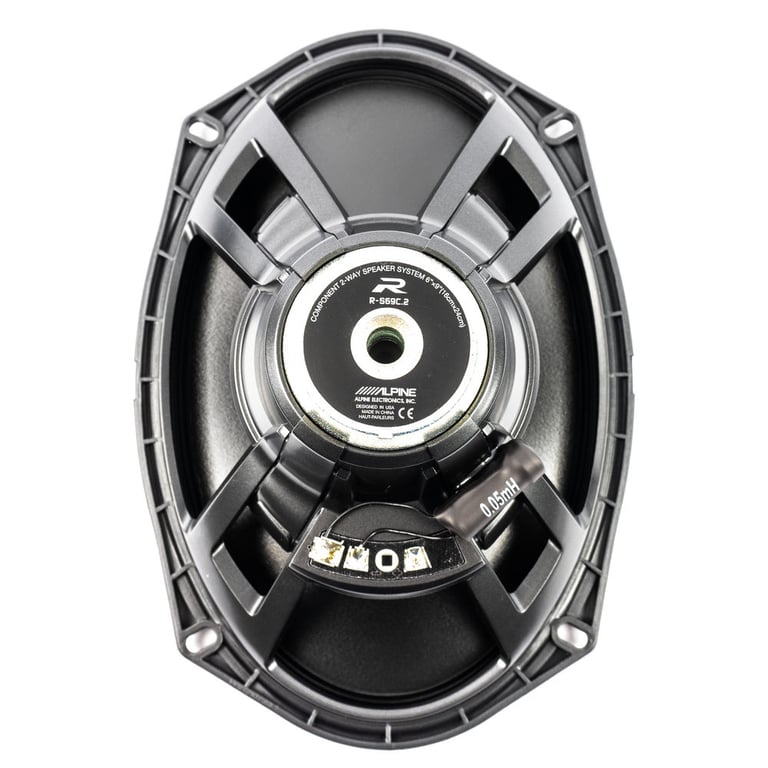

Alpine R-S69C.2

600W Peak (200W RMS) 6"x9" R-Series 2-way Component Speaker System

Alpine
Shop all Alpine
highlight-star-icon

• 300 watts Peak Each, 100 watts RMS Each
• 1" Carbon Graphite Ring Radiator Tweeters
• Multi-Layer Hybrid Hybrid Multi Layer cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

Learn more about the rs69c2

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

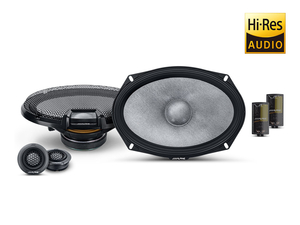

r2s69c thumbnail

Alpine R2-S69C

OUR PRICE: $359.95

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-8602 main

Metra 82-8602 Speaker Adapter Plates

Install 6.5” or 6.75” aftermarket speakers in select 2012-2022 Model S and Model X

-46.68%

$15.99

List price $29.99

NVX Loaded BOOST Box - 2012-2020 Tesla Model S - BE-TSLAS-VCW104

For select 2012-2020 Model S - Single 10" 1000W RMS Loaded BOOST Sealed Enclosure

3
-16.67%

$469.99

List price $563.99

Description


Alpine brand icon

Authorized dealer


Product Details:

  • 6" x 9" R-Series 2-way Component System Car Speakers
  • Power Handling:
    • Peak: 600 watts per set / 300 watts each side
    • RMS: 200 watts per set / 100 watts each side

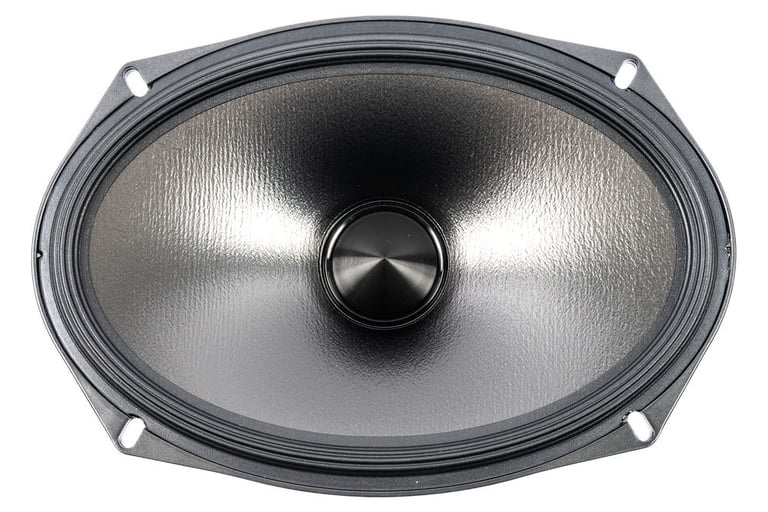

  • Hybrid Multi Layer cone material
  • High Roll Foam speaker surround
  • 1" Carbon Graphite Ring Radiator Tweeters
  • Swivel application tweeters
  • Bi-Amp ready design
  • Extended dynamic range for Hi-Res audio
  • 1.37" dual gap Voice coil
  • Ultra High Density Neodymium magnet motor structure

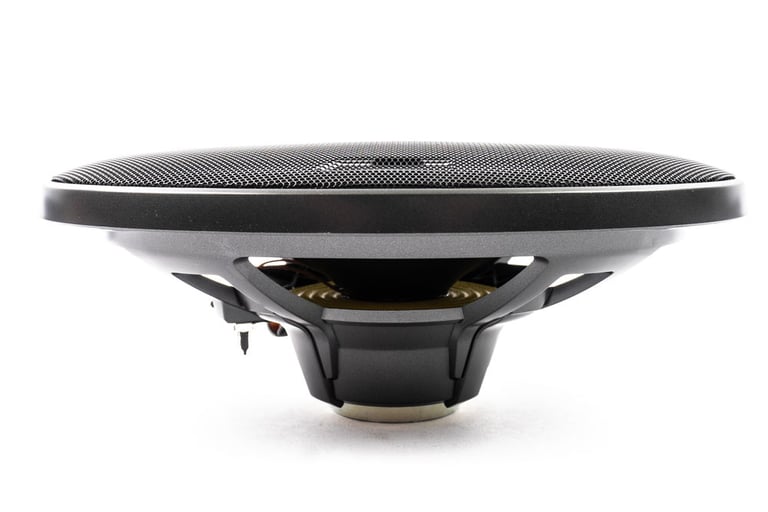

  • Top-mount Depth: 2-15/16"
  • Cutout Dimensions: 5-7/8 x 5-5/8
  • Impedance: 4 ohm
  • Frequency Response: 60 - 40000 Hz
  • Sensitivity: 90 dB

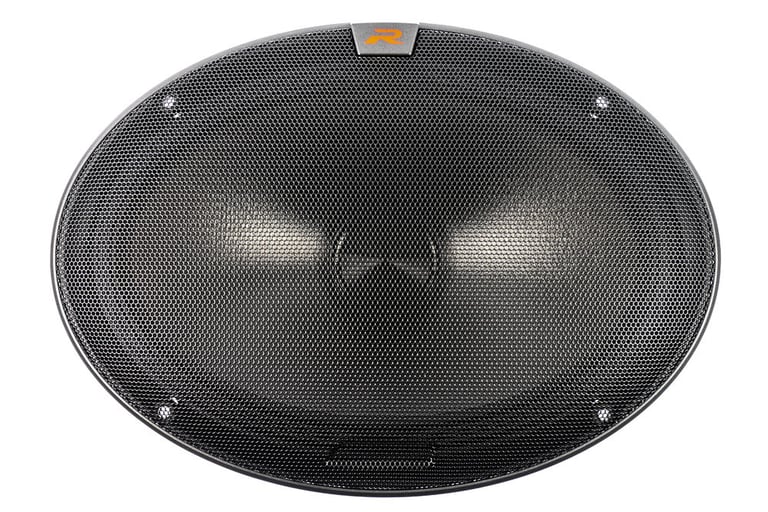

  • Grilles included
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty

  • Priced Per Complete Component System: 2 woofers, 2 tweeters and 2 crossover networks.

Product history:

Alpine R2-S69C thumbnail
(newest, current model)
Alpine R-S69C.2 thumbnail
(previous model, replaced by Alpine R2-S69C)

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

55
RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

NVX Loaded BOOST Box - 2012-2020 Tesla Model S - BE-TSLAS-VCW104

For select 2012-2020 Model S - Single 10" 1000W RMS Loaded BOOST Sealed Enclosure

3
-16.67%

$469.99

List price $563.99

NVX PBK-TSLAS-VCW104 - 2012-2022 Tesla Model S - Complete Bass Package

For select 2012-2020 Model S - 10" 1000W RMS Complete Amplified Subwoofer Bass Package Solution

180
-21.20%

$839.99

List price $1065.96


Best selling similar products

PNW-69CS2 small

AudioControl PNW-69CS2

• 125 watts RMS Each
• 1" rear-dampened Hybrid Silk Dome tweeters
• Rigid Poly Mica cone material
• Impedance: 3 ohm
• Sensitivity: 88.78 dB

(1)

$349.00

List price $369.00

KFC-XP6902C small

Kenwood eXcelon KFC-XP6902C

• 300 watts Peak Each, 100 watts RMS Each
• 6x9" Woofer and 2.75" Midrange
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 84 dB
• Custom fit for select 2002-2024 vehicles from Toyota, Dodge, Chevrolet

(5)

$209.00

List price $320.00

V69C small

Cerwin-Vega V69C

• 480 watts Peak Each, 160 watts RMS Each
• 1" Silk Balanced Dome Tweeters
• Carbon Fiber Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

$279.99

List price $279.99

DMDX69C small

Diamond Audio DMDX69C

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Dome Tweeters
• Treated Paper cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

$279.99

List price $279.99

C1-690 small

JL Audio C1-690

• 60 watts RMS Each
• 1" Silk-Suspended Aluminum Edge Driven Dome tweeters
• Mineral-Filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 91.5 dB

(16)

$189.99

List price $189.99

Specifications & Details


Speaker Specifications
Series
R-Series
Priced Per
Pair
Number of Speakers
2
Speaker Size
6" x 9"
Design
2-way Component System
Tweeter Design
Ring Radiator
Tweeter Size
1"
Tweeter Composition
Carbon Graphite
Woofer Composition
Hybrid Multi Layer
Woofer Surround
High Roll Foam
Peak Power Handling
300 watts
RMS Power Handling
100 watts
Total PEAK Per Pair/Set
600 watts
Total RMS Per Pair/Set
200 watts
Sensitivity
90 dB
Frequency Response
60 - 40000 Hz
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
1.37"
Shallow Mount Installation
Yes
Magnet Type
Neodymium
Top-Mount Depth (Mounting Depth)
2-15/16"
Bottom-Mount Depth
3-3/16"
Cutout Dimensions
5-7/8 x 5-5/8
CTA-2031 Compliant
No
General specifications
Marine Certified
No
Hi-Res Certified
Yes
Color
Black
Speaker Grilles
Yes
What is in the box?
Paperwork
User manual
Warranty/Registration card
Quick start guide

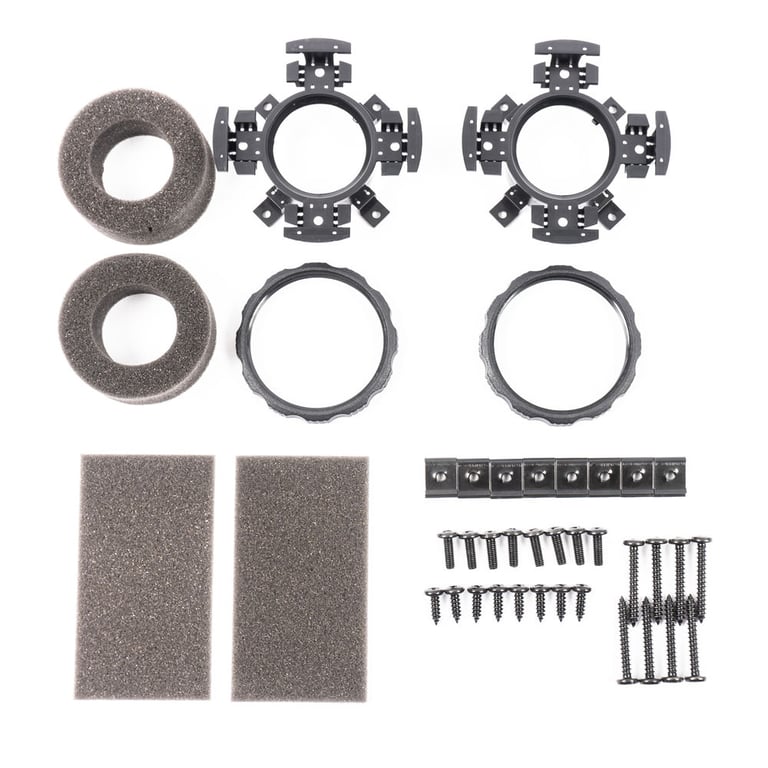

WITB: Speakers
Speakers (2)
Grilles (2, detached)
Tweeters (2)
Tweeter flush mounts (2)

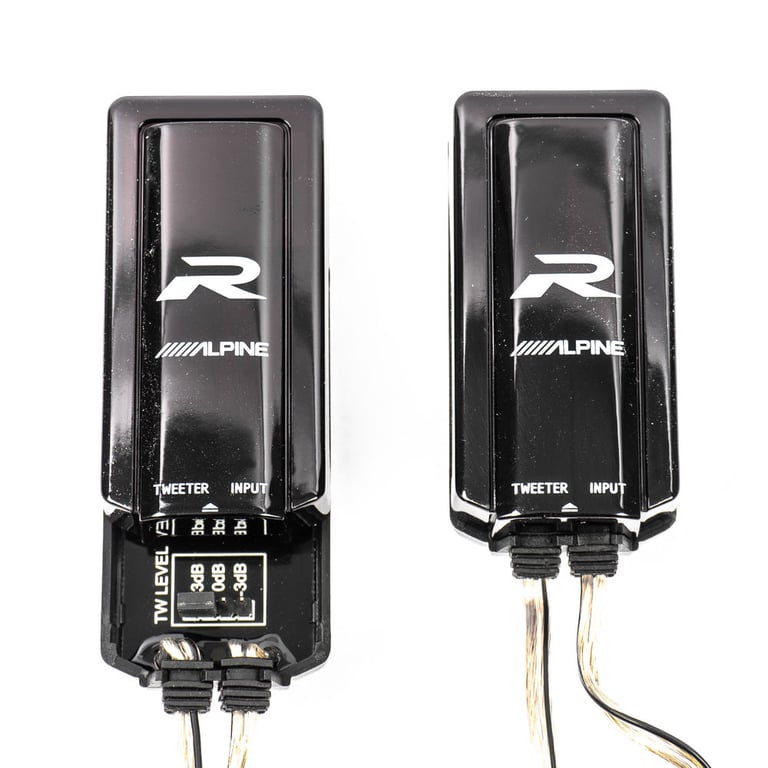

Crossover networks (2)
Mounting screws (8)
Mounting clips (8)
Adhesive brand badges
See below for additional accessories
Other Accessory #1
Four 5" Zip ties
Other Accessory #2
2 Stealth brackets
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

R-S69C.2

Weight:

5.00lbs

Internal SKU:

rs69c2

Internal Product ID:

166807
