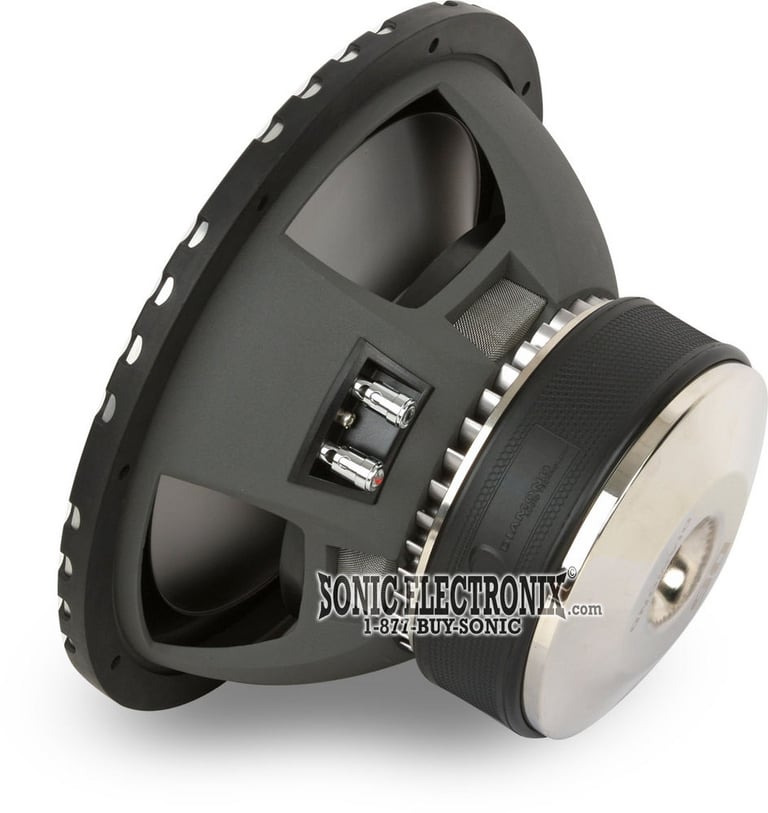

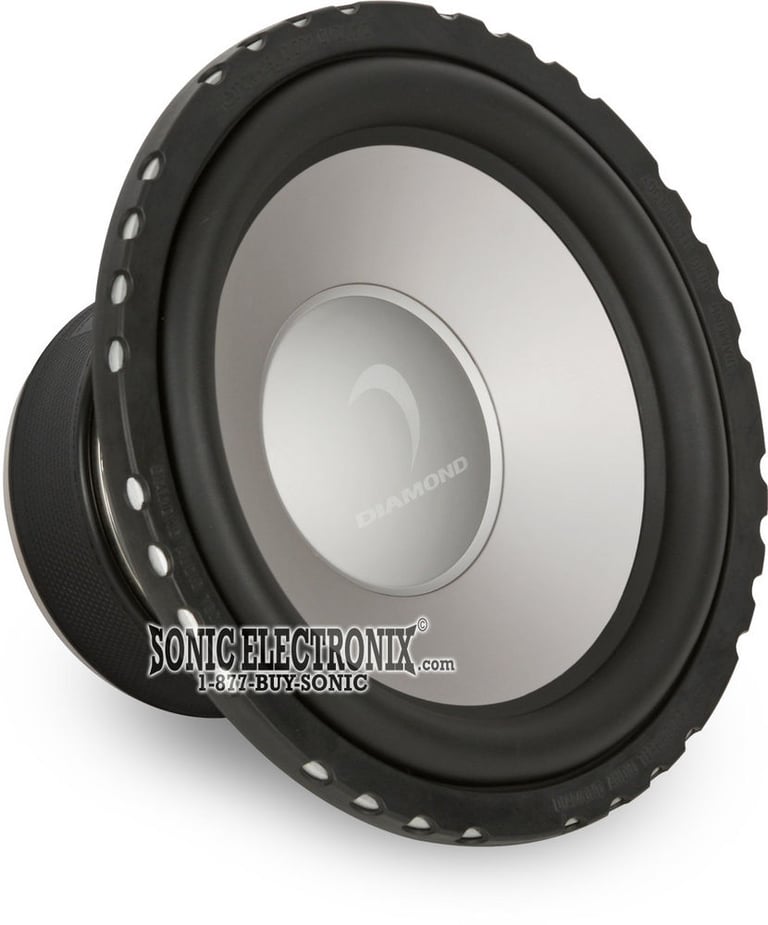

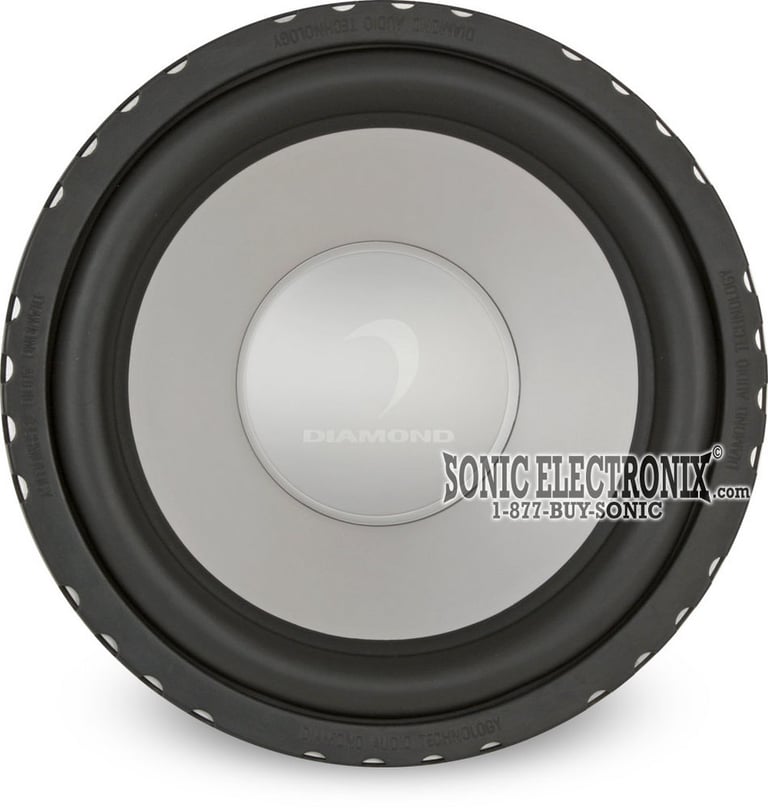

Diamond Audio D612D2 (New 2008-09 Version)

12" Dual 2 ohm D6 2008-09 Series Subwoofer

Diamond Audio
Shop all Diamond Audio
Product videos
highlight-star-icon

12" D6 Series Subwoofer • 1200 watts Peak • 600 watts RMS • Dual 2 Ohm • EPDM Omega Surround • Hard Anodized Alloy Cone • Aluminum Dust Cap • Vented Pole Piece • 3" Extended Voice Coil • Cast Aluminum Basket

Learn more about the 08-d612d2

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

H7683 main

Cerwin Vega H7683

720W Peak (120W RMS) 6x8" HED Series 3-Way Coaxial 4-ohm Speakers

50
-16.67%

$79.99

List price $95.99

Infinity REF-8632CFX (REF8632CFXAM)

360W Peak (120W RMS) 6x8" Reference Series 2 Way Coaxial 3-ohm Speakers

5
-50.02%

$79.95

List price $159.95

Product Highlights


12" D6 Series Subwoofer • 1200 watts Peak • 600 watts RMS • Dual 2 Ohm • EPDM Omega Surround • Hard Anodized Alloy Cone • Aluminum Dust Cap • Vented Pole Piece • 3" Extended Voice Coil • Cast Aluminum Basket

Description


Compromises, we all have to make them. But just because you compromise doesn’t mean you have to settle. The Diamond Audio D6 subwoofers are the perfect example. Whether your listening tastes are as varied as smooth jazz or gangsta rap these woofers will not disappoint you.

Diamond Audio Technologies starts with an industry leading hard-anodized alloy cone that is both extremely rigid and lightweight. They then add an aluminum dust cap to help draw heat away from the voice coil. This improves power handling and reliability. Add in massive motor structures, vented Venturi cooling and large 3” dual voice coils, and you have a subwoofer to be reckoned with.

  • 12" Dual 2 ohm D6 Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Impedance: Dual 2 Ohm
  • Hard anodized alloy cone
  • EPDM Omega surround
  • Cast aluminum basket
  • Dual mirror-image flat spiders
  • Intercooled motor design
  • Vented pole piece
  • Aluminum dust cap
  • Isolated heavy-duty tinsel lead wires
  • 3" Extended voice coil
  • Frequency response: 20-250 Hz
  • Sensitivity: 85.5 dB
  • 1-year SonicElectronix.com warranty

Product history:

Diamond Audio D612D2-2 thumbnail
(newest, current model)
Diamond Audio D612D2 thumbnail
(previous model, replaced by Diamond Audio D612D2 (New 2008-09 Version))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Diamond Audio D612D2 (New 2008-09 Version) Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Diamond Audio D612D2 (New 2008-09 Version) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Diamond Audio D612D2 (New 2008-09 Version) Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Diamond Audio D612D2 (New 2008-09 Version) Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
1200 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Frequency Response
20 - 250 Hz
Sensitivity
85.5 dB
Subwoofer Design
Round / Circle
Main Cone Color
Silver
Woofer Composition
Anodized Alloy
Woofer Surround
EPDM Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
.875 cubic feet
Maximum Sealed Box Volume
.875 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
6-7/8"
Cutout Diameter
11"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

D612D2-2

Weight:

27.00lbs

Internal SKU:

08-d612d2

Internal Product ID:

16693
