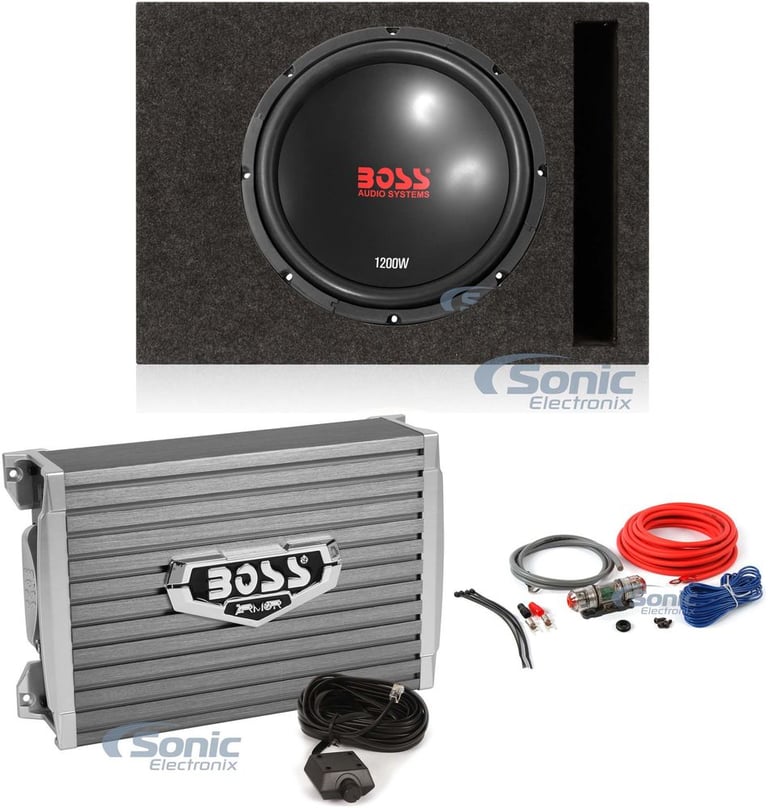

Boss Chaos Exxtreme 12" 1200W 4 Ohm Subwoofer w/ Vented Box, Amplifier & Amp Kit

Boss Chaos Exxtreme 12" 1200W 4 Ohm Subwoofer w/ Vented Box, Amplifier & Amp Kit

Boss
Shop all Boss
highlight-star-icon

• 1200 Watts Max
• 600 Watts RMS
• Polypropylene Cone
• Rubber Surround
• Works in Sealed or Ported Enclosure
• Dual 4 Ohm Impedance
• 2.5" High Temperature Voice Coils

Learn more about the cxx124dvc_1sv12g_ar1500m

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
FD3090B main

Scosche FD3090B Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 1995-2016 vehicles from Ford, Mazda, Lincoln

5
-35.16%

$10.99

List price $16.95

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

28
-17.08%

$199.00

List price $240.00

Pioneer TS-A6881F

700W Peak (160W RMS) 6x8" A-Series 4-way 4-ohm Coaxial Car Speakers

5
-40.01%

$65.99

List price $110.00

Description


Boss brand icon

Authorized dealer

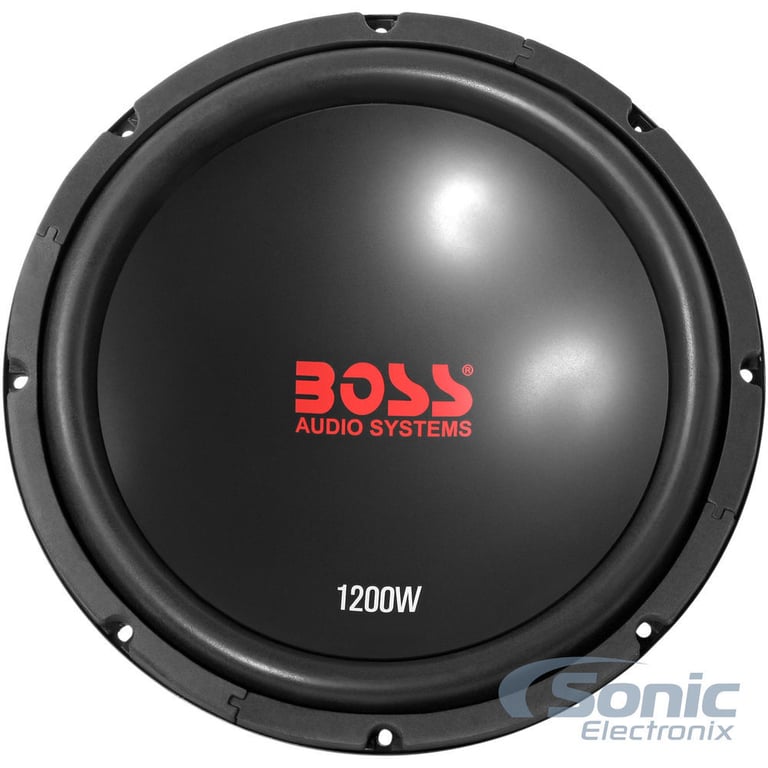

Boss CXX124DVC

1200W Max (600W RMS) 12" Chaos Exxtreme Series Dual 4 Ohm Car Subwoofer
Quantity: 1

General Features:

  • 12" 4 ohm Chaos Exxtreme Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Polypropylene Cone
  • Rubber Surround
  • 2.5" High Temperature Voice Coils
  • Works in Sealed or Ported Enclosure
  • Top-mount depth: 5.12"
  • Cutout diameter: 11.04"
  • Sensitivity: 87 dB
  • Resonance Frequency (Fs): 35 Hz
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

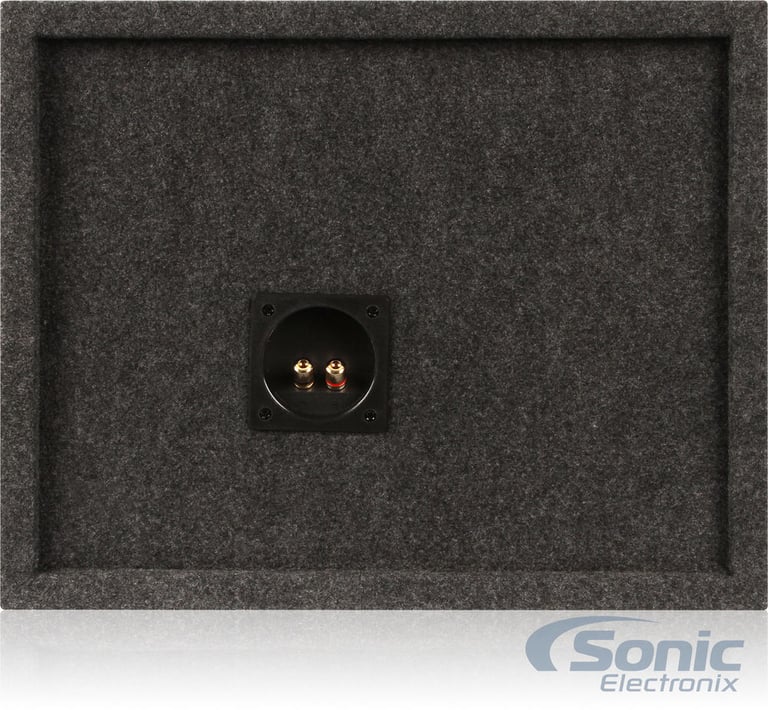

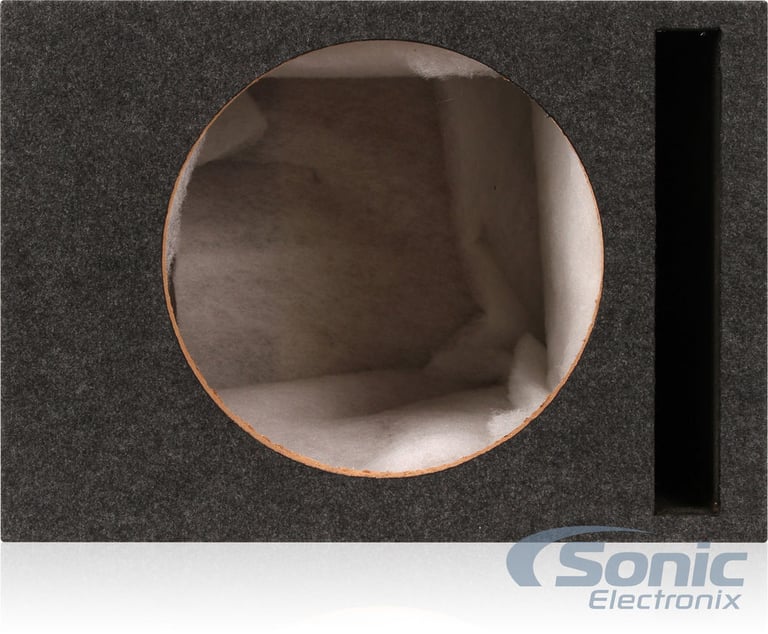

Belva Sub Box 1SV12G (Gray)

Single 12" Vented MDF Enclosure
Quantity: 1

Product Details:

  • Single 12" Vented MDF Enclosure
  • Holds one 12" subwoofer
  • 3/4 MDF (Medium Density Fiberboard) Construction
  • Durable gray carpeting
  • Gold Terminals
  • Tuning Frequency: 36Hz
  • Internal Box Volume: 1.8 cubic ft.
  • Dimensions: 13-5/8"H x 17"D x 19-1/4"W
  • 30 Day return policy

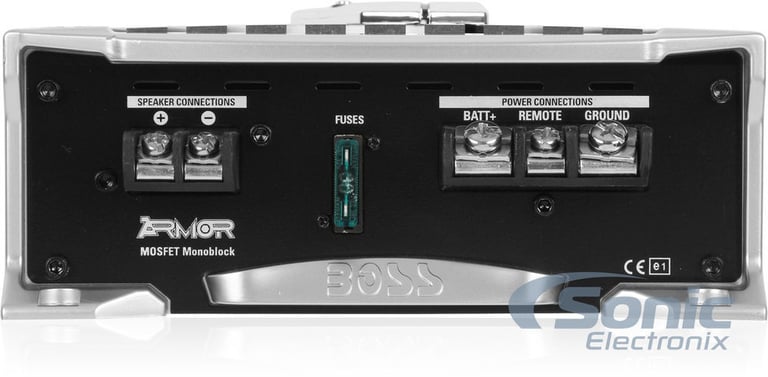

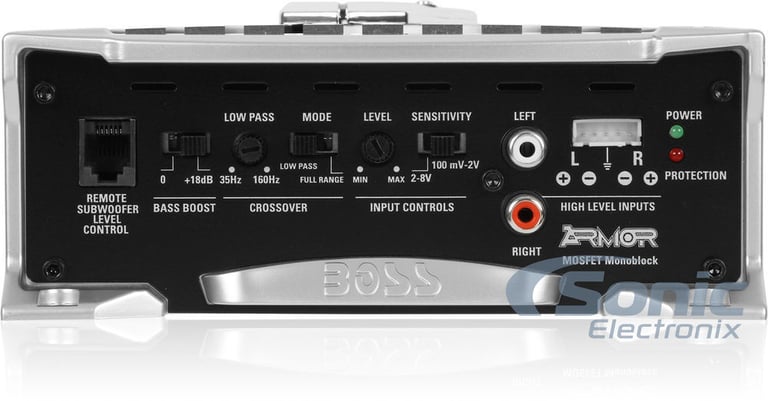

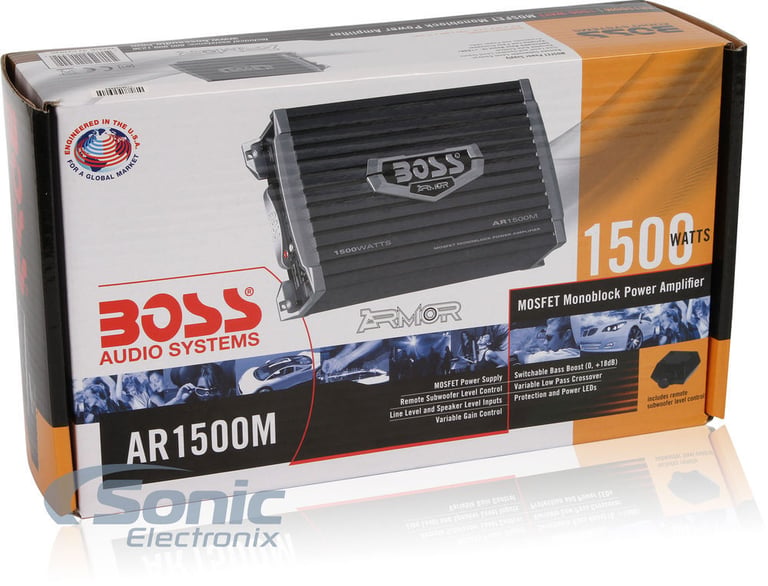

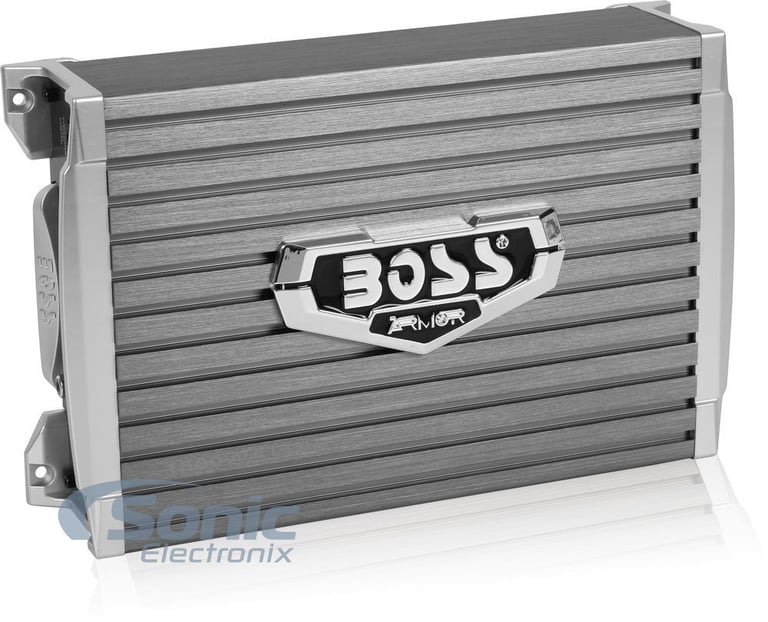

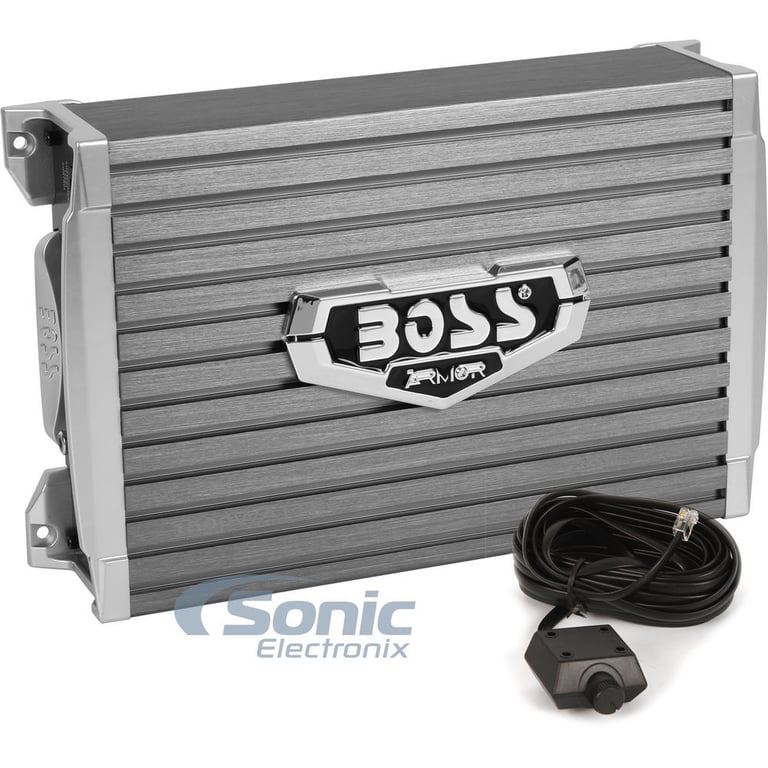

Boss AR1500M

1500W Peak (1125W RMS) Armor Series Class-AB Monoblock Amplifier with Bass Remote
Quantity: 1

Product Details:

  • Armor Series Class A/B 2 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 563 watts x 1 channel
    • 2 ohm: 1125 watts x 1 channel
  • Peak Power Rating:
    • 4 ohm: 750 watts x 1 channel
    • 2 ohm: 1500 watts x 1 channel
  • Total RMS power output: 1125 watts
  • LED Power/Protect Light

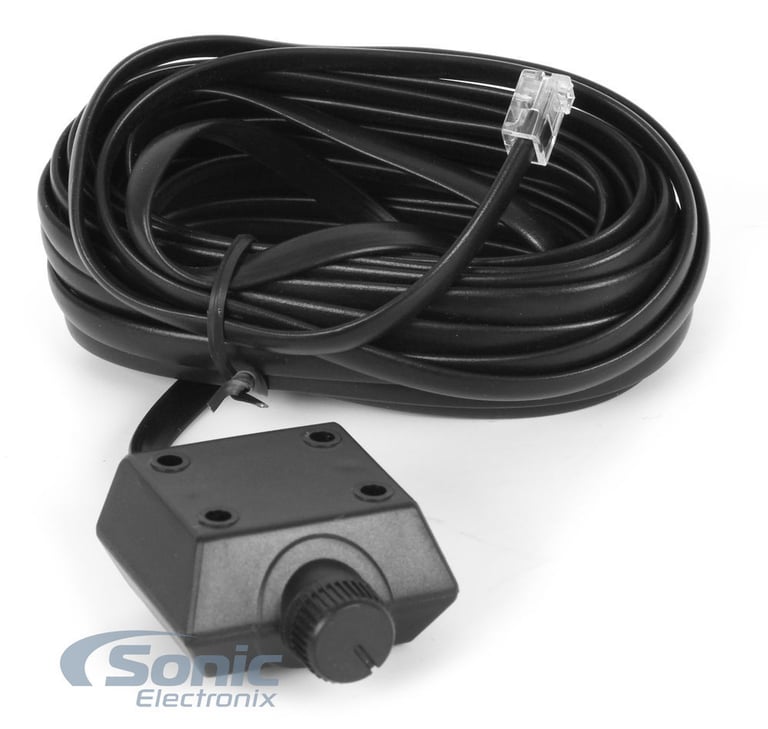

  • Wired bass level remote control included
  • Soft turn-on circuit
  • MOSFET PWM power supply
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Nickel plated RCA low level and high level inputs
  • Gun metal gray anodized heatsink
  • Frequency Response: 9 - 50000 Hz
  • Total Harmonic Distortion (THD): .01%
  • Signal to Noise Ratio: >105 dB
  • Variable low-pass filter: 50 - 250 Hz
  • Variable Bass Boost: 0 - 18 dB
  • Fuse Rating: 30A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 10.31" L x 6.5" W x 2.8" H
  • Authorized Internet Dealer
  • 6 Year Manufacturer's Warranty
  • MFR #: AR1500M

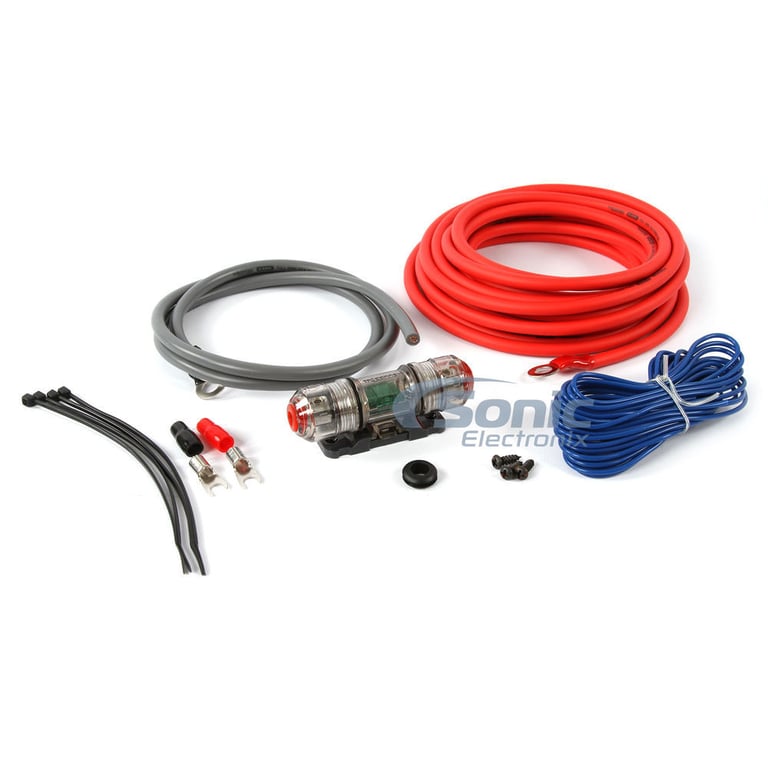

Belva BAK82

8 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 600 Watts - RED
Quantity: 1

Product Details:

  • 8 Gauge 2-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 600 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

  1. 17 ft. Red 8 gauge power wire
  2. 3 ft. Black 8 gauge ground wire
  3. 17 ft. Gray 18 gauge remote lead wire
  4. 20 ft. 16 gauge speaker wire
  5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable
  6. One Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 8 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Boss Chaos Exxtreme 12" 1200W 4 Ohm Subwoofer w/ Vented Box, Amplifier & Amp Kit Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Boss Chaos Exxtreme 12" 1200W 4 Ohm Subwoofer w/ Vented Box, Amplifier & Amp Kit Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Boss Chaos Exxtreme 12" 1200W 4 Ohm Subwoofer w/ Vented Box, Amplifier & Amp Kit Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Boss Chaos Exxtreme 12" 1200W 4 Ohm Subwoofer w/ Vented Box, Amplifier & Amp Kit Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Lowest price in 30 days
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-28.32%

$389.88

List price $543.88

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
Chaos EXXtreme Series
Subwoofer Size
12"
Peak Power Handling
1200 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Sensitivity
85 dB
Xmax (millimeters)
10 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Santoprene Rubber
Subwoofer Grille
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.15 cubic feet
Optimum Ported Box Volume
1.8 cubic feet
Top-Mount Depth (Mounting Depth)
5-1/2"
Cutout Diameter
11.04"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Equivalent Compliance (Vas)
62.5 liters
Total Speaker Q Value (Qts)
0.498
Electrical Q Value (Qes)
0.586
Mechanical Q Value (Qms)
3.317
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BAK82,AR1500M,1SV12G,CXX124DVC

Weight:

46.82lbs

Internal SKU:

cxx124dvc_1sv12g_ar1500m

Internal Product ID:

168419

Customer Ratings & Reviews


Boss Chaos Exxtreme 12

5 star
68%
4 star
21%
3 star
7%
2 star
2%
1 star
1%



Durability
4.6
Value
4.7
Features
4.5
Design
4.6
Usability
4.7

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

BAK 82

The following review is for BAK82, which is a part of the bundle you are viewing.

Nice package, quality wire but could more end connectors for the larger wire.

By Sam on June 19, 2014

203 found this helpful


Good product

The following review is for BAK82, which is a part of the bundle you are viewing.

It's exactly what you need for your car amp installation. I bought this kit with Kenwood KAC-1502S amp for 75 bucks. Good deal from Sonic Electronix.

By Collins on January 6, 2014

185 found this helpful


Great kit for the cost

The following review is for BAK82, which is a part of the bundle you are viewing.

Very nice kit for $18.
Wire seems adequately thick. Good quality fuse (not AGU) and fuse holder. RCA's feel durable. Decent assortment of accessories. All together a solid budget kit IMO.

By n2audio on September 24, 2014

185 found this helpful


Don't know what the other guy is talking about.

The following review is for BAK82, which is a part of the bundle you are viewing.

This kit was awesome and included with my package that I bought. In comparison to others for the same price, there is simply not a comparison and the other review is just wrong on so many levels I felt compelled to write this.

The reality is there are a lot of real shoddy amp kits and wire as a whole being used in car audio in terms of cheap amp kits that have over-insulating wires and fake gauge ratings, huge amounts of aluminum, lousy RCA cables, fuse holders and other accessories. BUT and a BIG BUT, this kit excels in those areas where others fall flat on their face. I have bought a few inexpensive 8 gauge kits in my day and XScorpion, Raptor, Install Bay and others haven't even given me the 8 gauge of wire that I paid for, and in some cases gave me wire that heated up to a dangerous level due to the actual make up of the wire.

I also literally laughed when I see that the other reviewer was intending to use spade terminals to connect his amp power and ground wire... It is for the SPEAKER wire knucklehead :-). I am an installer and the smaller accessories work just fine when you use them correctly. Most amps will still work with them when used with the speaker wire. Of course one can be used for the remote wire connection to the amp and the other end with the butt connector being used to connect to the stereo. The funny thing is, if you do not need them, who cares? It is like ordering this kit for a compact car or single cab pickup. You will not use all of the power wire for these applications, so do you complain that the manufacturer gave you extra wire? That just made me laugh.

Now, onto the other accessories. The AFS fuse and holder that are included are so far superior to others in this price range and the amount of copper (albeit CCA) is much better than others in the price range. Lastly, the RCAs included are awesome for the price. I cannot find ANYTHING to complain about here for $21.99.

All in all, you will not get a better value for the money.

By Double Down on August 14, 2012

180 found this helpful


Good product for the price

The following review is for BAK82, which is a part of the bundle you are viewing.

Good wiring package, good quality fuse holder and wires, I would like more connectors on it and maybe some tube for the power wire, but overall is a good kit.

By Alfredo on October 29, 2014

175 found this helpful


Good Purchase

The following review is for BAK82, which is a part of the bundle you are viewing.

I used this kit to install a 2 channel Boss amp. The quality of the pieces in this kit is five stars, but I'm giving it 4 because it is my belief that to do a clean install you need (4) 8 gauge terminals (one at the batt, one at the amp, one at ground, one at the amp), not just two. I had to spend an extra six bucks at Orchard for the extra terminals, but since the cost of the kit here at Sonic was only $20 at the time, it was still a good deal.

By Jumbo Dumbo on December 19, 2013

167 found this helpful


Good kit

The following review is for BAK82, which is a part of the bundle you are viewing.

Good kit for basic setups. Using it right now in my mothers system powering a simple 12. Could handle more if needed.

Pros: Handles power, Wires are HQ, More copper than rubber, Wires are good length, Fuse is HQ, Comes with lots of ties and rubbers.

Cons: None

I would recommend this kit to anyone who has a simple system. All around good kit.

By Mitch on January 31, 2014

174 found this helpful


Great wiring kit

The following review is for BAK82, which is a part of the bundle you are viewing.

works great on my MB Quart 2x100 watt amp.

By Eric on November 29, 2013

166 found this helpful


Good Kit

The following review is for BAK82, which is a part of the bundle you are viewing.

Great kit for the price. the price is good. Long wires.

By Joshua on December 8, 2013

162 found this helpful


Belva BAK82

The following review is for BAK82, which is a part of the bundle you are viewing.

Worked very well for the money, great value for my system! Only thing that kept me from giving this 5 stars across the board is the design of the fuse holder and how you have to change/connect the fuse, minimal complaint.

By Dwight on April 9, 2014

151 found this helpful



Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1998 Mazda B3000

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
