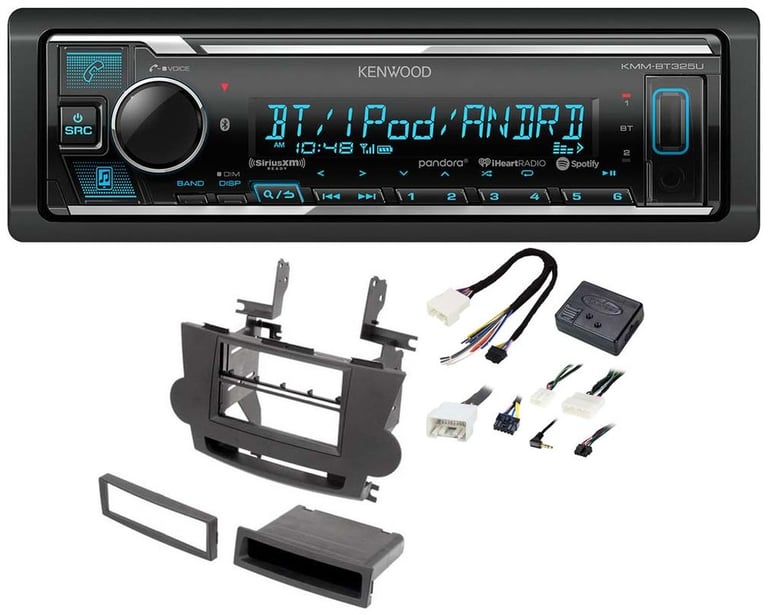

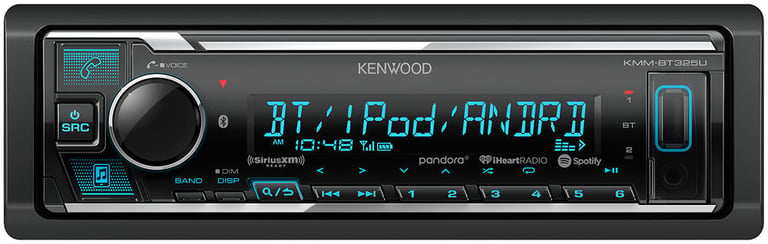

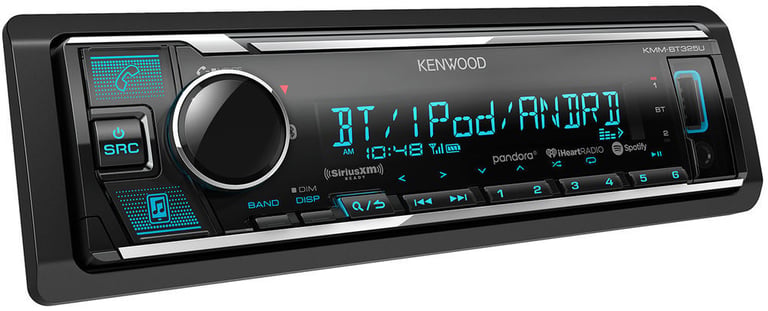

Kenwood KMM-BT325U Media Player Car Radio Install Mount Kit Bluetooth Pandora

Kenwood KMM-BT325U Media Player Car Radio Install Mount Kit Bluetooth Pandora

Kenwood
Shop all Kenwood
highlight-star-icon

• 50W x 4 Chan. Max • 22W x 4 Chan. RMS
• 3 Sets of 2.5V Preamp Outputs
• 13-Band Graphic EQ
• Bluetooth Calling and Music Streaming
• Full-Time Dual Phone Connection

Learn more about the kmmbt325u_toyk989_axtyamp1

We apologize

This item has been discontinued

Description


Kenwood

Authorized dealer

Kenwood KMM-BT525HD

Single DIN Bluetooth In-Dash Digital Media Car Stereo Receiver w/ HD Radio, SiriusXM Ready
Quantity: 1
























Product Details:

  • Kenwood KMM-BT522HD In-Dash Receiver
  • Power Handling:

    • Peak: 50 watts x 4 channels
    • RMS: 22 watts x 4 channels
  • Theft-deterrent, detachable face plate: Optional Receiver Faceplate Case Available
  • CD text information display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • AM/FM tuner with 18FM/6AM presets
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Playback and Audio Features:

  • MP3/WMA/AAC/WAV/FLAC Playback via USB
  • 13-band graphic equalizer
  • 3.5mm Front Audio Auxiliary Input
  • Front USB Input
  • 3 Sets of 4V preamp outputs (front, rear and subwoofer)

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Bluetooth version 3.0
  • Bluetooth Profiles Supported:
    • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
    • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
    • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
    • SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
  • Works with most Bluetooth enabled cell phones
  • Maximum communication rage: 32.8 feet (approx, line of sight)

Expandability Options:

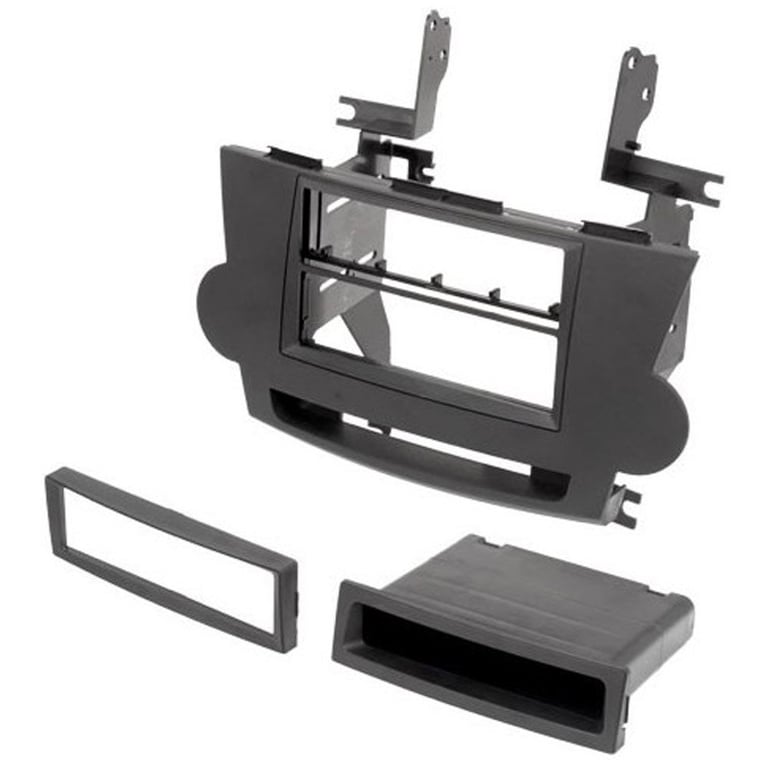

American International ToyK989 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2008-2012 Toyota Highlander (Black)
Quantity: 1

Product Features:

  • Allows for installation of an aftermarket Single-Din or Double-Din car stereo
  • Compatible with select 2008-2012 Toyota Highlander
  • Made from the highest quality ABS plastic for an original factory-like fit and finish
  • Includes brackets and hardware parts needed with detailed installation instructions
  • Painted scratch-resistant black
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty

Kit Includes:

  1. Radio housing
  2. Double-DIN trim ring
  3. 2 Spacers
  4. Pocket
  5. 4 Large screws
  6. 4 Medium screws
  7. 3 Small screws
  8. Step by step instructions

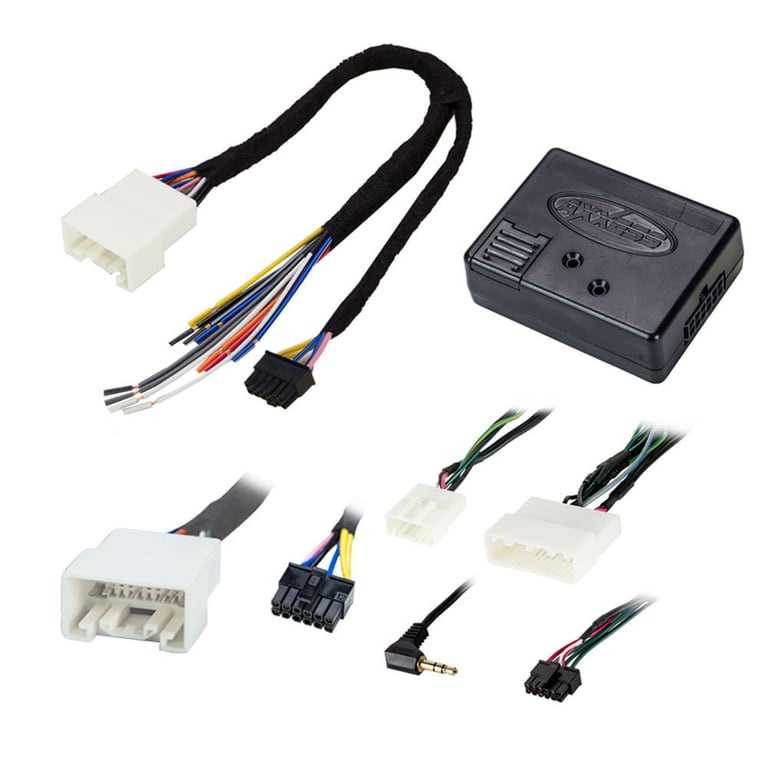

Axxess AX-TYAMP1 Wiring Interface

Install new car stereo and retain accessory power in select 2001-2015 vehicles from Toyota, Lexus
Quantity: 1

Product Features:

  • Compatible with select 2001-2015 vehicles from Toyota, Lexus
  • Designed to install a new aftermarket car stereo
  • Provides accessory power (12-volt 10-amp)
  • Retains R.A.P. (retained accessory power)
  • Provides NAV outputs (parking brake, reverse, and V.S.S)
  • Retains the factory AUX-IN jack
  • For amplified models
  • Retains balance and fade
  • Micro-B USB updatable
  • Pre-Wired for ASWC-1 (Sold separately)
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

* These models require the ASWC-TOY-LEX (sold separately) instead of the ASWC-1 (sold separately) to retain steering wheel controls. The ASWC-1/AUX-IN harness will not be used in these applications.

* Steering wheel controls cannot be retained in this application.



Product history:

Kenwood AX-TYAMP1,ToyK989,KMM-BT525HD thumbnail
(newest, current model)
Kenwood KMM-BT322U thumbnail
(previous model, replaced by Kenwood KMM-BT325U Media Player Car Radio Install Mount Kit Bluetooth Pandora)

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Single DIN
Peak Power Output
50 watts x 4 channel
RMS Power Output
22 watts x 4 channel

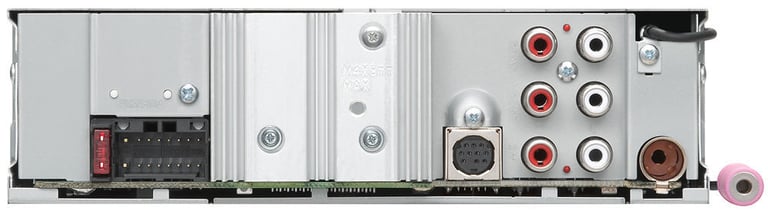

Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
2.5 volts
Built-In Equalizer
13-Band Graphic Equalizer
Display Type
LCD Text Display
Expandability Features
Inputs
Auxiliary (Front)
Auxiliary (Rear)
USB (Front)
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
6
What is in the box?
Paperwork
User manual
Warranty/Registration card
Product and accessories
In-dash receiver
Detachable face (attached)
Wiring harness with all connections
Mounting sleeve (attached)
Trim ring (attached)
Microphone with attached cable
Radio removal tools
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AX-TYAMP1,ToyK989,KMM-BT525HD

Weight:

6.40lbs

Internal SKU:

kmmbt325u_toyk989_axtyamp1

Internal Product ID:

170201
