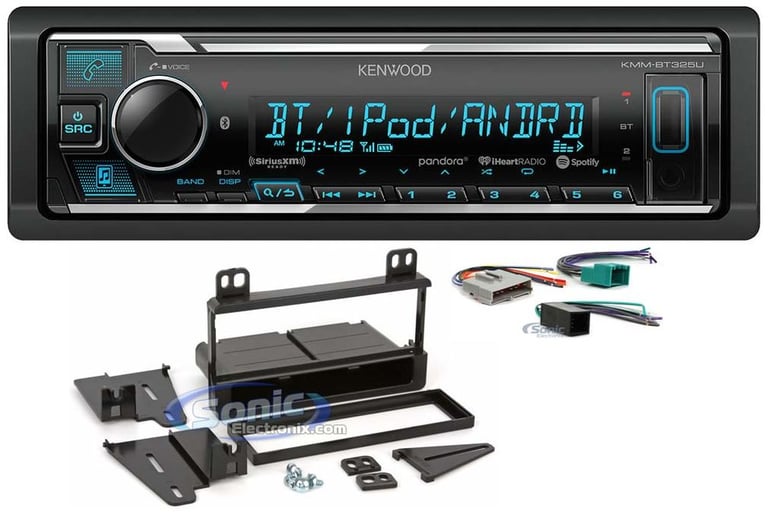

Kenwood KMM-BT325U Media Player Car Radio Install Mount Kit Bluetooth Pandora

Product Details:

• Kenwood KMM-BT522HD In-Dash Receiver

Power Handling:

• Peak: 50 watts x 4 channels
• RMS: 22 watts x 4 channels
• Theft-deterrent, detachable face plate: Optional Receiver Faceplate Case Available
• CD text information display
• MP3 ID3 Tag Display (Title/Artist/Album)
• AM/FM tuner with 18FM/6AM presets
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Playback and Audio Features:

• MP3/WMA/AAC/WAV/FLAC Playback via USB
• 13-band graphic equalizer
• 3.5mm Front Audio Auxiliary Input
• Front USB Input

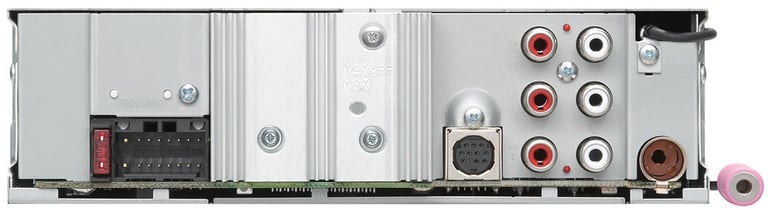

• 3 Sets of 4V preamp outputs (front, rear and subwoofer)

Bluetooth Features:

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Bluetooth version 3.0
• Bluetooth Profiles Supported:
• HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
• PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
• A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
• AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
• SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
• Works with most Bluetooth enabled cell phones
• Maximum communication rage: 32.8 feet (approx, line of sight)

Expandability Options:

• SiriusXM Satellite Radio Ready: SiriusXM SXV300v1 and subscription required, sold separately
• HD Radio Built-in
• Steering Wheel Control Ready: PAC ControlPRO or the Axxess ASWC-1 required and sold separately

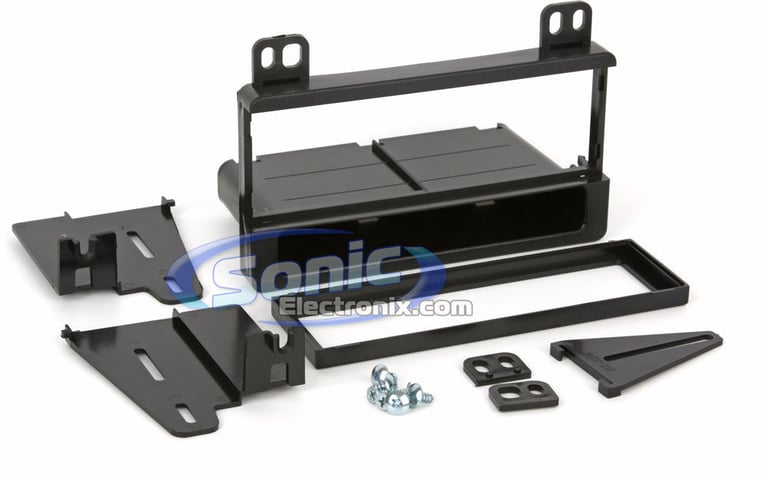

Product Features:

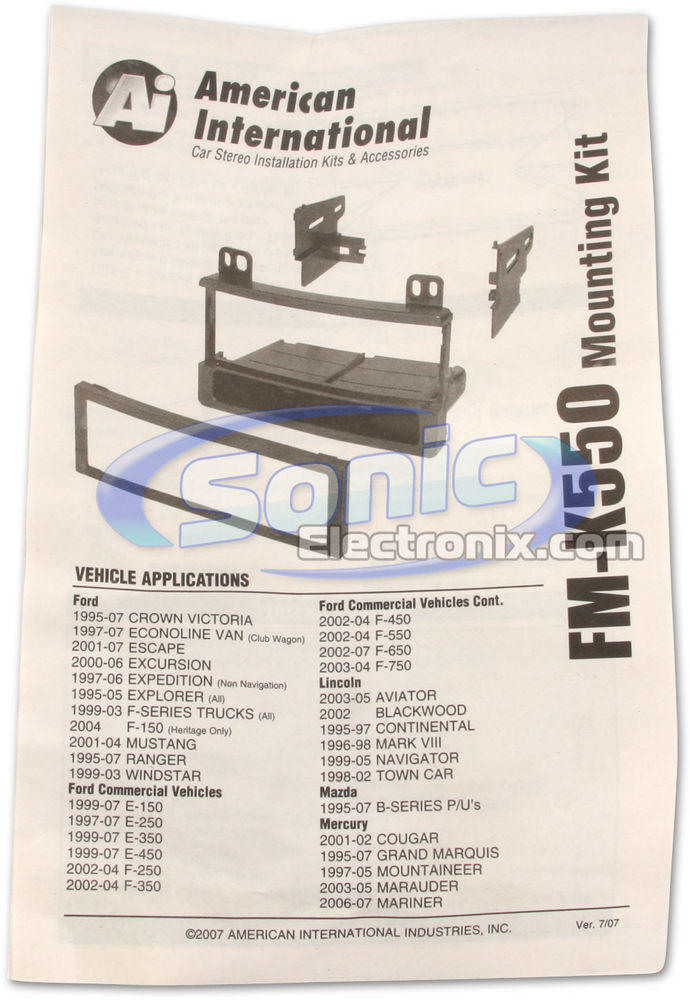

• Compatible with select 1995-2011 vehicles from Ford, Mazda, Mercury
• Install dash kit for Single DIN/ISO Radios
• Includes a storage pocket below the radio
• Designed and manufactured with precision tolerances, resulting in a gapless fit between the dash and the kit
• Painted to match factory dash color
• High-grade ABS plastic construction
• Factory style texture
• Kit Includes:
1. Radio Housing
2. Radio Housing Trim Plate
3. Radio Housing Brackets
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

Metra Equivalent: Metra 99-5802

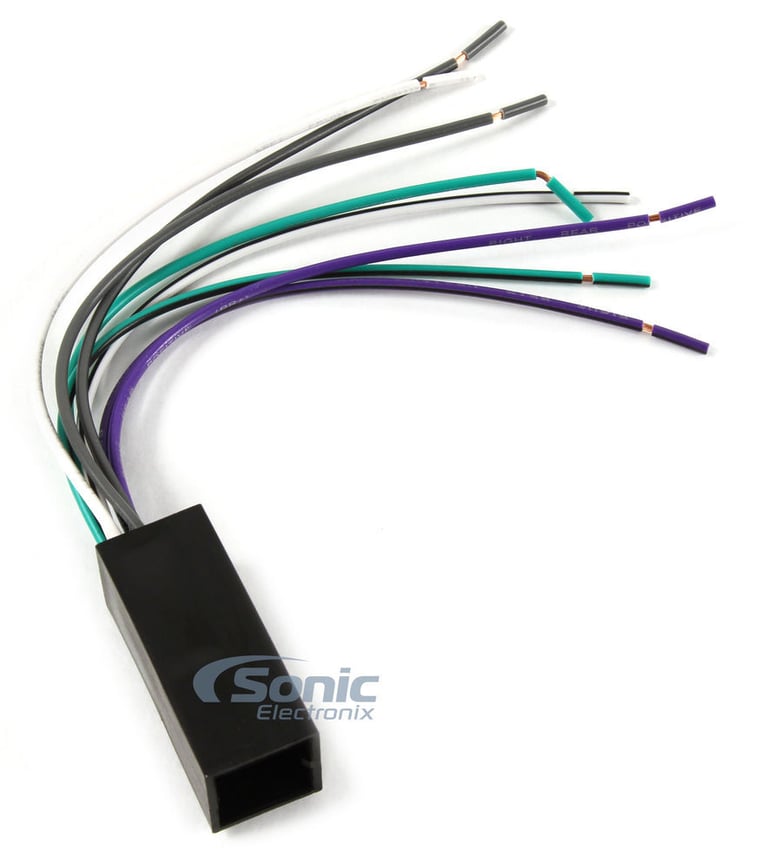

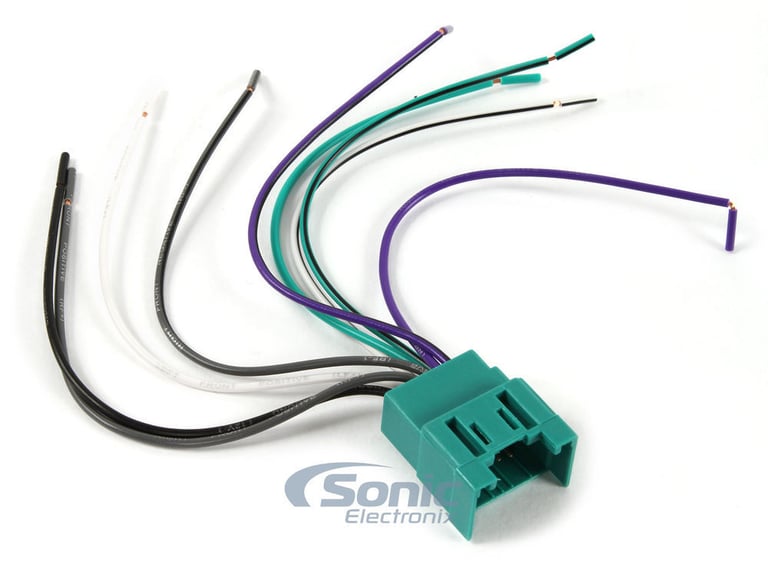

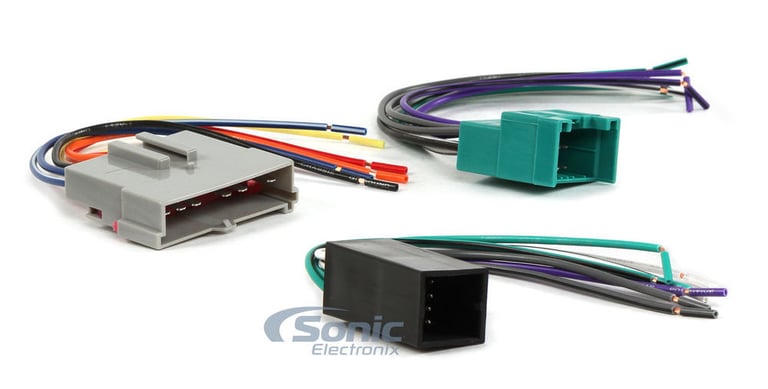

Product Features:

• Wire harness to Install a new car stereo in Compatible with select 1995-1998 vehicles from Ford, Mercury, Lincoln
• Plugs into the cars original factory radio connectors
• Color-coded wires for easy installation to the aftermarket radio
• No wire cutting needed for factory radio connectors
• 1-year Manufacturer's Warranty

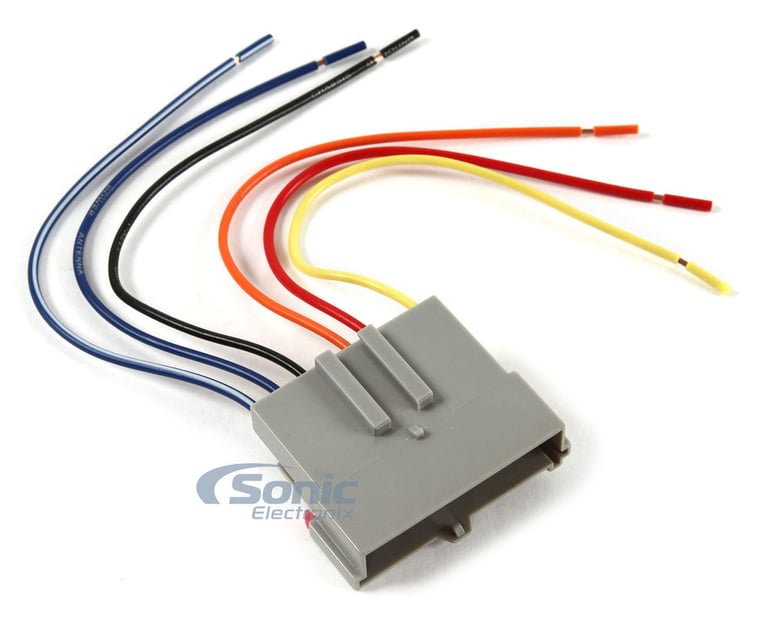

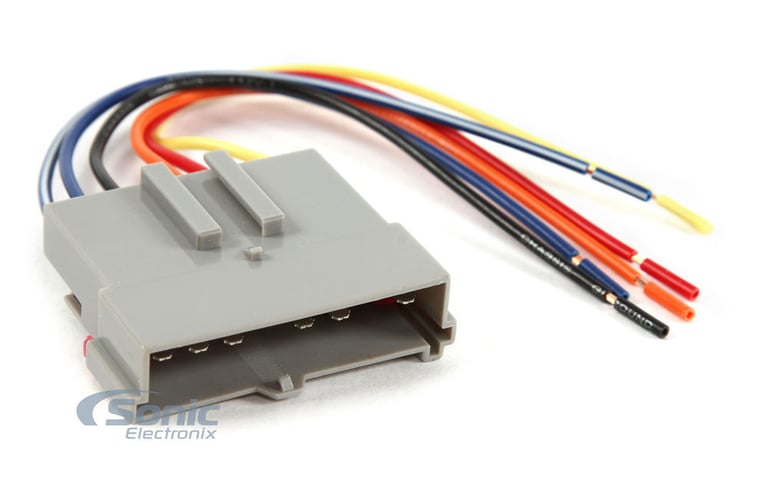

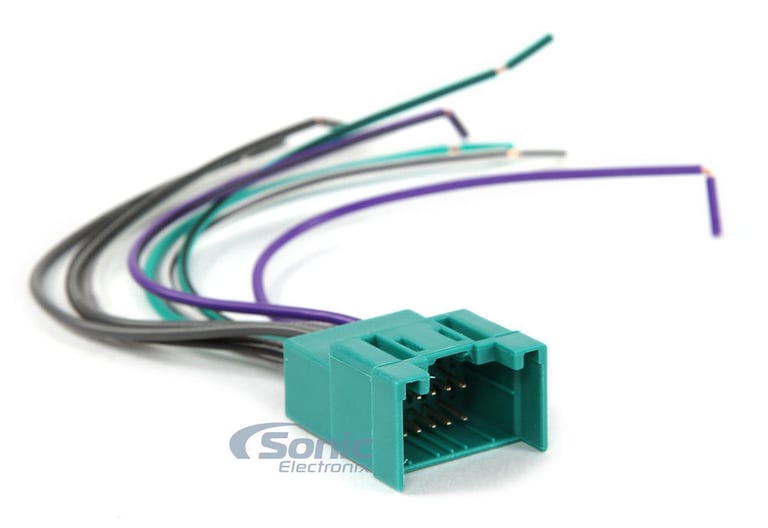

Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)
