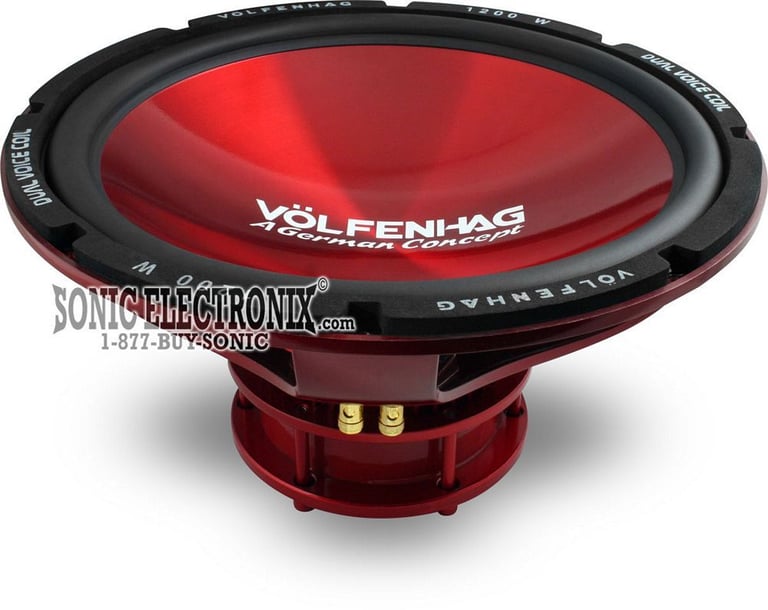

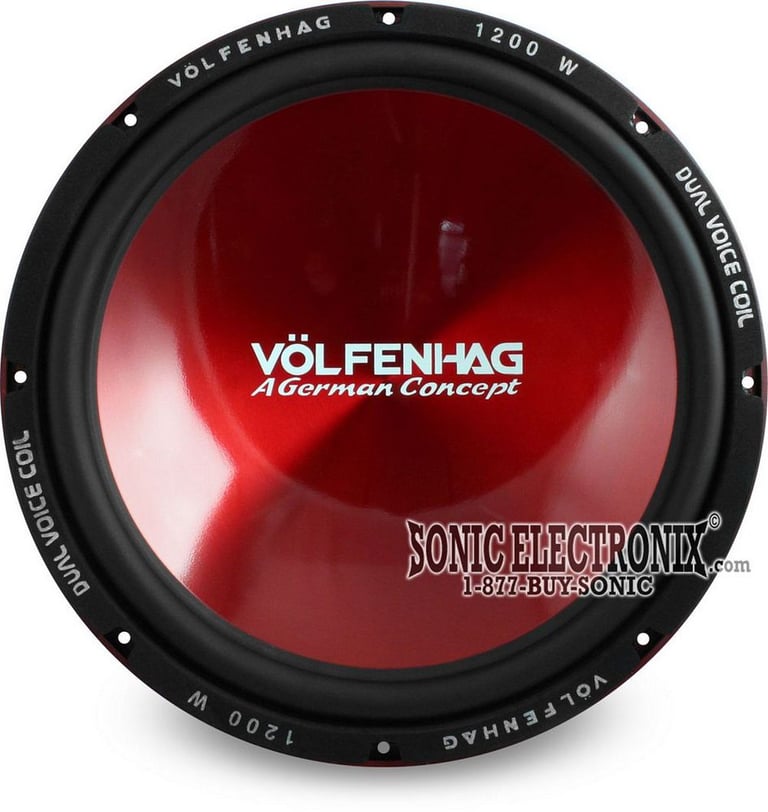

Volfenhag ZX-4715DVX

15" Dual 4 ohms Competition Subwooofer

Product videos
highlight-star-icon

1200W 15" Dual Voice Coil Competition Subwoofer

Learn more about the zx4715dvx

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

zx4725 thumbnail

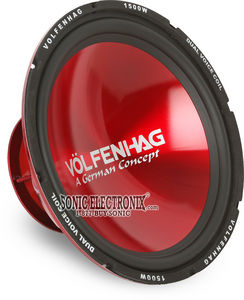

Volfenhag ZX4725 (ZX-4725)

OUR PRICE: $69.99

View item

Loading...
70-7903 main

Metra 70-7903 Wiring Harness

Install a new car stereo in select 2001-2021 vehicles from Mazda, Fiat

18
REF687F main

Infinity REF687F (INFSPKRF687FUS)

360W Peak (120W RMS) 6x8" Reference Series 2-Way Coaxial 3-ohm Speakers

1
-18.76%

$129.95

List price $159.95

Product Highlights


1200W 15" Dual Voice Coil Competition Subwoofer

Description


Volfenhag brand icon

Authorized dealer

Ready to crush the competition with a subwoofer with extreme power? Well then, the Volfenhag ZX4715DVX subwoofers are for you! The quality industrial engineered design and structure give these drivers the ability to take very large amounts of power hour after hour while delivering ultra clean sound and little distortion. The German concept didn't stop with specifications only as they also have a very sexy red appearance to add to the fantastic overall impression.
  • Magnet: 160 oz. Double stacked Ferrite magnets
  • Dual 4 ohm voice coils

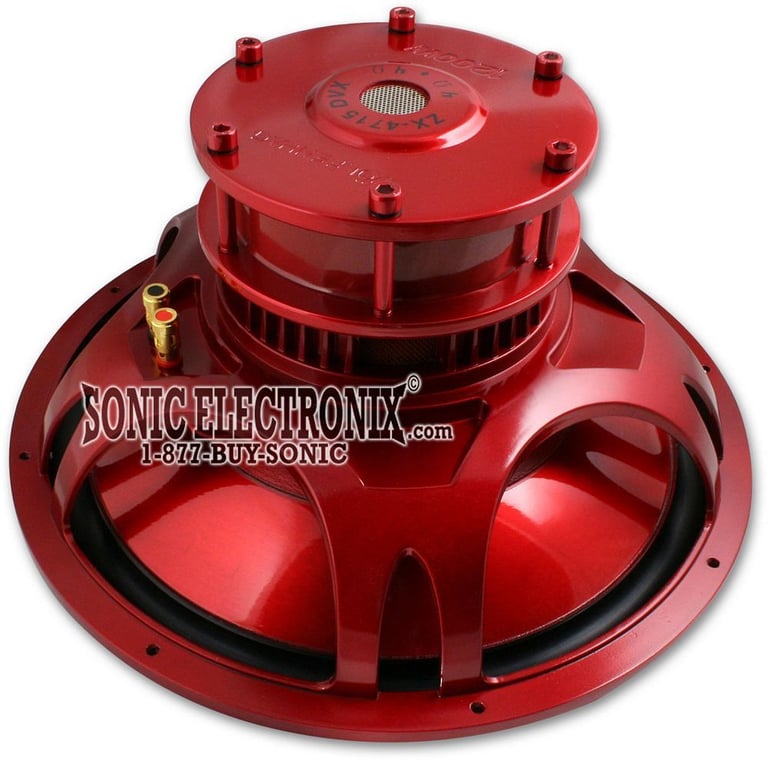

  • Frame: 5 spoke Die-cast aluminum basket
  • Cone: Reinforced aluminum curvilinear
  • Surround: Oversized Buytl Rubber
  • Spider: 2 Flat ultra excursion
  • Program (conservative)
  • T Yoke: Industrial Chromed Hex bolt retained,
  • Bumped and Vented
  • Double damper magnetic motor assembly
  • Cooling: Double Vented (T Yoke and Motor Side vents)
  • Voice Coils: 4 Layer Dual 4 Ohm High Temperature black Aluminum
  • 2/4/8 Ohm Operation (Parallel/Normal/Series)
  • Voice Coil Diameter: 2.6"
  • DC resistance (Re): 3.2 ohm each coil
  • Frequency Response: 20 Hz-75,000 Hz
  • Fs: 29 Hz
  • QTS: .67
  • QES: .80
  • QMS: 3.97
  • VAS: 4.6. cu. ft.
  • SD:.0491M
  • SPL:90 dB 1W/1m
  • Xmax:16mm

Product history:

Volfenhag ZX4725 thumbnail
(newest, current model)
Volfenhag ZX-4715DVX thumbnail
(previous model, replaced by Volfenhag ZX4725 (ZX-4725))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Volfenhag ZX-4715DVX Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Volfenhag ZX-4715DVX Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Volfenhag ZX-4715DVX Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Volfenhag ZX-4715DVX Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp
