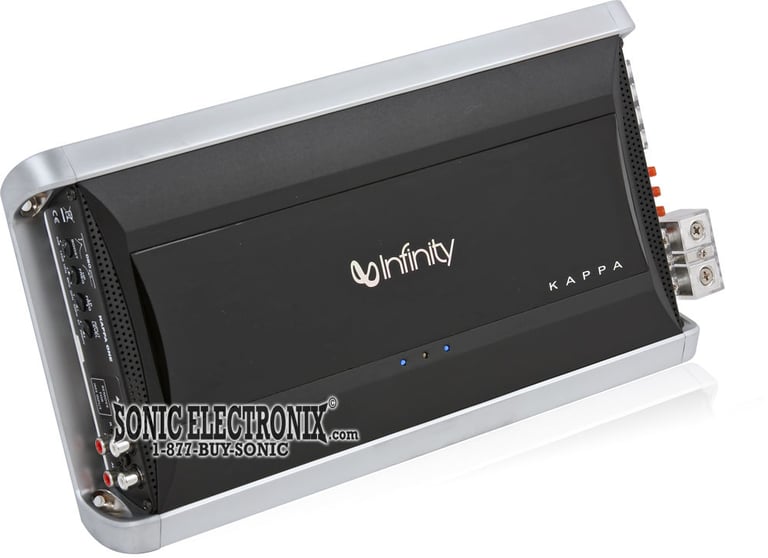

Infinity KAPPA ONE (Open Box, Good)

1600W Max, Kappa Series Class D Mono Subwoofer Amplifier

Infinity
Shop all Infinity
Product videos
highlight-star-icon

• RMS: 500 x 1 @ 4 ohm, 800W x 1 @ 2 ohm
• Total Peak Power: 1600W
• CEA-2006 Compliant
• Bass Boost: 0 - 12 dB
• Non-Stop Thermal Protection
• Dimensions: 13"L x 7-1/16W x 1-3/4H

Learn more about the ls-kappaone-u7

We apologize

This item has been discontinued

Product Highlights


• RMS: 500 x 1 @ 4 ohm, 800W x 1 @ 2 ohm
• Total Peak Power: 1600W
• CEA-2006 Compliant
• Bass Boost: 0 - 12 dB
• Non-Stop Thermal Protection
• Dimensions: 13"L x 7-1/16W x 1-3/4H

Description


Infinity brand icon

Authorized dealer

Item Condition - Open Box, Good:

This product is used, but it will work like new and is in overall good condition. It will show signs of wear that can include scuffing, scratches, fingerprints, dents, and worn corners or installation marks. May be missing non-essential parts, accessories or original packaging.

The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.


  • Kappa Series Class D Mono Subwoofer Amplifier
  • RMS Power Rating:
    • 4 ohm: 500 watts x 1 chan.
    • 2 ohm: 800 watts x 1 chan.
  • Max power output: 1600 watts
  • MOSFET power supply
  • 3 LED indicators (2 power, 1 protect)
  • Bass Boost (0-12 dB)
  • DirectFET transistors increase power output and overall efficiency
  • Non-Stop Thermal Protection (The amplifier will gradually reduce output to cool the amplifier down instead of shutting it off if it overheats)
  • Dynamic Bass Optimization (DBO): Fine-tune the bass in your system to optimize performance. The frequency control also acts as a subsonic filter
  • Protection Circuitry (DC output, over/under voltage, short circuit)
  • Heavy duty aluminum alloy heatsink for supreme heat dissipation
  • Preamp RCA outputs
  • 1 Channel operation
  • RCA level inputs
  • Screw terminals
  • Variable high-pass filter (10-80 Hz, 12 dB/octave)
  • Variable low-pass filter (32-320 Hz, 12 dB/octave)
  • Subsonic Filter (24 dB at 15 Hz)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-320 Hz
  • Dimensions: 13"L x 7-1/16W x 1-3/4H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 3-year Manufacturer's warranty

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
500 watts x 1 channel
RMS Power @ 2 ohms
800 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Amplifier Specifications
Series
Kappa Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1600 watts
Total RMS Power Output
800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
THD at Rated RMS Power
.05%
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
10 - 80 Hz
Low-Pass Crossover Frequency
32 - 320 Hz
Signal-to-Noise Ratio
85 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
40A x 3
Warranty and Return Policy
Parts Warranty Duration
3 years
Labor Warranty Duration
3 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

KAPPA-ONE-2

Weight:

8.50lbs

Internal SKU:

ls-kappaone-u7

Internal Product ID:

221152
