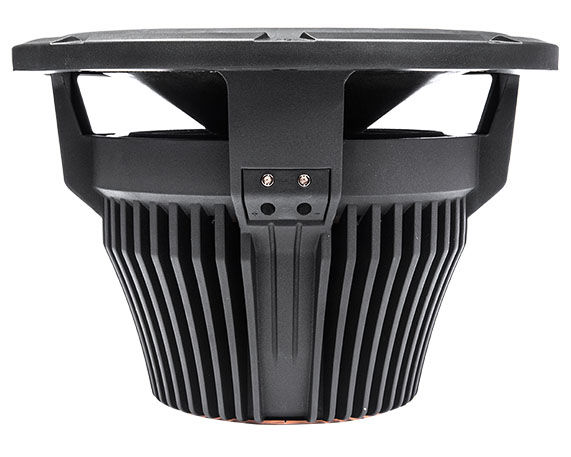

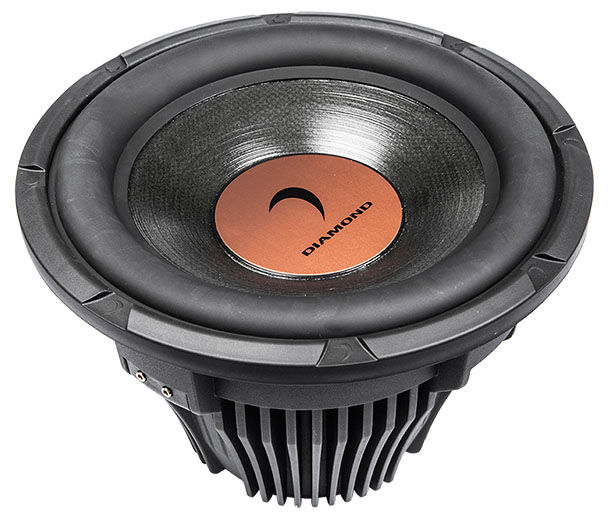

Diamond Audio HXP122

HEX Pro Series 12" Dual 2 Ohm Subwoofer 900W RMS

Diamond Audio
Shop all Diamond Audio
highlight-star-icon

• HEX Pro Series 12" Dual 2 Ohm Subwoofer
• 900 Watts RMS
• Die Cast Aluminum Alloy Basket with Integrated Cooling Fins
• High Strength Honeycomb Cone
• High Power Neodymium Encapsulated Motor Structure
• Klippel DA Optimized Motor and Suspension Symmetry

Learn more about the hxp122

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

28
-17.08%

$199.00

List price $240.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
DEH-S4220BT main

Pioneer DEH-S4220BT

Single DIN CD Receiver with Bluetooth and Amazon Alexa

16
-11.77%

$149.99

List price $170.00

Limited time!
CAR1013 main

Jensen CAR1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto

8
-11.43%

$309.99

List price $349.99

Description


Product Details:

  • HEX Pro Series 12" Dual 2 Ohm Subwoofer
  • Power Handling:
    • RMS: 900 Watts
    • Peak: 1800 Watts
  • Die Cast Aluminum Alloy Basket with Integrated Cooling Fins
  • High Strength Honeycomb Cone
  • High Power Neodymium Encapsulated Motor Structure
  • Klippel DA Optimized Motor and Suspension Symmetry
  • Available in Dual 2 ohm and 4 ohm Configurations
  • Offered in 10”, 12”, and 15” Sizes
  • SPL @ 2.83v: 85.2dB
  • Re: 3.85 Ohm
  • Qms: 3.5
  • Qes: 0.53
  • Qts: 0.46
  • Fs: 23 Hz
  • Vas: 43.5 Hz
  • Xmax: 19mm
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Dimensions:

  • Total Diameter: 12.4"
  • Mounting Diameter: 11.1"
  • Screw Hole Diameter: 11.7"
  • Mounting Depth: 8"
  • Magnet Diameter: 6.5"


Diamond Audio HXP122 owner’s manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Diamond Audio HXP122 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Diamond Audio HXP122 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Diamond Audio HXP122 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Diamond Audio HXP122 Subwoofers

2 Channel Amp

4 Channel Amp
