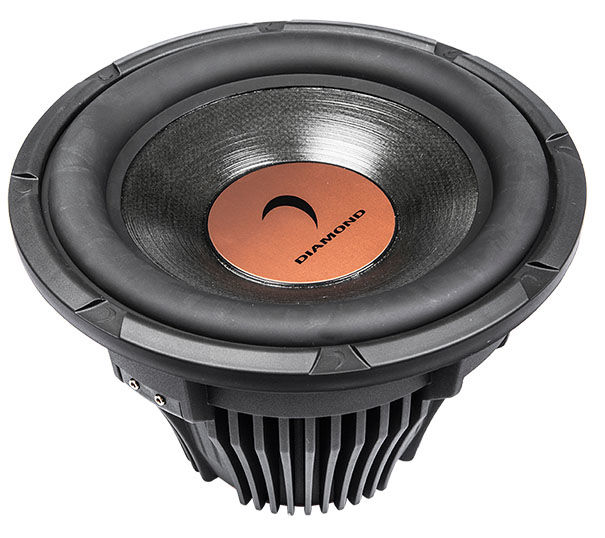

Diamond Audio HXP124

HEX Pro Series 12" Dual 4 Ohm Subwoofer 900W RMS

Diamond Audio
Shop all Diamond Audio
highlight-star-icon

• HEX Pro Series 12" Dual 4 Ohm Subwoofer
• 900 Watts RMS

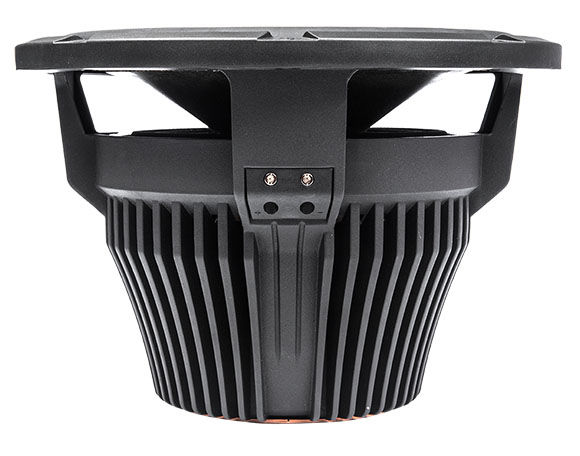

• Die Cast Aluminum Alloy Basket with Integrated Cooling Fins
• High Strength Honeycomb Cone
• High Power Neodymium Encapsulated Motor Structure
• Klippel DA Optimized Motor and Suspension Symmetry

Learn more about the hxp124

We apologize

This item has been discontinued


Loading...
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

JS35K main

Jensen JS35K

150W Peak (50W RMS) 3.5" Apex Series 2-Way Coaxial 4-ohm Car Speakers

51KSC3504 main

Kicker KSC35 (51KSC3504)

200W Peak (100W RMS) 3.5" KS Series 2 Way Coaxial 4-ohm Speakers

4
-11.11%

$79.99

List price $89.99

Club 34F main

JBL Club 34F (JBLSPKCB34F)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

4
-27.29%

$79.95

List price $109.95

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

CF-350mt main

JL Audio CF-350mt

70W RMS 3.5" CF Series Custom-Fit Midrange 4-ohm Tweeters

4
DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

Limited time!
46CSC354 main

Kicker CSC35 (46CSC354)

180W Peak (60W RMS) 3.5” CS Series 2 Way Coaxial 4-ohm Speakers

16
-30.71%

$51.96

List price $74.99

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
V3 main

Cerwin-Vega V3

360W Peak (120W RMS) 3" Vega Series 2025 Edition 2-Way Coaxial 4-ohm Speakers

Description


Product Details:

  • HEX Pro Series 12" Dual 4 Ohm Subwoofer
  • Power Handling:
    • RMS: 900 Watts
    • Peak: 1800 Watts
  • Die Cast Aluminum Alloy Basket with Integrated Cooling Fins
  • High Strength Honeycomb Cone
  • High Power Neodymium Encapsulated Motor Structure
  • Klippel DA Optimized Motor and Suspension Symmetry
  • Available in Dual 2 ohm and 4 ohm Configurations
  • Offered in 10”, 12”, and 15” Sizes
  • SPL @ 2.83v: 83.2dB
  • Re: 6 Ohm
  • Qms: 2.8
  • Qes: 0.55
  • Qts: 0.46
  • Fs: 24 Hz
  • Vas: 43.5 Hz
  • Xmax: 19mm
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Dimensions:

  • Total Diameter: 12.4"
  • Mounting Diameter: 11.1"
  • Screw Hole Diameter: 11.7"
  • Mounting Depth: 8"
  • Magnet Diameter: 6.5"
Diamond Audio HXP124 owner’s manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Diamond Audio HXP124 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Diamond Audio HXP124 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Diamond Audio HXP124 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Diamond Audio HXP124 Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
HEX Pro Series
Subwoofer Size
12"
Peak Power Handling
1800 watts
RMS Power Handling
900 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Xmax (millimeters)
19 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Top-Mount Depth (Mounting Depth)
11.1"
Cutout Diameter
11.7"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
24 Hz
Total Speaker Q Value (Qts)
0.46
Electrical Q Value (Qes)
0.55
Electrical Resistance of Voice Coil (Re)
6.0 ohm
Mechanical Q Value (Qms)
2.8
What is in the box?
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HXP124

Weight:

36.00lbs

Internal SKU:

hxp124

Internal Product ID:

174485
