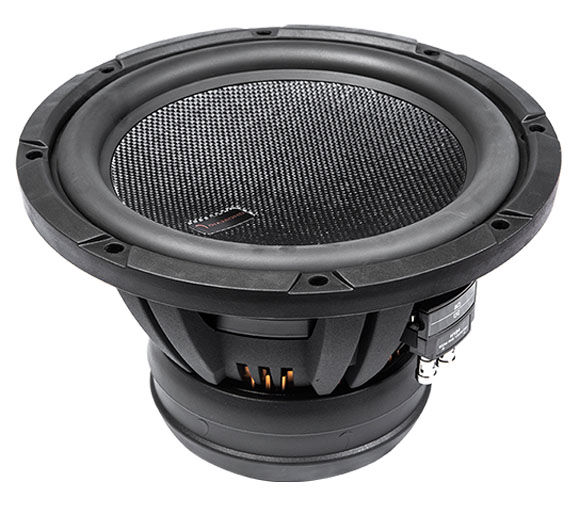

Diamond Audio H122

HEX Series 12" Dual 2 Ohm Subwoofer 600W RMS

highlight-star-icon

• HEX Series 12" Dual 2 Ohm Subwoofer
• 600W RMS
• Improved High-Density Cast Aluminum Alloy Deep Drawn Basket
• Ridged 2-Part Treated Paper/Fiberglass Laminated Cone.
• FEA Optimized High Power Motor with Vented Pole Piece
• Unique High-Strength 3 Point Triple Bond Neck Joint Technique

Learn more about the h122

We apologize

This item has been discontinued


Loading...
70-1817 main

Metra 70-1817 Wiring Harness

Install a new car stereo in select 1984-2006 vehicles from Dodge, Chrysler, Plymouth

29
-14.31%

$5.99

List price $6.99

95-6551 main

Metra 95-6551 Dash Kit

Install a new Double-DIN car stereo in select 1998-2002 Ram 3500 / 1500 / 2500

3
-47.63%

$21.99

List price $41.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

5
-17.65%

$139.95

List price $169.95

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

47
-42.51%

$22.99

List price $39.99

Limited time!
CAR723W main

Jensen CAR723W

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, Android Auto

15
-11.11%

$239.99

List price $269.99

NSP69 main

NVX NSP69

900W Peak (300W RMS) 6x9" N-Series 2 Way Coaxial Car Speakers

53
-16.67%

$89.99

List price $107.99

Description


Product Details:

  • HEX Series 12" Dual 2 Ohm Subwoofer 600W RMS
  • Power Handling:
    • RMS: 600 Watts
    • Peak: 1200 Watts
  • Improved High-Density Cast Aluminum Alloy Deep Drawn Basket
  • Ridged 2-Part Treated Paper/Fiberglass Laminated Cone.
  • FEA Optimized High Power Motor with Vented Pole Piece
  • Unique High-Strength 3 Point Triple Bond Neck Joint Technique
  • Copper Anodized Aluminum Elevated Radiating Heat Sink
  • Impedance Selectable High Power Terminal
  • 3” High Temp Copper VC on Treated Black High-Strength Aluminum Former
  • Klippel DA Optimized Motor and Suspension Symmetry
  • SPL @ 2.83v: 85.5dB
  • Re: 3.9 Ohm
  • Qms: 5.24
  • Qes: 0.56
  • Qts: 0.51
  • Fs: 32.4Hz
  • Vas: 12.6Hz
  • Xmax: 17.8mm
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Dimensions:

  • Total Diameter: 12.5"
  • Mounting Diameter: 10.9"
  • Hole Diameter: 11.7"
  • Mounting Depth: 7.4"
  • Magnet Diameter: 7.1"

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Diamond Audio H122 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Diamond Audio H122 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Diamond Audio H122 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Diamond Audio H122 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
HEX Series
Subwoofer Size
12"
Peak Power Handling
1200 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
3"
Sensitivity
85.5 dB
Xmax (millimeters)
17.8 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Ridged 2-Part Treated Paper/Fiberglass Laminated
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Top-Mount Depth (Mounting Depth)
10.9"
Cutout Diameter
11.7"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
32.4 Hz
Equivalent Compliance (Vas)
12.6 liters
Total Speaker Q Value (Qts)
0.51
Electrical Q Value (Qes)
0.56
Electrical Resistance of Voice Coil (Re)
3.9 ohm
Mechanical Q Value (Qms)
5.24
What is in the box?
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

H122

Weight:

34.00lbs

Internal SKU:

h122

Internal Product ID:

174495

Customer Ratings & Reviews
