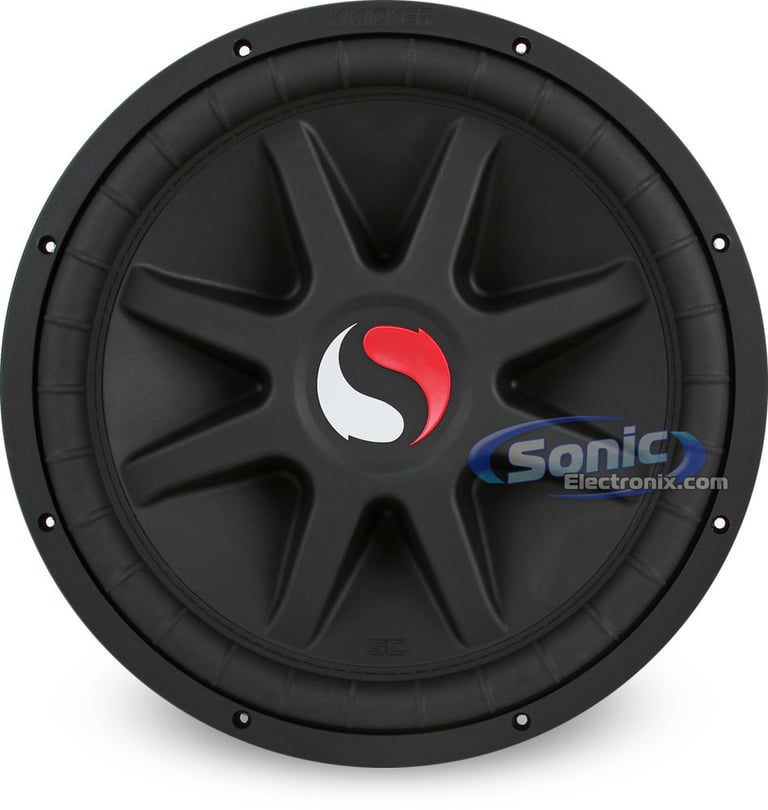

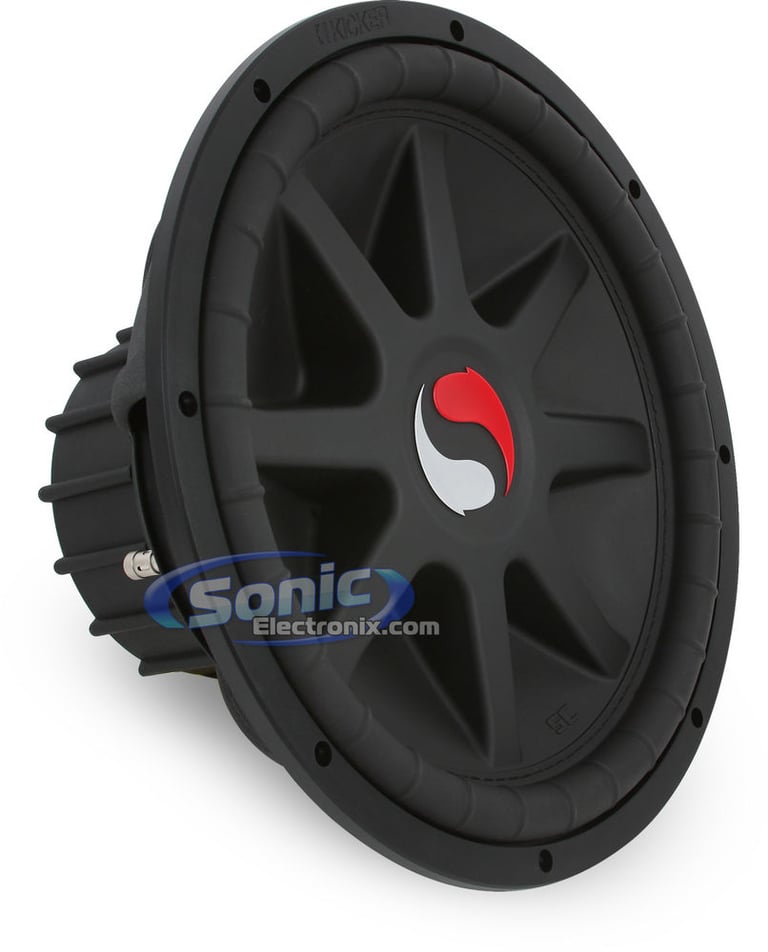

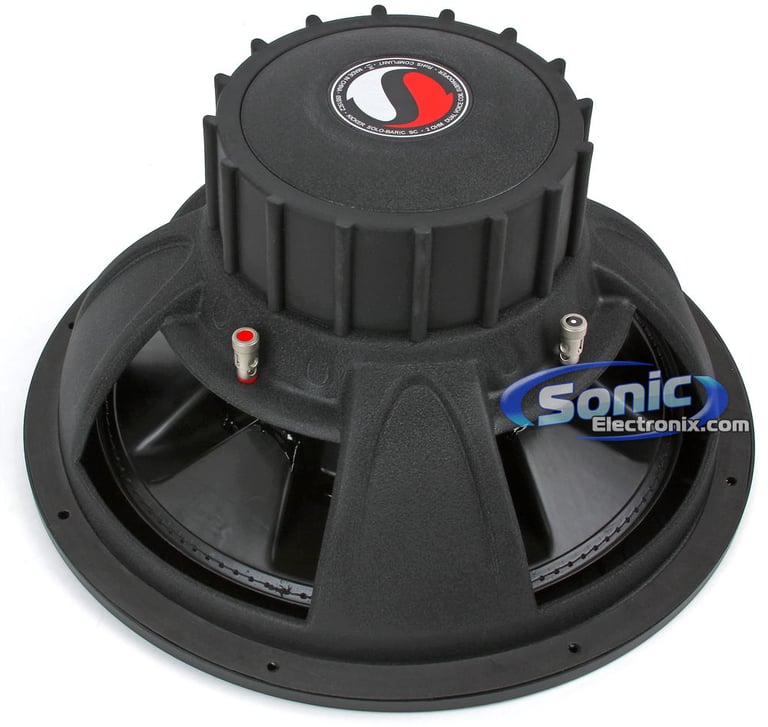

Kicker S15C4 (09S15C4)

15" Dual 4 ohm Solo Classic Series Car Subwoofer

Kicker
Shop all Kicker
Product videos
highlight-star-icon

15" Solo Classic Subwoofer • 1500 Watts Max • 750 Watts RMS • Dual 4 Ohm • Polyimide Voice Coil • Single Piece SoloKon • Stitched and Glued Tinsel Leads • Recommended Sealed Box Volume: 1.25 Cubic Feet

Learn more about the 09s15c4

We apologize

This item has been discontinued


Loading...
TOYLB3 main

GROM Audio TOYLB3 Lexus Bluetooth Streaming Kit (GROM-BT3-LEX)

Add Bluetooth Hands Free Calling and Music Streaming to Select 2001-2004 Lexus Factory Radios

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

TWPZ main

DS18 TWPZ

80W Peak (40W RMS) 1" Slim Dome Super Tweeters

6
XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

460BRGB main

Boss Elite 460BRGB

Single DIN Digital Media Receiver with Bluetooth (Black)

8
FRING525 main

NVX FRING525

Universal 5.25" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

2
-45.02%

$10.99

List price $19.99

Product Highlights


15" Solo Classic Subwoofer • 1500 Watts Max • 750 Watts RMS • Dual 4 Ohm • Polyimide Voice Coil • Single Piece SoloKon • Stitched and Glued Tinsel Leads • Recommended Sealed Box Volume: 1.25 Cubic Feet

Description


Kicker brand icon

Authorized dealer

All the Bass. Half the Space.

New to the 2009 KICKER line up is the Solo Classic subwoofer. Taking a page out of the original KICKER legend that made the subwoofers famous, these woofers are able to produce deep, low, musical bass from a small area. These woofers are designed to be used in smaller sealed enclosures that will accommodate any car or vehicle out there. The Solo Classic subwoofers will produce a smooth response with some of the lowest frequencies that you will have heard. This woofer is the perfect combination of the KICKER legend with cutting edge technology to give you the best bass possible!

Subwoofer Features:
  • 15" Dual 4 Ohm Solo Classic Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 750 watts
  • Impedance: Dual 4 Ohm
  • Single piece SoloKon to withstand extreme air pressure in small boxes

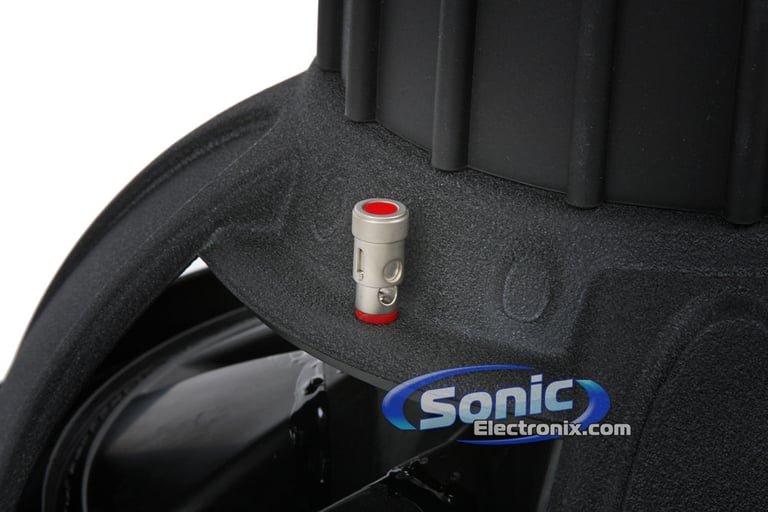

  • Stitched and glued tinsel leads for high excursion and reliability

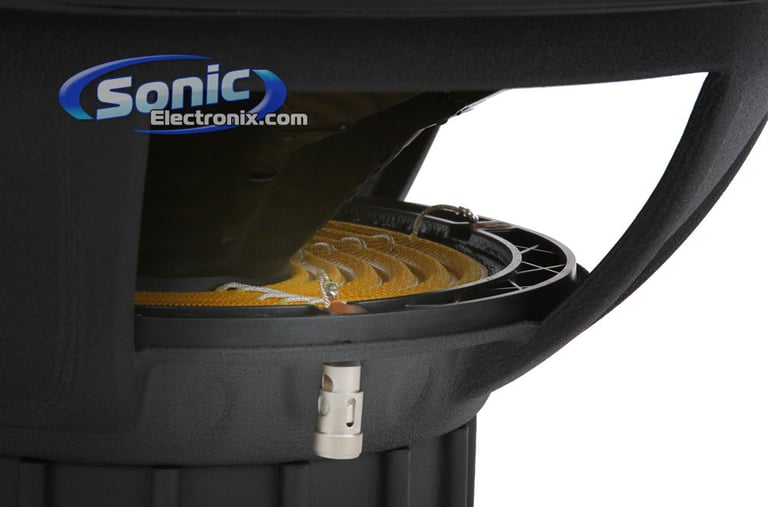

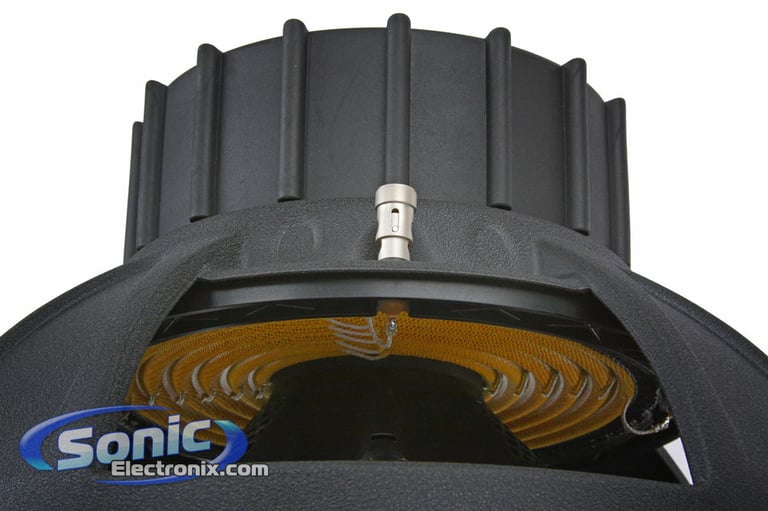

  • Spiralead tinsel leads for extreme flexibility and supreme reliability
  • Polyimide voice coil former with Nomex reinforcement for high thermal capability
  • T cut top plate for high magnetic field strength and cooling capability

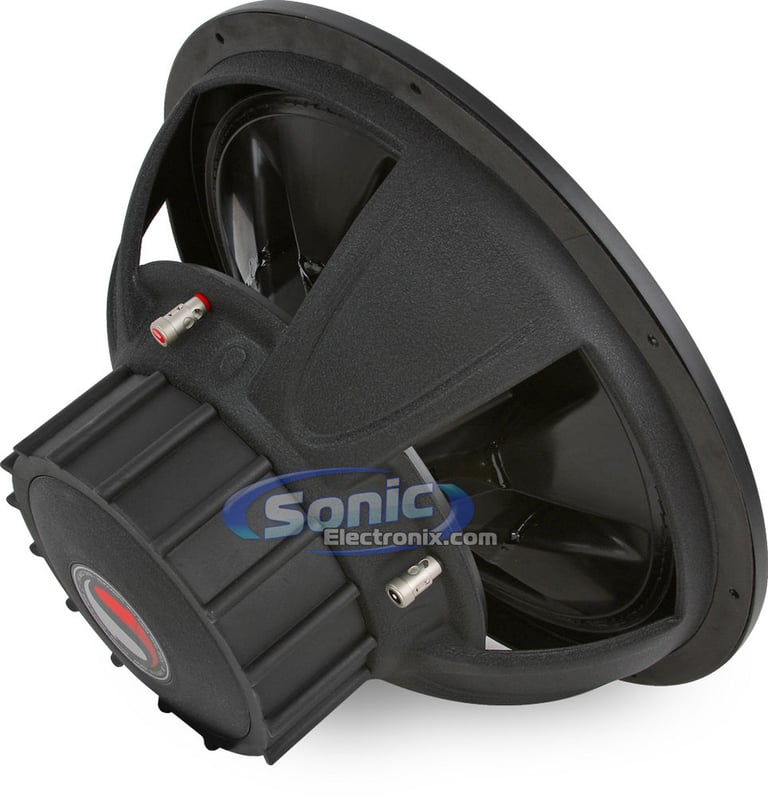

  • Stamped steel basket
  • Accurate, detailed bass
  • Very small box performance
  • Recommended sealed box volume: 1.25 cubic feet
  • Frequency response: 18-100 Hz
  • Sensitivity: 88 dB
  • Item is a part of Kicker ProFit Group
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
2011 Kicker Authorized Online Dealer and eBay Seller

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Kicker S15C4 (09S15C4) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kicker S15C4 (09S15C4) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kicker S15C4 (09S15C4) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Kicker S15C4 (09S15C4) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

DB-SA255 D2 small

Deaf Bonce Apocalypse DB-SA255 D2

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 7.4"
• Sensitivity: 87.50 dB

(1)

$259.90

List price $259.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

YSW154 small

NVX YSW154

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

49L7X152 small

Kicker L7X152 (49L7X152)

• RMS Power: 1000 - 2000 watts
• Impedance: Dual 2 ohm
• Double-pressed pulp Cone
• UV-resistant Santoprene Surround
• Mount depth: 11-9/16"

(2)

$799.99

List price $899.99

SW-XV315D2 small

Sundown Audio X-15 v.3 D2 15" (X12V3D2)

• Peak Power: 5000 watts
• RMS Power: 2500 watts
• Impedance: Dual 2 ohm
• Pressed Paper Cone
• Mega Roll V2 Surround
• Mount depth: 11.6"
• Sensitivity: 85.9 dB

(1)

$749.99

List price $983.99

Specifications & Details


Subwoofer Specifications
Series
Solo Classic Series
Subwoofer Size
15"
Peak Power Handling
1500 watts
RMS Power Handling
700 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
18 - 100 Hz
Sensitivity
88 dB
Xmax (millimeters)
18 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
SoloKon Polypropylene
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Minimum Sealed Box Volume
1.25 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
7-7/8"
Cutout Diameter
13-7/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

09S15C4

Weight:

29.00lbs

Internal SKU:

09s15c4

Internal Product ID:

17583
