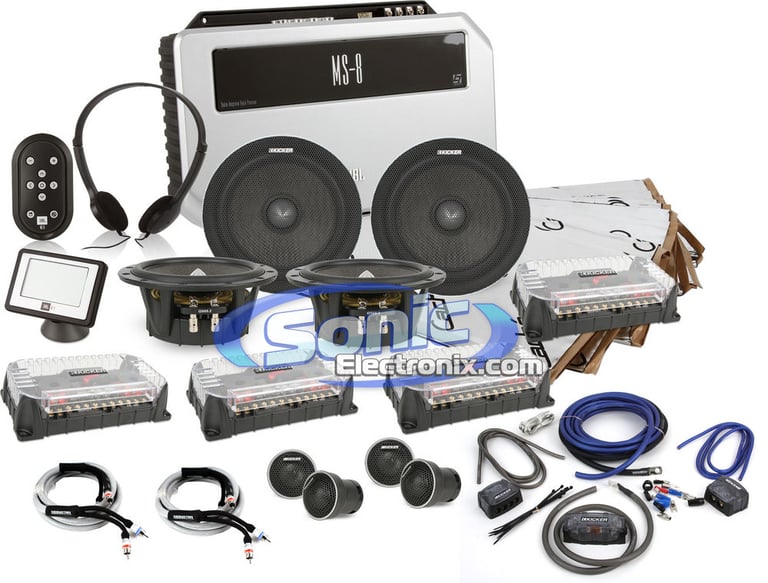

JBL System Integration + Amplifier and Kicker Speakers Combo Package

JBL MS-8 Sound Processor + JBL MS-A1004 4-Chan. Amp + 2 Sets of Kicker QS65.2 6-1/2" Car Speakers

Kicker
Shop all Kicker
EXCLUSIVE
highlight-star-icon

JBL MS-8 System Integration Digital Sound Processor • MS Series 4-Channel Class D Car Amplifier • Two sets of 6-1/2" QS-Series 2-way Component Speaker System • Dual 4 Gauge Power Amplifier Installation Kit • RCA Interconnect Cables • Ten 18" x 32" Pieces of Dead Shield Sound Dampening Material

Learn more about the ms8_msa1004_2-09qs652

We apologize

This item has been discontinued


Loading...
82-7805 main

Metra 82-7805

6" to 6-3/4" Speaker Plate Adapter for select 2004-2023 vehicles from Honda, Acura

12
-47.38%

$19.99

List price $37.99

AXBUCH6V-H24V main

Axxess AXBUCH6V-H24V

Install a New Car Stereo and Add or Retain Backup Camera in select 2015-2025 vehicles from Honda without Touchscreen Stereos

-11.91%

$36.99

List price $41.99

SWRHN-62CV main

Crux SWRHN-62CV

Install a New Stereo in select 2012-2020 vehicles from Honda

-35.71%

$162.00

List price $252.00

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

116
-37.15%

$21.99

List price $34.99

Limited time!
KW-V660BT main

JVC KW-V660BT

6.8" Double DIN CD/DVD Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
-16.70%

$399.00

List price $479.00

Limited time!
XAV-AX3700 main

Sony XAV-AX3700

6.95” Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Apple CarPlay (SiriusXM Ready)

1
-13.00%

$348.00

List price $399.99

Description


Kicker brand icon

Authorized dealer

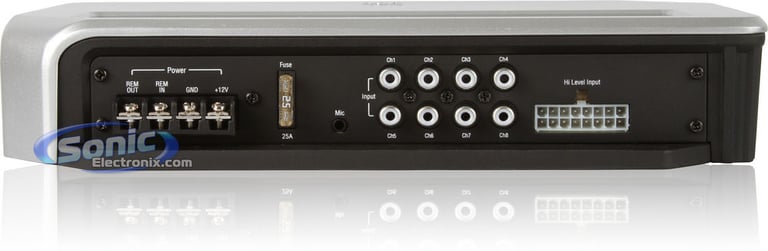

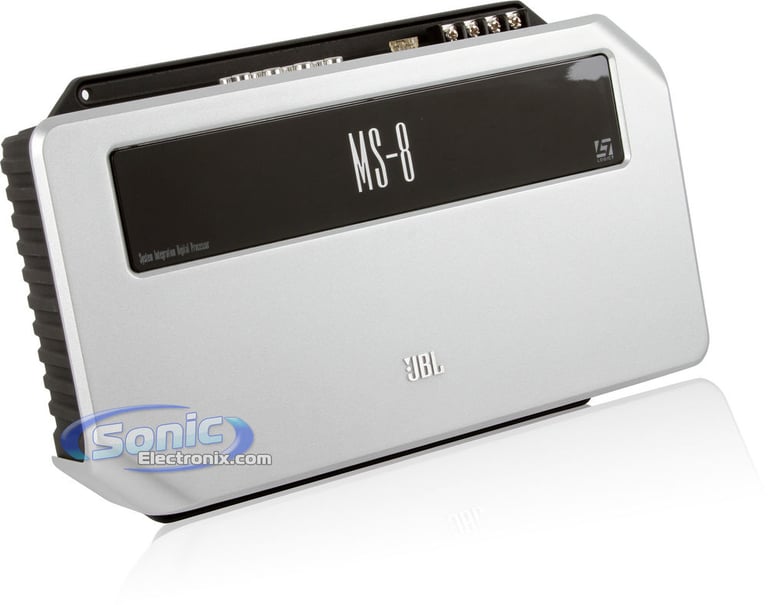

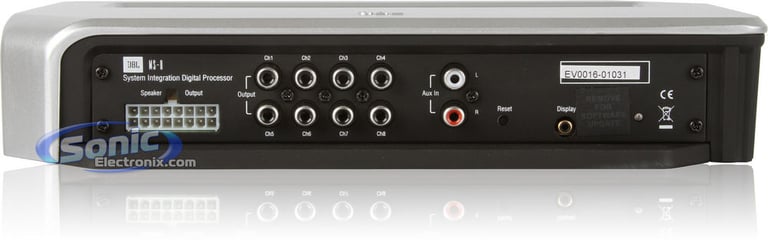

JBL MS-8

System Integration Digital Sound Processor
Quantity: 1

  • RMS Power Rating:
    • 4 ohm: 18 watts x 8 chan.
  • Max Power Rating:
    • 4 ohm: 30 watts x 8 chan.
  • System Integration Digital Sound Processor
  • Compatible with both factory and aftermarket systems
  • Incredible performance improves every measure of audio performance including frequency response, bass performance, dynamics, clarity, detail and stereo imaging
  • Simple, step-by-step set-up with the menu-driven calibration based on detailed input from binaural headset microphone
  • Perfect for up to 8 channels of audio by producing a flat-response, full-bandwidth signal from up to eight input sources
  • Built-in DSP Equalization improves the overall tonal accuracy by automatically compensating for the sonic characteristics of the speakers, electronics and vehicle interior
  • Automatic DSP Time Correction ensures that the sound from all speakers arrives at the listener’s ears simultaneously, resulting in the best sound possible
  • Sophisticated Crossover Functions give precise, user-selectable crossover points and crossover slopes for up to eight separate outputs
  • Logic 7 Surround Processing creates a realistic 5.1 or 7.1 channel surround experience from 2-channel source material
  • 31-Band graphic equalizer lets you tune the system to your personal taste
  • Preamplifier controls enable complete control over the system volume, subwoofer volume, left/right balance, front/rear fader, bass/mid/treble tone controls, override DSP equalization, time correction, as well as the Logic 7 processing
  • Stores up to five custom pre-sets in a favorites setting for easy one-button recall
  • The five-line LCD display shows setup menus and the current operation status
  • Includes a wireless RF remote to control the menu navigation, volume, as well as mute functions
  • CEA-2006 Compliant
  • Also found as: JBL MS8, MX8
  • Frequency Response: 20–20,000 Hz
  • Signal to Noise Ratio (Line-in/Line out): >90dB
  • Signal to Noise Ratio (Line-in/Speaker out): >85dB
  • Maximum Input Voltage (Speaker-Level Input): 15V
  • Maximum Input Voltage (Line Input): 2.8V
  • Maximum Output Voltage (Line Output): 2.8V
  • Maximum Current Draw: 16A
  • Stand-by Current Draw: <0.01A
  • Dimensions: 8-3/8"D x 11-1/2"W x 2-3/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
JBL MS-8 System Includes:
  • JBL MS-8 Digital System Processor

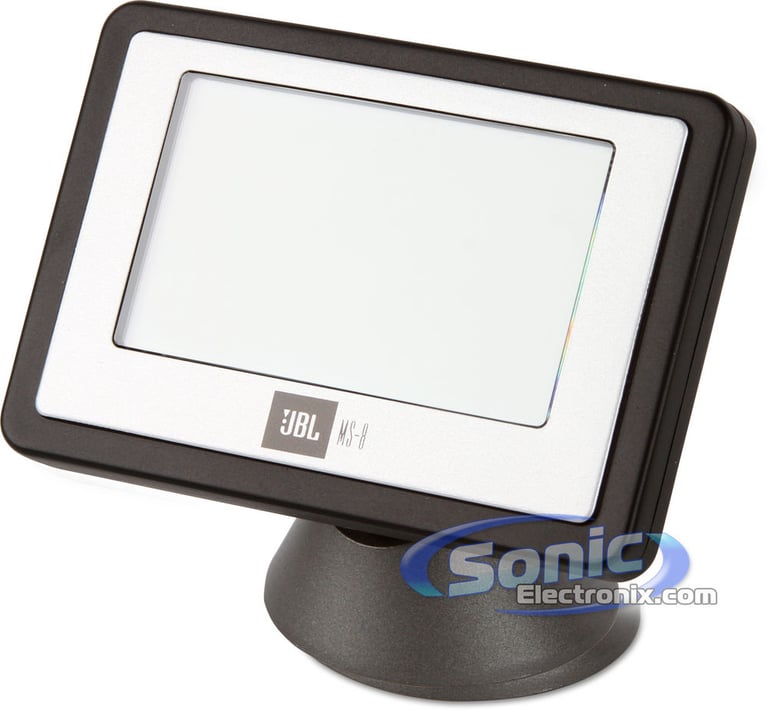

  • 5-line LCD Display
  • Display Mounting Bracket

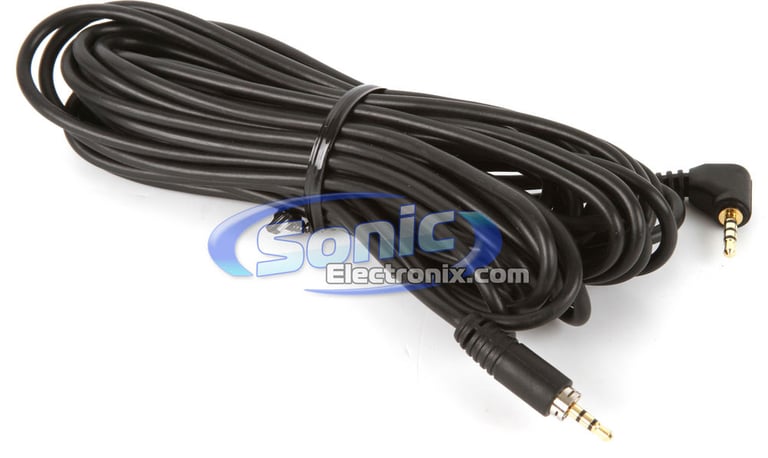

  • LCD Display Cable

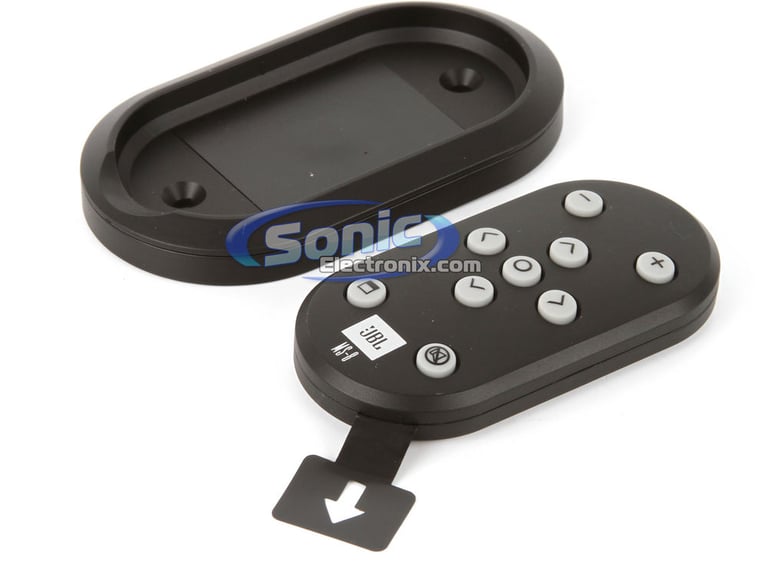

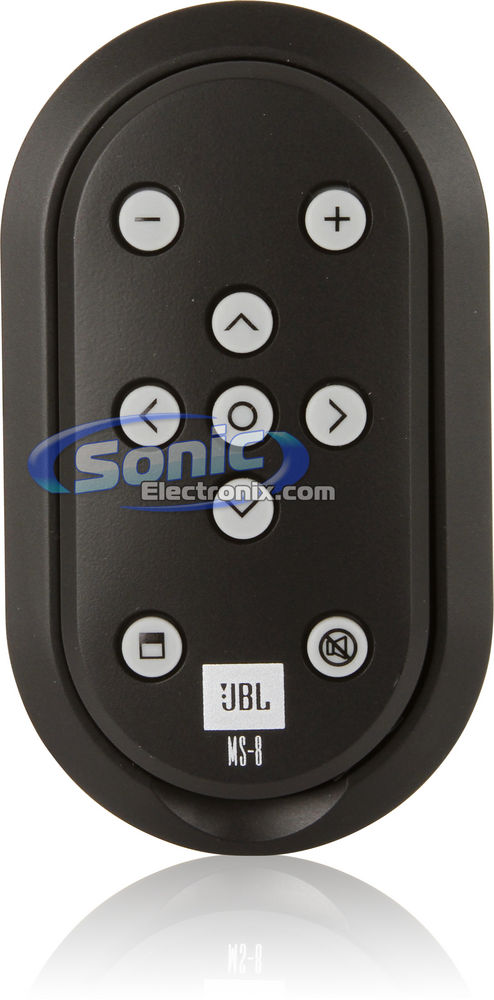

  • Wireless Remote Control

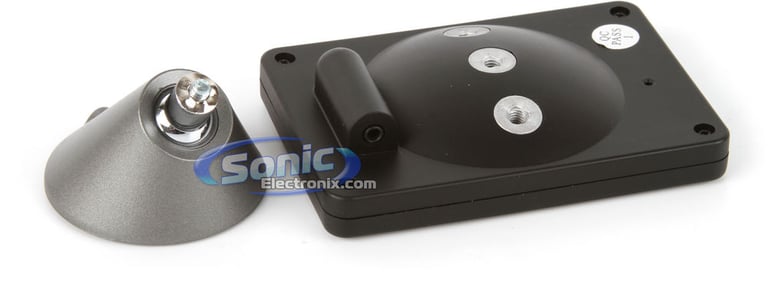

  • Flush and Surface Mount hardware for wireless remote

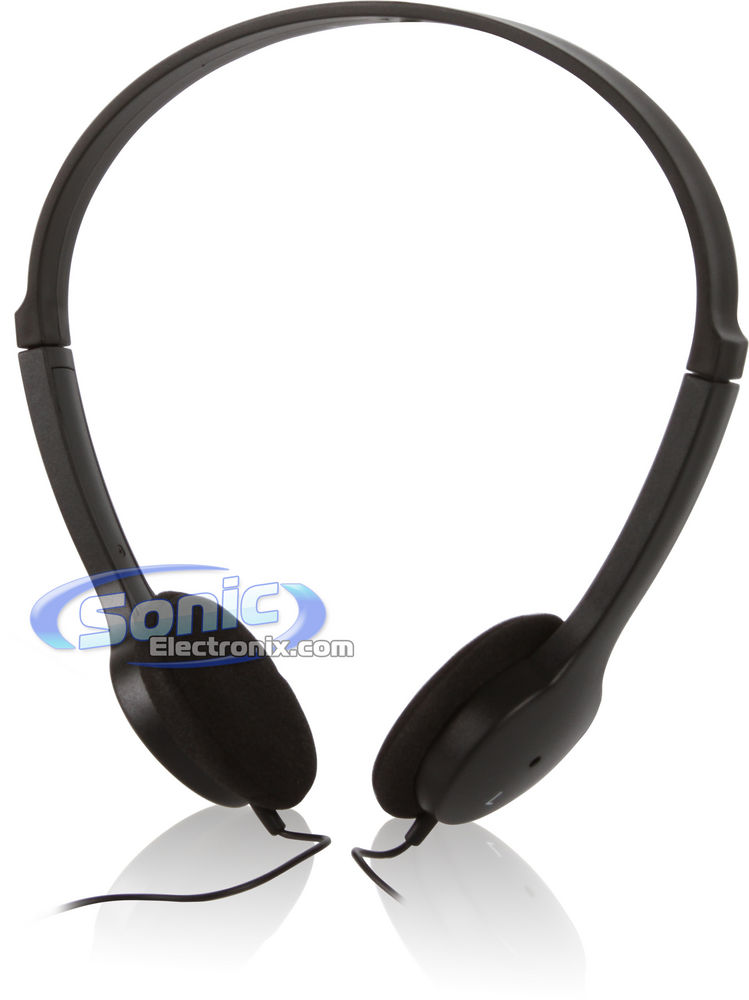

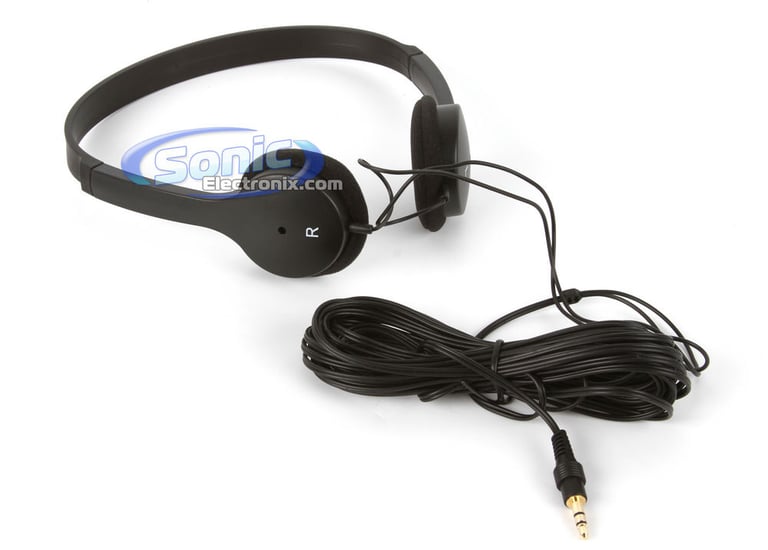

  • Bi-aural Microphone Headset

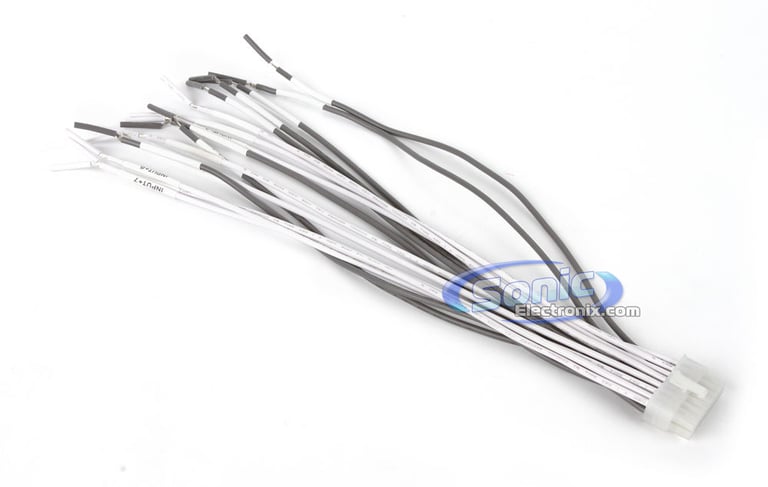

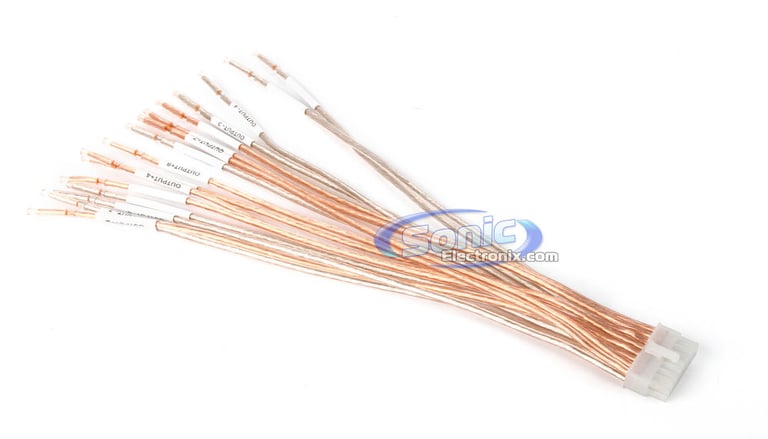

  • Speaker input/ouput harnesses

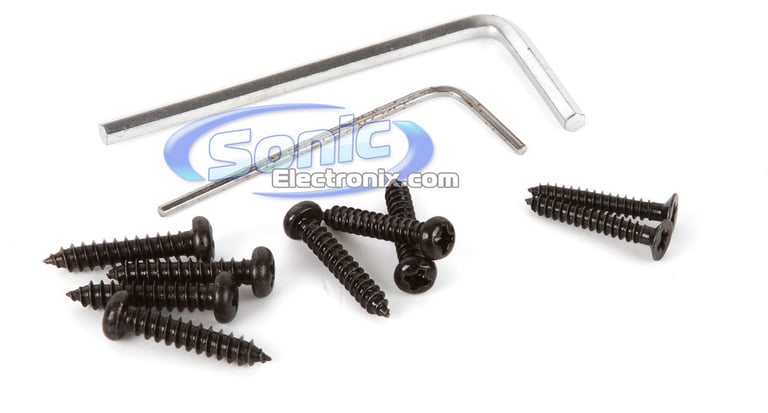

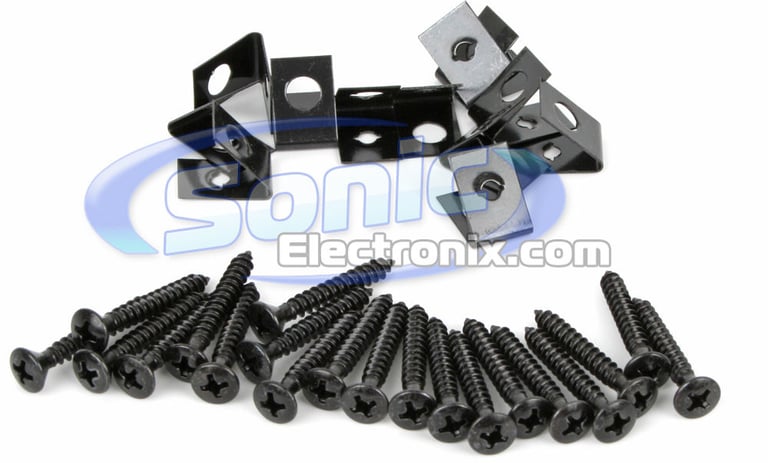

  • Various Mounting Screws

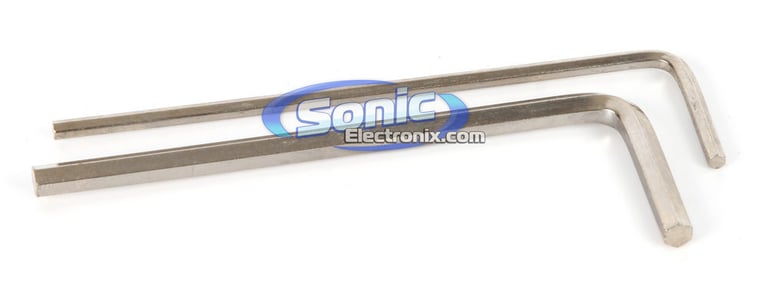

  • Hex-keys for Mounting Screws
  • Dual-Sided Self-Adhesive Pads
  • Alcohol Prep Pads
  • Setup and Owner's Manual CD
  • Quick Start Guide in 16 languages

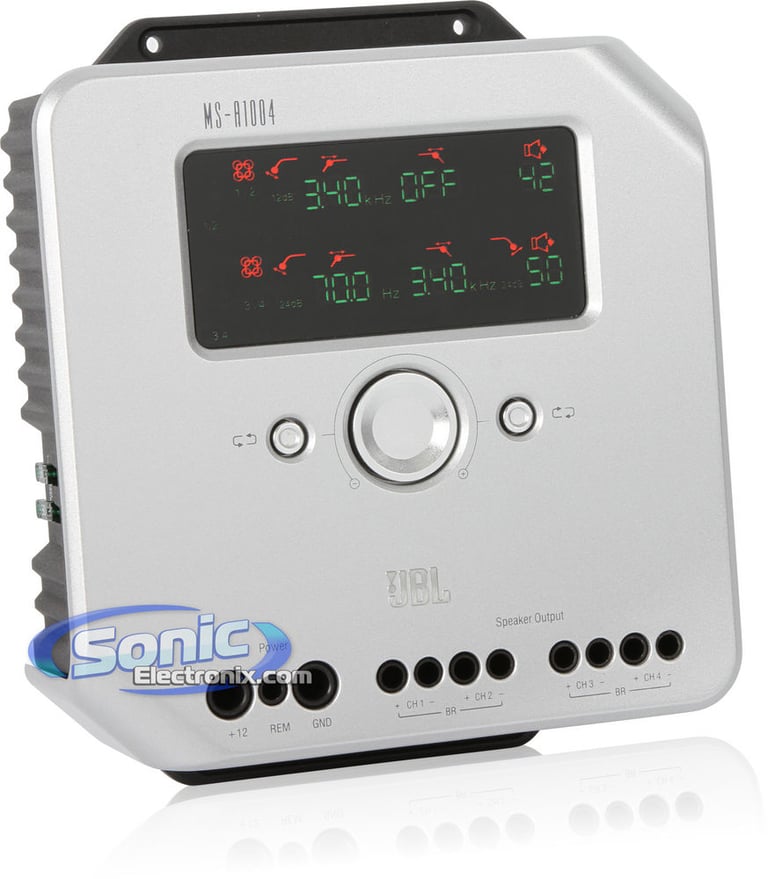

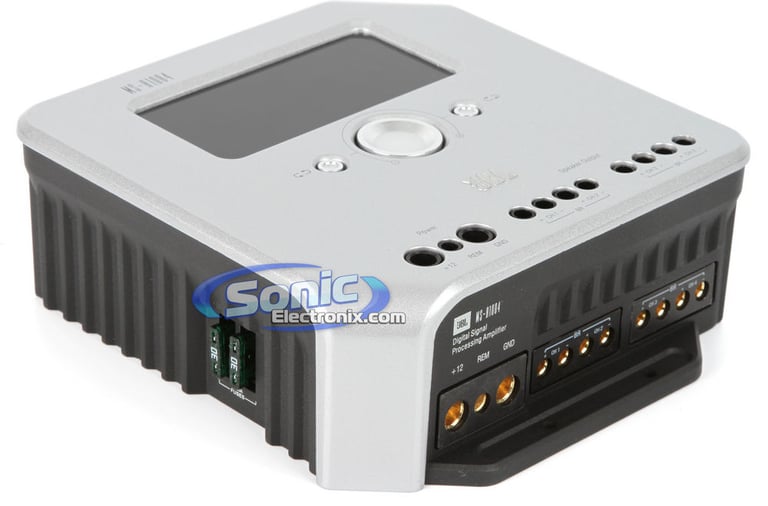

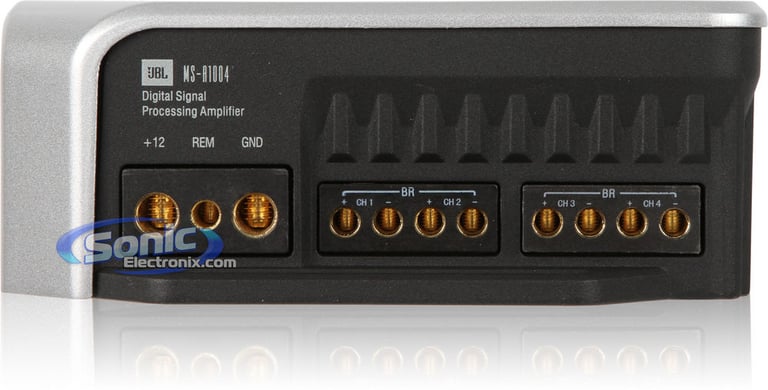

JBL MS-A1004

4-Channel Amplifier with Digital Input Mixer and Graphical Status Display
Quantity: 1

  • MS Series 4-Channel Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 4 chan.
    • 2 ohm: 100 watts x 4 chan.
    • Bridged, 4 ohm: 200 watts x 2 chan.
  • Digital signal processing amplifier
  • Pulse Width Modulated MOSFET power supply
  • Wireless Remote bass level input (MS-WBC remote level control sold separately)
  • Built-in display shows tone and gain settings
  • Soft Start Turn-on
  • 4/3/2 channel operation

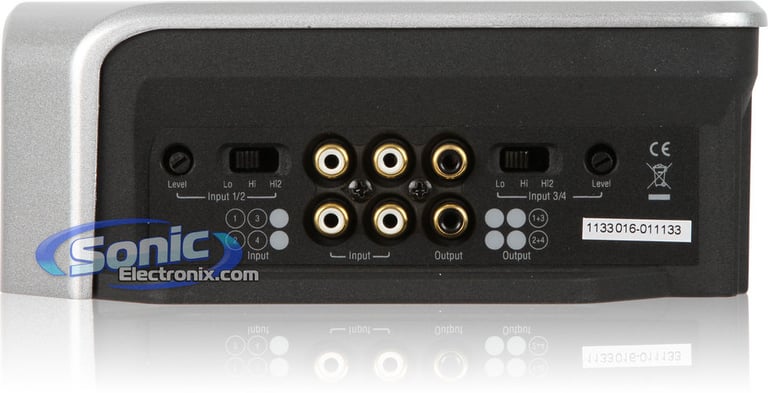

  • "Hi2" input setting provides factory system amps with output loads, eliminating "speaker disconnected" error messages
  • Speaker-level inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Digital input-mixer control eliminates the need for Y adapters
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation

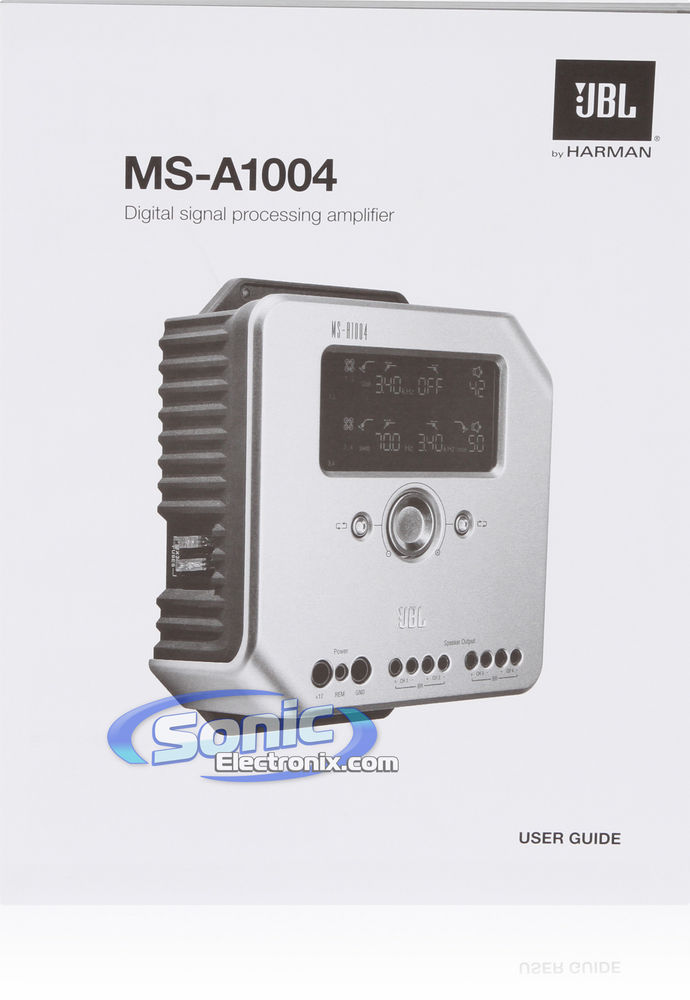

  • CD for system setup included
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Input sensitivity:
    • Level: 100mV-15V
  • Variable high-pass filter (20-20,000 Hz, 6, 12, or 24 dB/octave)
  • Variable low-pass filter (20-20,000 Hz, 6, 12, or 24 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-27,000 Hz
  • Dimensions: 8-13/16"L x 7-1/4"W x 2-13/16"H
  • 8-gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

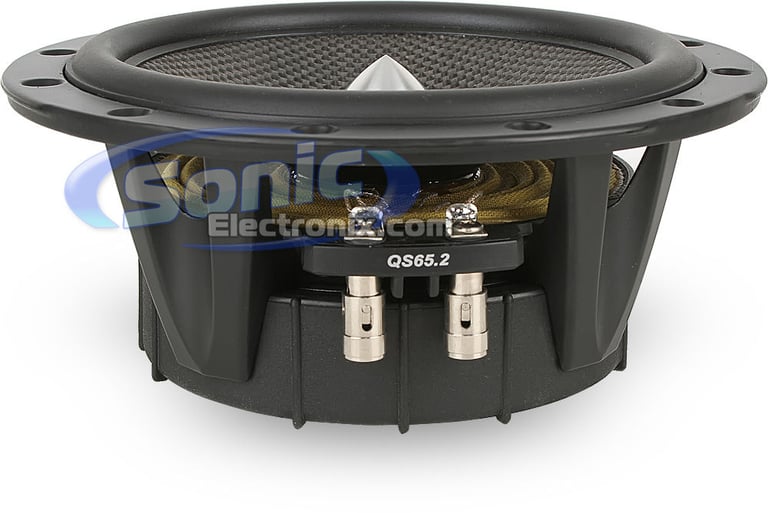

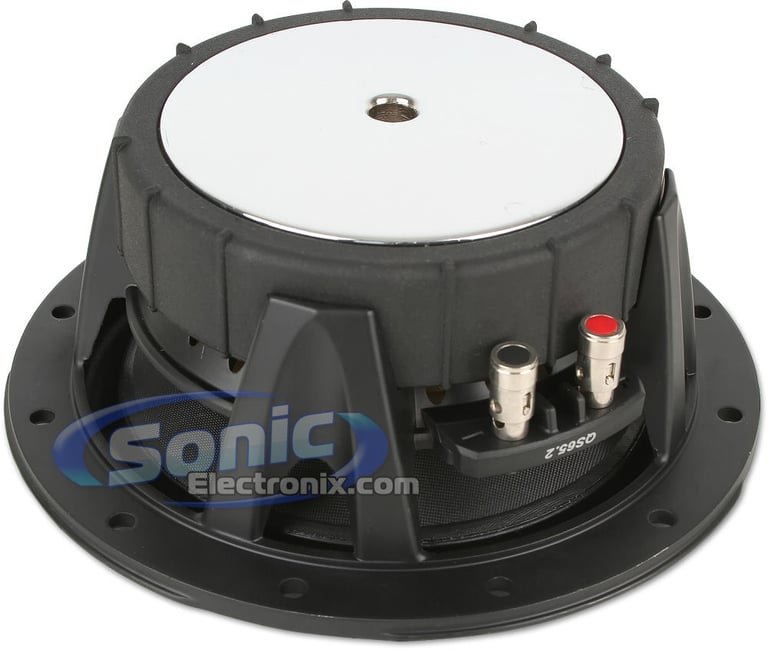

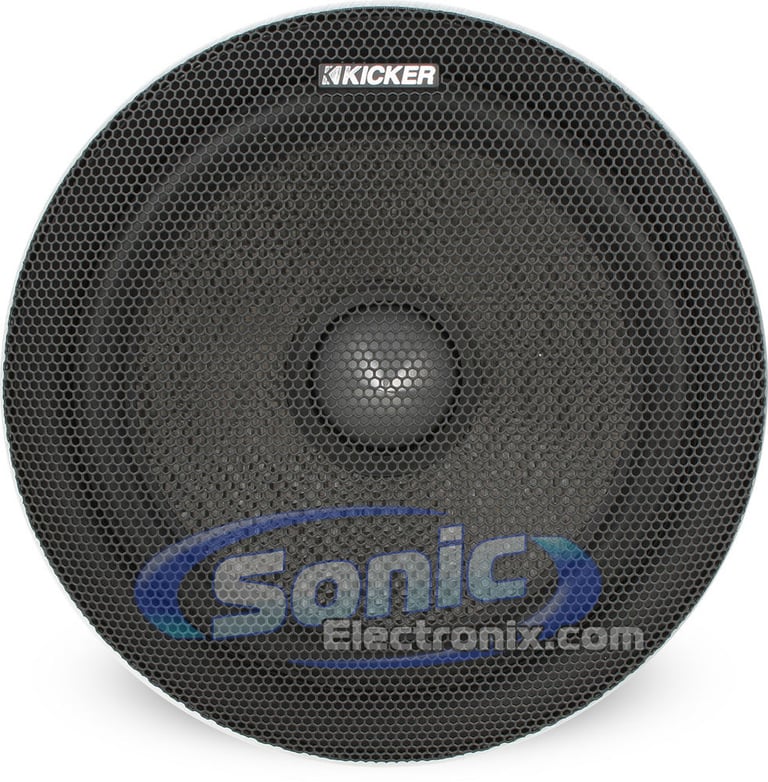

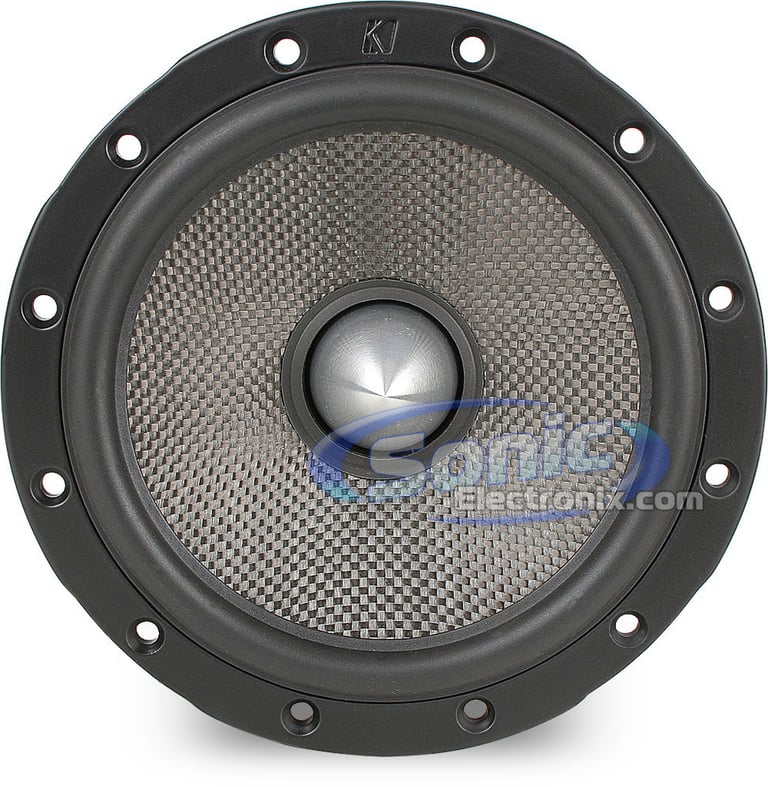

Kicker QS65.2

6-1/2" QS-Series 2-way Convertible Component Speaker System
Quantity: 2 Pairs

  • Two sets of 6-1/2" QS-Series 2-way Component Speaker System
  • Power Handling:
    • Peak: 400 watts per set / 200 watts each side
    • RMS: 200 watts per set / 100 watts each side
  • 3-Layer TriTech composite cone woofer
  • Midwoofer surround type

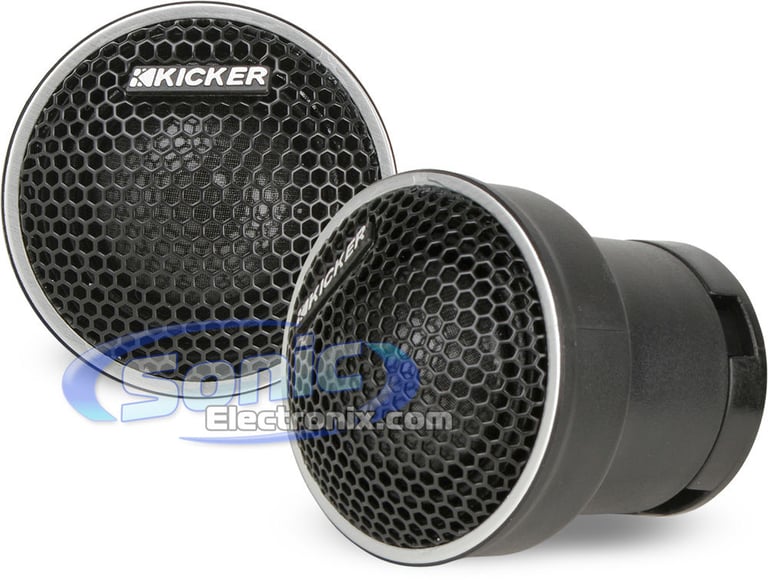

  • 30mm Teteron dome tweeter for extreme detail and high power handling
  • Bi-amp configuration capabilities

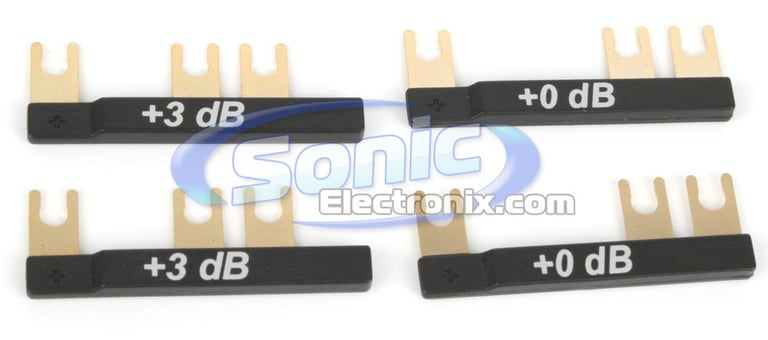

  • Selectable tweeter attenuation (1.5dB steps)

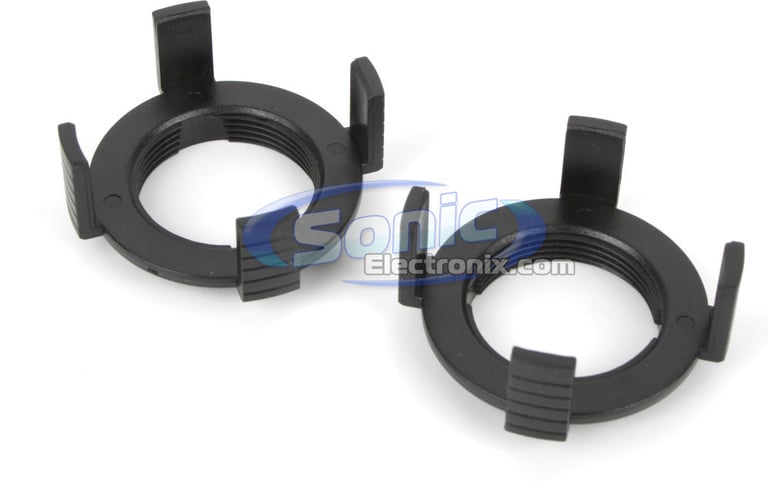

  • Tweeters can be mounted flush, angled, or coaxially

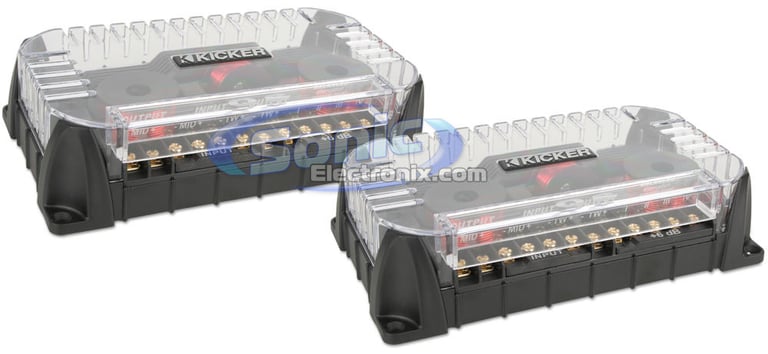

  • Crossover slope (24-high, 12-low dB/Octave 2.8kHz)
  • High frequency output level: 0dB, 3+dB, 6+dB
  • 4 ohm impedance
  • Woofer Top-mount depth: 2-1/2"
  • Tweeter mounting depth: 1-1/8"
  • Item is a part of Kicker ProFit Group
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

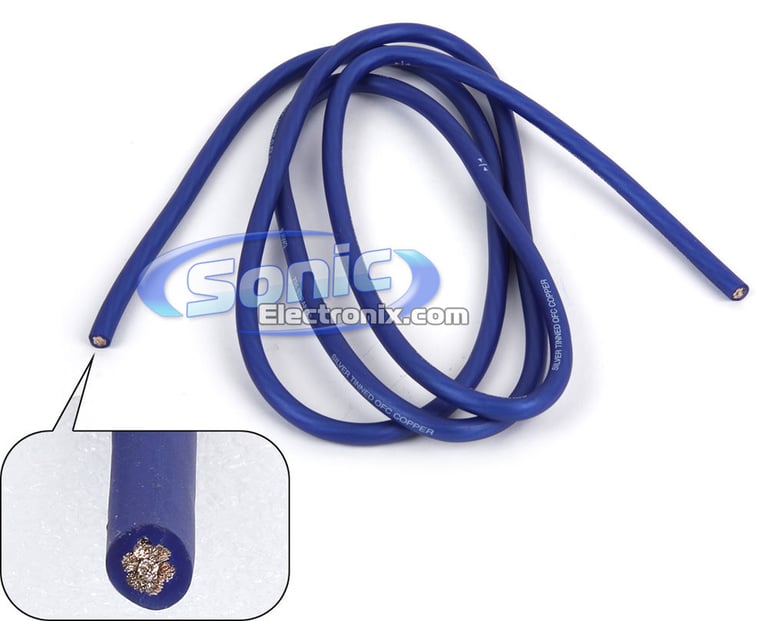

Kicker PKD4

Dual 4 Gauge Power Amplifier Installation Kit
Quantity: 1

  • Dual 4 Gauge Power Amplifier Installation Kit
  • Designed specifically for car audio systems up to 1500 watts
  • Premium power and ground wire provides optimal power transfer
  • Made from 100% oxygen-free copper for a pure uninterrupted transfer of power
  • Twisted-pair technology eliminates noise for crystal clear sound
  • ANL Fuse holder offers ideal protection for high powered systems

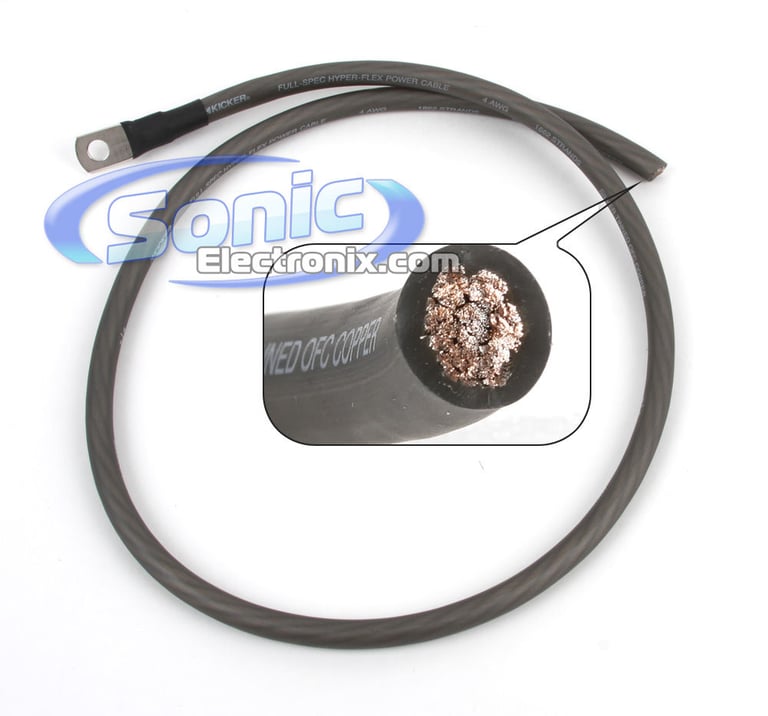

  • Hyper-flex cable and wire

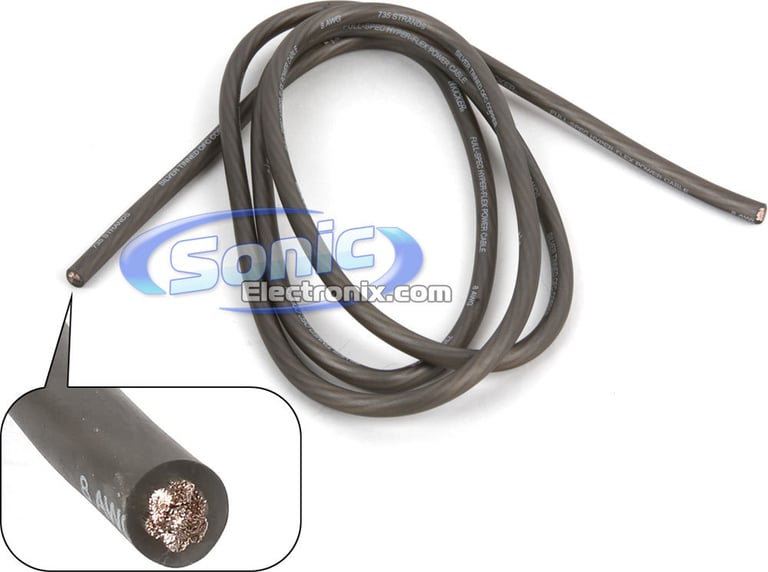

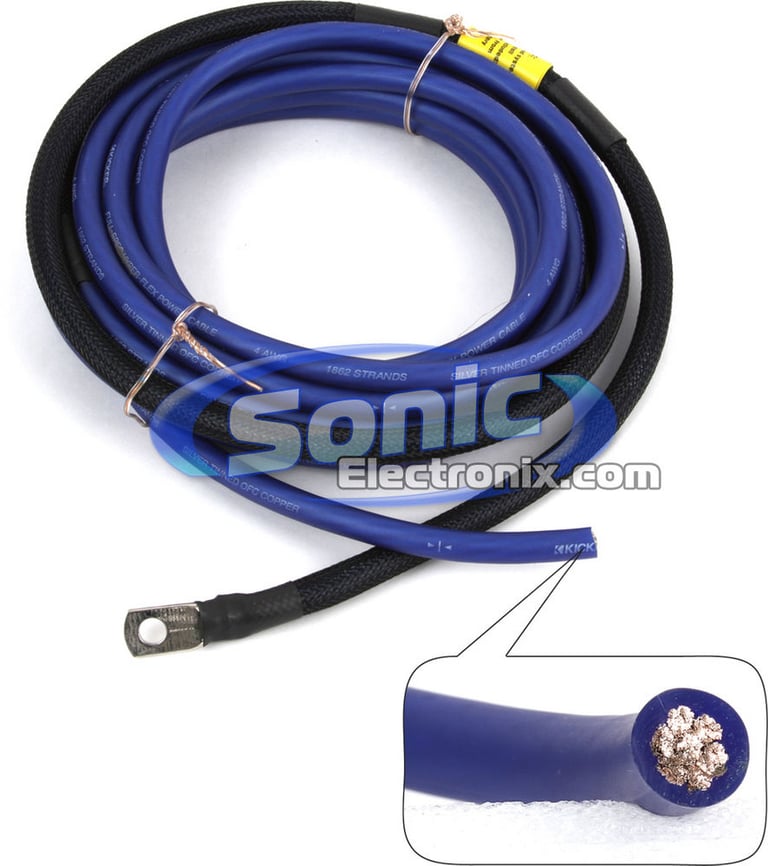

  • 20ft(6.1m) Blue 4AWG power wire
  • 3ft(0.9m) Black 4AWG ground wire
  • 5ft(1.5m) Blue 8AWG power wire
  • 5ft(1.5m) Blue 8AWG ground wire
  • 20ft(6.1m) Blue 18AWG remote lead wire

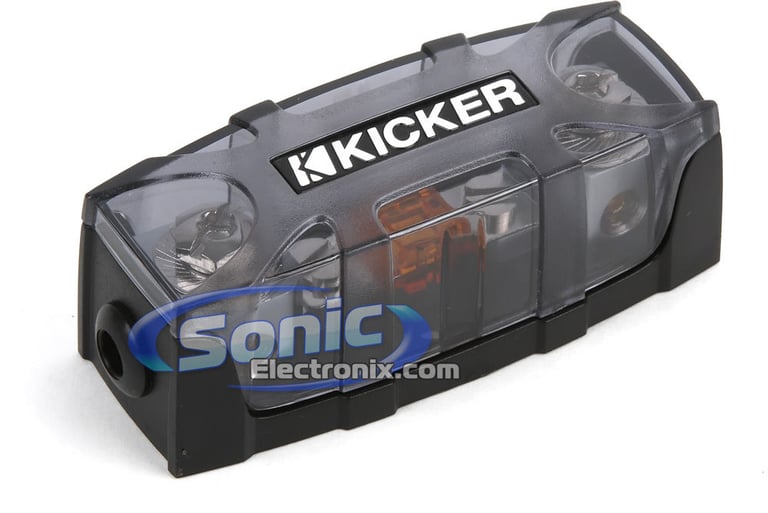

  • 1 Kicker 09FHS Fuse holder with 150 amp AFS fuse

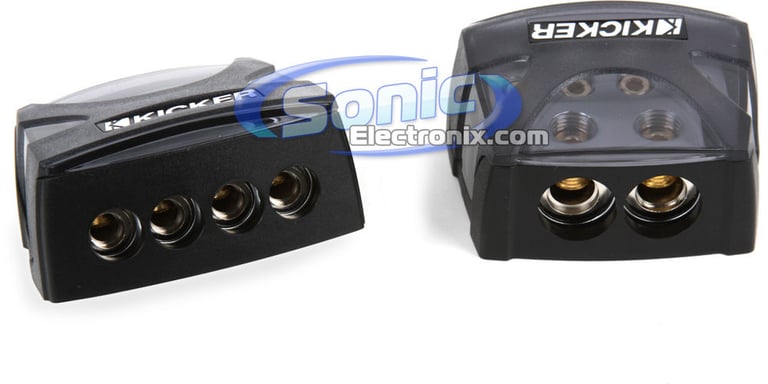

  • 2 Kicker 09DB1448 Distribution blocks
  • Black rubber firewall grommet
  • 2 4AWG Spade terminals
  • 4 8AWG Spade terminals
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

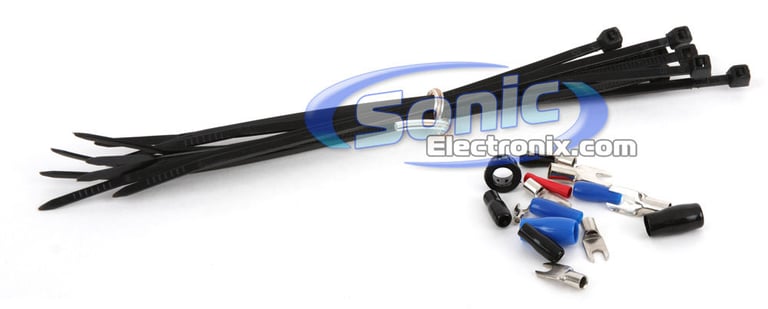

  • 1 18AWG Spade terminal
  • Black zip ties
  • Red butt connector
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

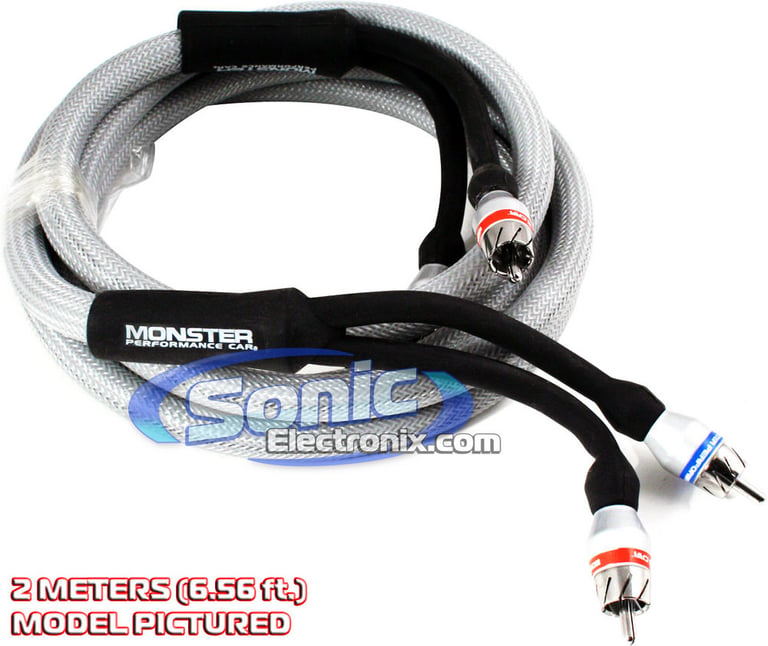

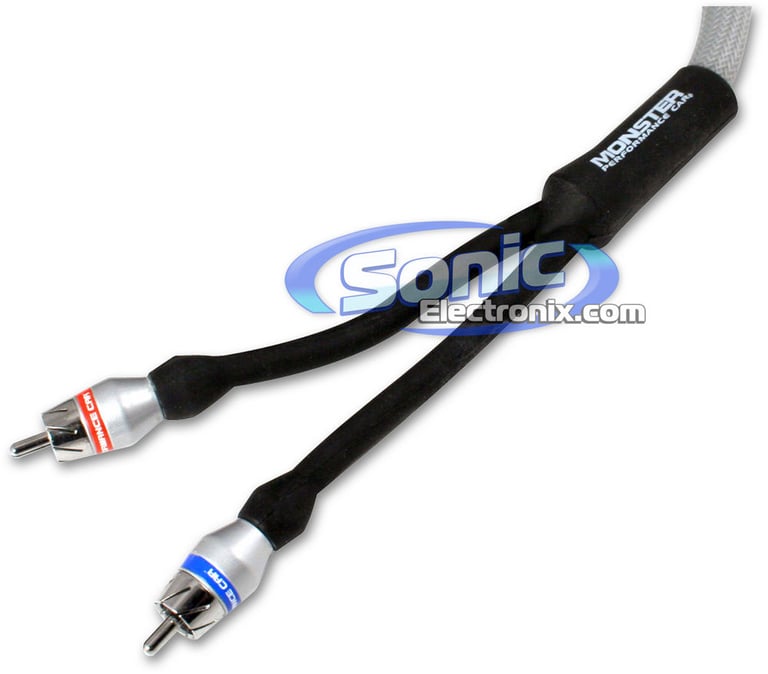

Monster Cable MPC I402 2C-1M

S.28 ft. (1 meter) of 402 XLN+ XTREME Audio Interconnect Cable
Quantity: 2 Sets

  • Split-Tip Center Pin improves contact pressure and lowers distortion, giving you a clearer signal transfer
  • 8-Cut Turbine Ultra-Polished MirrorChrome Connectors maximize surface area and creates higher contact mass for precision signal transfer.
  • Ultra-Low Profile Stubby Connector Design for easy installation
  • 3-Way Time Correct Windings improve clarity and accurately reproduce amplitude and phase response
  • MicroFiber Dielectric isolates individual wire networks for faster transfer
  • PEX Dielectric Prevents signal loss and provides more accurate signal transfer
  • Duraflex Hexmesh Protective Jacket minimizes friction for easy install
  • XLN Xtreme Construction provides protection against interference up to 80dB
  • Cable Length: 3.28 ft. (1 meter)
  • Color: Silver/Gray
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

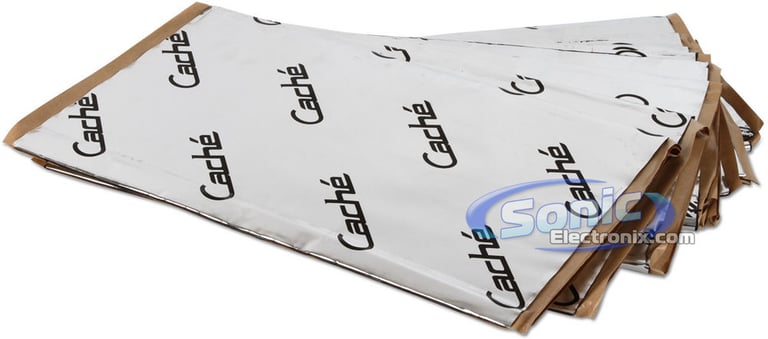

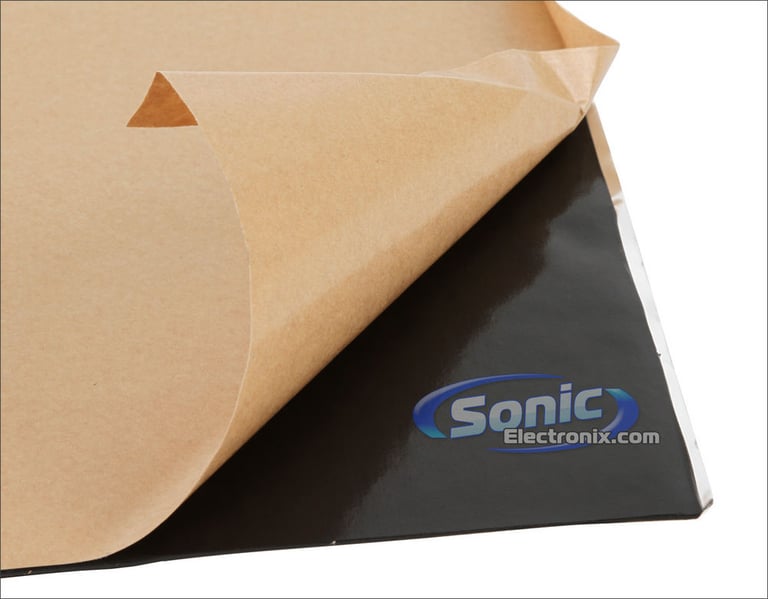

Cache CBM

40 Feet, Ten 18" x 32" Pieces of Dead Shield Sound Dampening Material
Quantity: 1

  • Ten 18" x 32" Pieces of Dead Shield Sound Dampening Material
  • Eliminates road noise
  • Quiets vibrations
  • Stops rattles
  • Increases SPL
  • Reduces heat
  • Easy to form aluminum conforms to desired area of vehicle with ease
  • Four step peel and stick design for easy installation
  • Increases sound quality and output of car audio system
  • Up to 30% thicker than the leading competitors
  • 40 Square feet total
  • Dimensions (each piece): 18"L x 32"W
