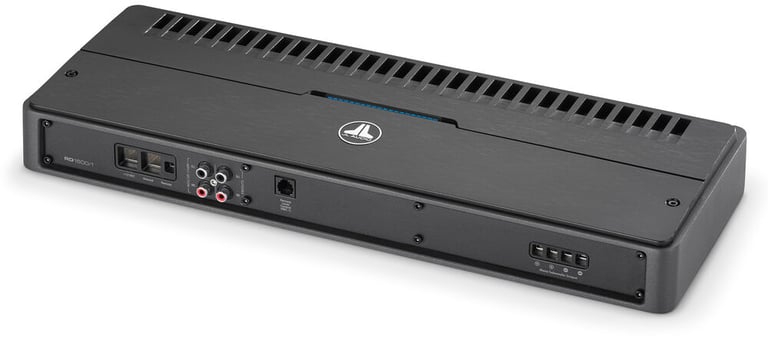

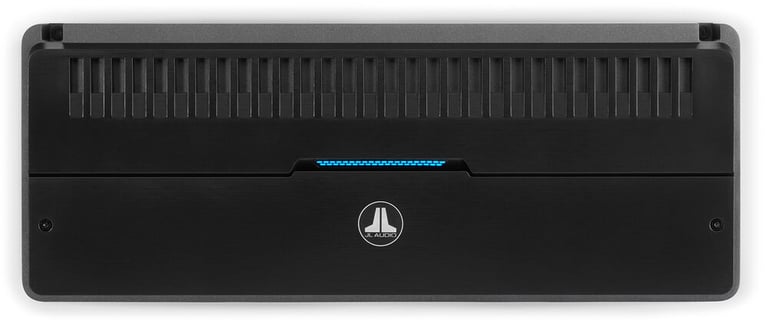

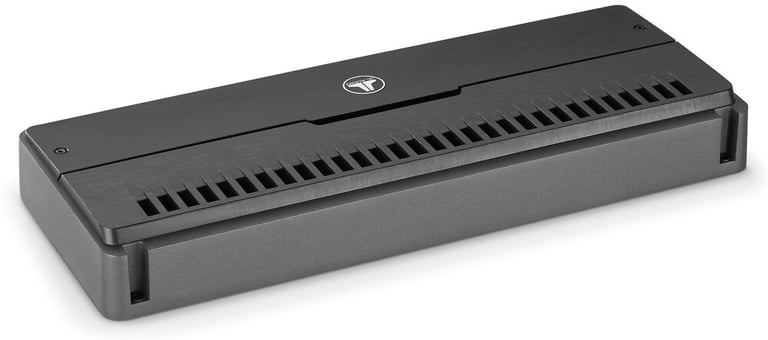

JL Audio RD1500/1 (Like New (Open Box))

1500W RMS Class D RD Series Monoblock Car Amplifier

JL Audio
Shop all JL Audio
highlight-star-icon

• 750 watts x 1 channel @ 4 ohm
• @ 3 ohm
• 1500 watts x 1 channel @ 2 ohm
• 1500 watts x 1 channel @ 1 ohm
• Total RMS Power: 1500 watts
• Class D 1 ohm Stable Monoblock Amplifier

Learn more about the ls-rd15001-u9

We apologize

This item has been discontinued

Description


JL Audio brand icon

Authorized dealer

Item Condition - Like New (Open Box):

This product works and looks like new. It may have been opened for a visual demo or product video. In some cases there may be signs of an attempt at installation like opened packaging or mounting screw holes used, but there is no real sign of use or wear. Includes all original parts, packaging and accessories (or suitable replacement)


JL Audio RD1500/1/h4>

Engineered for high-power, subwoofer applications, the RD1500/1 monoblock amplifier is built to deliver staggering amounts of world-class bass output. Equipped with a special low impedance circuit, the RD1500/1 is capable of generating a whopping 1500 watts of output power, at either 1 or 2 ohms (14.4V, 1% THD). At the heart of this ultra-sleek and compact power plant is JL Audio’s exclusive NexD Class D technology, permitting high power output with exceptional efficiency and low distortion.

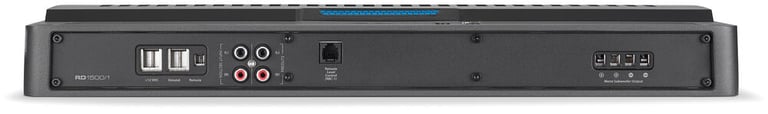

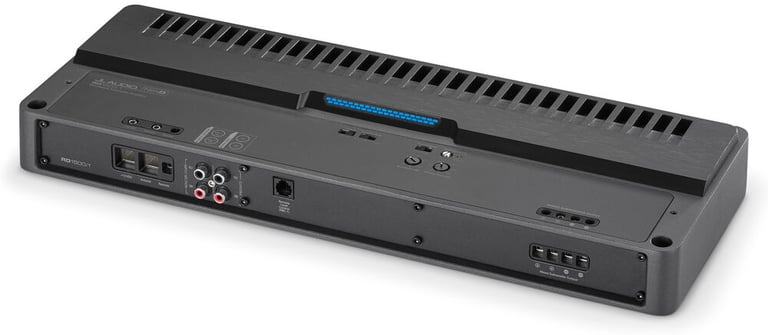

For your convenience, all of the RD1500/1’s controls are located on top of the amplifier, beneath a protective cover, with all connections found along one side of its chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balance inputs are also onboard, capable of accepting most input voltage levels. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier.


Product Details:

  • RD Series Class D 1 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 750 watts x 1 channel
    • 3 ohm:
    • 2 ohm: 1500 watts x 1 channel
    • 1 ohm: 1500 watts x 1 channel
  • Total power output: 1500 watts
  • Wired bass level remote control with optional JL Audio RBC-1 (sold separately)
  • Speaker-level (high-level) inputs (Requires adapter like the JL Audio XD-CLRAIC2-SW)
  • Signal sensing remote turn-on
  • Protection Circuitry with Status LED
  • NextD switching amp technology
  • Differential-balanced inputs help eliminate noise
  • Advanced Rollback Protection System prevents thermal shut-down
  • Input sensitivity:
    • Low level: 0.2 - 2 volts
    • High level: 0.8 - 8 volts
  • Frequency Response: 7 - 500 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 82 dB
  • Variable low-pass filter: 50 - 500 Hz
  • Variable Bass Boost: 0 - 12 dB
  • Fuse Rating: 150A
  • 2 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 18.05" L x 6.96" W x 2.13" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: RD1500/1

Specifications & Details


Key Features
Amplifier Key Features
Bass Boost
Compact Design
Speaker Level Inputs
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
750 watts x 1 channel
RMS Power @ 2 ohms
1500 watts x 1 channel
RMS Power @ 1 ohm
1500 watts x 1 channel
Amplifier Specifications
Series
RD Series
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1500 watts
Maximum Input Gauge Size
2 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
Frequency Response
7 - 500 Hz
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
82 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
150A x 1
Total Fuse Rating
150
Strappable
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
0.2 - 2 volts
High-Level Input Sensitivity
0.8 - 8 volts
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier
Adhesive brand badge
Allen wrench
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

RD1500/1-4

Weight:

10.80lbs

Internal SKU:

ls-rd15001-u9

Internal Product ID:

229249
