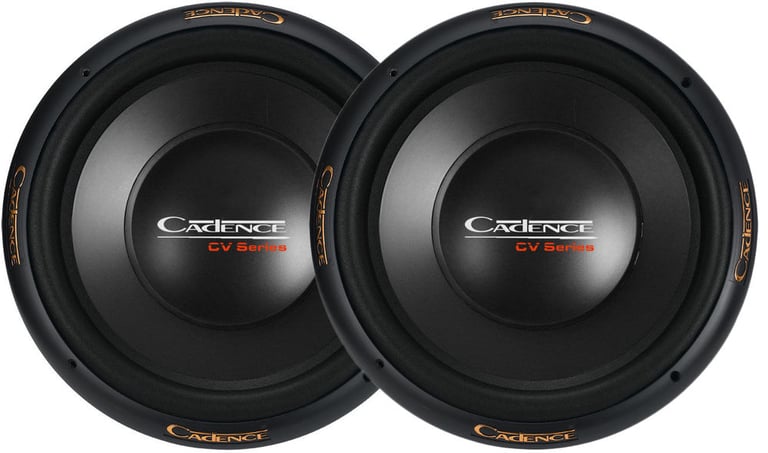

(2) Cadence CV12D4 Subwoofers (CV 12D4)

(2) 500W Max (250W RMS) 12" CV Series Dual 4 ohm Car Subwoofer

Cadence
Shop all Cadence
highlight-star-icon

• 500 Watts Max
• 250 Watts RMS
• Mica Filled Polypropylene Cone
• Rubber Surround
• Stamped Steel Basket

Learn more about the cv12d4_2

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

MEX-N5300BT main

Sony MEX-N5300BT

Single DIN CD Receiver with Bluetooth and Built-in NFC

82

$158.00

List price $159.99

MPR2110 main

Jensen MPR2110

Single DIN Digital Media Receiver with Bluetooth

13
43DSC460 main

Kicker DSC460 (43DSC4604)

240W Peak (60W RMS) 4x6" DS Series 2-way 4-ohm Coaxial Car Speakers (DSC4604)

49
-13.34%

$64.99

List price $74.99

Description


Cadence brand icon

Authorized dealer

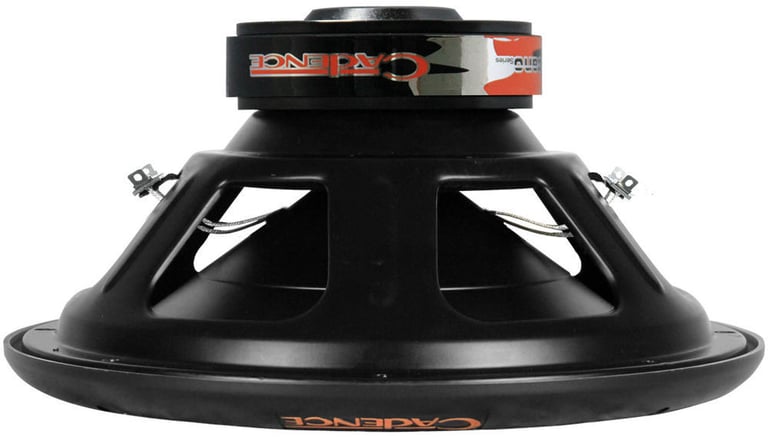

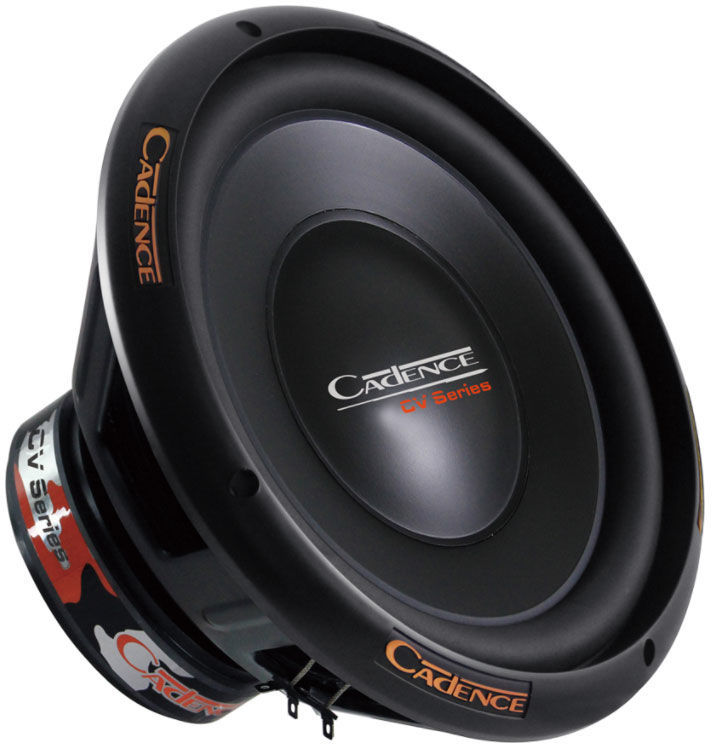

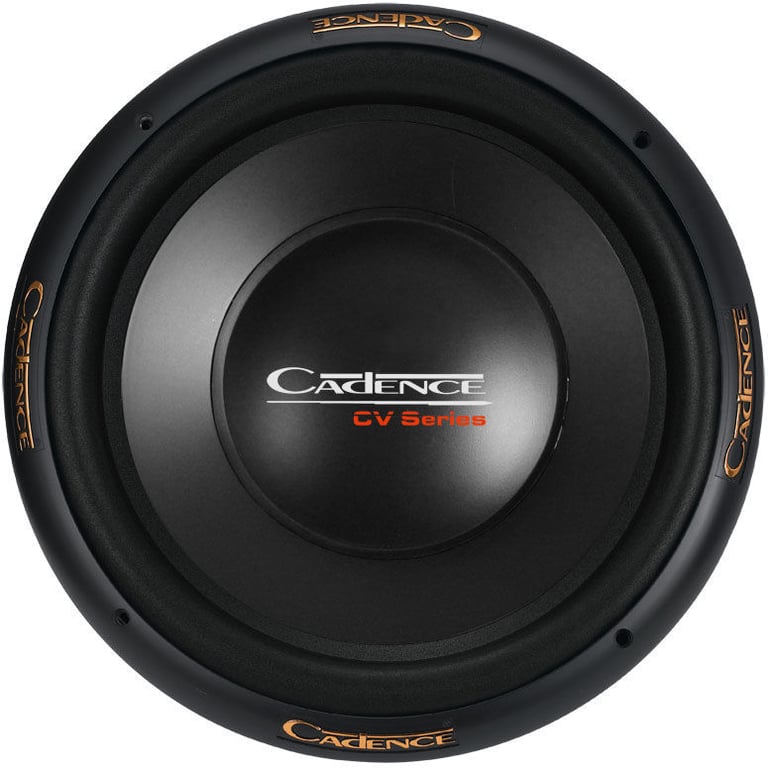

Cadence CV12D4 (CV 12D4)

500W Max (250W RMS) 12" CV Series Dual 4 ohm Car Subwoofer
Quantity: 1

General Features:

  • 12" Dual 4 ohm CV Series Subwoofer
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Recommended power range: 100 - 250 RMS
  • Mica-filled polypropylene cone
  • Rubber surround
  • Stamped steel basket
  • 1.5" High temp KSV voice coil
  • 49 oz. magnet
  • Top-mount depth: 5.59"
  • Cutout diameter: 11.18"
  • Frequency Response: 30 - 800Hz
  • Resonance Frequency (Fs):
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Check out the CV12D4 Owner's Manual

Cadence CV12D4 (CV 12D4)

500W Max (250W RMS) 12" CV Series Dual 4 ohm Car Subwoofer
Quantity: 1

General Features:

  • 12" Dual 4 ohm CV Series Subwoofer
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Recommended power range: 100 - 250 RMS
  • Mica-filled polypropylene cone
  • Rubber surround
  • Stamped steel basket
  • 1.5" High temp KSV voice coil
  • 49 oz. magnet
  • Top-mount depth: 5.59"
  • Cutout diameter: 11.18"
  • Frequency Response: 30 - 800Hz
  • Resonance Frequency (Fs):
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Check out the CV12D4 Owner's Manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 (2) Cadence CV12D4 Subwoofers (CV 12D4) Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 (2) Cadence CV12D4 Subwoofers (CV 12D4) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 (2) Cadence CV12D4 Subwoofers (CV 12D4) Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 (2) Cadence CV12D4 Subwoofers (CV 12D4) Subwoofers

2 Channel Amp

4 Channel Amp


Loading...

Fits 1988-98 Chevy Silverado/GMC Sierra Single Loaded Subwoofer Box DB 1042 DVC

Under-Seat Loaded Subwoofer Enclosure for select 1988-1999 vehicles from Chevrolet, GMC

15
-18.33%

$195.99

List price $239.98

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

AVH-3500NEX main

Pioneer AVH-3500NEX

7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

9
-10.75%

$829.99

List price $930.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

SW-LCSV212D4 small

Sundown Audio LCS 12 v.2 D4 12" (LCS12V2D4)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Paper cone
• Foam surround
• Sensitivity: 87.4 dB

(3)

$99.99

List price $209.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
CV
Subwoofer Size
12"
Peak Power Handling
500 watts
RMS Power Handling
250 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
1.5"
Frequency Response
30 - 800 Hz
Sensitivity
87 dB
Xmax (millimeters)
6 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Rubber
Magnet Structure
Single Stacked
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Minimum Sealed Box Volume
1.25 cubic feet
Optimum Sealed Box Volume
1.75 cubic feet
Top-Mount Depth (Mounting Depth)
5.59"
Cutout Diameter
11.18"
T/S Parameters (Electromechanical)
Equivalent Compliance (Vas)
102.73 liters
Total Speaker Q Value (Qts)
7.17
Electrical Q Value (Qes)
.882
Electrical Resistance of Voice Coil (Re)
7.2 ohm
Mechanical Q Value (Qms)
3.855
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CV12D4-2

Weight:

22.00lbs

Internal SKU:

cv12d4_2

Internal Product ID:

176723
