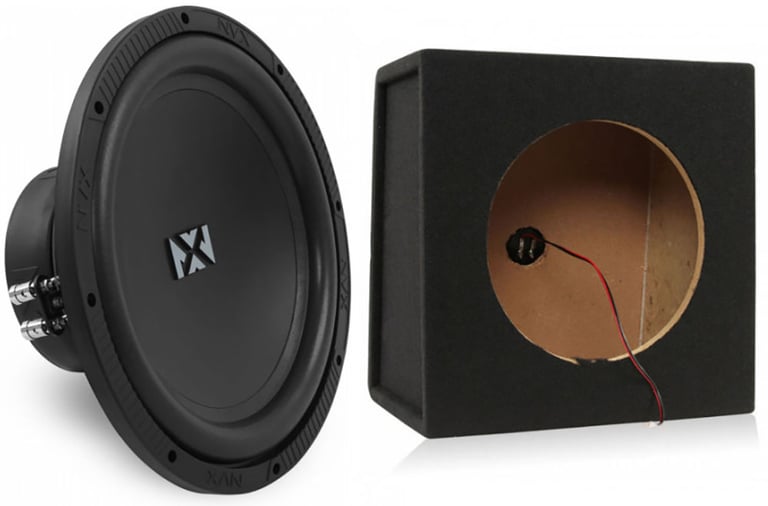

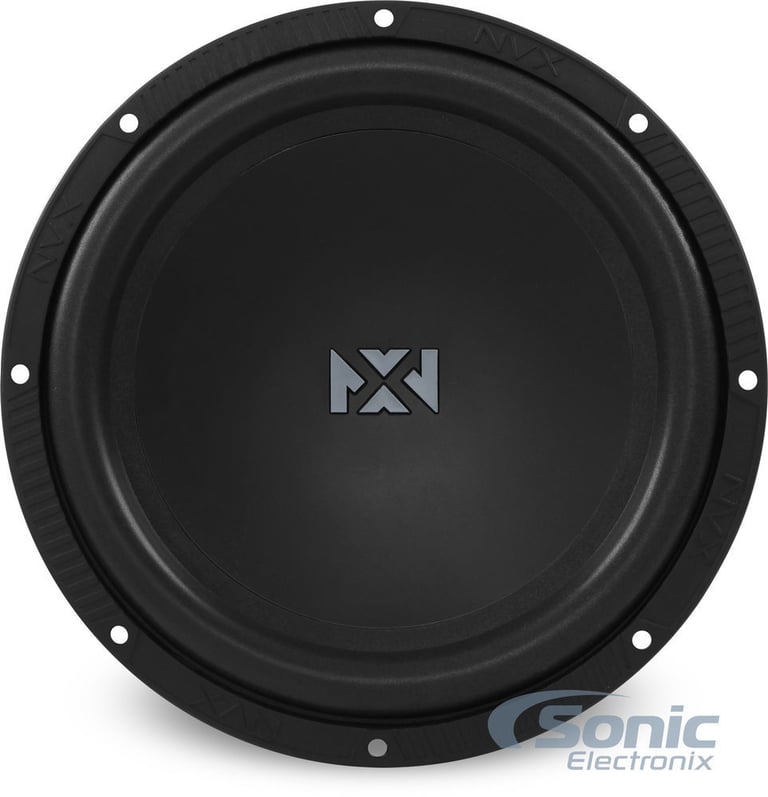

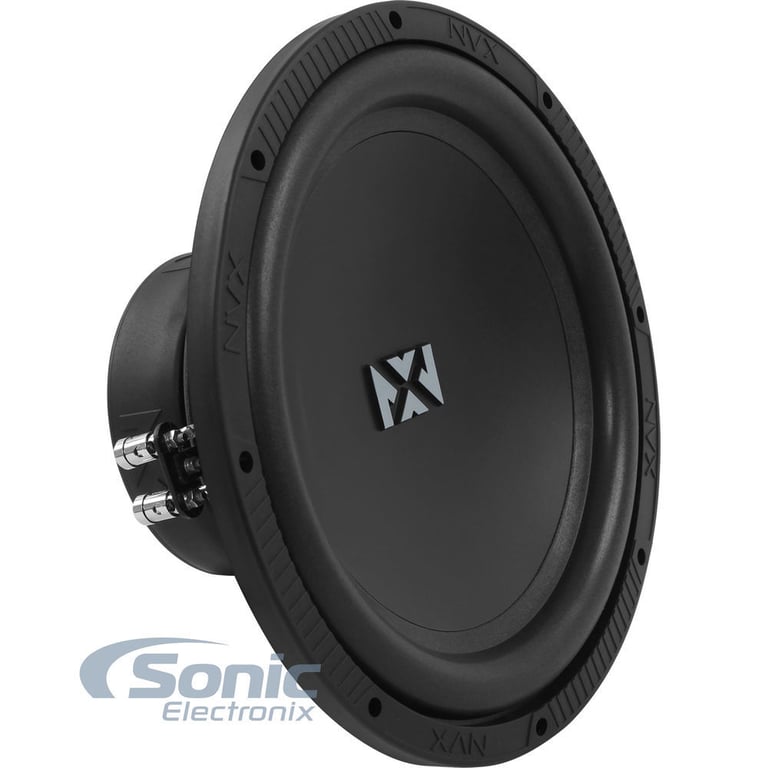

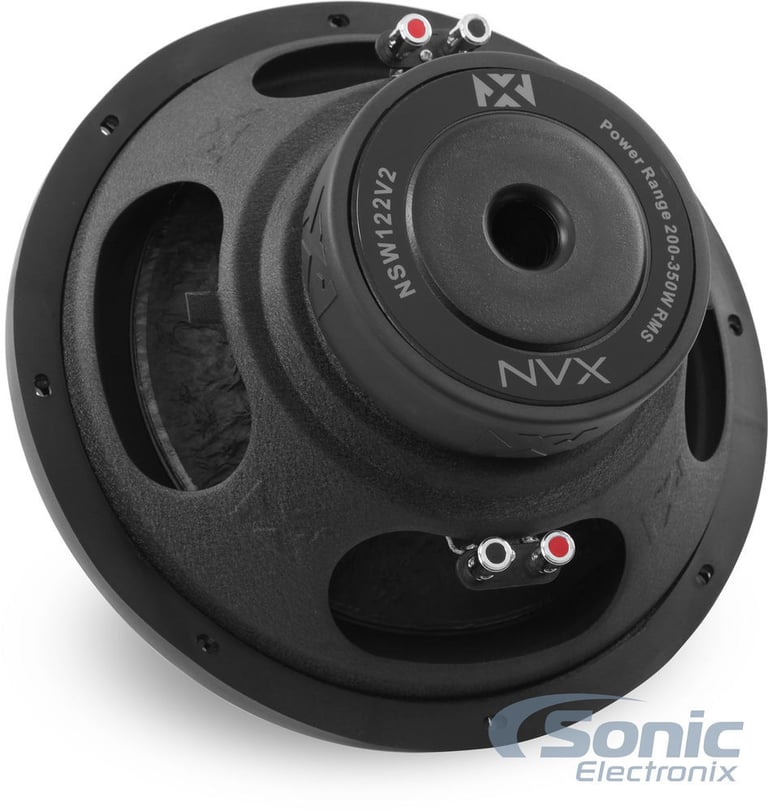

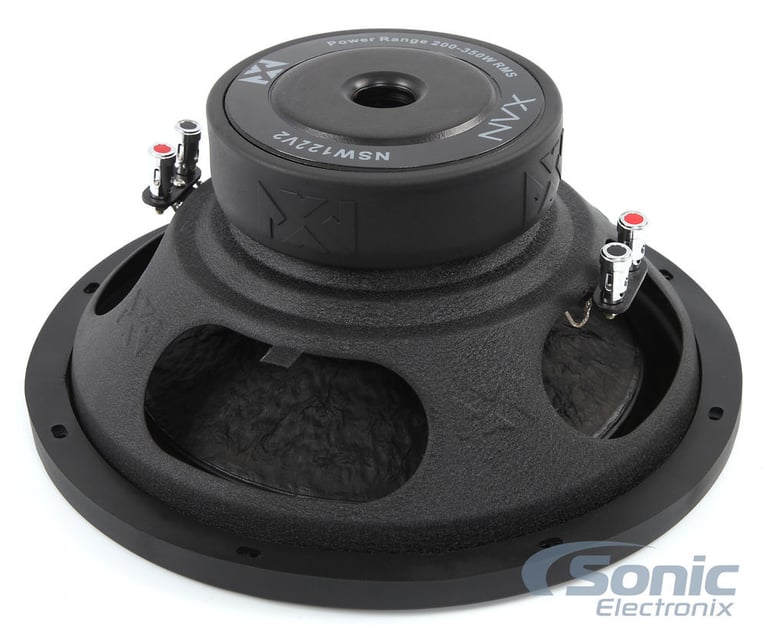

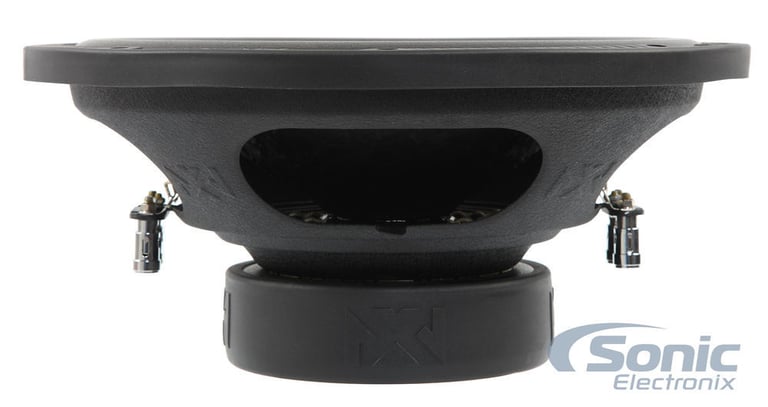

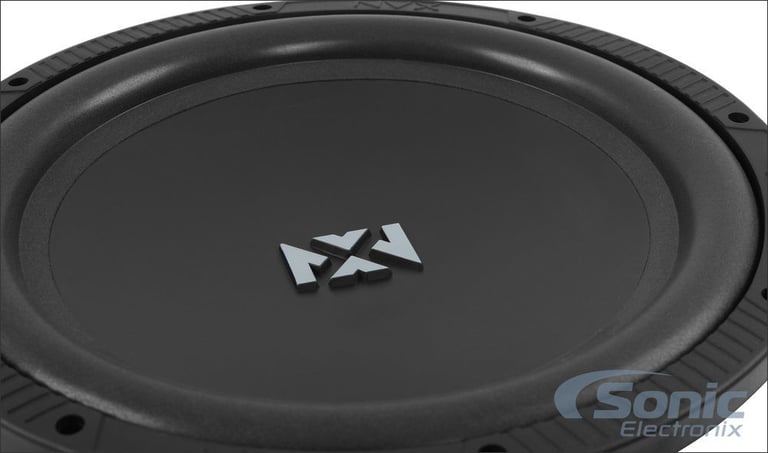

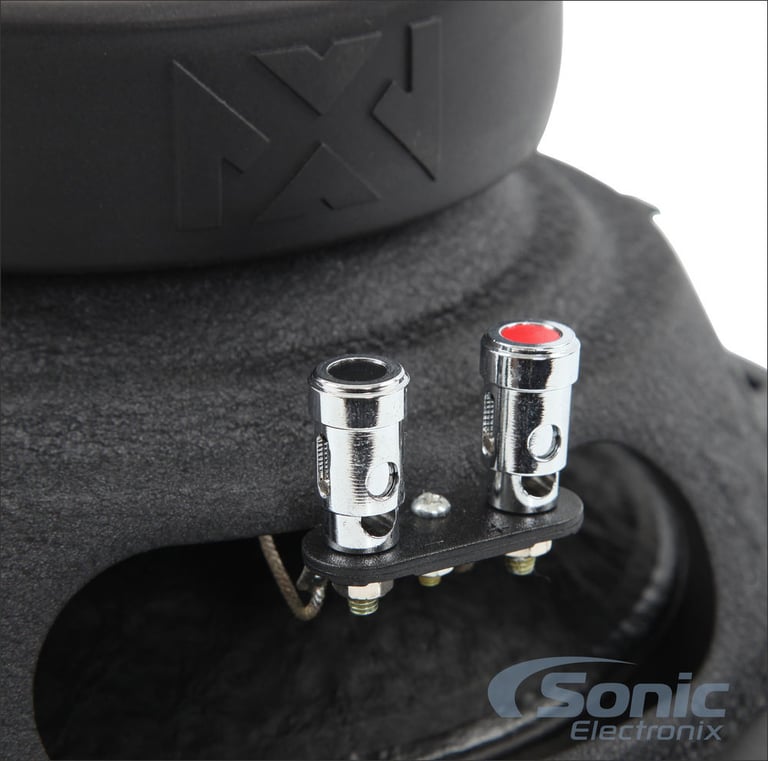

NVX NSW122v2 (NSW122 v2) + Free Sealed Enclosure

700 Watt (350W RMS) N-Series V2 12" Dual 2-Ohm Car Subwoofer

NVX
Shop all NVX
highlight-star-icon

• 350 Watts RMS / 700 Watts Max
• Impedance: Dual 2-Ohm
• Ultra-Light Non Pressed Paper Cone
• Custom Blended Foam Surround
• 2" High Temperature Aluminum Voice Coil

Learn more about the nsw122v2_se12r

We apologize

This item has been discontinued


Loading...
XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

116
-37.15%

$21.99

List price $34.99

AP-M61SE main

Deaf Bonce Apocalypse AP-M61SE

520W Peak (260W RMS) 6.5” Apocalypse Series Midrange 4-ohm Speakers

8

Description


NVX brand icon

Authorized dealer



Wallet Friendly N-Series Power

The NVX N-Series subwoofers offer top-notch sound quality at an entry level price. The NSW122V2 is a great multi-purpose sub that has been engineered to meet the highest audio standards. The stiff, ultra light non pressed paper cone allows the N-Series subs to give you accurate and responsive low-end even when you have your system blasting. The custom blended high roll foam surround allows for greatly improved excursion for further improved sound quality. The 2" dual 4-ohm high temperature aluminum voice coil gives you a wide array of Ohm load wiring options for different applications. With an RMS Power Range of 200-350 watts, the NSW122V2 requires less power to operate efficiently without losing bass quality.

Continuing with the excellent engineering is a stamped steel basket that provides exceptional rigidity while minimizing any unwanted distortion. The N-Series subwoofers also include spring-loaded, chrome plated push terminals that provide an easy and secure speaker wire connection. NVX's mission was to create an exceptional subwoofer at an entry-level price without sacrificing the quality and sound that the consumer deserves. They have succeeded!

Severed Ties Toyota Show Truck
(NVX at Slamology 2015)

NVX NSW122 Version 3 (NSW122v3)

1000W Peak (500W RMS) N-Series v3 12" Dual 2-Ohm Car Subwoofer
Quantity: 1

Product Details:

  • 12" Dual 2 ohm N-Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • 12.5 mm Xmax
  • Enhanced Pressed Paper Cone
  • High-Roll Foam Surround
  • Stamped Steel Vented Basket with NVX Punched Logo
  • 2.0" High Temperature Copper Voice coil with Aluminum Former
  • Progressive Roll Single-layer Spider with Integrated Tinsel Leads
  • Optimized High-Velocity Pole Vent
  • 112 oz. Double Stacked Ferrite Magnet with Protective Rubber boot
  • Frequency Response: 20 - 200 Hz
  • Resonance Frequency (Fs): 34.67 Hz
  • Sensitivity: 87 dB
  • Recommended sealed box volume: 1.25 cubic feet
  • Recommended ported box volume: 2.0 cubic feet
  • Top-mount depth: 6.0"
  • Cutout diameter: 10.86"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconNVX NSW124V3 owner’s manual

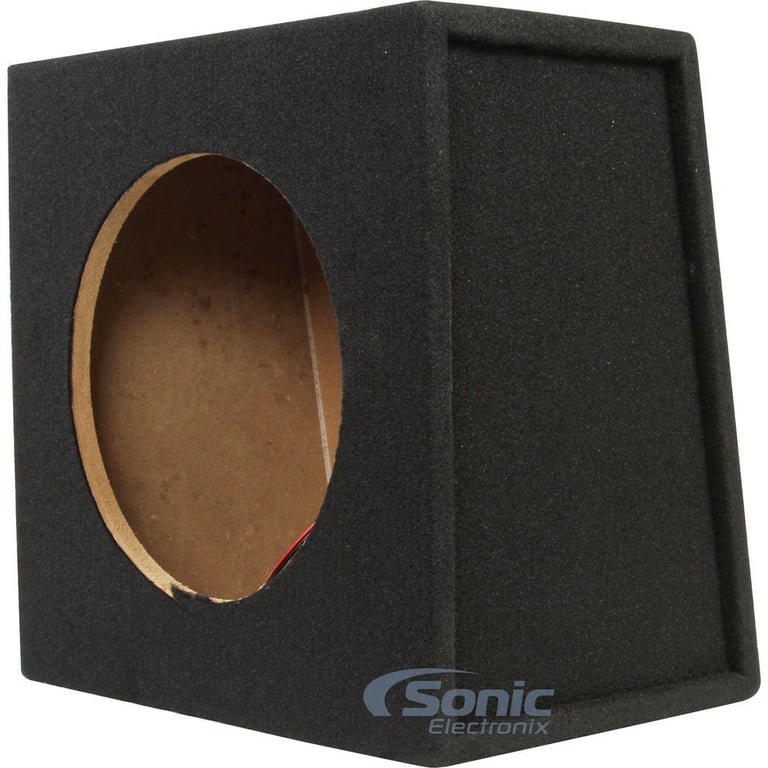

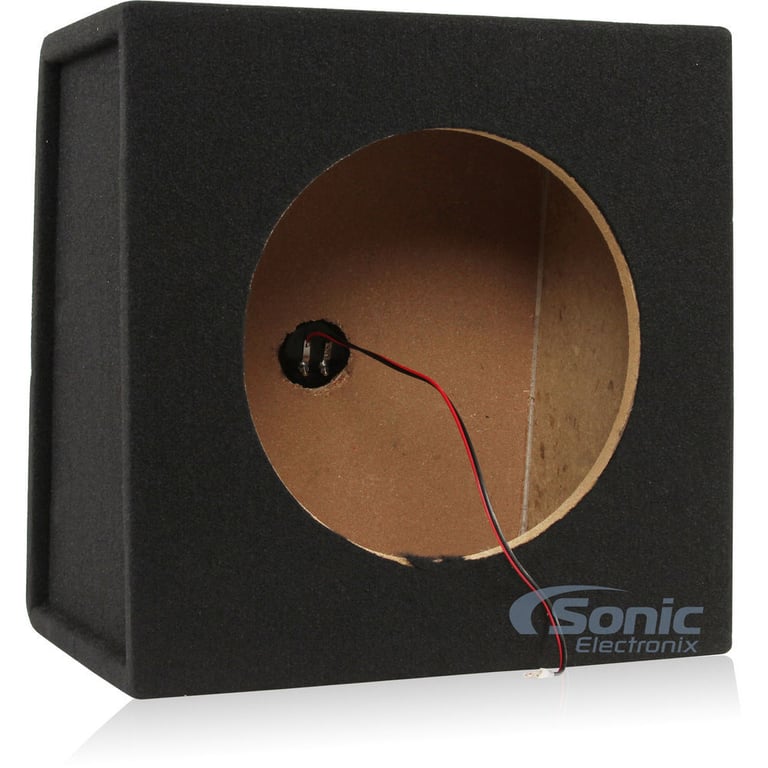

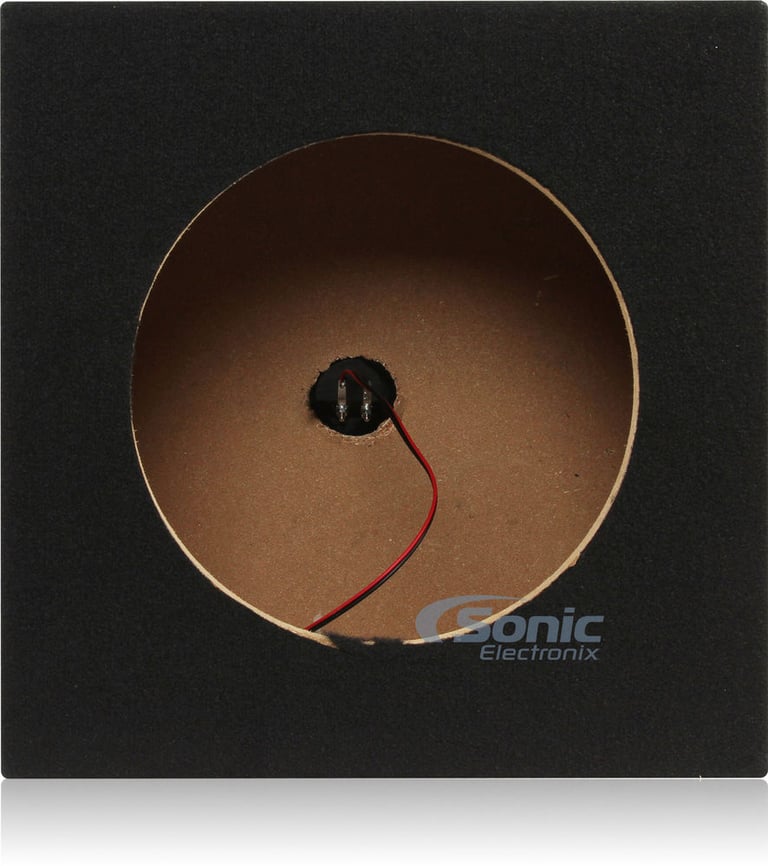

Scosche SE12R

1.25 Cubic Feet 12" Sealed Car Audio Subwoofer Enclosure
Quantity: 1

General Features:

  • Will fit most 12" subwoofers
  • Provides better subwoofer sound quality
  • Tightly sealed subwoofer enclosure to prevent air leaks
  • Pre-wired with power cables

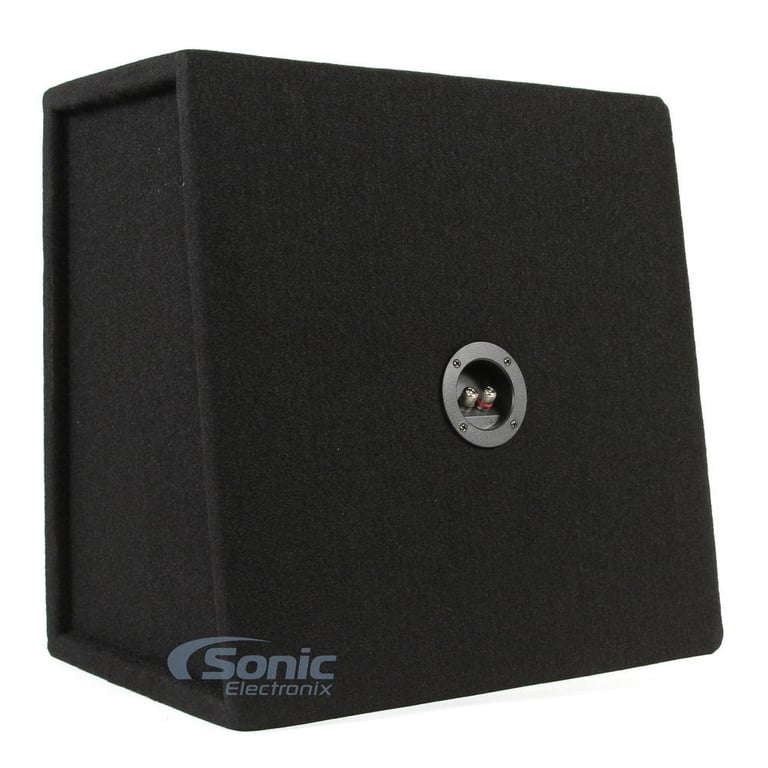

  • Power inputs in the back of enclosure
  • Recessed side panels for easy handling
  • Approx 1.25 cubic feet of air space
  • Dimensions: 17.15"W x 12.0"D x 17.15"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 NVX NSW122v2 (NSW122 v2) + Free Sealed Enclosure Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 NVX NSW122v2 (NSW122 v2) + Free Sealed Enclosure Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 NVX NSW122v2 (NSW122 v2) + Free Sealed Enclosure Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 NVX NSW122v2 (NSW122 v2) + Free Sealed Enclosure Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99


Best selling similar products

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1383.97

List price $2029.97

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.96

List price $2282.96

DAX800XR_MRR2_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(9)

$1473.96

List price $2143.96

KWZ800AW_MRR_S8FO1 small

JVC KW-Z800AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from Ford, Lincoln
• 8" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(39)

$1383.97

List price $1778.97

DAX800XR_MRR_S8GM1_8 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1456.96

List price $2074.96

DAX1050XR_MRR_FLCH2_D small

Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.97

List price $2479.97

DAX800XR_MRR_S8FO2_s small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1348.96

List price $1973.96

DAX800XR_MRR_S8GM3_CI small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1605.96

List price $2254.96

DAX800XR_MRR_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1403.96

List price $2053.96

KWZ800AW_MRR2_S8FO1 small

JVC KW-Z800AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from Ford, Lincoln
• 8" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(8)

$1453.97

List price $1868.97

Specifications & Details


Subwoofer Specifications
Series
N Series
Subwoofer Size
12"
Peak Power Handling
700 watts
RMS Power Handling
350 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
2"
Frequency Response
20 - 200 Hz
Sensitivity
86.9 dB
Xmax (millimeters)
10.2 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Foam
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.0 cubic feet
Optimum Sealed Box Volume
1.25 cubic feet
Maximum Sealed Box Volume
1.75 cubic feet
Minimum Ported Box Volume
1.5 cubic feet
Optimum Ported Box Volume
1.75 cubic feet
Maximum Ported Box Volume
2.0 cubic feet
Top-Mount Depth (Mounting Depth)
5.01"
Cutout Diameter
10.83"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
34.5 Hz
Equivalent Compliance (Vas)
54.57 liters
Total Speaker Q Value (Qts)
0.590
Electrical Q Value (Qes)
0.660
Electrical Resistance of Voice Coil (Re)
3.46 ohm
Mechanical Q Value (Qms)
5.75
Efficiency Bandwidth Product (EBP)
52
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

SE12R,NSW122V2-2

Weight:

34.10lbs

Internal SKU:

nsw122v2_se12r

Internal Product ID:

177465

Customer Ratings & Reviews


NVX NSW122v2 (NSW122 v2) + Free Sealed Enclosure thumbnail image

5 star
61%
4 star
27%
3 star
7%
2 star
0%
1 star
5%



Durability
4.6
Value
4.8
Features
4.8
Design
4.8
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

NVX for the win..

The following review is for NSW122v3, which is a part of the bundle you are viewing.

NVX Tweeters, Midbass and now the Subs, I believe NVX is firmly committed to SQ and offers a great product for a tremendous value. This subwoofer is their 2nd Generation and has the non-pressed paper cone, i spoke with NVX why they switched from Polypropylene to Paper and he told me lot's of reasons but mainly SQ and after listening to the subs for an extended session i have to agree that they sound fantastic in a 3.2 cu ft vented enclosure with 50 oz of polyfill, i can't imagine the SQ getting much better than it is right now and close to 130 db's is plenty loud for me, my ears are still ringing..
Each sub is wired in series for a 4 ohms then both subs are paralleled for a 2 ohm final load impedance on a 500 Wrms channel, they pound the ground and shake my entire full size van, much louder than the MTX Terminators that were replaced and i had to cut the bass knob back..
I highly recommend these subwoofers, the 1st Gen subs got lots of 5 star reviews and once people catch on to the 2nd Gen they will too, am extremely happy with my purchase and have nothing but good things to say for the NVX Brand speakers and subwoofers..
NVX for the win, the VSW122V2 is probably one of the best under $70 subwoofers on the market and i wouldn't hesitate to use any of their products..

By George on July 17, 2015

64 found this helpful


Great sound

The following review is for NSW122v3, which is a part of the bundle you are viewing.

The bass from this sub is deep and clean. The mounting depth is efficient for almost any 12 sub box. I'll recommend to anyone that want clean sounding bass.

Pros - Well built, sounds good.
Cons - None so far.

By Arthur on January 13, 2018

51 found this helpful


Nice subs!

The following review is for NSW122v3, which is a part of the bundle you are viewing.

Hooked up 2 of these to my 1000 W RMS amp with the gain turned down while I break them in. Sonic got them to me right on schedule, and they sound great so far. Dual voice coils are a great feature and I can see the quality built into these subs. Using a sealed box with recommended volume of 1.25 cu.ft. per chamber during break in, so far I don't think I will need to move them to a ported box after they loosen up. Great SQ at this power level, nice subs at this price point.

By kjbad on July 27, 2016 Checkmark Icon Verified purchase

51 found this helpful


Solid choice

The following review is for NSW122v3, which is a part of the bundle you are viewing.

I put one of these in a 1.25cuft box in my accord on an mrv-m500 wired to 4ohms and tune the amp to put out 300tms with my multimeter. Gotta say; at only 300 watts this is pretty impressive. Still fairly tight for a 12" but plenty of bottom end for what I usually listen to. I'm planning another build but two of these next.

By Anonymous on May 19, 2019

48 found this helpful


Good entry level subs

The following review is for NSW122v3, which is a part of the bundle you are viewing.

Easy on pocket and they hit the lows with deep rumbling bass

By kenneth on December 31, 2017 Checkmark Icon Verified purchase

48 found this helpful


Solid gear

The following review is for NSW122v3, which is a part of the bundle you are viewing.

This sub met my needs perfectly. I needed a low cost high quality driver with reasonable efficiency. I also needed to be under 5 inches top Mount depth. It fit my truck box for the tundra crewmax behind the rear seat perfectly and gave me plenty of clean bass. Only time will tell if it can handle the abuse to come. I'm using a rockville rxa t1 to power it. It's a great match. Cea compliant to match the sub and pushes it to the limit as well.

By Joe on October 21, 2016

48 found this helpful


Great entry-level subs for the price!

The following review is for NSW122v3, which is a part of the bundle you are viewing.

I purchased these last November as a black friday special after a fitment issue with the pioneer champion series that came with the bundle( I know right?). The customer service rep spoke highly of her brand and I went with his recommendation for these NVX'23r hrs. I installed them into a nice 2 sub ported Belva box with 1.75 cubic ft per sub tuned at 40hz. Wired them in parallel 380 watts @ 2 ohms to my NVX JAD900.5. I broke them in out of the box with a single tone generator because I wanted to bang asap. They sounded great in the trunk of my Monte Carlo for months. I then put them into my Mazda 3 hatchback faced upward using the same amp.* I thought one of the subs blew because of it making a terrible rattle and only ran one sub 210 watts @ 4 ohms. After 3 months of only one sub, I found out that the dust cap came unglued. The cone was still nice and glued, so I bought some clear speaker adhesive and fixed my issue. Got both of them hooked back up and forgot how loud both of them were together. I really enjoyed my time with just one sub because it didn't bang as hard and fell in love with the sound quality. I play all sorts of genres from rap, EDM, dubstep, house, metal,to alternative. They can play anything I throw at them and do it accurately. A bunch of expensive name brand subs aren't even capable of going below 28hz and these go all the way to 20hz. While it may not produce those low notes loudly, their presence is there and can be heard clearly. One day I'm considering putting more power to them or a higher end NVX sub one day, but these will definitely put a smile on your face, even with only 200 watts each. Go ahead and get at least 2 of them. You know you want to!

I'm removing one star for the dust cap coming unglued. Everything is working great since I glued it back.

By Anonymous on September 30, 2018

47 found this helpful


Entry level... my foot!!

The following review is for NSW122v3, which is a part of the bundle you are viewing.

These babies Boom! Amazed by this entry level sub from NVX! Great SQ and loud! I have been through a lot of subs. These rate in the top 10 with me! Thanks Sonic!!!

By Anonymous on September 11, 2018

42 found this helpful


Box killer

The following review is for NSW122v3, which is a part of the bundle you are viewing.

Ok fair warning these subs will kill your box if it is weak. Tuned my amp at 800w rms 400/woofer at Max volume. At 60% volume about 300w each. Very clear sound very nice low resonance. In my Sierra box choices are limited so I went with the generic box with about 2 ft cubed total. After about 3 weeks or so I started to hear a rattle and thought I burnt a coil or messed up a spider. Nope....I split my box at the seams. If you get these subs, take some of the money you save and invest in a strong box. They slam hard. Not loud but very clear and very hard. Definitely looking at putting a set in my wife's car.

By Daniel on May 7, 2018 Checkmark Icon Verified purchase

44 found this helpful


Great subs for the price

The following review is for NSW122v3, which is a part of the bundle you are viewing.

I bought 2 of these, put them in a 1 cubic foot per chamber sealed box with a pound of fill per chamber, wired at 2 ohms to a kicker cx600.1 and they sound great. Extremely clean and tight bass. They replaced 2 of the older alpine type s's that blew. They're not quite as loud but they sound cleaner and punchier. Also the alpine's were in a ported box, I think if I had these in a ported box they would be about the same. As for durability I've had them for about 3 weeks now I think, running just below clipping from the amp, for atleast an hour drive everyday and seem to be good and getting a little louder as they break in. I think the look and design are great. They look awesome in the box in the trunk, not too flashy but look like solid quality. Overall for the price these are a great buy. Would definitely recommend these for anyone on a budget like me looking to add some bass. And as always sonic delivered fast and packaged well with great prices, love the company, will be buying all my audio equipment from here.

By Steven on June 14, 2017 Checkmark Icon Verified purchase

35 found this helpful




E1000 small

e2 E1000 by Scosche

9.5mm (4 Gauge) Complete Amplifier Installation Kit

(38)

$34.95

List price $79.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2012 Audi S5

2018 Mazda CX-9

1977 Dodge Monaco

2013 Smart Fortwo

2009 Chevrolet Corvette

2002 Suzuki Aerio

2017 Kia Optima

2006 Mazda Tribute

2016 Audi A3

2010 Ford Flex

Vehicle
Store
Delete

2008 Harley Davidson FXSTC Softail Custom

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
