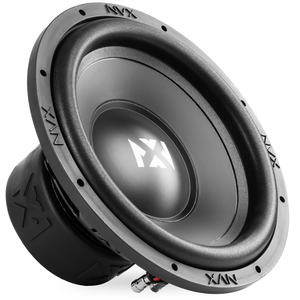

NVX NSW122 Version 3 (NSW122v3)

1000W Peak (500W RMS) N-Series v3 12" Dual 2-Ohm Car Subwoofer

NVX
Shop all NVX
highlight-star-icon

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 2 ohms
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.0"
• Sensitivity: 87 dB

Learn more about the nsw122v3
Was $107.99 Details
Thanks , You Pay:

$89.99

 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one nsw122v3.

Set your vehicle or Return to product page
shipping truck icon Free shipping in USA. Provide zip for delivery date.
Quantity
In Stock
Brand new

Buy it now


Acima Logo

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Allstate logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Mechanical, electrical and product failure covered! 100% parts and labor covered. (Coverage starts after Mfr. warranty)
  • Easy online management! Zero hassle claim service, available 24/7
Swoosh Icon Icon of Swoosh

For over 24 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

Award winning icon
Award-Winning Service
Shipping icon
FREE Shipping Orders $49+
60 days return policy icon
60-Day Easy Returns
lowest price guarantee icon
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Expert built bundles that save you more (1)

Choose from any of our many bundles that include this product for even more savings!

NVX NSW122v3 12" 700 Watt Car Subwoofer + MDF Sealed Enclosure

12" Dual 2 Ohm N-Series V2 Car Subwoofer w/ Sealed 3/4" MDF Sub Enclosure

(40)

$159.98

Description


NVX brand icon

Authorized dealer

N Series 12 Inch Subwoofer
Progressive Roll Spider High Roll Foam Surround Two Inch High Temperature Voice Coil
High Velocity Pole Vent

Product Details:

  • 12" Dual 2 ohms N-Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • 12.5 mm Xmax
  • Enhanced Pressed Paper Cone
  • High-Roll Foam Surround
  • Stamped Steel Vented Basket with NVX Punched Logo
  • 2.0" High Temperature Copper Voice coil with Aluminum Former
  • Progressive Roll Single-layer Spider with Integrated Tinsel Leads
  • Optimized High-Velocity Pole Vent
  • 112 oz. Double Stacked Ferrite Magnet with Protective Rubber boot
  • Frequency Response: 20 - 200 Hz
  • Resonance Frequency (Fs): 34.67 Hz
  • Sensitivity: 87 dB
  • Recommended sealed box volume: 1.25 cubic feet
  • Recommended ported box volume: 2.0 cubic feet
  • Top-mount depth: 6.0"
  • Cutout diameter: 10.86"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconNVX NSW124V3 owner’s manual

Product history:

NVX NSW122v3 thumbnail
(newest, current model)
NVX NSW122 thumbnail
(previous model, replaced by NVX NSW122 Version 3 (NSW122v3))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 NVX NSW122 Version 3 (NSW122v3) Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 NVX NSW122 Version 3 (NSW122v3) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 NVX NSW122 Version 3 (NSW122v3) Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 NVX NSW122 Version 3 (NSW122v3) Subwoofers

2 Channel Amp

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
N-Series
Subwoofer Size
12"
Peak Power Handling
1000 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohms
Voice Coil Material
Copper
Voice Coil Diameter
2.0"
Frequency Response
20 - 200 Hz
Sensitivity
87 dB
Xmax (millimeters)
12.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Pressed Paper
Woofer Surround
High Roll Foam
Magnet Structure
Double Stacked
Magnet weight
112 oz.
Magnet Type
Ferrite
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
Yes
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.25 cubic feet
Optimum Ported Box Volume
2.0 cubic feet
Top-Mount Depth (Mounting Depth)
6.0"
Cutout Diameter
10.86"
Shallow Mount Installation
No
Electromechanical Parameters
Free-Air Resonance (Fs)
34.67 Hz
Equivalent Compliance (Vas)
37.70 liters
Total Speaker Q Value (Qts)
0.489
Electrical Q Value (Qes)
0.534
Electrical Resistance of Voice Coil (Re)
3.8 ohms
Mechanical Q Value (Qms)
5.792
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

NSW122v3

Weight:

15.10lbs

Internal SKU:

nsw122v3

Internal Product ID:

89949

Customer Ratings & Reviews



5 star
65%
4 star
23%
3 star
3%
2 star
0%
1 star
10%



Durability
4.5
Value
4.7
Features
4.7
Design
4.7
Usability
4.8

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

NVX for the win..

NVX Tweeters, Midbass and now the Subs, I believe NVX is firmly committed to SQ and offers a great product for a tremendous value. This subwoofer is their 2nd Generation and has the non-pressed paper cone, i spoke with NVX why they switched from Polypropylene to Paper and he told me lot's of reasons but mainly SQ and after listening to the subs for an extended session i have to agree that they sound fantastic in a 3.2 cu ft vented enclosure with 50 oz of polyfill, i can't imagine the SQ getting much better than it is right now and close to 130 db's is plenty loud for me, my ears are still ringing..
Each sub is wired in series for a 4 ohms then both subs are paralleled for a 2 ohm final load impedance on a 500 Wrms channel, they pound the ground and shake my entire full size van, much louder than the MTX Terminators that were replaced and i had to cut the bass knob back..
I highly recommend these subwoofers, the 1st Gen subs got lots of 5 star reviews and once people catch on to the 2nd Gen they will too, am extremely happy with my purchase and have nothing but good things to say for the NVX Brand speakers and subwoofers..
NVX for the win, the VSW122V2 is probably one of the best under $70 subwoofers on the market and i wouldn't hesitate to use any of their products..

By George on July 17, 2015

62

found this helpful.

NVX NSW122v2 (Poor Quality, Buyer Beware)

I bought a pair of NVX NSW122v2 at the recommendation of the Sonic Electronix sales representative who spoke highly of NVX and claimed the the subs price and performance far exceeded the competition. Taking the sales rep advise I decided to purchase a set of NVX subs for my 2016 Chevy Silverado. Well it hasn't been two years since the day I purchased the subs, had Best Buy install them, and had to file two warranty claims with NVX for defective subs. The subs look and sound great when they work normally, but unfortunately they tend to break after a few months of usage. Luckily, I purchased the square trade warranty through Sonic Electronix, so I had to file a 3rd claim after my replacement subs started malfunctioning. I will not recommend this subs to anyone, spend a little more and buy some Kicker, Alpine, JBL, or Pioneer Subs. The old adage that says, "You get what you pay for" densely applies to this subs. Buyer Beware!

By Ramon on January 25, 2018 Checkmark Icon Verified purchase

50

found this helpful.

Great sound

The bass from this sub is deep and clean. The mounting depth is efficient for almost any 12 sub box. I'll recommend to anyone that want clean sounding bass.

Pros - Well built, sounds good.
Cons - None so far.

By Arthur on January 13, 2018

49

found this helpful.

Solid choice

I put one of these in a 1.25cuft box in my accord on an mrv-m500 wired to 4ohms and tune the amp to put out 300tms with my multimeter. Gotta say; at only 300 watts this is pretty impressive. Still fairly tight for a 12" but plenty of bottom end for what I usually listen to. I'm planning another build but two of these next.

By Anonymous on May 19, 2019

46

found this helpful.

Good entry level subs

Easy on pocket and they hit the lows with deep rumbling bass

By kenneth on December 31, 2017 Checkmark Icon Verified purchase

45

found this helpful.

Nice subs!

Hooked up 2 of these to my 1000 W RMS amp with the gain turned down while I break them in. Sonic got them to me right on schedule, and they sound great so far. Dual voice coils are a great feature and I can see the quality built into these subs. Using a sealed box with recommended volume of 1.25 cu.ft. per chamber during break in, so far I don't think I will need to move them to a ported box after they loosen up. Great SQ at this power level, nice subs at this price point.

By kjbad on July 27, 2016 Checkmark Icon Verified purchase

47

found this helpful.

Solid gear

This sub met my needs perfectly. I needed a low cost high quality driver with reasonable efficiency. I also needed to be under 5 inches top Mount depth. It fit my truck box for the tundra crewmax behind the rear seat perfectly and gave me plenty of clean bass. Only time will tell if it can handle the abuse to come. I'm using a rockville rxa t1 to power it. It's a great match. Cea compliant to match the sub and pushes it to the limit as well.

By Joe on October 21, 2016

45

found this helpful.

Entry level... my foot!!

These babies Boom! Amazed by this entry level sub from NVX! Great SQ and loud! I have been through a lot of subs. These rate in the top 10 with me! Thanks Sonic!!!

By Anonymous on September 11, 2018

40

found this helpful.

Great entry-level subs for the price!

I purchased these last November as a black friday special after a fitment issue with the pioneer champion series that came with the bundle( I know right?). The customer service rep spoke highly of her brand and I went with his recommendation for these NVX'23r hrs. I installed them into a nice 2 sub ported Belva box with 1.75 cubic ft per sub tuned at 40hz. Wired them in parallel 380 watts @ 2 ohms to my NVX JAD900.5. I broke them in out of the box with a single tone generator because I wanted to bang asap. They sounded great in the trunk of my Monte Carlo for months. I then put them into my Mazda 3 hatchback faced upward using the same amp.* I thought one of the subs blew because of it making a terrible rattle and only ran one sub 210 watts @ 4 ohms. After 3 months of only one sub, I found out that the dust cap came unglued. The cone was still nice and glued, so I bought some clear speaker adhesive and fixed my issue. Got both of them hooked back up and forgot how loud both of them were together. I really enjoyed my time with just one sub because it didn't bang as hard and fell in love with the sound quality. I play all sorts of genres from rap, EDM, dubstep, house, metal,to alternative. They can play anything I throw at them and do it accurately. A bunch of expensive name brand subs aren't even capable of going below 28hz and these go all the way to 20hz. While it may not produce those low notes loudly, their presence is there and can be heard clearly. One day I'm considering putting more power to them or a higher end NVX sub one day, but these will definitely put a smile on your face, even with only 200 watts each. Go ahead and get at least 2 of them. You know you want to!

I'm removing one star for the dust cap coming unglued. Everything is working great since I glued it back.

By Anonymous on September 30, 2018

41

found this helpful.

Box killer

Ok fair warning these subs will kill your box if it is weak. Tuned my amp at 800w rms 400/woofer at Max volume. At 60% volume about 300w each. Very clear sound very nice low resonance. In my Sierra box choices are limited so I went with the generic box with about 2 ft cubed total. After about 3 weeks or so I started to hear a rattle and thought I burnt a coil or messed up a spider. Nope....I split my box at the seams. If you get these subs, take some of the money you save and invest in a strong box. They slam hard. Not loud but very clear and very hard. Definitely looking at putting a set in my wife's car.

By Daniel on May 7, 2018 Checkmark Icon Verified purchase

40

found this helpful.
