JL Audio (2) 12W0v3-4,BAK42,MDFD12,VAD8402 (12w0v34_subampcombo)

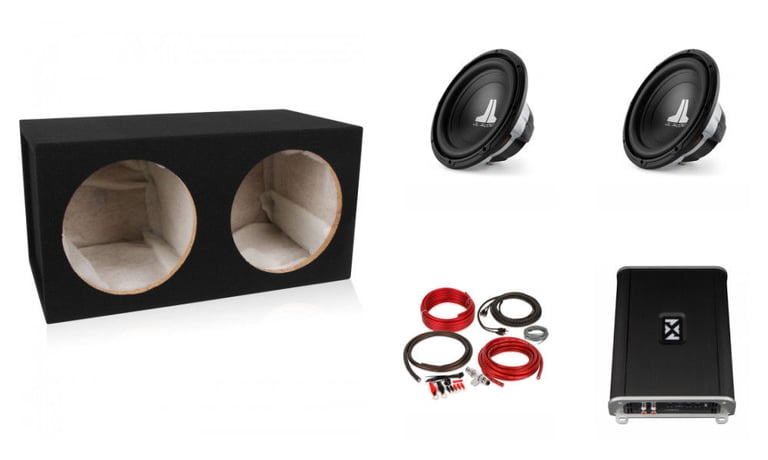

2 JL Audio 12W0v3-4 + Dual Subwoofer Box + NVX 840W RMS Amp + Wiring Kit

Complete 840W Car Audio Bass Package

Complete 840W Car Audio Bass Package

• Sensitivity: 85.64 dB
• Mounting depth: 5.40 "
• Mineral-Filled Polypropylene Cone
• Large Roll Surround
• Elevated Frame Cooling
• DMA Optimized Motor System
• Metallic Silver Frame Finish

4.7

(206)
List price $739.95
Save: $340.00

$399.95

In Stock with warranty
Thanks , You Pay:
Order within 20 hrs 45 mins to ship 6/23

FREE delivery: Fri, June 25 to VA.

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
JL Audio

Authorized dealer

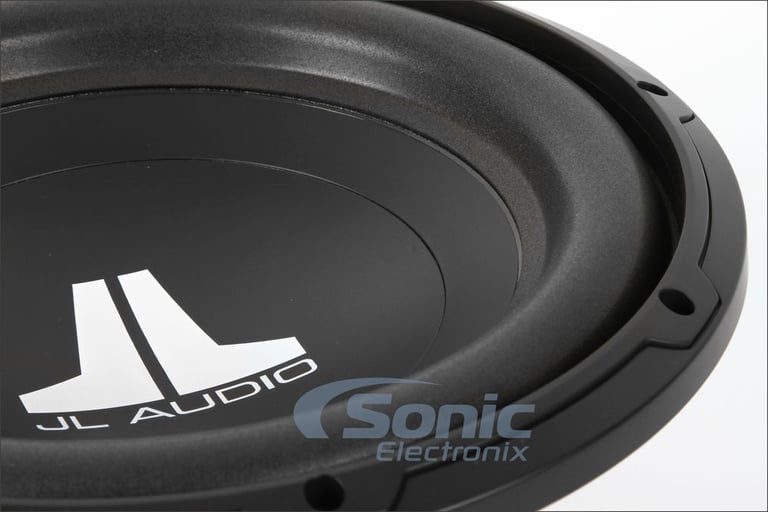

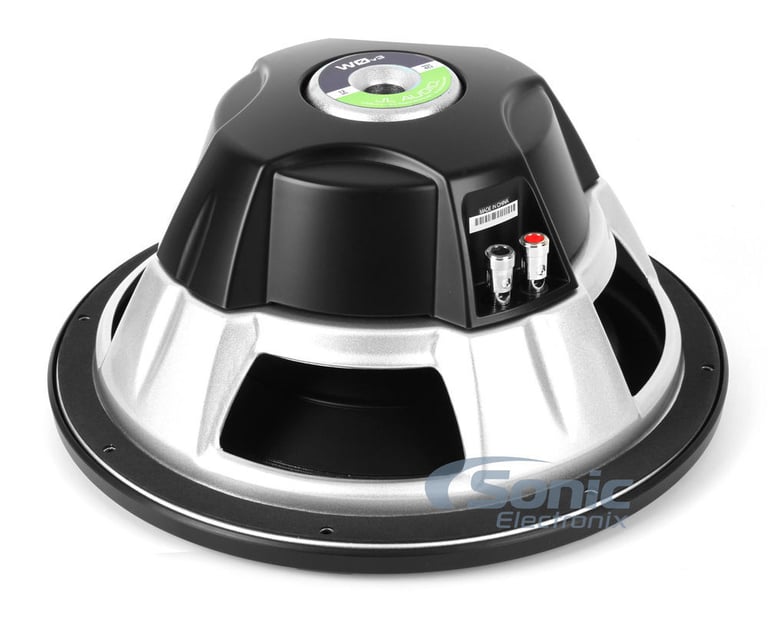

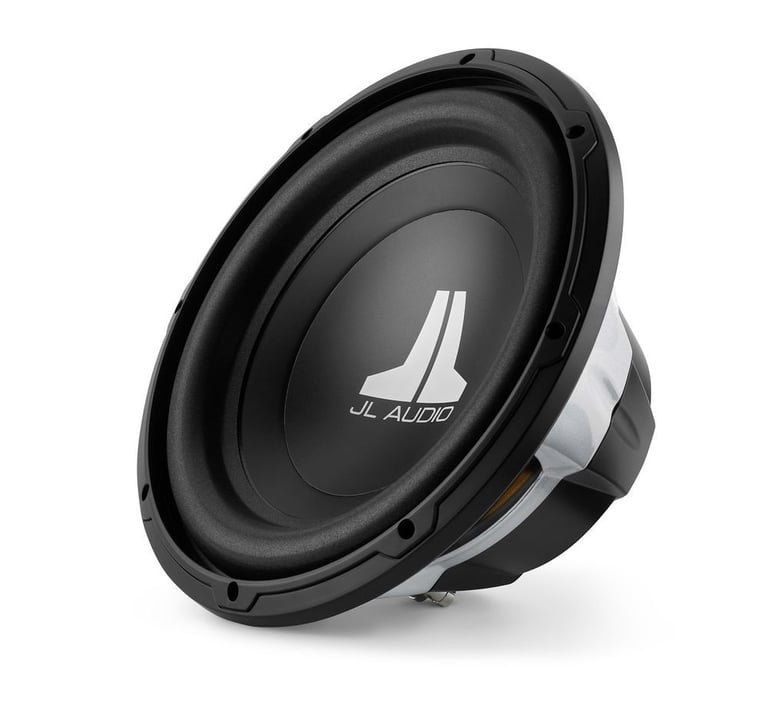

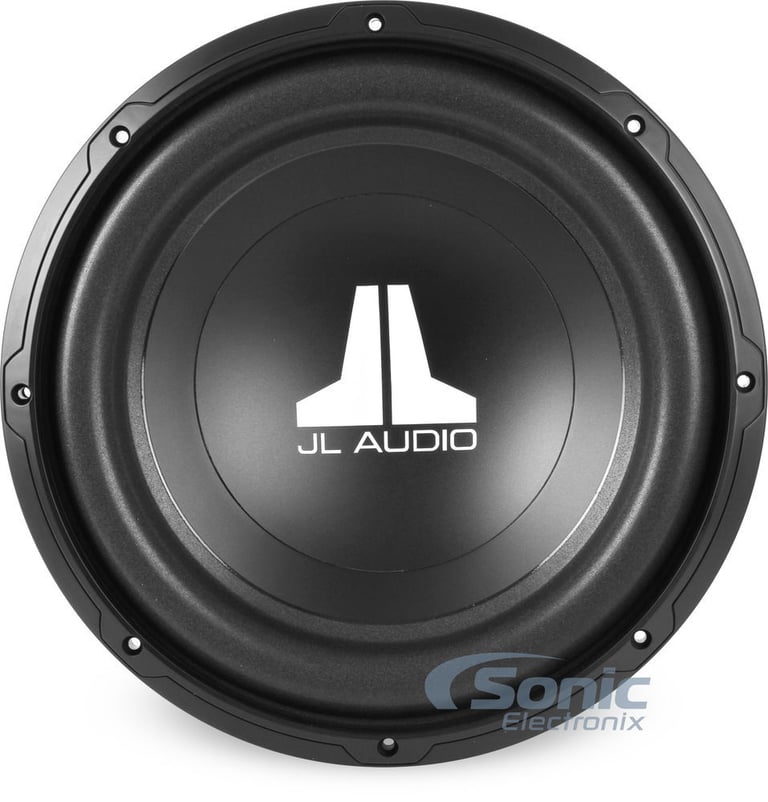

JL Audio 12W0v3-4

300W RMS 12" W0v3 Series Single 4-Ohm Subwoofer
Quantity: 2

Product Features:





  • Not sure which model you're looking for?
    • Click here to compare!

  • 12" W0v3 Series Subwoofer Driver
  • Power Handling:
    • RMS: 300 watts
  • Recommended Power Range: 75 - 300 watts
  • Impedance: Single 4-Ohm
  • Mineral-filled, polypropylene cone woofer for excellent durability
  • Large roll surround for generous amounts of excursion
  • Elevated frame cooling brings air directly to the voice coil
  • Designed for compact sealed enclosures or medium-sized ported enclosures
  • Large excursion for louder bass and less distortion
  • DMA Optimized motor system reduces distortion and tight, clean bass
  • Lead wire woven into spider for added strength
  • Metallic silver frame finish
  • 2.0" High temperature voice coil
  • Mounting depth: 5.40 "
  • Cutout dimensions: 11.0625"
  • Free Air Resonance (Fs): 28.43 Hz
  • Sensitivity: 85.64 dB
  • Xmax: 11.4 mm
  • Reference Efficiency (no): 0.2200%
  • Frequency response: ~22 ~ 250 Hz
  • Black Steel-Mesh Grille Insert Available: JL Audio SGRU-12
  • Matching Amplifier:
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Check out the JL Audio 12W0v3-4 Owner's Manual


JL Model Comparison
From entry level woofers to competition grade, JL has them all. Let us find which one works for you.

Model RMS Power Cone Material Surround Material Sensitivity (dB) Frequency Response Xmax (mm Terminals Made In America
W7 Series 500-1500 Watts Polypropylene Foam Overroll 82.7 - 86.3 15-250 Hz 19-32 Push Terminals
W6 Series 600 Watts Polypropylene Rubber 82.7 - 85.4 20-200 Hz 19 Push Terminals
W3 Series 150-600 Watts Polypropylene Rubber 80.5-87.90 20-250 Hz 8.89-15.5 Push Terminals
W1 Series 150-300 Watts Polypropylene Rubber 83.9-86.1 22-200 8-11 Push Terminals
W0 Series 300-500 Watts Polypropylene Foam 84-88.20 20-250 Hz 11.4-12.7 Push Terminals
WX Series 200 Watts Polypropylene Foam 86-87.17 22-250 Hz 10 Spade Terminals

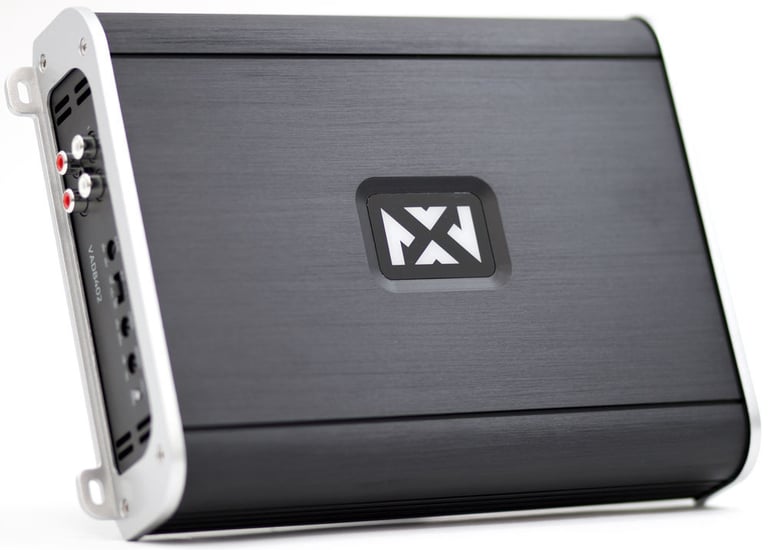

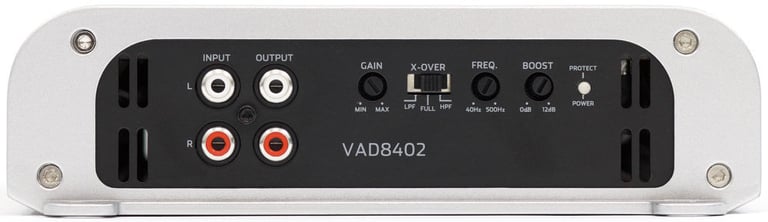

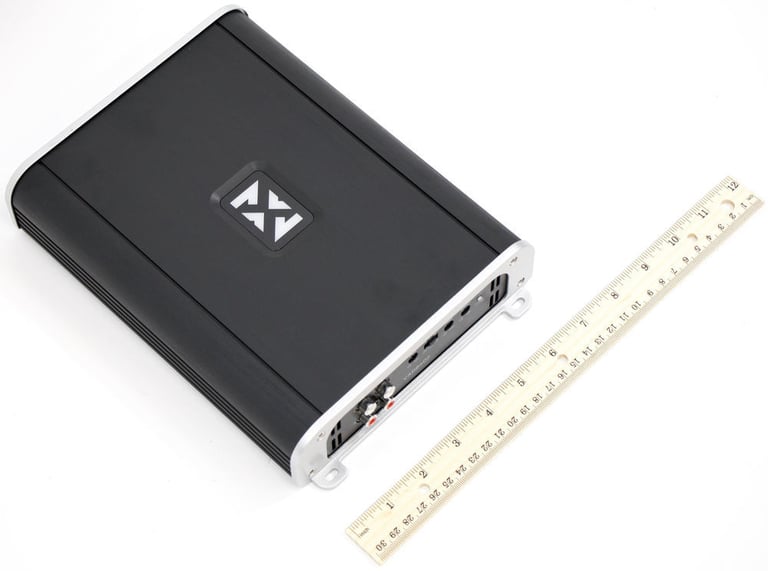

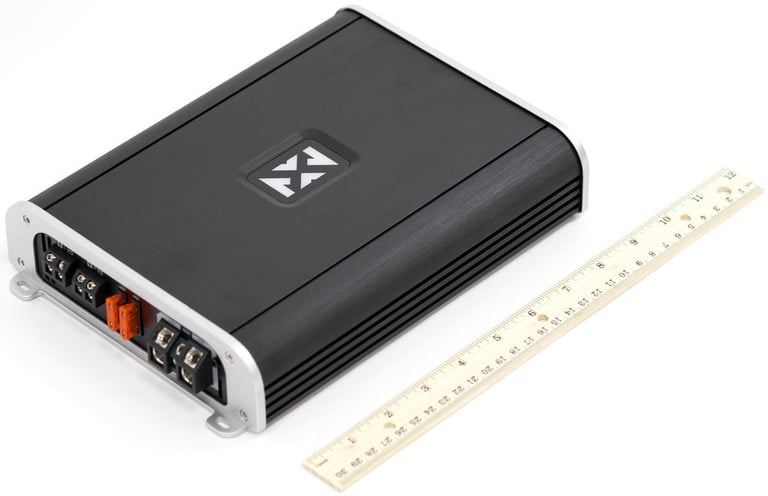

NVX VAD8402

Full Range Class D 2-Channel Car/Marine/Powersports Amplifier
Quantity: 1

Product Details:

  • Marine Certified Full Range Class D 2-Channel Amplifier
  • CEA-2006 Compliant
  • Peak Power Rating: 1680 Watts
  • RMS Power Rating:
    • 4 ohms: 300 watts x 2 chan.
    • 2 ohms: 420 watts x 2 chan.
    • Bridged, 4 ohms: 840 x 1 chan.
  • LED power (blue) and protect (red) indicators
  • Conformal Coated Marine grade circuit board
  • Heavy duty aluminum alloy heat-sink
  • Platinum-plated RCA level inputs
  • Platinum-plated screw terminals
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Selectable crossover modes: FULL / HPF / LPF
  • Variable high-pass filter: 40 - 500 Hz, 12 dB/octave
  • Variable low-pass filter: 40 - 500 Hz, 12 dB/octave
  • Frequency Range : 20 - 20KHz
  • Bass Boost: 0 - +12dB boost @ 45Hz
  • Input Sensitivity: 200mV-6V
  • Total Harmonic Distortion: <0.3%

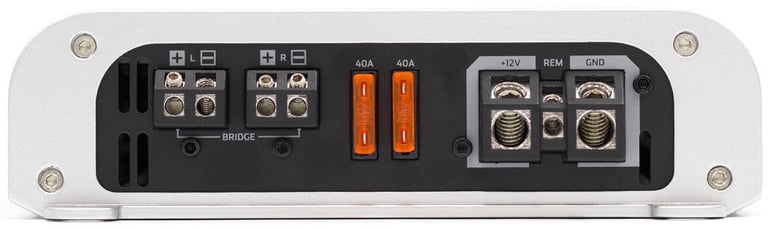

  • Fuse Rating: 40A x 2
  • Power Wire Gauge: 4 AWG
  • Speaker Wire Gauge: 8 AWG
  • Dimensions: 9.2"L x 7.2"W x 2.0"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

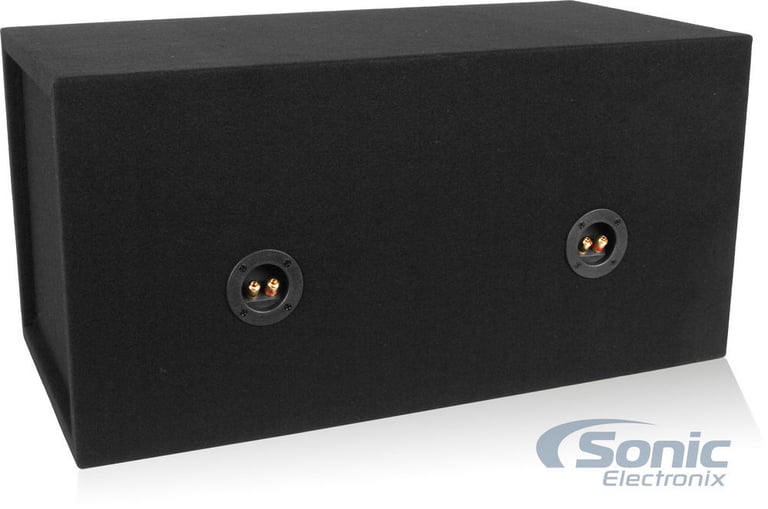

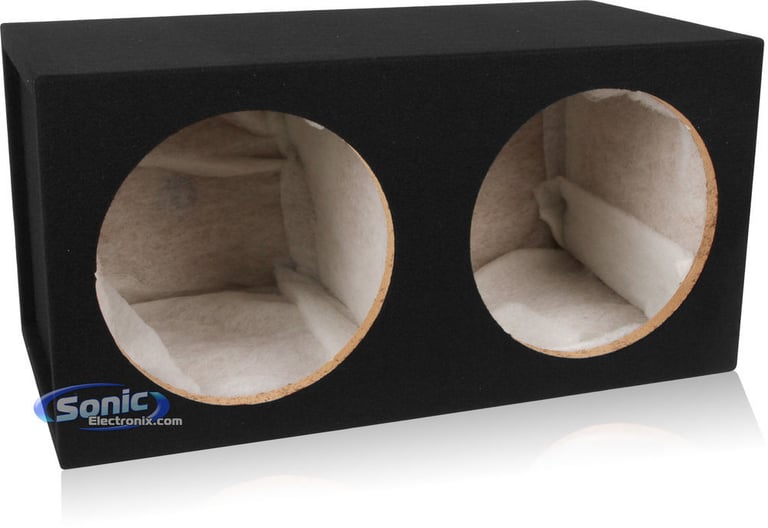

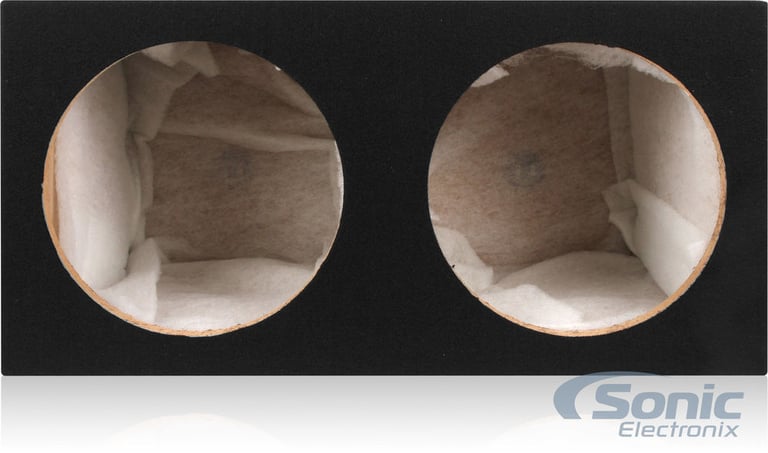

Dual 12" 3/4 MDF Sealed Subwoofer Enclosure (Belva MDFD12)

Dual 12-inch Sealed Car Sub Box Made with 3/4" MDF and lined w/Polyfil (2.46 cu ft Airspace - 12SQB)
Quantity: 1

Belva Subwoofer Boxes with Polyfill and 3/4-inch MDF

Built for Bass

You've got an awesome subwoofer there, pal. But where's it gonna go? You can't just throw that thing in the trunk and call it a day. Don't worry, Belva's got your back. With superior construction, great features and everything you need for bass, you'll be ready to pass up that entry-level box you've been eyeballing.

Belva Subwoofer Boxes are CARB Phase 2 Compliant

You get quality boxes with solid 3/4" MDF because nothing else will do the job right. You want to flex your windshield, not your box's innards. You get polyfill built into the box, making sure your subs perform perfectly. On top of that, you get a box that's CARB Phase 2 Compliant, meaning your box won't emit as much nasty formaldehyde as the competition. Better for your bass and better for you.

Belva MDF 3/4-inch Thickness

Look, nobody buys a subwoofer and says, 'Aw man, I just want a teeny bit of thump.' Naw man, you want something that kicks you in the chest, but you need a box that's gonna put up with it. That's where Belva comes in. While other brands use less-than-optimal 1/2-inch MDF, we've got 3/4-inch MDF to make sure you get all the bass you can handle. Why risk a busted box? Belva's the obvious choice when it comes to giving your sub a good home and giving you the low end you're looking for.

Belva MDF 3/4-inch Thickness

General Features:

  • Dual Sealed 12" Enclosure
  • Internal box volume: 2.46 cubic ft. total air space - 1.23 cubic ft. per chamber.
  • High Quality 3/4" MDF Construction
  • Durable black carpeting
  • Pre-lined with Poly-Fil
  • Seams are fully caulked for better efficiency
  • 2 Separate chambers allowing each subwoofer its own air space
  • Gold post terminals for clean and easy wiring access
  • Box Dimensions: 28-1/2"L x 14-1/4"D x 14-1/4"H
  • 30 Day return policy

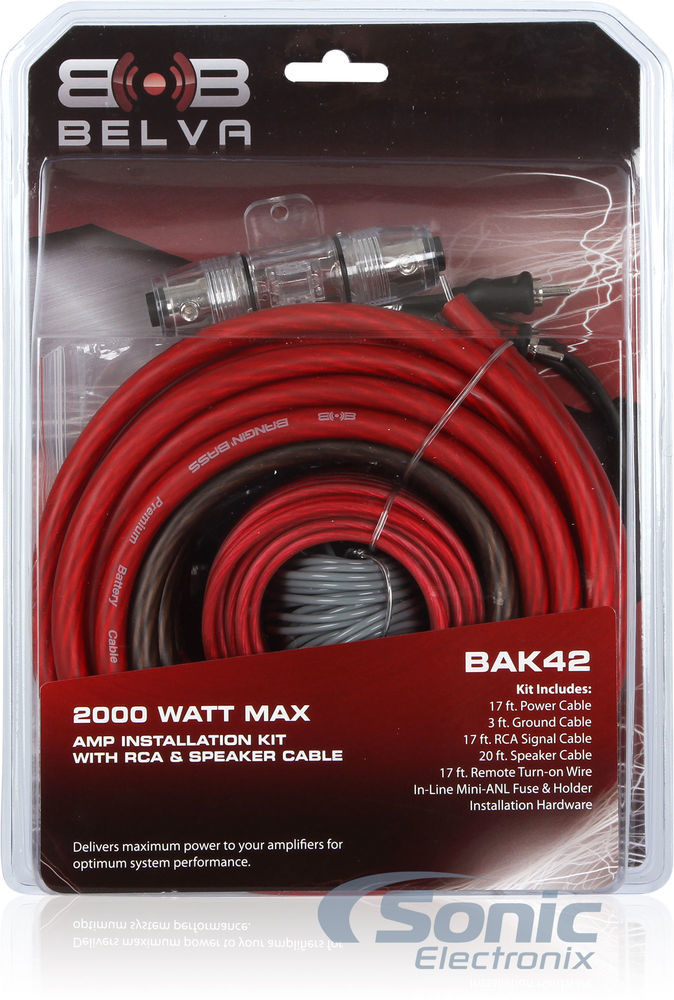

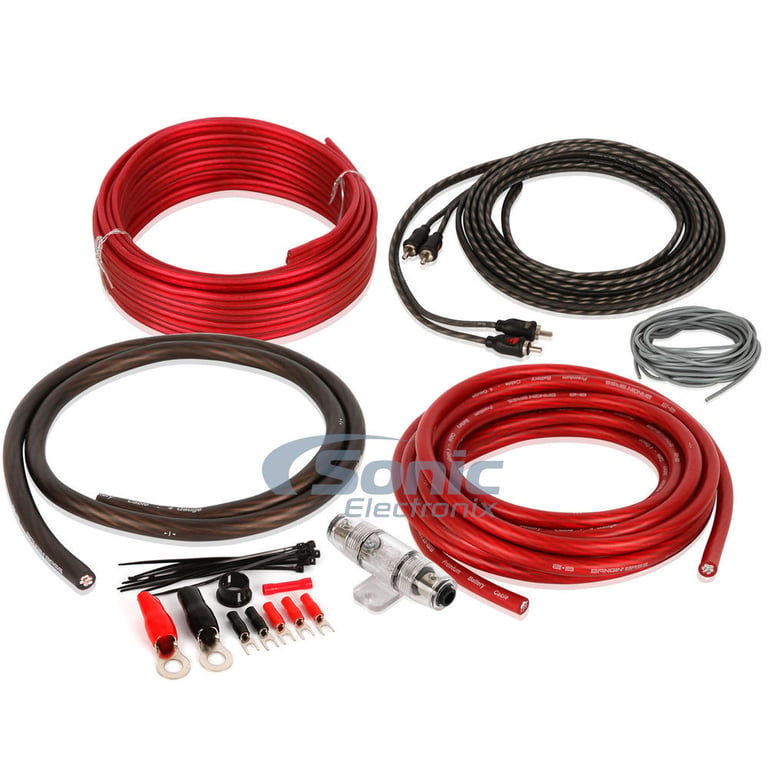

Belva BAK42BL

Primary Color: Blue - Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Cable (CCA Wiring)
Quantity: 1

General Features:

  • Complete 4 Gauge 2-Channel Amplifier Installation Kit
  • Designed specifically for car audio systems up to 1000 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer
  • Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
    • Belva CCA wire is made from 30% copper while other CCA wire is just 10% copper
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference

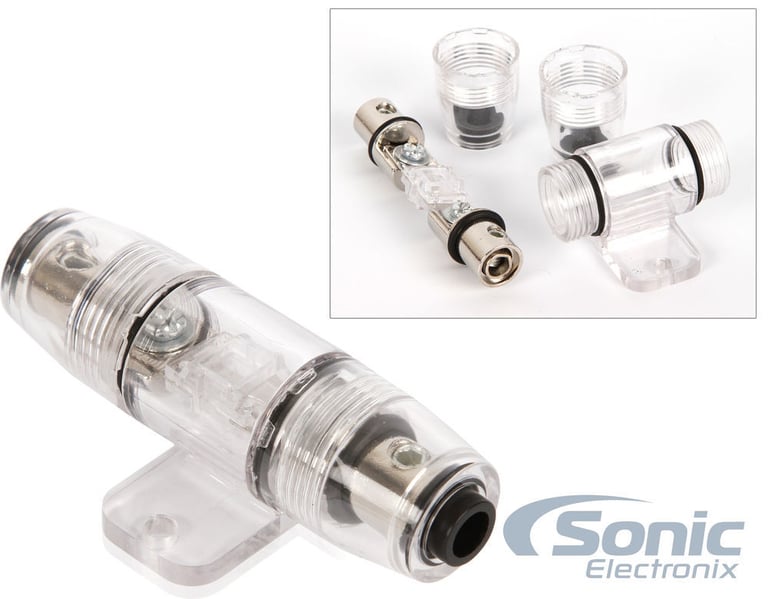

  • In-line Mini-ANL Fuse holder with a 80 amp Mini-ANL fuse offers ideal protection for high powered systems
  • Also available as 4-Channel Kit
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

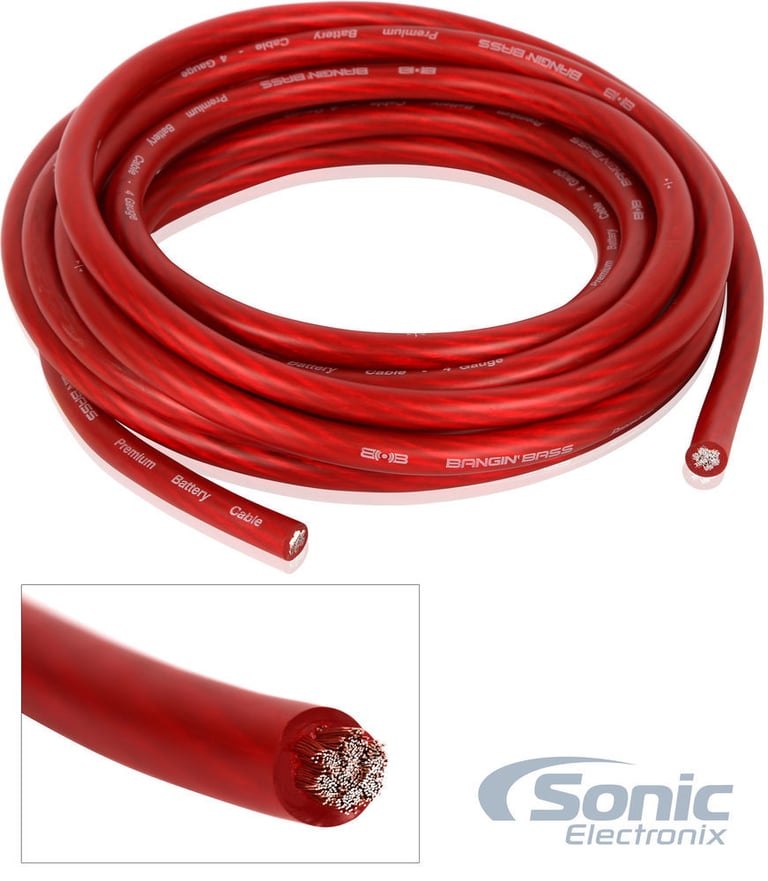

  1. 17 ft. (5.2 meters) Blue 4 gauge power wire

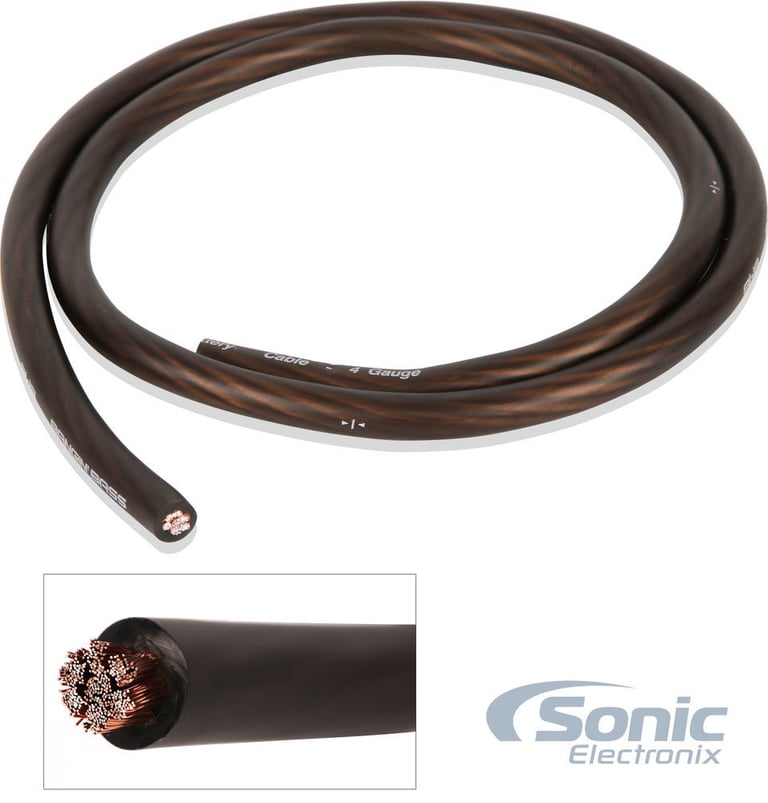

  2. 3 ft. (.91 meters) Black 4 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
  4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

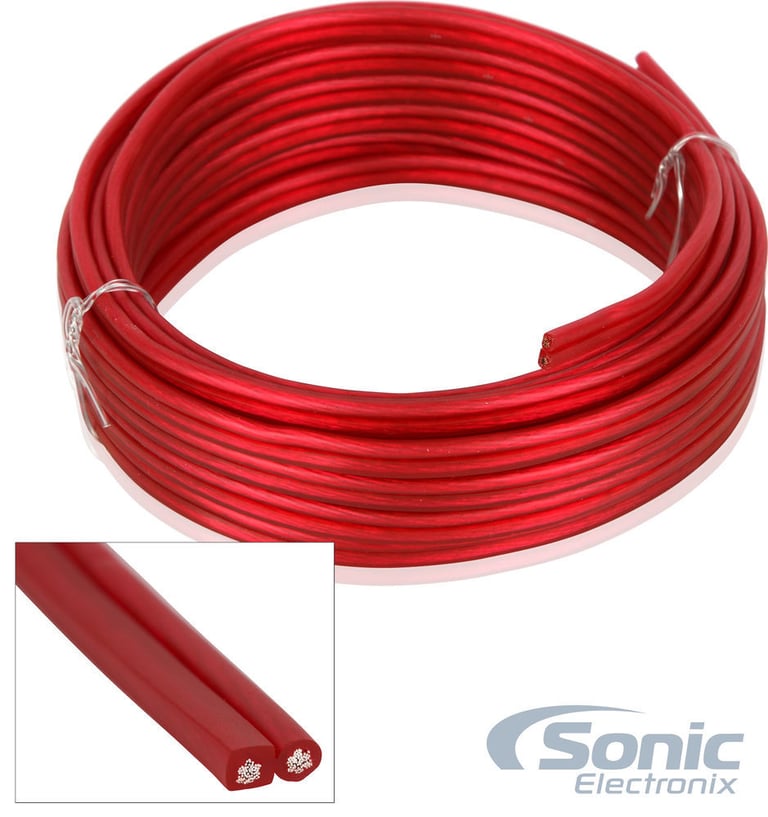

  5. 20 ft. (6.1 meters) Speaker cable
  6. One In-line Mini-ANL Fuse Holder with a 80 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. One 4 Gauge Blue chrome plated ring terminals
  9. One 4 Gauge Black chrome plated ring terminal
  10. Three 18 Gauge Blue Spade terminal
  11. Two 18 Gauge Black Spade terminal
  12. One 18 Gauge Red butt connector
  13. Ten 4" Black zip ties

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

FEATURES & SPECS
Subwoofer Specifications
Subwoofer Series
W0v3 (JL Audio)
Subwoofer Size
12"
RMS Power Handling
300 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohms
Voice Coil Diameter
2"
Frequency Response
22 - 250 Hz
Sensitivity
85.64 dB
Xmax (millimeters)
11.4 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mineral-Filled Polypropylene
Woofer Surround
Rubber
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.375 cubic feet
Optimum Ported Box Volume
1.75 cubic feet
Top-Mount Depth
5.40"
Cutout Diameter
11.0625"
Shallow Mount Installation
No
Electromechanical Parameters
Free-Air Resonance (Fs)
28.43 Hz
Equivalent Compliance (Vas)
74.64 liters
Total Speaker Q Value (Qts)
0.67
Electrical Q Value (Qes)
0.715
Electrical Resistance of Voice Coil (Re)
4.280 ohms
Mechanical Q Value (Qms)
10.709
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
