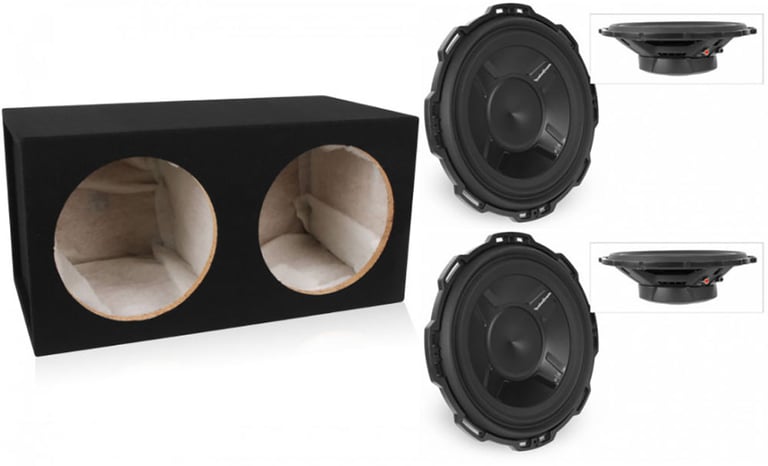

(2) Rockford Fosgate P3SD4-12 | (2) 12" Subwoofers with Enclosure

Description

Authorized dealer

Taking Punch to a Higher Stage

The P3SD4-12 Punch Series 12" Shallow-Mount Subwoofer has a peak power rating of 800 watts and a RMS rating of 400 watts. It is capable of producing some earth shaking bass and is constructed with an anodized aluminum cone and a vertical attach surround technique. This woofer is also equipped with a 2-1/2" Voice coil and a protective PVC textured magnet cover. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application.

Anodized Aluminum Voice Coil Former

By using an anodized aluminum voice coil former on their subwoofers, Rockford Fosgate is able to dissipate heat from the voice coil more efficiently. A hot voice coil can melt the adhesive bonds, which will lead to eventual subwoofer failure. The aluminum voice coil former acts as a heat-sink to dissipate thermal build-up on the voice coil cool during high SPL conditions.

Conforms to CEA-2031

Rockford Fosgate has built this subwoofer to conform to the CEA-2031 loudspeaker power handling industry standards. This means that you can trust the subwoofer to have the capacity to safely handle the continuous (RMS) power rating. Having a CEA-2031 power handling is important when matching a subwoofer to an amplifier because the power ratings are accurate.

Stitched Tinsel Leads

To improve the reliability and performance by reducing fatigue and possible shorting, Rockford Fosgate has stitched the tinsel leads to the spider. The multipoint periodic stitching lead wires reduce the mass of the tinsel leads to spread the stress over a greater area. This improves the reliability and performance of the subwoofer.

VAST: Vertical Attach Surround Technique

In order to increase the surface area of the cone without causing any installation issues, Rockford Fosgate designed the Vertical Attach Surround Technique (VAST). By redesigning the manner in which the surround adheres to the basket, these speakers gain up to 25% more effective radiating cone area. This improves the nominal efficiency and maximum output.

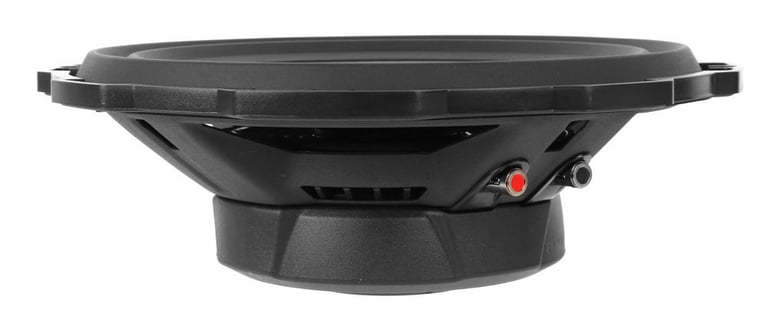

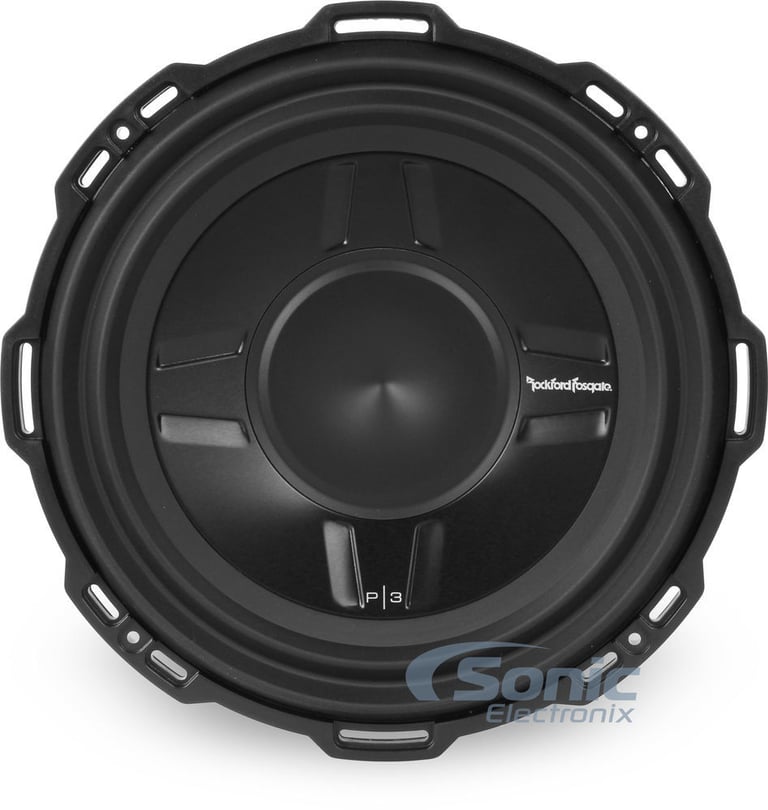

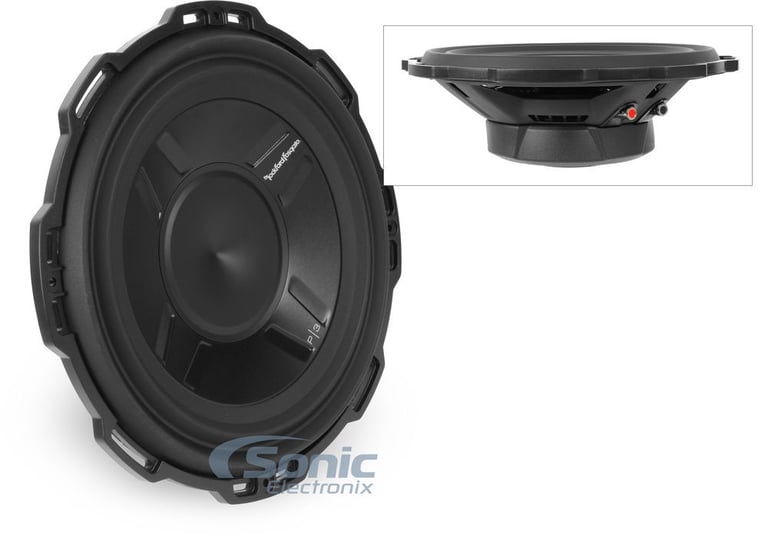

Rockford Fosgate Punch P3 P3SD4-12

800W Peak (400W RMS) 12" Punch Series Dual 4-ohm Shallow Car Subwoofer
Quantity: 2

Product Details:

12" Dual 4 ohm Punch Series Subwoofer
Power Handling:

Peak: 800 watts
RMS: 400 watts

Anodized Aluminum Cone
M-Roll Santoprene Surround
Shallow Motor Assembly
Optimized for both sealed and vented enclosures
StampCast basket with integrated spider venting
Dual linear spider with embedded 16 AWG tinsel leads
Diamond cut cast aluminum trim ring
2.5" High Temperature Voice coil
8.1 mm Xmax

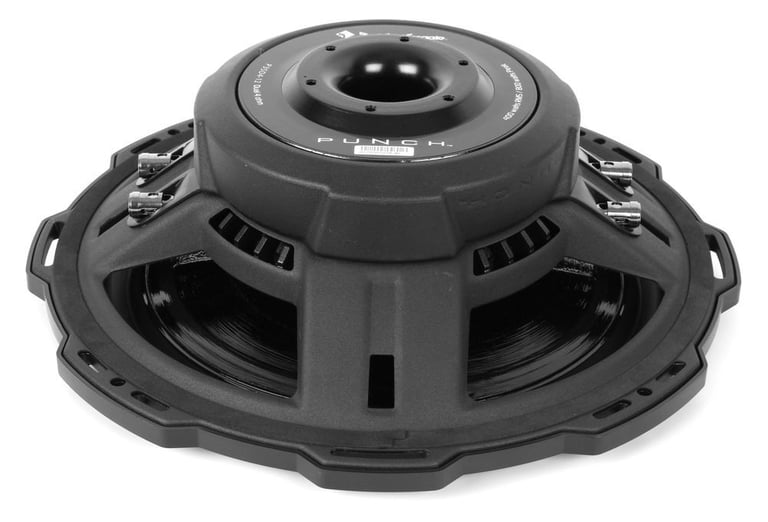

Double Stacked magnet motor structure
Frequency Response: 34 - 250 Hz
Resonance Frequency (Fs): 35.4 Hz
Sensitivity: 85 dB
Recommended sealed box volume: 1.00 cubic feet
Recommended ported box volume: 1.25 cubic feet
Top-mount depth: 3.65"
Cutout diameter: 11.22"
CTA-2031 Compliant
Authorized Internet Dealer
Optional protective subwoofer grille (sold separately) Rockford Fosgate P3SG-12
1-year Manufacturer's Warranty

Priced Individually

Rockford Fosgate P3SD412 owner’s manual

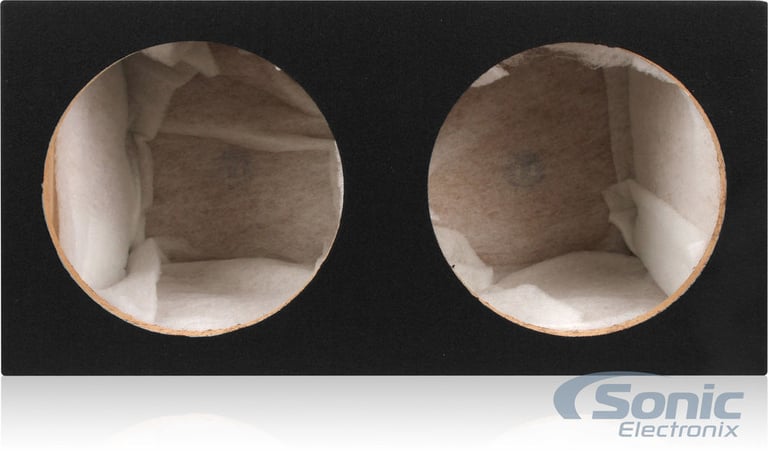

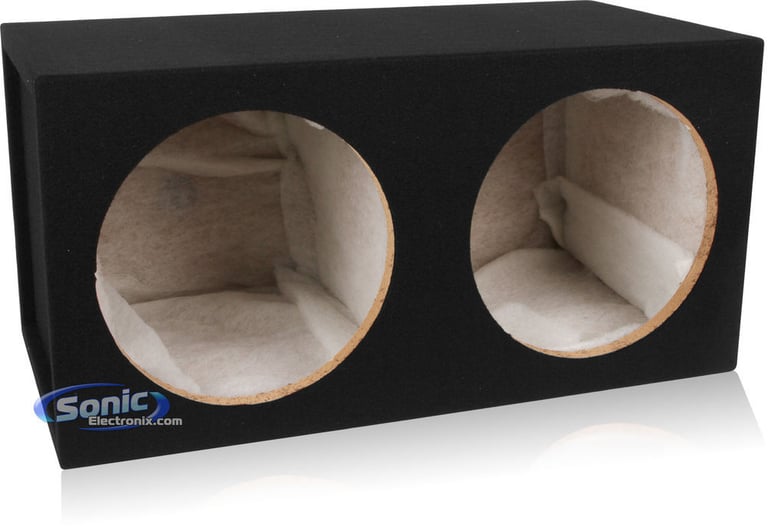

Dual 12" 3/4 MDF Sealed Subwoofer Enclosure (Belva MDFD12)

Dual 12-inch Sealed Car Sub Box Made with 3/4" MDF and lined w/Polyfil (2.46 cu ft Airspace - 12SQB)
Quantity: 1

Belva Subwoofer Boxes with Polyfill and 3/4-inch MDF

Built for Bass

You've got an awesome subwoofer there, pal. But where's it gonna go? You can't just throw that thing in the trunk and call it a day. Don't worry, Belva's got your back. With superior construction, great features and everything you need for bass, you'll be ready to pass up that entry-level box you've been eyeballing.

Belva Subwoofer Boxes are CARB Phase 2 Compliant

You get quality boxes with solid 3/4" MDF because nothing else will do the job right. You want to flex your windshield, not your box's innards. You get polyfill built into the box, making sure your subs perform perfectly. On top of that, you get a box that's CARB Phase 2 Compliant, meaning your box won't emit as much nasty formaldehyde as the competition. Better for your bass and better for you.

Look, nobody buys a subwoofer and says, 'Aw man, I just want a teeny bit of thump.' Naw man, you want something that kicks you in the chest, but you need a box that's gonna put up with it. That's where Belva comes in. While other brands use less-than-optimal 1/2-inch MDF, we've got 3/4-inch MDF to make sure you get all the bass you can handle. Why risk a busted box? Belva's the obvious choice when it comes to giving your sub a good home and giving you the low end you're looking for.

General Features:

Dual Sealed 12" Enclosure
Internal box volume: 2.5 cubic ft. total air space - 1.25 cubic ft. per chamber.
High Quality 3/4" MDF Construction
Durable black carpeting
Pre-lined with Poly-Fil
Seams are fully caulked for better efficiency
2 Separate chambers allowing each subwoofer its own air space

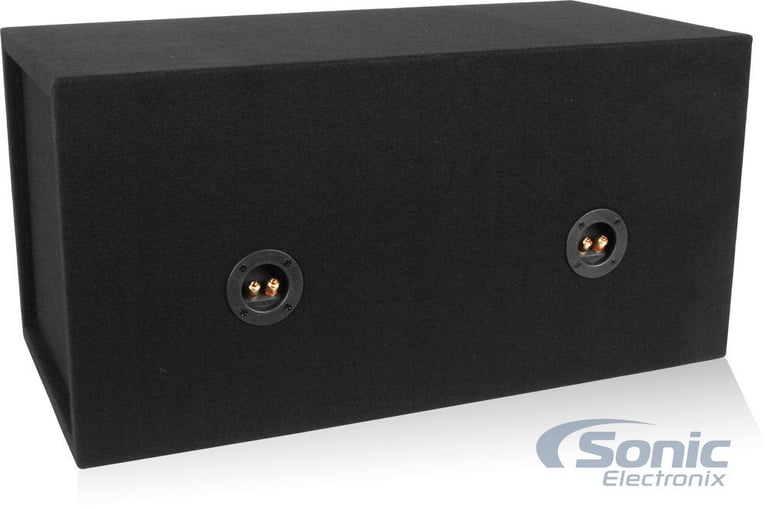

Gold post terminals for clean and easy wiring access
Box Dimensions: 28" Wide, 14" Depth, 14" Height
30 Day return policy

Specifications & Details

Subwoofer Specifications

Series

Punch P3 Shallow Mount Series

Subwoofer Size

12"

RMS Power Handling

400 watts

Peak Power Handling

800 watts

Woofer Composition

Kevlar Fiber

Woofer Surround

Foam

Sensitivity

85 dB

Frequency Response

34 - 250 Hz

Subwoofer Design

Round / Circle

Enclosure Specifications

Box Type

Sealed

Number of Subwoofers

Box Style/Shape

Square/Rectangle

Wood Thickness

3/4"

Number of Terminals

Terminal Type

Binding posts (banana clip ready)

Box Exterior Color

Black

Box Finish

Carpet

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
