See all parts that fit your 1995 Rodeo

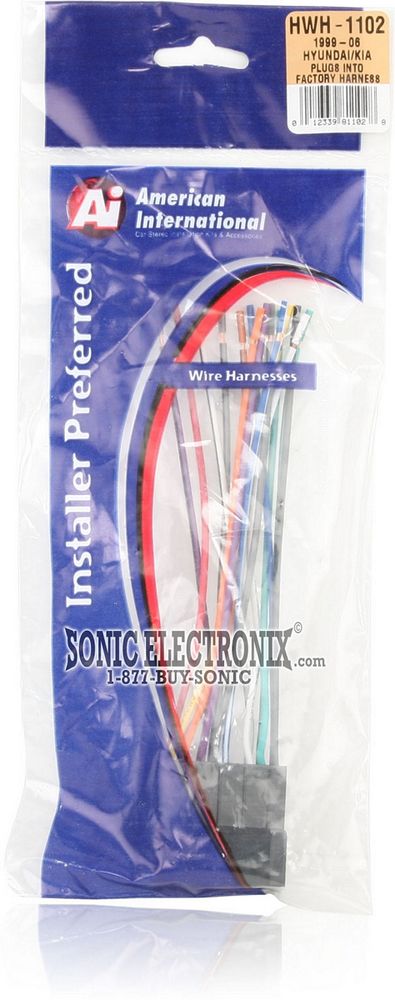

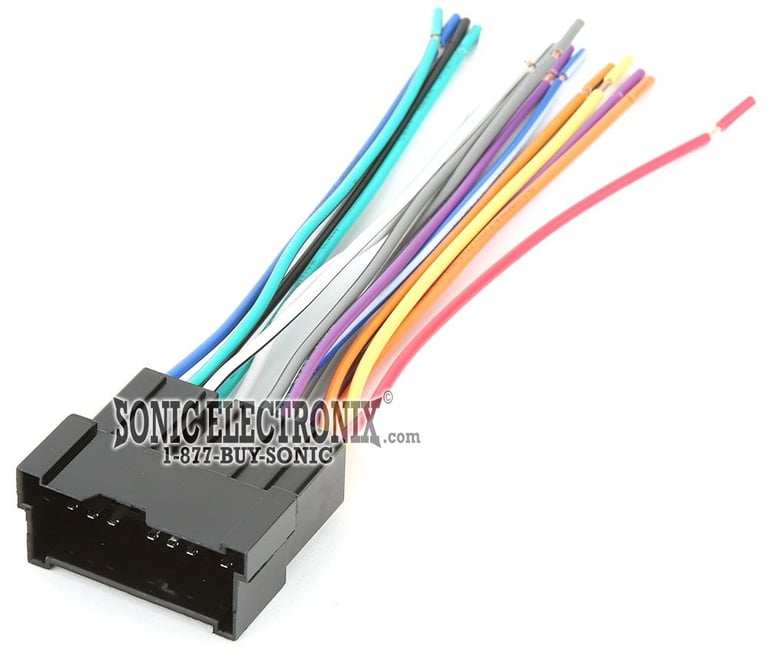

American International HWH-1102

Wiring Harness for Select 1999-2008 Hyundai and Kia Vehicles

highlight-star-icon

Wiring Harness for Select 1999-2008 Hyundai Vehicles • Plugs into car harness at radio • Power/4 Speaker • 16-pin plug • Allows for the installation of an aftermarket radio using the existing factory wiring and connectors

Learn more about the hwh1102

We apologize

This item has been discontinued


Loading...
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

Limited time!
CAR1013 main

Jensen CAR1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto

5
-11.43%

$309.99

List price $349.99

Description


American International brand icon

Authorized dealer

When replacing your factory radio with an after-market car stereo, the HWH-1102 wire harness is a must for a quick and clean installation. It eliminates cutting your OE radio plug. After connecting it, your install is simple as the wires will color-match and easily connect to the after-market stereo. Without the HWH-1102, you would have to cut the OE radio plug and manually test each wire to connect to your after-market receiver.

In addition, because you do not have to cut your OE radio plug off, the HWH-1102 allows you to reinstall your factory receiver if necessary. A great example is if you sold your car, but wanted to keep your after-market radio and re-install your factory stereo receiver. We also recommend the Scosche BOBAZT for a quick connection that is sure to last.

Product Features:
  • Plugs into car harness at radio
  • Power/4 Speaker
  • 16-pin plug
  • Allows for the installation of an aftermarket radio using the existing factory wiring and connectors
  • Metra Equivalent: Metra 70-7301 or Scosche Equivalent: Scosche HY03B
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Connections:
  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Orange – Dash Light Dimmer/Illumination
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)
Compatible with the following vehicles:
  • Hyundai:
    • 2000 - 2005 Accent
    • 2001 - 2005 Elantra
    • 2001 - 2005 Santa Fe
    • 1999 - 2005 Sonata
    • 2003 - 2005 Tiburon
    • 2002 - 2005 XG350
    • 2005 Tuscan
    • 2001 XG300
  • Kia:
    • 2001 - 2005 Optima
    • 2003 - 2005 Rio
    • 2003 - 2005 Sedona
    • 2003 - 2005 Sorrento LX
    • 2004 - 2005 Spectra
