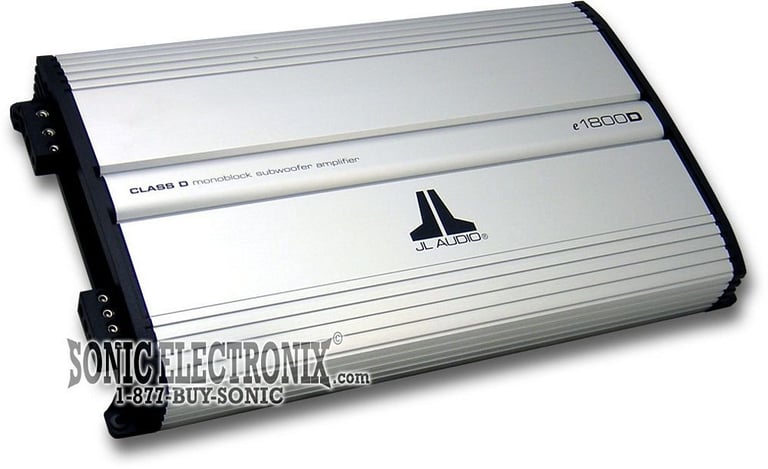

JL Audio e1800D

Class D Monoblock Amplifier

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

1000W RMS Class D Monoblock Amplifier • High-Damping Class D Circuit • Built-in Crossover: LPF 20 - 400Hz • 1000W x 1 @ 2 Ohm RMS (14.4V) • 640W x 1 @ 4 Ohm RMS (14.4V) • Pass-through RCA Outputs • High-level Inputs • CEA-2006 Compliant

Learn more about the e1800d

We apologize

This item has been discontinued


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Product Highlights


1000W RMS Class D Monoblock Amplifier • High-Damping Class D Circuit • Built-in Crossover: LPF 20 - 400Hz • 1000W x 1 @ 2 Ohm RMS (14.4V) • 640W x 1 @ 4 Ohm RMS (14.4V) • Pass-through RCA Outputs • High-level Inputs • CEA-2006 Compliant

Description


JL Audio brand icon

Authorized dealer

  • Class D Monoblock Subwoofer Amplifier
  • High-Damping Class D Circuit with discrete control circuitry
  • Pass-through RCA outputs
  • On-board crossover: Variable Low-Pass Filter: 20 -200Hz, Selectable Slope
  • High level inputs
  • CEA-2006 Compliant
  • RMS Power Rating (14.4V):
    • 4 ohm: 640 watts x 1 chan.
    • 2 ohm: 1000 watts x 1 chan.
  • RMS Power Rating (12.5V):
    • 4 ohm: 480 watts x 1 chan.
    • 2 ohm: 800 watts x 1 chan.
  • Frequency Response: 10 - 250Hz
  • Damping Factor: >500 @ 4 Ohm / 50Hz, <250 at 2 Ohm/50Hz
  • Input Range: 200mV - 8V RMS
  • Bass EQ: +6dB Fixed Frequency, Fixed 'Q' with port for optional remote bass control
  • Dimensions: 15.75" L x 9.25" W x 2.36" H
  • 1-year SonicElectronix.com warranty

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
640 watts x 1 channel
RMS Power @ 2 ohms
1000 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
Not Bridgeable
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1000 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Low-Pass Crossover Frequency
20 - 400 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 6 dB
Fuse Rating
80A

Item Details


Manufacturer:

Model Number:

E1800D

Weight:

16.00lbs

Internal SKU:

e1800d

Internal Product ID:

2793

Product and How-to Videos


Customer Ratings & Reviews


JL Audio e1800D thumbnail image

5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.8
Features
4.5
Design
4.8
Usability
5

Customer Reviews

Sort by:

Loading...

just got this amp and im running it with a older mtx sub (400 rms). ive never heard this sub bang as hard as it does now. planning on coppping a JL 12W7. its a newer amp so i havent heard much feed back but hope it works out. i was running the amp ad 3/4 power for like 4 1/2 hours and it was barly warm to the touch. no prblems yet

By luke on January 17, 2006

10 found this helpful


best amp ever

i bought one of these amps when i was upgrading my system and if you want a system that rattles windows, this is the amp to power your subs. JL Audio makes some of the best compation subs and amps around. i recommend this amp to anyone who is look for a great system

By Eric on October 20, 2006

6 found this helpful


this amp rocks with the jl w6 2ohms i had 3 of them 12s in my car and juss rocks ...true rms too

By chad on March 22, 2006

7 found this helpful


Best ever

I had 2 13.5 w6's with this Amp and was making guys with 4 10s and 4 and 6 12s cry.

By Bubba on December 10, 2021
