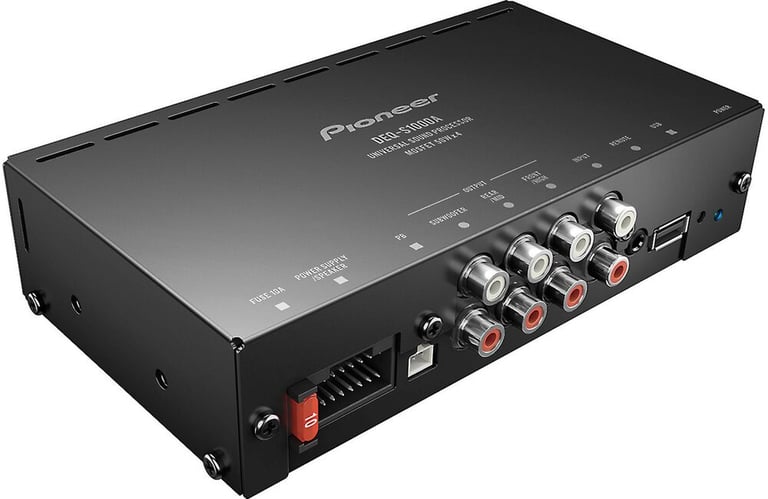

Pioneer DEQ-S1000A

Upgrade to uncompromised sound

The DEQ-S1000A is an inventive approach to overcome the effects of an OE audio system’s pre-set EQ. Featuring both high level and low level inputs plus DSP-based OE pre-set EQ cancellation, the DEQ-S1000A is one of a kind in how it leverages Pioneer’s software expertise and smartphone integration experience to harness the processing power and touchscreen user interface of a connected iPhone or Android2 smartphone. This advanced design improves performance and ease of use while minimizing the need for ultra high-cost components. Pioneer engineers have also implemented advanced post-correction sound controls like a 31-band touch EQ, digital time alignment, 3-way digital network with subwoofer control, hi-volt preamp outputs, an internal MOSFET 50W x4 amplifier and more to provide expanded system flexibility and control.

Embedded, pre-set equalization (EQ) is often used in original equipment (OE) audio systems to acoustically match the receiver to the capabilities of the speakers. Once limited to luxury vehicles with expensive, optional audio packages, the use of pre-set EQ is now found in most cars, trucks and budget tier vehicles with basic audio systems sold during the last decade

Using the Sound Tune App to customize your setup

The Pioneer DEQ-S1000A connects to your smartphone and Pioneer’s Sound Tune app to perform the advanced calculations needed to analyze and correct the factory pre-set equalization and provide a touchscreen interface for simple, intuitive controls. Download the Pioneer Sound Tune app free of charge. (Pioneer Sound Tune app required for product operation.)

General Features:

• 14 watts RMS x 4 at 4 ohm (4-8 ohm stable per channel)
• Hi-Volt RCA Preouts x 3 (4V) + MOSFET 50W x 4 internal amplifier
• Source calibration (cancels factory time alignment & EQ)
• Non-bridgeable
• Unit Weight: 1lb 4.8oz
• Chasis Size (W x H x D): 6-3/4" x 1-5/8" x 3-3/4"
