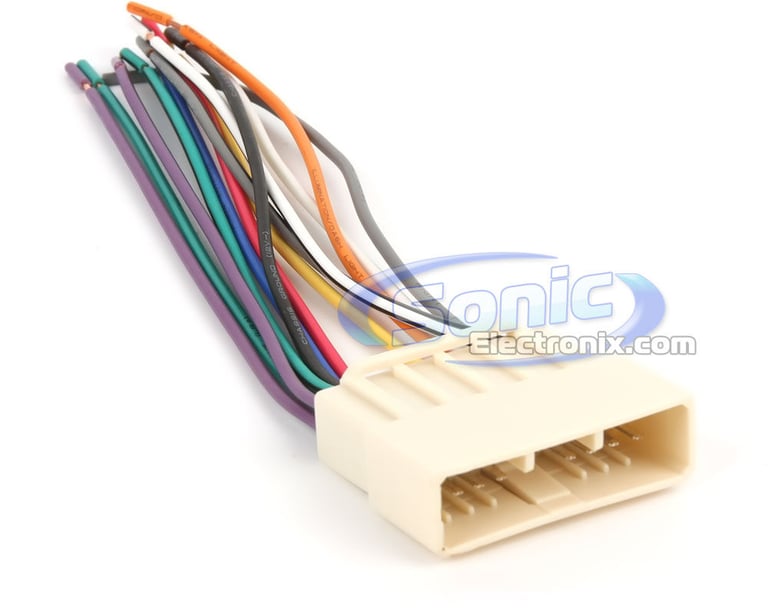

American International HWH-804

When replacing your factory radio with an after-market car stereo, the HWH-804 wire harness is a must for a quick and clean installation. It eliminates cutting your OE radio plug. After connecting it, your install is simple as the wires will color-match and easily connect to the after-market stereo. Without the HWH-804, you would have to cut the OE radio plug and manually test each wire to connect to your after-market receiver.

In addition, because you do not have to cut your OE radio plug off, the HWH-804 allows you to reinstall your factory receiver if necessary. A great example is if you sold your car, but wanted to keep your after-market radio and re-install your factory stereo receiver. We also recommend the Scosche BOBAZT for a quick connection that is sure to last.

Product Features:

• Harness is used when installing an aftermarket stereo
• Connects the aftermarket stereo harness to the vehicles factory harness
• Designed specifically to fit the compatible vehicles
• Plugs into the factory harness without cutting any wires
• Standard color coded wires provide a consistent and simplified installation
• Made from OEM quality materials
• Compatible with Select 1986-1997 Honda/Acura Vehicles
• Metra Equivalent: Metra 70-1720 and Scosche Equivalent: Scosche HA02B

Compatible with the following vehicles:

• Acura:
• 1996-1998 CL
• 1994-1998 Integra
• 1991-1995 Legend
• 1991-2000 NSX
• 1996-1998 RL
• 1995-1998 TL
• Honda:
1990-1997 Accord
• 1997-1998 CRV
• 1993-1997 Del Sol
• 1992-1995 Civic
• 1995-1998 Odyssey
• 1992-1998 Prelude
• Isuzu:
• 1996-1999 Oasis

Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)
