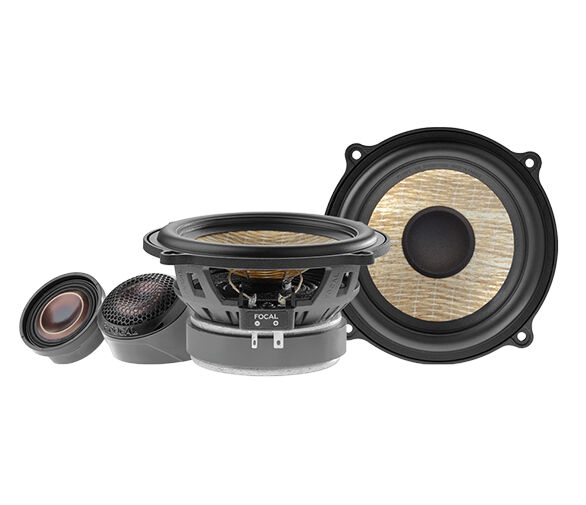

Focal PS130FE

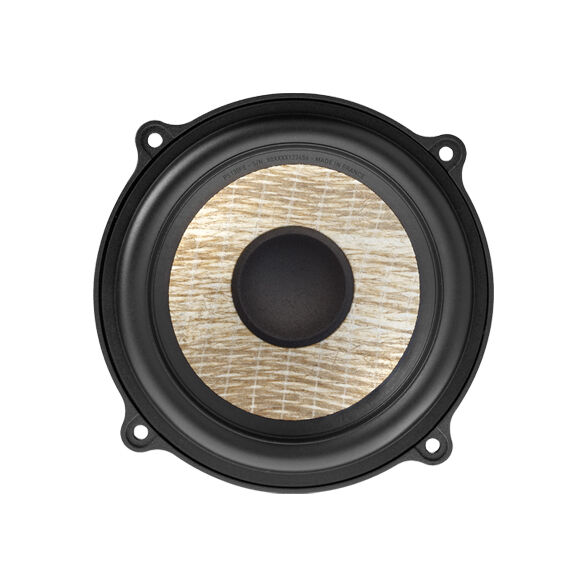

The Flax Cone, Expressive And Natural

Focal has long been a leader in car audio due to their unique design and persistence towards perfection. Well, Focal has been producing this revolutionary Flax cone since 2013. The Flax Cone is built of a premium flax fiber core placed between two thin sheets of glass fiber. Flax is a fiber with the unique ability to reproduce a very natural sound without colouration, with a rich reproduction in the midrange and clear bass strokes. Its lightness offers great dynamics, due to Flax fiber being twice as light as glass fiber, as it is hollow. Its' rigidity sustains the bass and provides damping to deliver a premier listening experience. Its very low elasticity makes it ideal for increasing the flexural rigidity module of a sandwich structure.

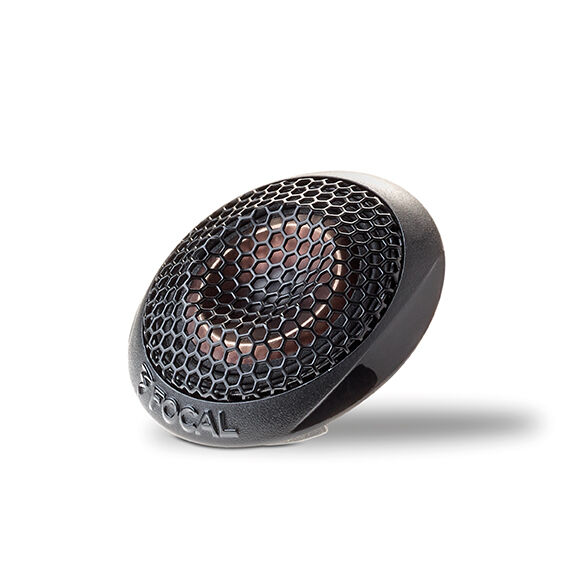

The ‘TAM Tweeter

Made in France in the Focal workshops, the TAM tweeter stands out for its many qualities, particularly in terms of wide-angle diffusion, beneficial for in-car environments characterised by “off-axis” listening. Comprising a cone that is an aluminium/magnesium ‘M’-profile inverted dome, this tweeter unites an impressive array of cutting-edge Focal technologies to reproduce a faultless harmonic balance and highly-detailed treble.

The Tmd Surround

A patented Focal technology, the TMD surround makes an appearance on all speaker drivers in the Flax Evo line, playing a key role in the reproduction and purity of the midranges as well as in the elimination of acoustic distortion, particularly when listening at high volumes.

General Features

• Unique, patented Flax cone
• Butyl surround with exclusive 'TMD’ profile
• Al/Mg ‘M’-profile inverted dome TAM tweeter
• Made in France in the Focal workshops
• Wider diffusion angle
• Natural, precise sound

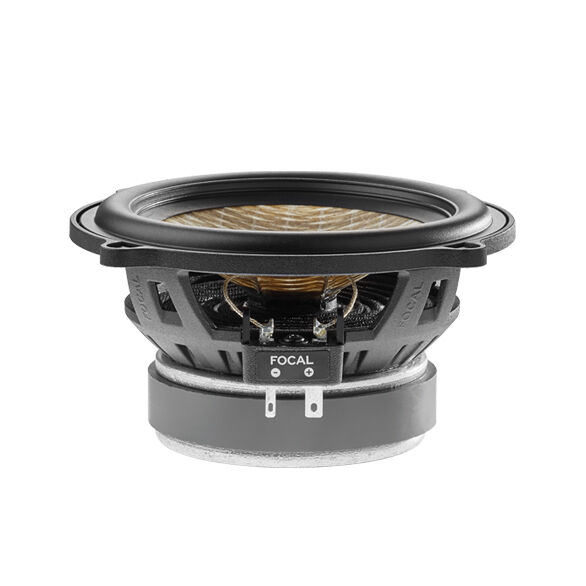

Woofer Specifications

• Nominal Power: 60 Watts
• Maximuim Power: 120 Watts
• Sensitivity: 90.5dB
• Nominal Impedence: 4 Ohms
• Cone Material: Flax
• Surround: TMD-Rubber
• DC Resistance: 3.3 Ohms
• Frequency Response: 75-28kHz
• Xmax: 4mm

TAM Tweeter Specifications

• Nominal Power: 20 Watts
• Maximum Power: 150 Watts
• Sensitivity: 92dB
• Cone Material: ALuminum-Magnesium
• Surround: TMD-Rubber
• DC Resistance: 3.4 Ohms
• Voice Coil Diameter: 23mm
• Kapton Former
