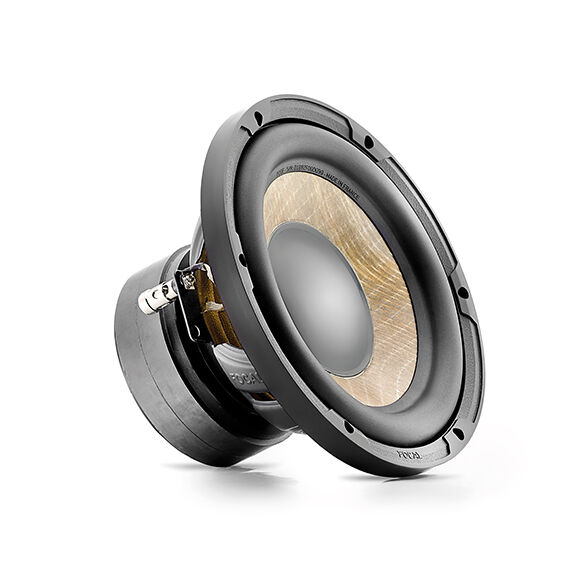

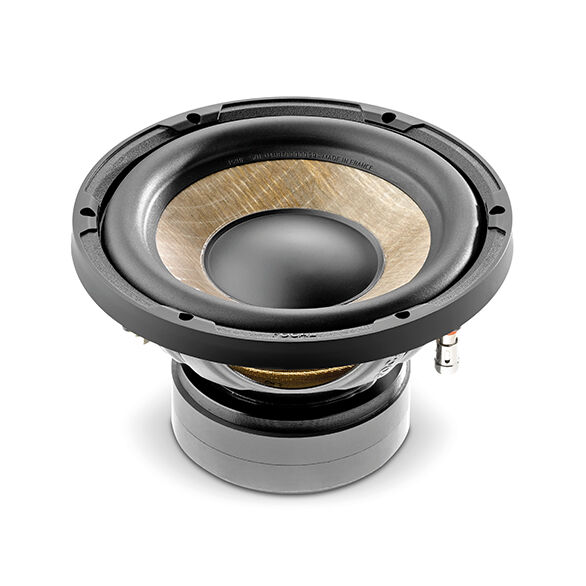

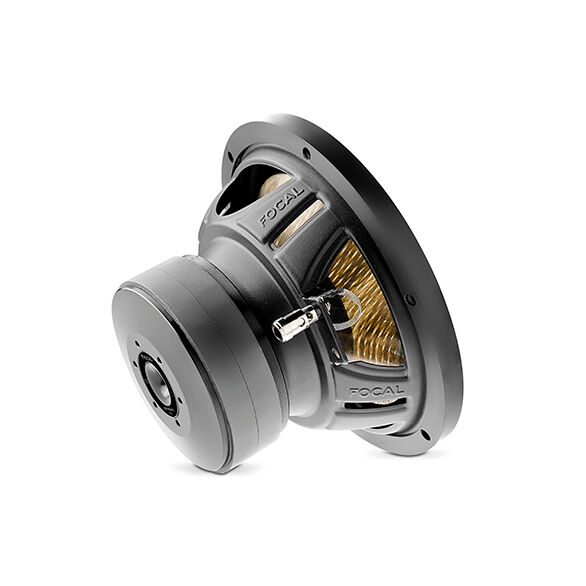

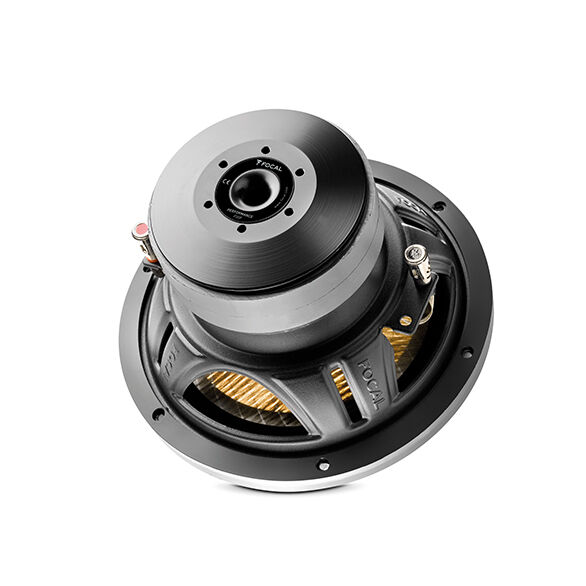

Focal SUB P20FE

8" 500W 4-Ohm Flax Evo Car Audio Subwoofer

Focal
Shop all Focal
highlight-star-icon

• Unique Flax Cone
• Dual Magnet Motor
• Rubber Surround

Learn more about the subp20fe

We apologize

This item has been discontinued


Loading...
C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42

Description


Focal brand icon

Authorized dealer

The Flax Cone, Expressive And Natural

Focal has long been a leader in car audio due to their unique design and persistence towards perfection. Well, Focal has been producing this revolutionary Flax cone since 2013. The Flax Cone is built of a premium flax fiber core placed between two thin sheets of glass fiber. Flax is a fiber with the unique ability to reproduce a very natural sound without colouration, with a rich reproduction in the midrange and clear bass strokes. Its lightness offers great dynamics, due to Flax fiber being twice as light as glass fiber, as it is hollow. Its' rigidity sustains the bass and provides damping to deliver a premier listening experience. Its very low elasticity makes it ideal for increasing the flexural rigidity module of a sandwich structure.

General Features:

  • Unique, patented Flax cone
  • Dual Magnet motor
  • Made in France in the Focal workshops
  • Power and precision
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications

  • Nominal power: 250W RMS
  • Maximum power: 500W
  • Sensitivity: (2.83V/1m) 82.5dB
  • Flax Cone
  • Rubber Surround
  • Nominal impedance: 4 Ohm
  • DC resistance: 3.4 Ohm
  • VC diameter: 38mm (11/2")
  • VC height: 28mm (11/8")
  • Glass Fiber Former
  • Inductance: 1.7mH
  • Xmax: 10mm 03/8"
  • Magnet dxh (mm) 120 x 32mm 43/4" x 11/4"
  • Flux density: 0.75T
  • Gap height: 8mm 05/16"
  • Net weight: 3.2kg 6lbs

Ported Enclosure Specifications

Volume F-3(Hz) Øport Port Length
10L (0.35 cu.ft.) 45Hz 7cm - 23/4" 30cm - 12"
15L (0.52 cu.ft.) 35Hz 7cm - 23/4" 35cm - 1325/32"
20L (0.7 cu.ft.) 30Hz 7cm - 23/4" 35cm - 1325/32"

Sealed Enclosure Specifications

Volume F-3 (Hz)
10L (0.35 cu.ft.) 52Hz
15L (0.52 cu.ft.)   50Hz

View More Parameters Here

Subwoofer Wiring Guide



Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99


Best selling similar products

VCW82v3 small

NVX VCW82 Version 3 (VCW82v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(12)

$169.99

List price $203.99

47KBRW8 small

Kicker 47KBRW8 ReFLEX™

• 8" ReFLEX™ Passive Radiator
• Rubber covered plastic Cone
• Rubber Surround

(1)

$49.99

List price $59.99

DB-SA2508 D1 small

Deaf Bonce Apocalypse DB-SA2508 D1

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 5.22"
• Sensitivity: 84.7 dB

(1)

$229.90

List price $229.90

VCW84v3 small

NVX VCW84 Version 3 (VCW84v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(15)

$169.99

List price $203.99

8W3V3-4 small

JL Audio 8W3V3-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 4.63"
• Sensitivity: 83.24 dB

(45)

$349.99

List price $349.99

L7S82 small

Kicker L7S82 (44L7S82)

• Peak Power: 900 watts
• RMS Power: 450 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 4-3/4"
• Sensitivity: 82.37 dB

(1)

$175.96

List price $239.99

SPK-8S4 small

AudioControl SPK-8S4

• RMS Power: 500 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 4.291"
• Sensitivity: 81.9876 dB

(1)

$179.00

List price $229.00

KAPPA 83WDSSI small

Infinity Kappa 83WDSSI (INFSUBKA83WDSSIAM)

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 5.42"
• Sensitivity: 91 dB

(2)

$149.95

List price $289.95

8W1v3-4 small

JL Audio 8W1v3-4


• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 3.86"
• Sensitivity: 84.8 dB

(10)

$199.99

List price $199.99

CWRT84 small

Kicker CWRT84 (48CWRT84)

• Peak Power: 600 watts
• RMS Power: 300 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 2-11/16"
• Sensitivity: 81.8 dB

(4)

$151.96

List price $209.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
8"
Peak Power Handling
500 watts
RMS Power Handling
250 watts
Impedance (Per Voice Coil)
4 ohm
Sensitivity
82.5 dB
Xmax (millimeters)
10 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
38.5 Hz
Equivalent Compliance (Vas)
12 liters
Total Speaker Q Value (Qts)
0.56
Electrical Q Value (Qes)
0.61
Electrical Resistance of Voice Coil (Re)
3.4 ohm
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SUB P 20FE

Weight:

6.00lbs

Internal SKU:

subp20fe

Internal Product ID:

178347
