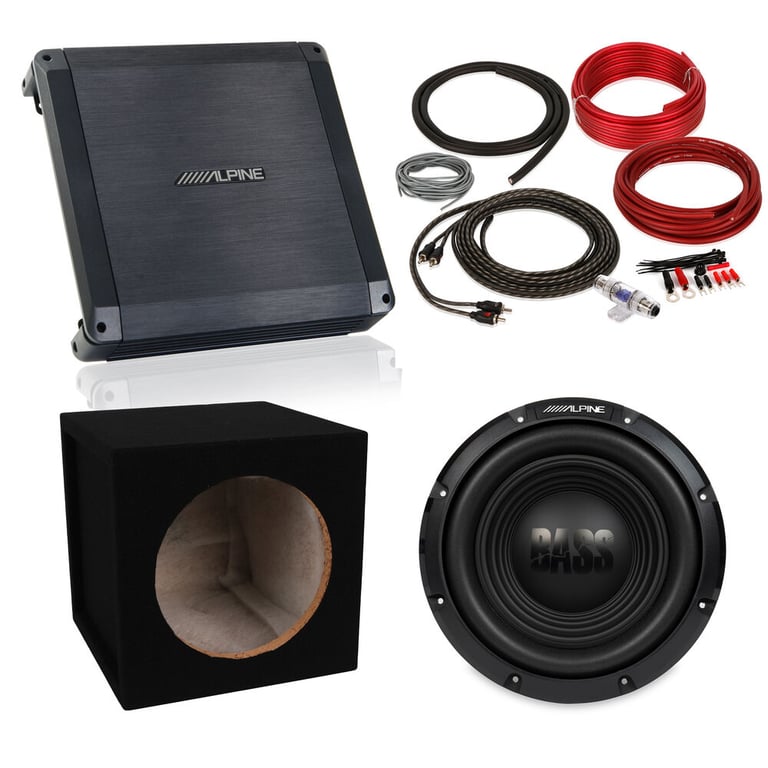

Alpine BBX-T600 Complete Bass Package #3

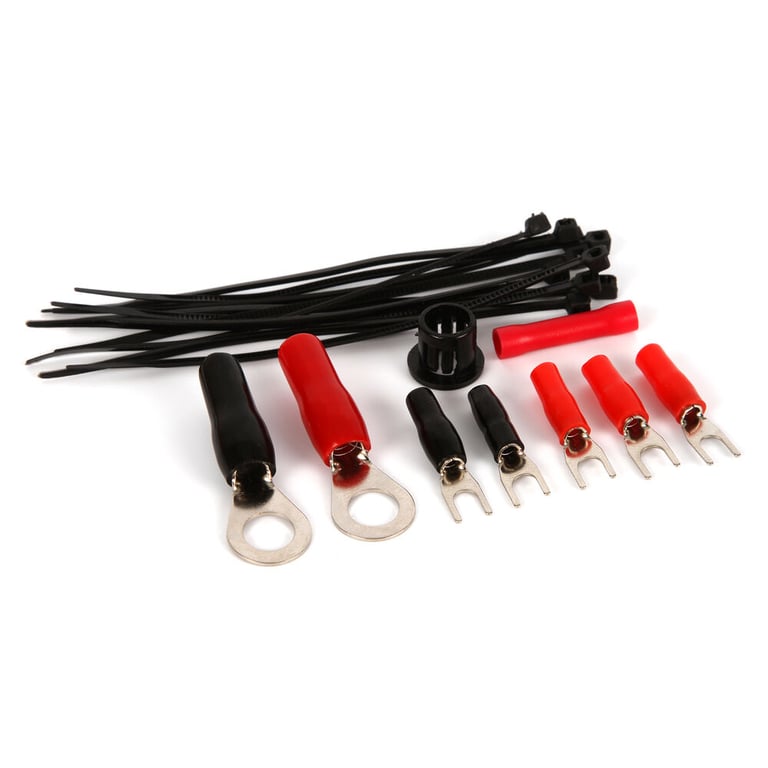

Includes 2 Channel Class-A/B Amplifier, Alpine W10S4 10" Subwoofer, Sealed Box and Amplifier Wiring Kit

Alpine
Shop all Alpine
highlight-star-icon

• 50 Watts RMS x 2 @ 4 ohm
• 70 Watts RMS x 2 @ 2 ohm
• 130 Watts RMS x 1 @ 4 ohm
• Total Peak Power: 600 Watts
• High and Low Pass Filters
• 0-12dB Bass Boost
• Aluminum Heatsink
• Dimensions: 9.84" W x 9.44" L x 2" H

Learn more about the pkga0003al

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Description


Alpine brand icon

Authorized dealer

General Features:

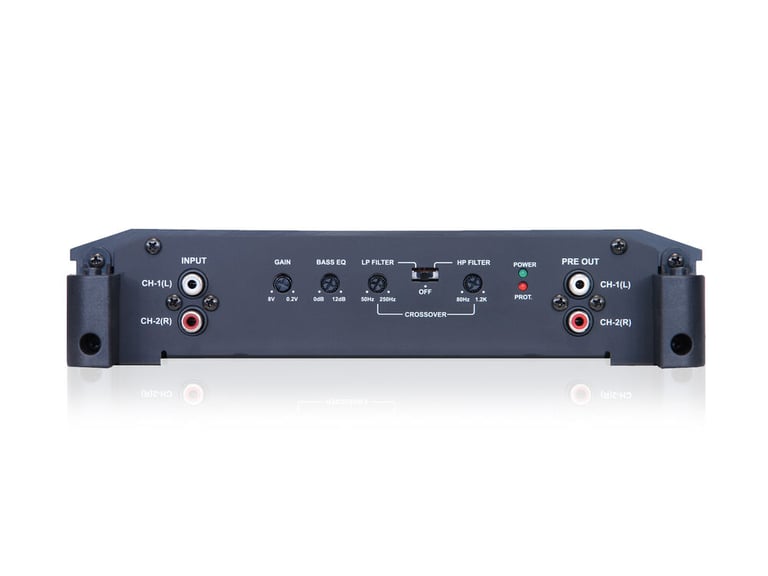

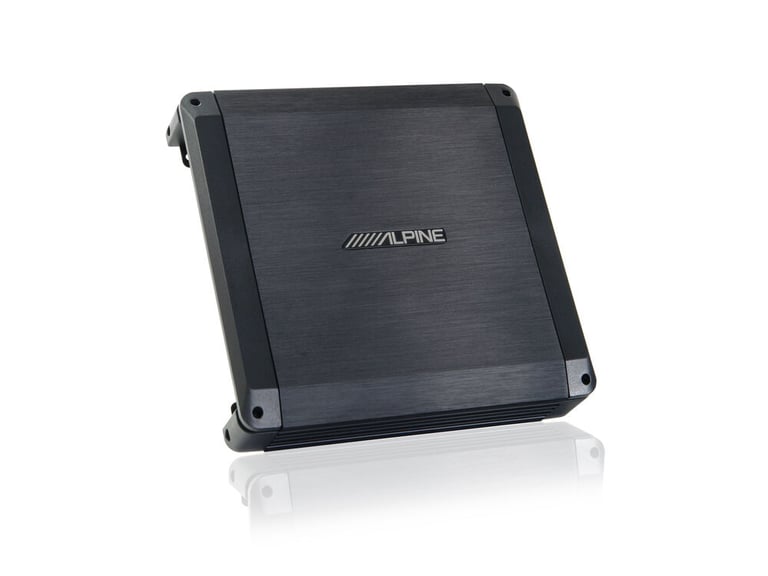

  • Alpine BBX-T600
  • Class-A/B 2-ohm Stable 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 50 watts x 2 chan.
    • 2 ohm: 70 watts x 2 chan.
    • 1 ohm: ------------N/A------------
    • Bridged, 4 ohm: 130 watts x 1 chan.
  • Total power output: 600 watts
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 2 or mono channel operation
  • 1 pair of preamp outputs to connect multiple amplifiers
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

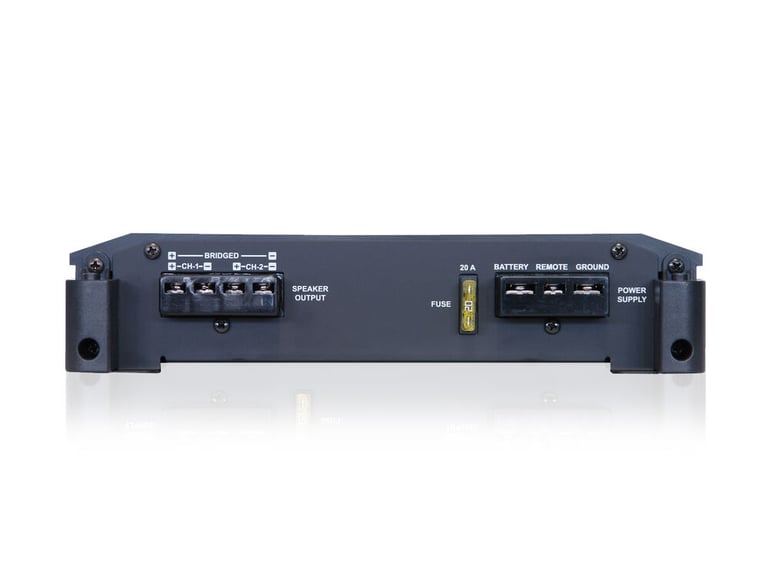

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity: .2V - 8V
  • Frequency Response: 5 - 50000 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ratio: 95dB
  • Variable high-pass filter: 80 - 1200 Hz
  • Variable low-pass filter: 50 - 500 Hz
  • Variable Bass Boost: 0 to +12 dB bass boost
  • Fuse Rating: 20A x 1

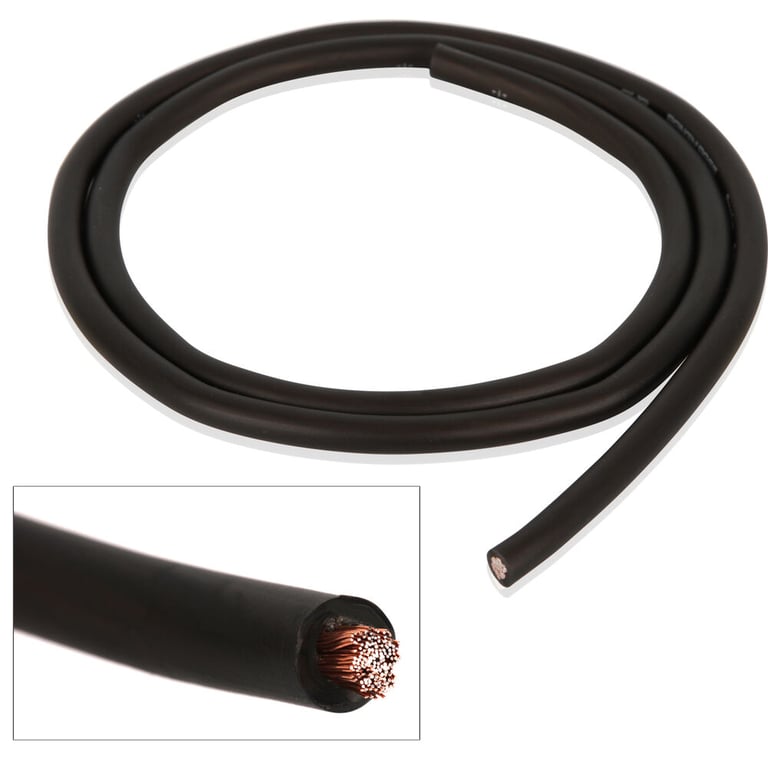

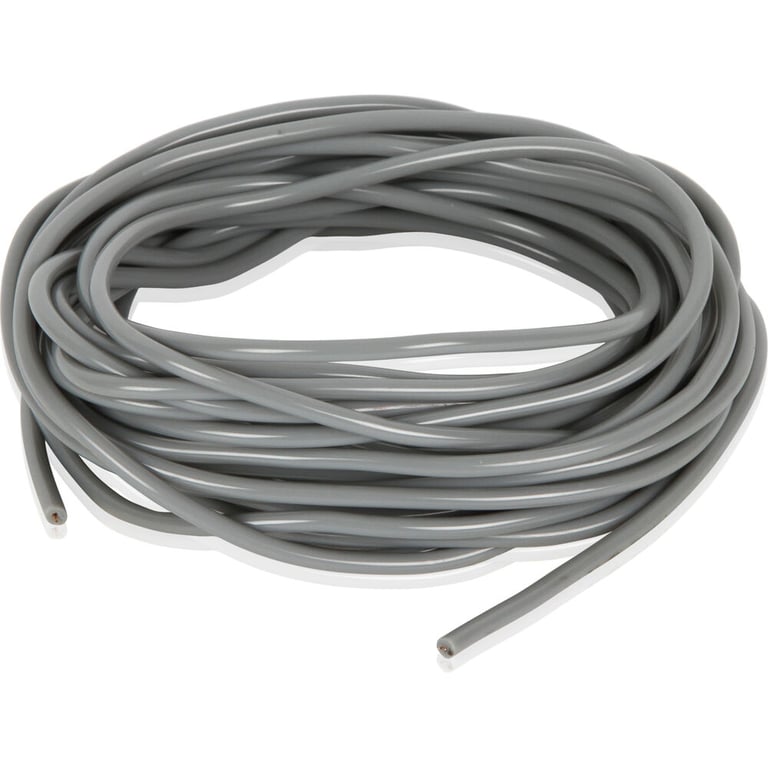

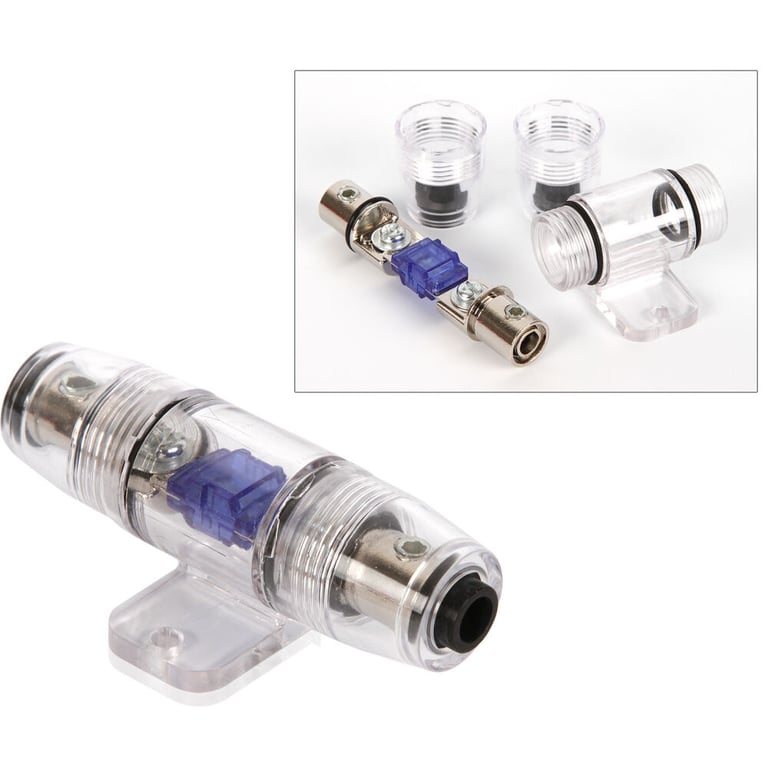

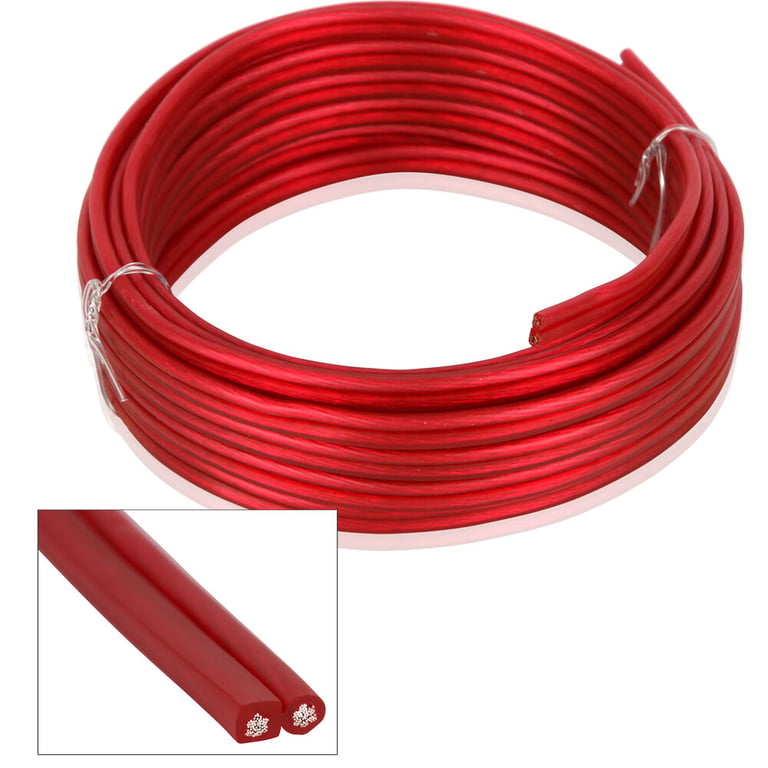

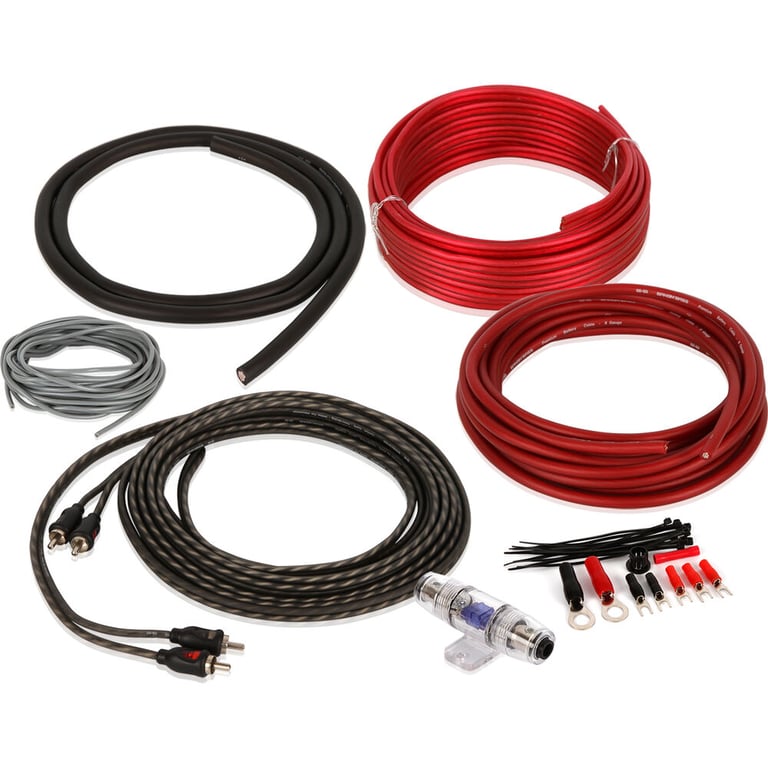

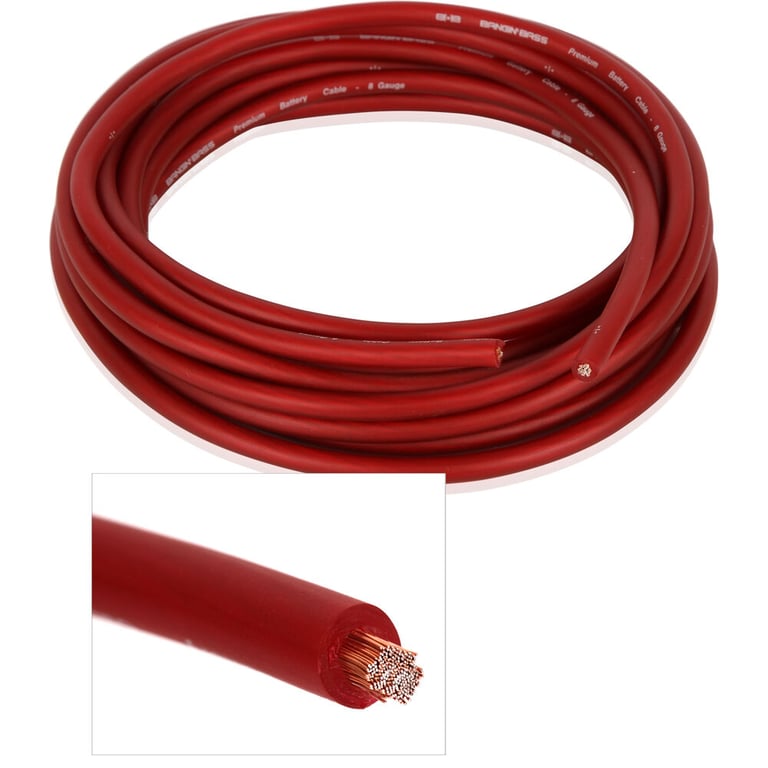

  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 9.84"W x 9.44"L x 2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

QB10SPA small

NVX QB10SPA

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$179.99

List price $275.98

Specifications & Details


Series
Series
BassLine Series
Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
50 watts x 2 channel
RMS Power @ 2 ohms
70 watts x 2 channel
Bridged RMS Power
130 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Maximum Input Gauge Size
4 AWG
THD at Rated RMS Power
<1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
80 - 1200 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 12 dB
Fuse Rating
20A x 1

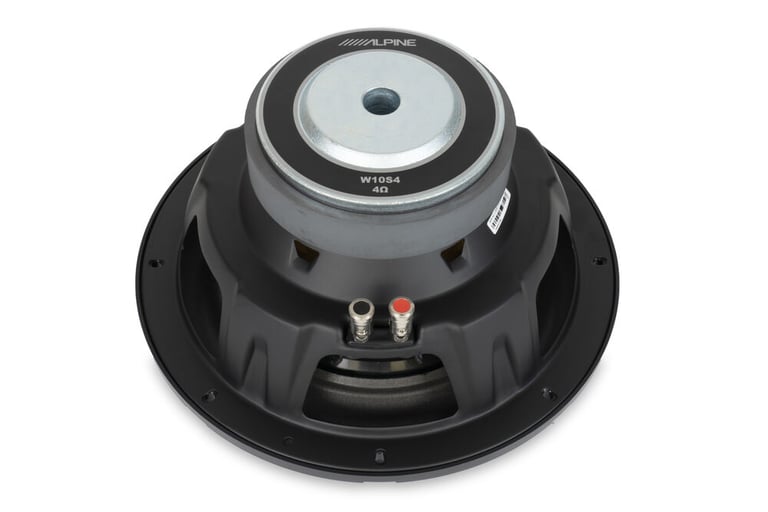

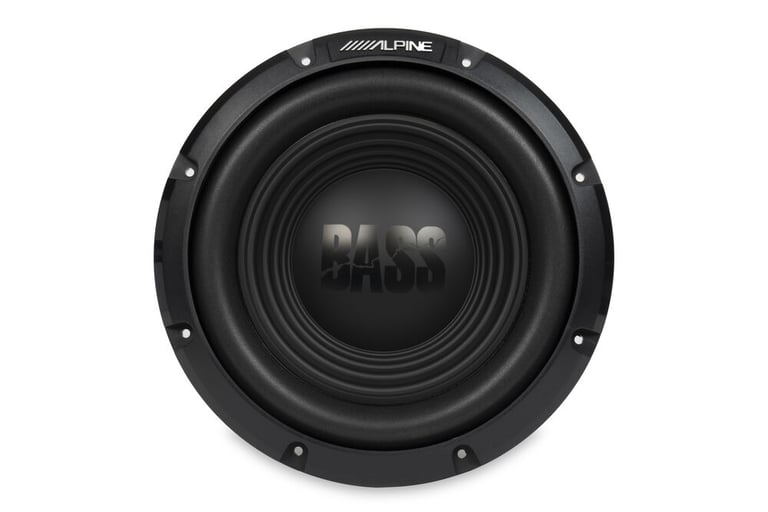

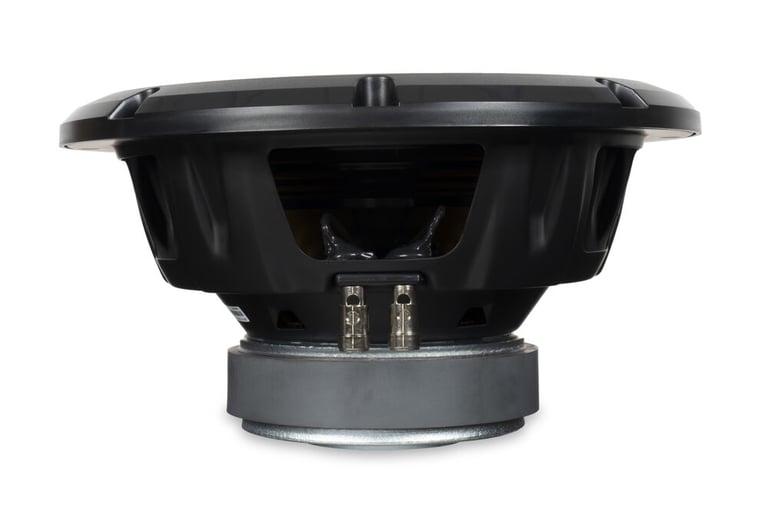

Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
250 watts
Peak Power Handling
750 watts
Woofer Surround
Poly-Foam
Woofer Composition
Mica Injected Polypropylene - MIPP
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Sensitivity
86.6 dB
Frequency Response
24 - 200 Hz

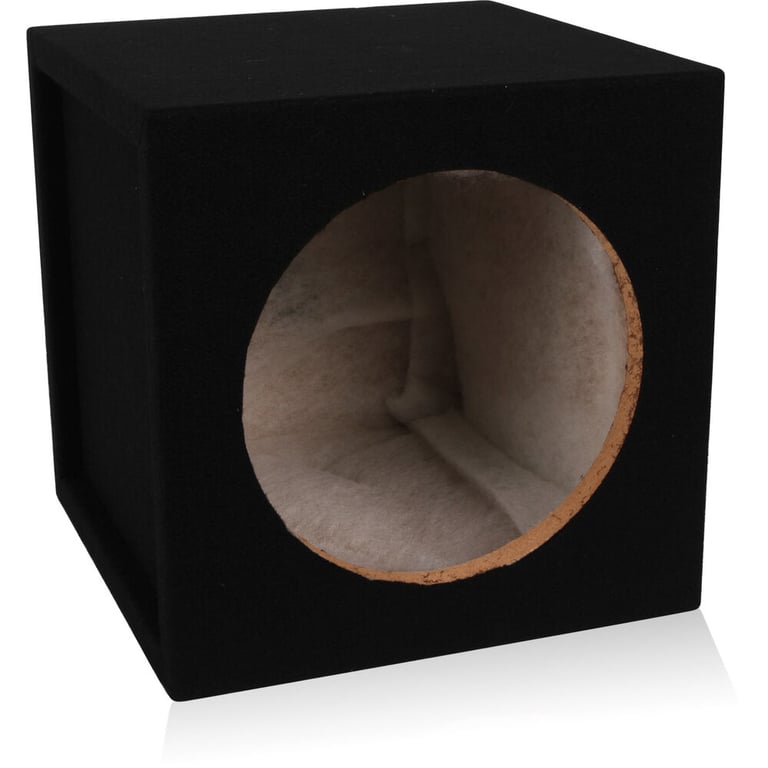

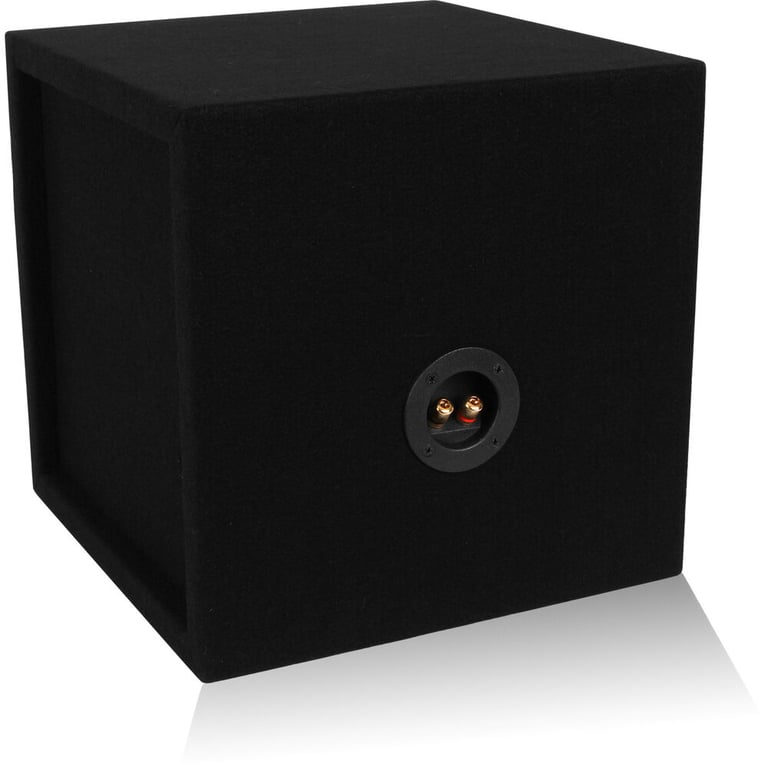

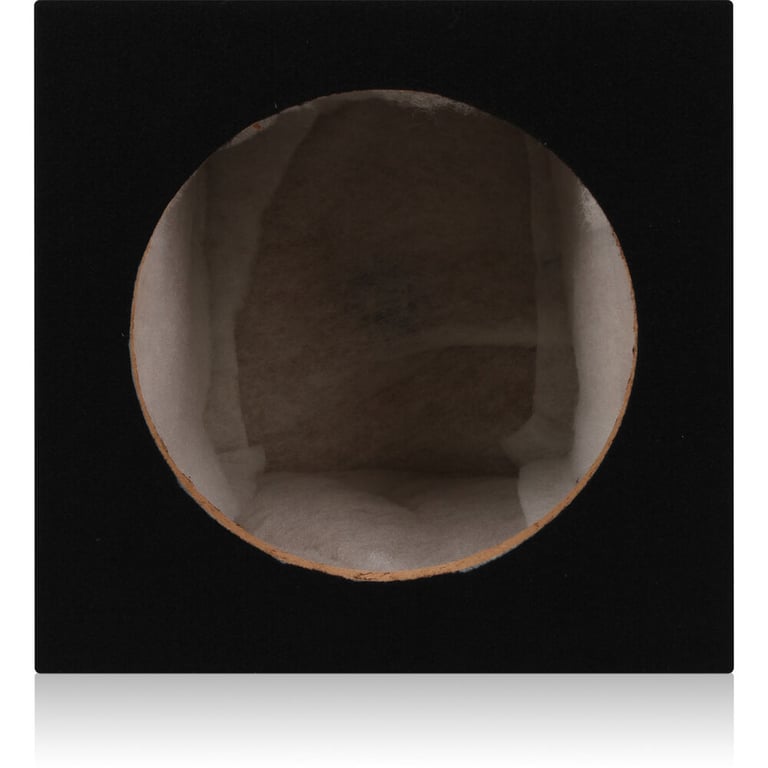

Enclosure Specifications
Number of Subwoofers
1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MDFS10,W10S4,BAK82,BBX-T600

Weight:

34.80lbs

Internal SKU:

pkga0003al

Internal Product ID:

178665
