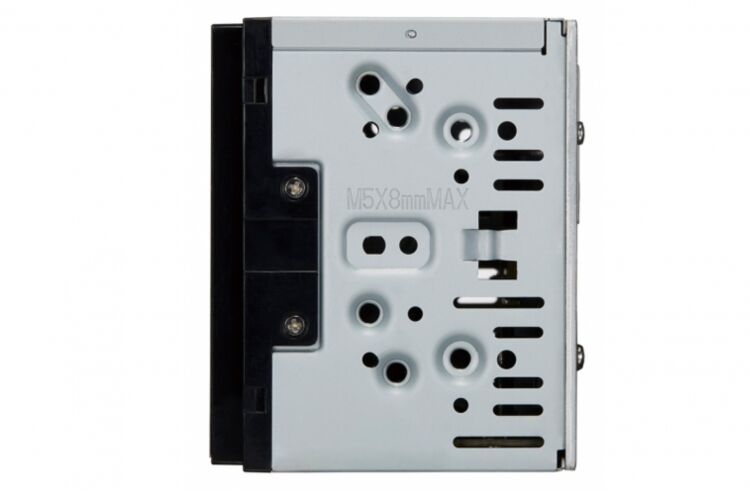

JVC KW-M560BT (Open Box, Good)

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

JVC
Shop all JVC
highlight-star-icon

• Double DIN Bluetooth Multimedia Receiver
• 6.8" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• USB Mirroring for Android
• 3 sets of 2 volts preamp outputs
• 13-Band Graphic Equalizer with 7 Selectable Preset
• SiriusXM Satellite Radio Ready

Learn more about the ls-kwm560bt-u7

We apologize

This item has been discontinued

Description


JVC brand icon

Authorized dealer

Item Condition - Open Box, Good:

This product is used, but it will work like new and is in overall good condition. It will show signs of wear that can include scuffing, scratches, fingerprints, dents, and worn corners or installation marks. May be missing non-essential parts, accessories or original packaging.

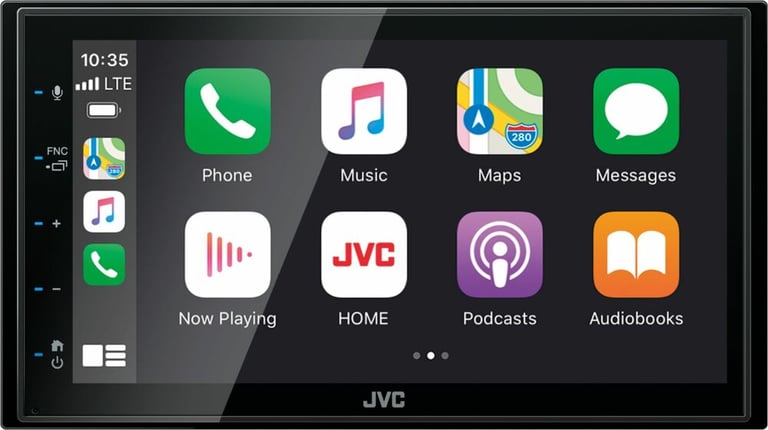

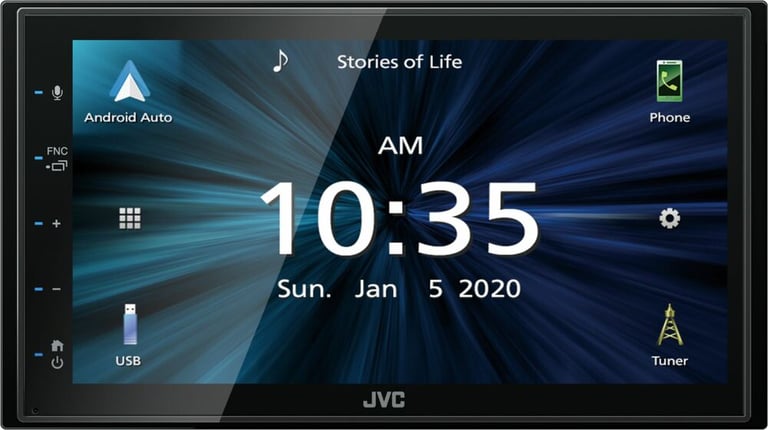

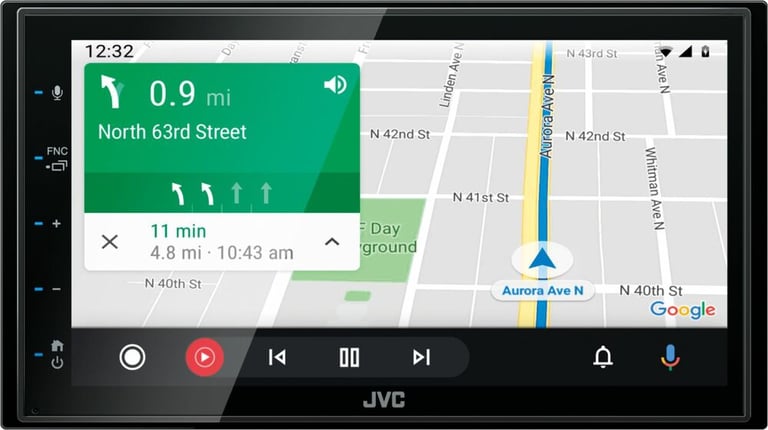

Smartphone Integration and Display

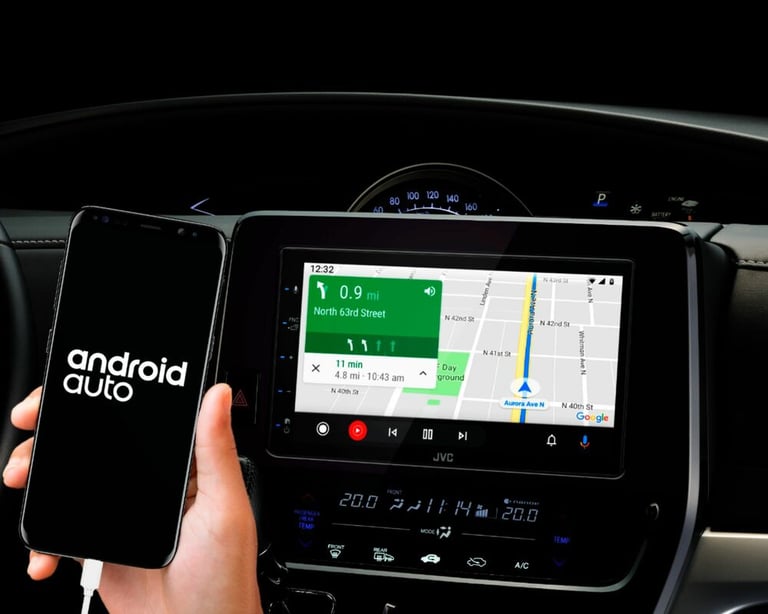

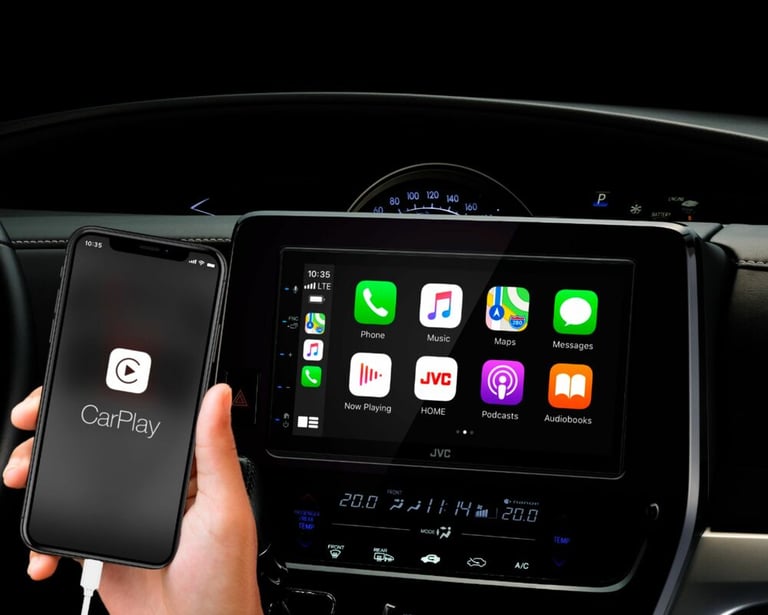

The JVC KW-M560BT stands out with its 6.75" capacitive touchscreen, offering an intuitive and responsive interface. It excels in smartphone integration, featuring both Android Auto™ and Apple CarPlay™. This allows for seamless use of smartphone functions such as navigation, music streaming, and hands-free calling. For Android users, it offers the added convenience of screen mirroring via USB, making it easier to access your favorite apps on the go.

Superior Audio and Video Capabilities

This multimedia receiver is the ultimate powerhouse for entertainment. It supports a wide range of music file formats, including high-resolution FLAC and WAV files, ensuring top-notch audio quality. The 13-band equalizer and digital time alignment provide a customizable listening experience, tailored to your preferences and vehicle acoustics. Additionally, the receiver is equipped with a rear A/V input and a rear USB input, enhancing its versatility as a multimedia hub.

Safety and Convenience Features

Prioritizing safety, the KW-M560BT includes a dedicated input for a backup camera, offering added visibility and peace of mind while reversing. It's also designed to work with most factory steering wheel audio controls (with an adapter), allowing you to keep your hands on the wheel while managing your entertainment. The requirement for a wired connection to the parking brake ensures that video playback is only available when it is safe to view.

Expandability and Customization

The JVC KW-M560BT is built for future expansion. It's compatible with the optional SiriusXM satellite radio tuner, offering a vast array of entertainment options. With 5-channel preamp outputs, it's ready for you to add additional amps and speakers to enhance your vehicle's sound system. The receiver's settings and features can be further customized to suit your needs, making it a versatile choice for any car audio enthusiast.

Product Details

  • Double DIN In-Dash Bluetooth Multimedia Receiver
  • 6.8" Capacitive Touchscreen Display
  • Power Output:
    • Peak: 50 watts x 4 channel
    • RMS: 22 watts x 4 channel
  • Bluetooth hands-free calling and audio streaming
  • Wireless remote control JVC RM-RK52 (sold separately)
  • Capacitive Touchscreen
  • Gesture touch control Finger movements for volume level and forward/back

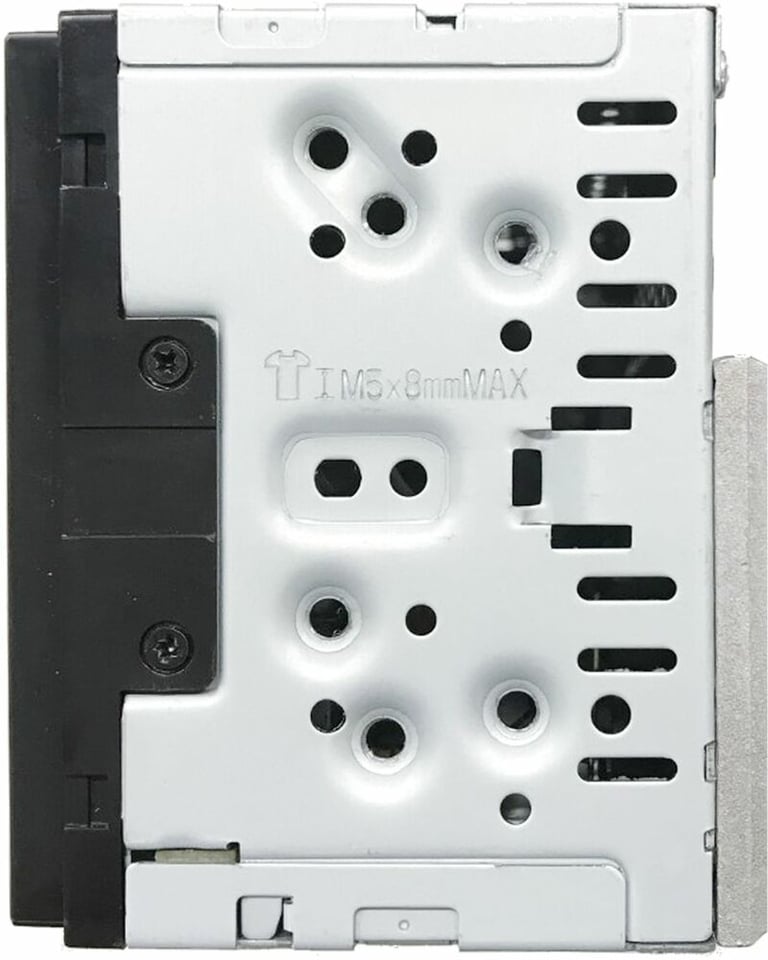

  • Short chassis
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: KW-M560BT

Smartphone Features

  • Apple CarPlay and Android Auto compatible
  • Control and charging of Apple devices using the USB connection
  • Display and control music, navigation, and other apps with iPhone and Android
  • Pandora and Spotify capable
  • Siri Eyes Free control for select iPhones
  • Wired phone-mirroring for select devices via USB

Playback and Audio Features

  • MP3 | WMA | WAV (Hi-Res) | AAC | FLAC (Hi-Res) Audio Playback
  • AVI | MP4 | MPG | MOV and WMV Video Playback
  • AM/FM tuner with 15FM/5AM presets
  • High-pass, low-pass, and subwoofer crossover adjustments
  • Plays USB memory devices
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • 13-Band Graphic Equalizer with 7 Selectable Preset

Expandability Options

  • Satellite Radio Ready: Requires SiriusXM SXV300V1 and subscription, sold separately
  • Steering Wheel Control Ready: Axxess ASWC-1 required and sold separately

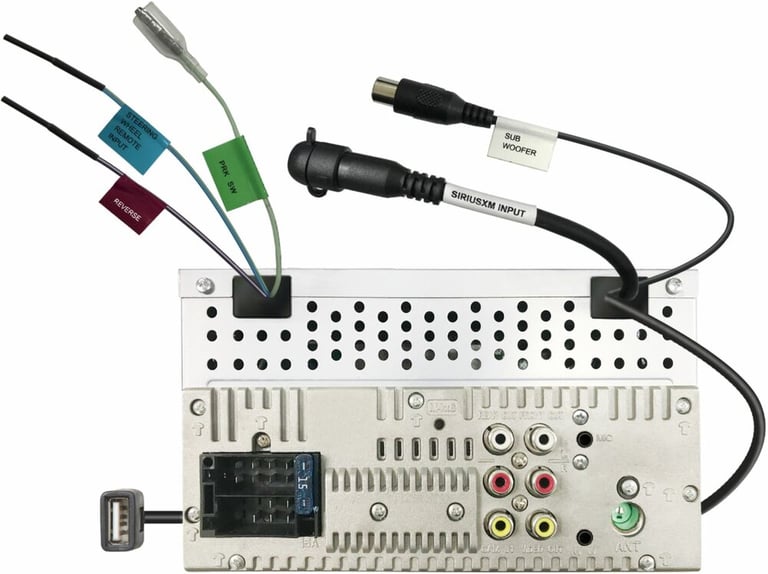

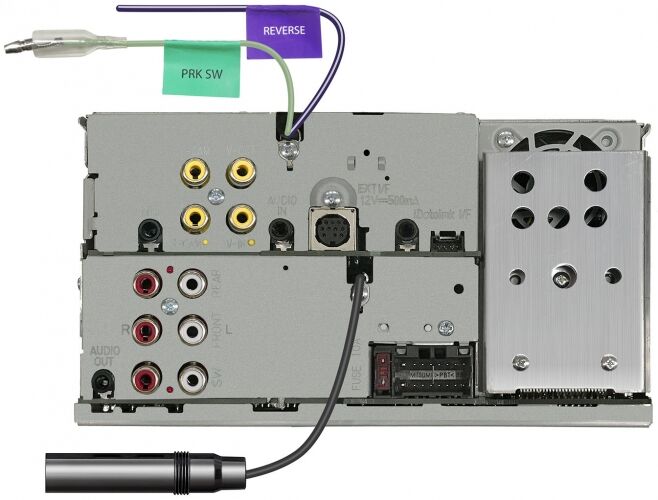

Audio/Video Inputs and Outputs

  • 3 sets of 2 volts preamp outputs (front, rear, and subwoofer)
  • Rear Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
  • Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
  • Backup Camera Input: Used for universal rear view cameras with an RCA composite input
  • Rear RCA Video Output: Used for connection to separate monitors and other devices
  • Rear RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.

Bluetooth Features

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Includes an external 10" wired microphone for clear, convenient, distortion-free talking
PDF Icon JVC KWM560BT owner’s manual

Frequently Asked Questions (FAQ)


Yes, it supports both Android Auto and Apple CarPlay for seamless smartphone integration.
Yes, it has a dedicated input for connecting a backup camera.
Yes, it's compatible with an optional SiriusXM tuner.
It can play MP3, WMA, AAC, WAV, and FLAC files, including high-resolution FLAC and WAV up to 24-bit/192kHz.
Yes, it features a 6.75" capacitive touchscreen.
Yes, it's compatible with most factory steering wheel audio controls, but an adapter is required.
It has a built-in amplifier with 21 watts RMS (45 peak) per channel
A wireless remote control is optional and can be added.
It includes a 13-band equalizer with digital time alignment.
Yes, it has 5-channel preamp outputs (2-volt front, rear, subwoofer) for connecting external amps.

Specifications & Details


Key Features
Key Features
SiriusXM Ready
USB input
Aux input
Touchscreen
In-Dash Receiver Specifications
Receiver Size
Double DIN
Radio Type
Digital Multimedia (does not play discs)
Bluetooth Features
Hands-free Calling
Audio Streaming (A2DP)
External Microphone
Volume Control Type
Touch Sensitive
Anti-Theft Security
None
Wireless Remote
Optional (Accessory and sold separately)
Peak Power Output
50 watts x 4 channel
RMS Power Output
22 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
2 volts
Built-In Equalizer
13-Band Graphic Equalizer with 7 Selectable Preset
Display Type
Capacitive Touchscreen Display
Touchscreen
Yes
Screen Size
6.8"
Display Adjustment
Brightness
Contrast
Dimmer
Sharpness
Tint
Button Color
Blue
Smartphone Integration
Compatible Smartphones
iPhone (iOS)
Android
iPhone Control
CarPlay
Navigation App Compatible
Siri Eyes Free Control
Pandora Control
Spotify Control
Mirroring Control
Android Control
Android Auto
Navigation App Compatible
Google Assistant
Pandora Control
Spotify Control
Mirroring Control
Expandability Features
Inputs
Audio/Video (Rear)
Auxiliary (Rear)
Backup Camera
USB (Rear)
Outputs
Audio/Video (RCA)
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
Tuner
AM/FM Tuner
Yes
FM Presets
15
AM Presets
5
Radio Data System (RDS)
Yes
Playback
Music File Playback Type
MP3
WMA
High-Res FLAC (192kHz/24bit)
AAC
High-Res WAV (192kHz/24bit)
Navigation Features
Map Database
Determined By Phone Connected
What is in the box?
Paperwork
User manual
Warranty/Registration card
Quick start guide
Product and accessories
In-dash receiver
Wiring harness with power and speaker connections
Mounting sleeve (attached)
Trim ring (attached)
Microphone with attached cable
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JVC

Model Number:

KW-M560BT

Weight:

2.50lbs

Internal SKU:

ls-kwm560bt-u7

Internal Product ID:

231083
