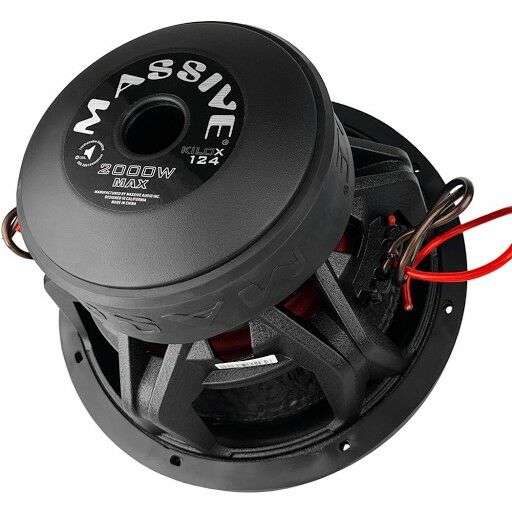

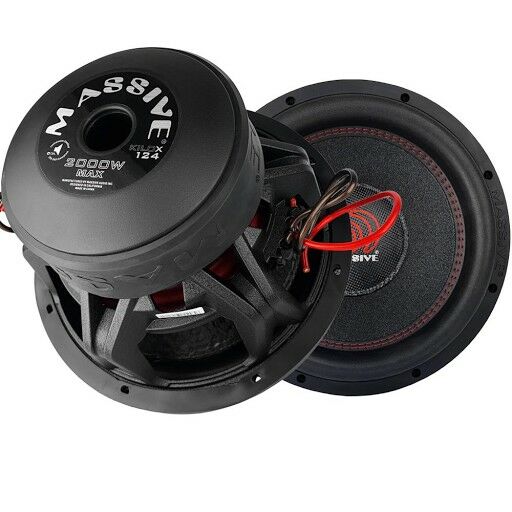

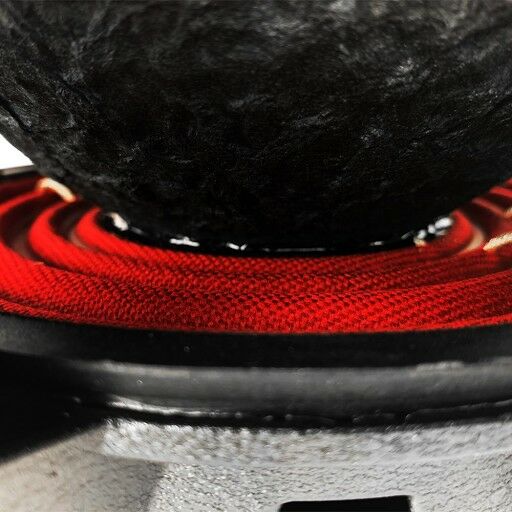

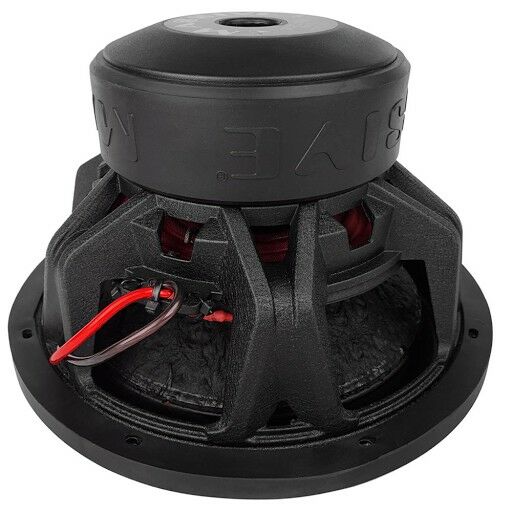

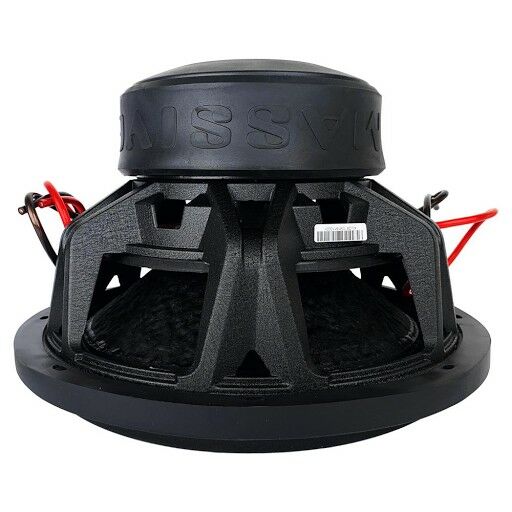

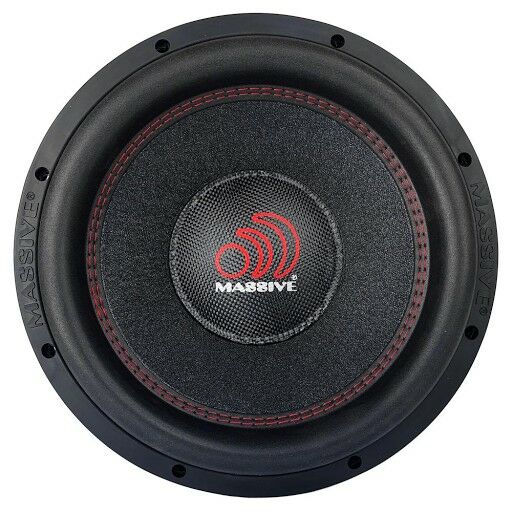

Massive Audio KILOX124

12" 2000W Dual 4 Ohm Car Audio Subwoofer

highlight-star-icon

• 2000W Peak
• 1000W RMS
• Paper/ Woven Fiber Cones
• High Quality Tall Foam Surround
• Heavy Duty Cast Aluminum Basket

Learn more about the kilox124

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
C-VOL01 main

GROM Audio C-VOL01

Factory Radio Integration Harness for select 2001-2007 vehicles from Volvo

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

Description


Massive Audio brand icon

Authorized dealer

El Toro

The new Massive Audio TORO X Series is engineered for serious pounding bass. They are designed to take high amounts power while limiting distortion for exceptional clarity and tonality. These subs have 2.55" voice coils for higher power handling, 5 way binding posts, push or banana nickel-plated terminals, Paper/ Woven Fiber cones and powder coated thick aluminum cast basket. With these subs, you'll be heard coming down the street like a thundering bull!

General Features:

  • 12" Dual 4-Ohm Toro X Series Car Subwoofer
  • Power Handling:
    • Peak: 2000 watts
    • RMS: 1000 watts
  • Impedance: Dual 4 ohm
  • Paper/ Woven Fiber cones
  • High Quality Tall Foam Surround
  • Heavy Duty Cast Aluminum Basket
  • 5 Way Binding Push Terminals
  • 2.55" Voice coil
  • 200 oz. Magnet
  • Resonance Frequency (Fs): 47.8 Hz
  • Top-mount depth: 6-14/16"
  • Sensitivity: 84.5 dB
  • 1-year SonicElectronix.com Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Massive Audio KILOX124 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Massive Audio KILOX124 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Massive Audio KILOX124 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Massive Audio KILOX124 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

22
-20.01%

$119.95

List price $149.95

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
Toro X Series
Subwoofer Size
12"
Peak Power Handling
2000 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.55"
Sensitivity
94 dB
Xmax (millimeters)
12.6 mm
Subwoofer Design
Round / Circle
Woofer Composition
Pressed Pulp Fiber
Woofer Surround
Rubber
Magnet Structure
Double Stacked
Subwoofer Grille
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.00 cubic feet
Optimum Sealed Box Volume
1.43 cubic feet
Maximum Sealed Box Volume
1.00 cubic feet
Minimum Ported Box Volume
1.50 cubic feet
Optimum Ported Box Volume
1.6 cubic feet
Maximum Ported Box Volume
1.50 cubic feet
Top-Mount Depth (Mounting Depth)
6-14/16"
Cutout Diameter
11"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
47.8 Hz
Equivalent Compliance (Vas)
18.886 liters
Total Speaker Q Value (Qts)
0.715
Electrical Q Value (Qes)
1.126
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Mechanical Q Value (Qms)
1.957
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

KILOX124

Weight:

27.75lbs

Internal SKU:

kilox124

Internal Product ID:

179043
