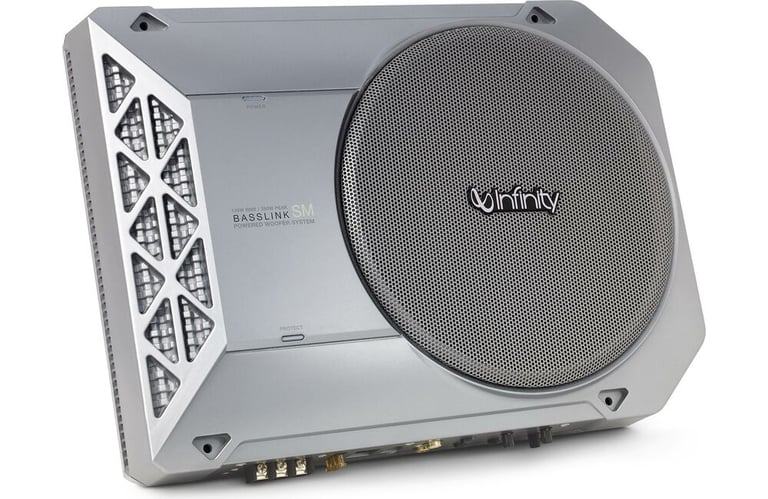

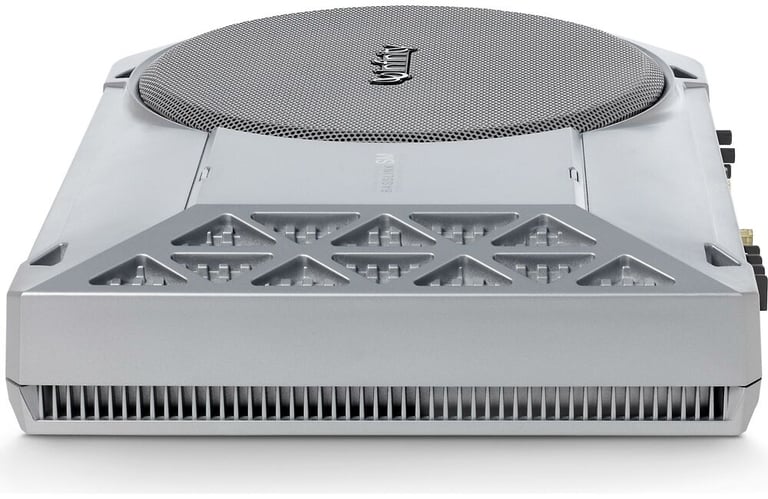

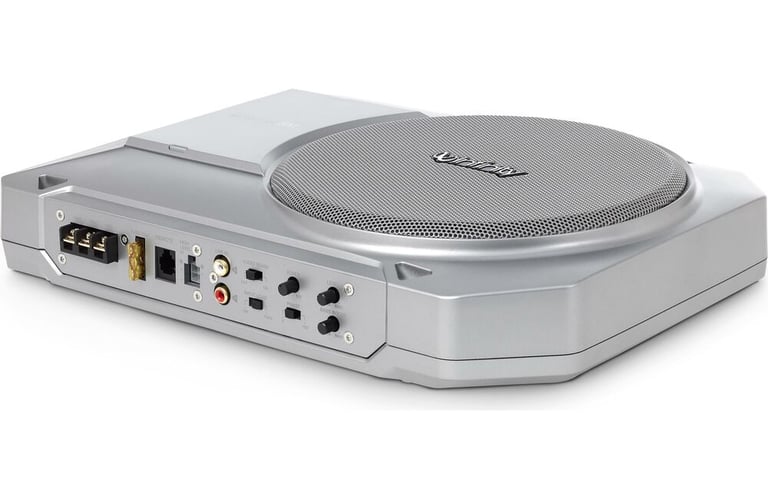

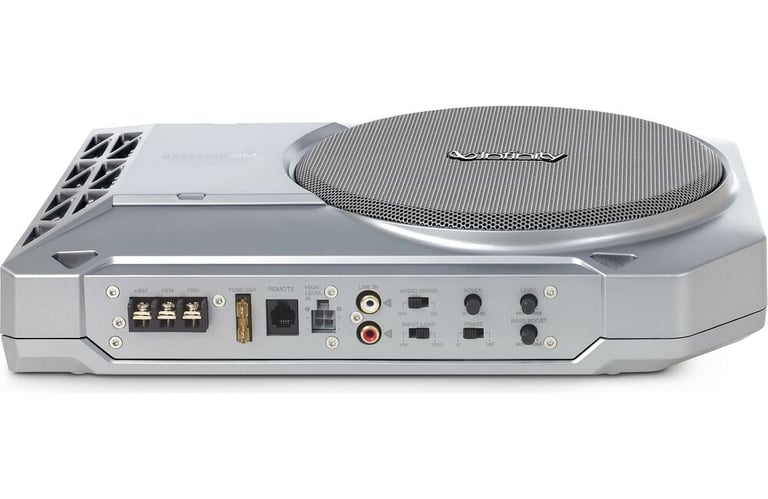

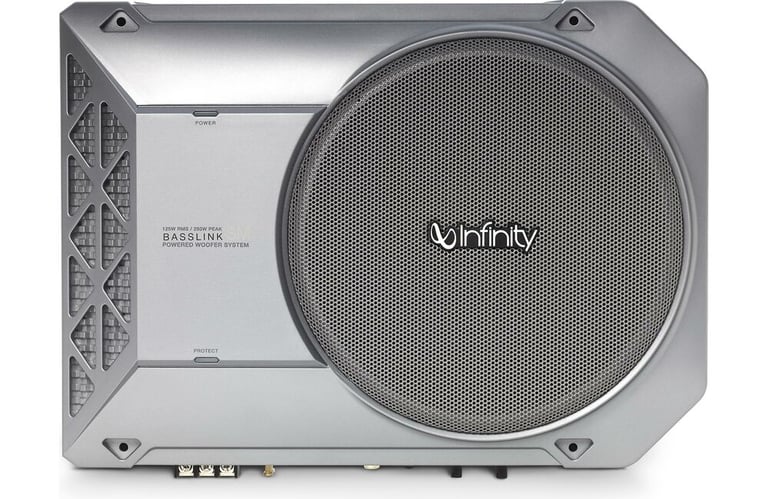

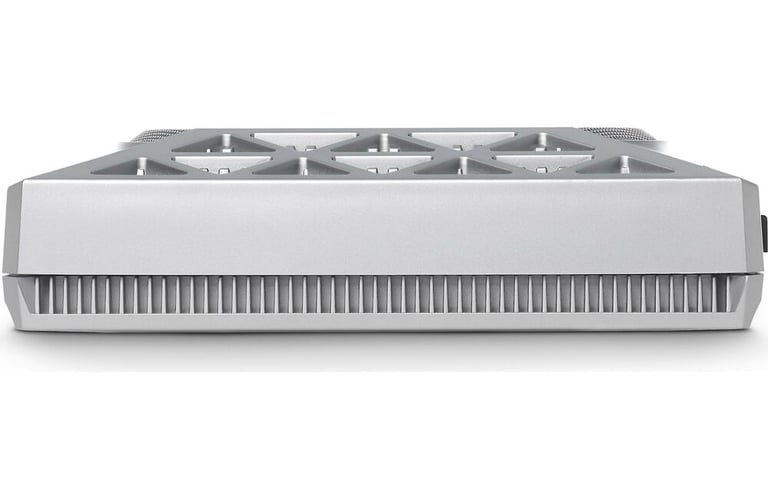

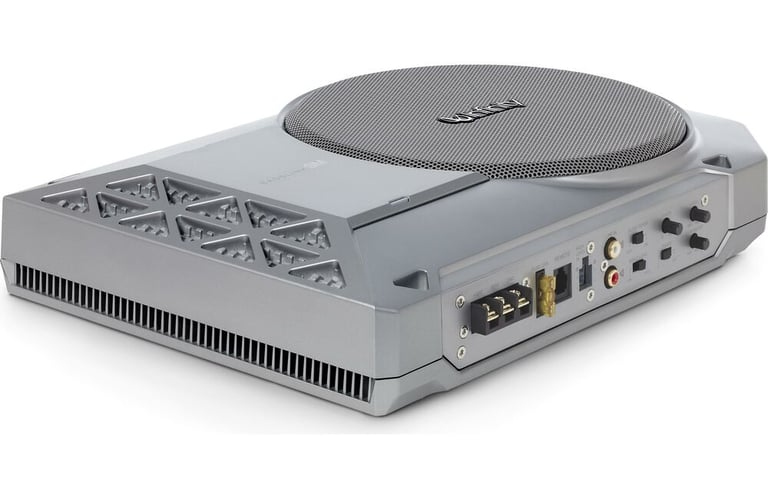

Infinity BassLink SM 2 8" Compact Powered Under-Seat Subwoofer Enclosure

8" Ultra-Compact Shallow Profile Hideaway Under-Seat Subwoofer System

Infinity
Shop all Infinity
highlight-star-icon

• 125 Watts RMS
• Proprietary, shallow-profile subwoofer driver
• Ultra-compact purpose-engineered ABS enclosure
• Efficient Class D amplifier
• Custom circuitry to protect and provide optimum performance
• Soft start turn-on
• Speaker-level (high-level) and RCA inputs
• Audio sense Auto-Turn on capable via high-level inputs only

Learn more about the basslinksm2

We apologize

This item has been discontinued


Loading...

Rockford Fosgate Punch P1 P1T-S

240W Peak (120W RMS) 1" Punch Series PEI Car Tweeter Kit with External Crossovers

17

Description


Infinity brand icon

Authorized dealer

Infinity BassLink SM 8

Infinity BassLink SM 8" Slimline Powered Subwoofer

The BassLink SM powered subwoofer is purpose-engineered to fit under the seat of many vehicles, and compliments a car audio system's full-range speakers with modest bass. Its slim-profile, 8" woofer delivers low-frequency enhancement from a shallow-profile enclosure. A crossover control and flexible EQ adjustments let you tune the BassLink SM to your system, your car's acoustic environment and your listening preferences. The energy-efficient amplifier keeps it cool while powering the woofer. High-pass filters and limiters ensure remarkable performance, and input options increase installation versatility. The BassLink SM delivers a lot of bass, without taking up a lot of space.



Product Details:

  • 8" Shallow Mount Hideaway Active Subwoofer Enclosure
  • Power Handling:

    • RMS: 125 watts
    • Peak: 250 watts
  • Proprietary, shallow-profile subwoofer driver
  • Ultra-compact purpose-engineered ABS enclosure
  • Efficient Class D amplifier
  • Custom circuitry to protect and provide optimum performance
  • Soft start turn-on
  • Speaker-level (high-level) and RCA inputs
  • Audio sense Auto-Turn on capable via high-level inputs only
  • Gold-plated RCA, Remote and Power/Ground connections
  • Wired Bass Remote Controller Ready, Compatible with JBL RBC (sold separately)
  • Input sensitivity:

    • Low level: 200mV - 2V
    • High level: 2V - 20V
  • Frequency Response: 35 - 120 Hz
  • Selectable Phase: 0 - 180°
  • Variable low-pass filter: 50 - 120 Hz, 12 dB/octave
  • Variable Bass Boost: 0 to +9 dB bass boost at 70 Hz
  • Fuse Rating: 20A x 1
  • Maximum Current Draw: 12A
  • Quiescent Current Draw: < 800mA
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 9-7/8"W x 13-9/16"L x 2-13/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Check out the Infinity BassLink SM Owner's Manual


    PROP 65 WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

Specifications & Details


Subwoofer Amplifier Power Specifications
RMS Power @ 2 ohms
125 watts x 1 channel
Peak Power Output
250 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
8 AWG
Speaker Level Inputs
Yes - with included adapter
Low-Pass Crossover Frequency
50 - 120 Hz
Bass Boost
0 - 9 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
20A x 1
Subwoofer Specifications
Subwoofer Size
8"
RMS Power Handling
125 watts
Total RMS Power Handling
125 watts
Woofer Surround
Rubber
Woofer Composition
Polypropylene
Voice Coil(s)
Single
Frequency Response
35 - 120 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
2-13/16"
Width
9-7/8"
Depth
13-9/16"
Number of Terminals
1
Terminal Type
Binding posts
Box Exterior Color
Silver
Box Finish
Coated Tough Guard
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BassLink SM 2

Weight:

12.00lbs

Internal SKU:

basslinksm2

Internal Product ID:

180093
