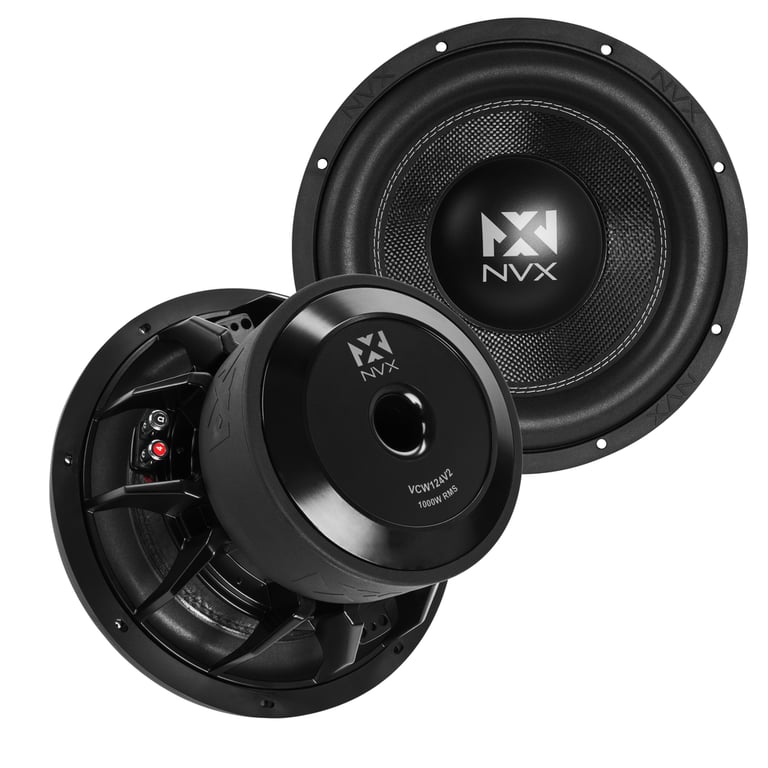

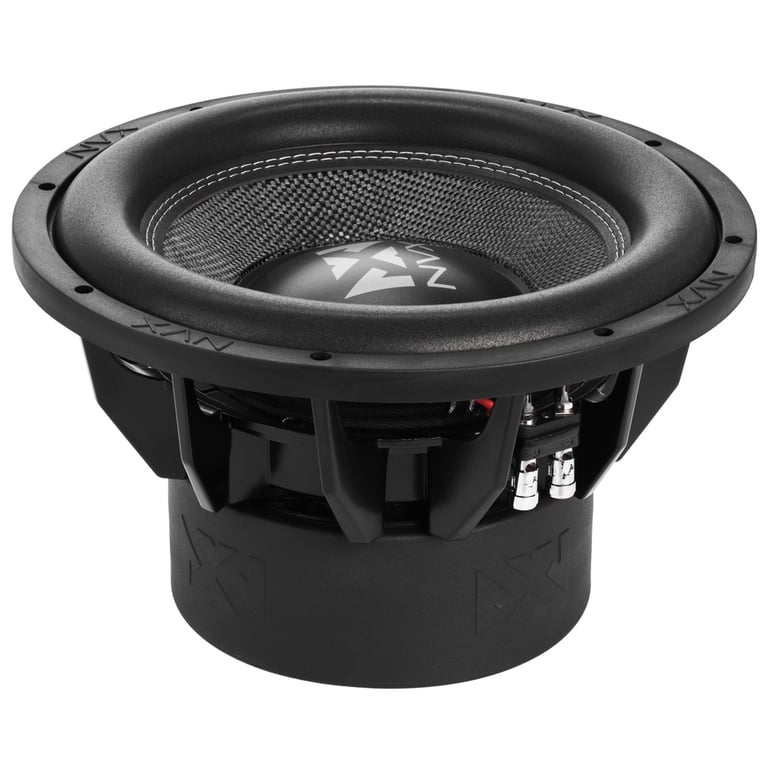

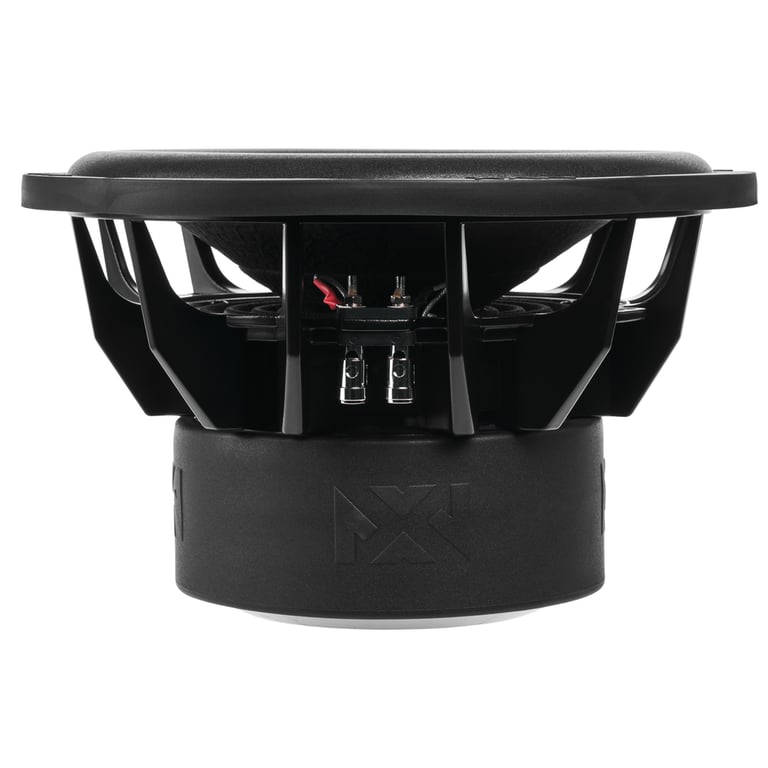

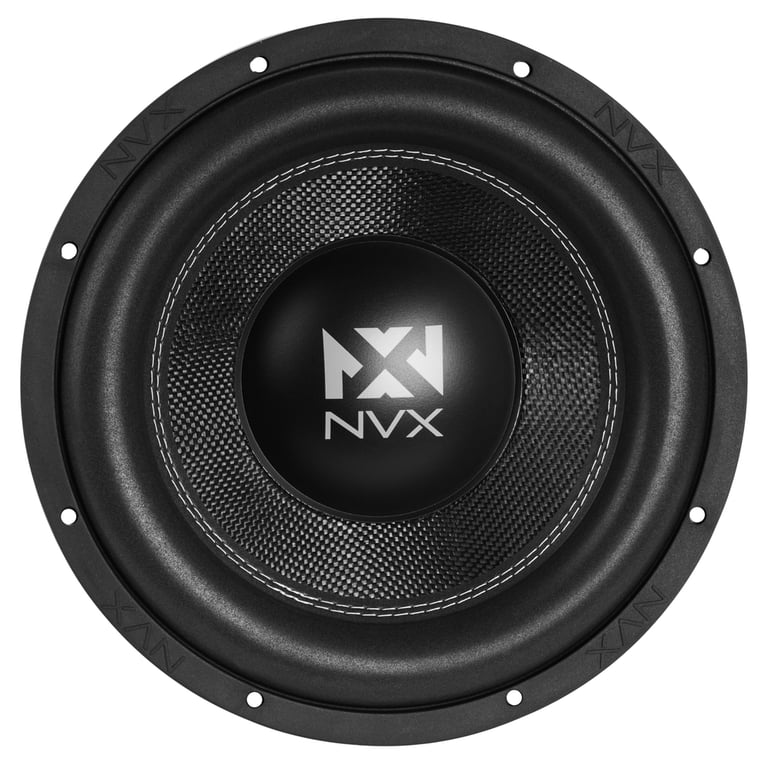

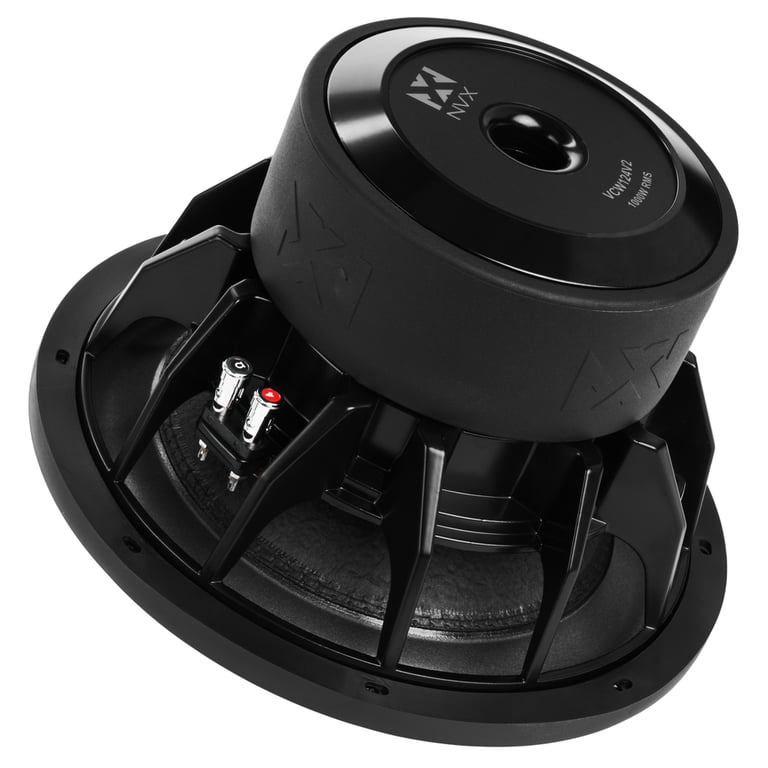

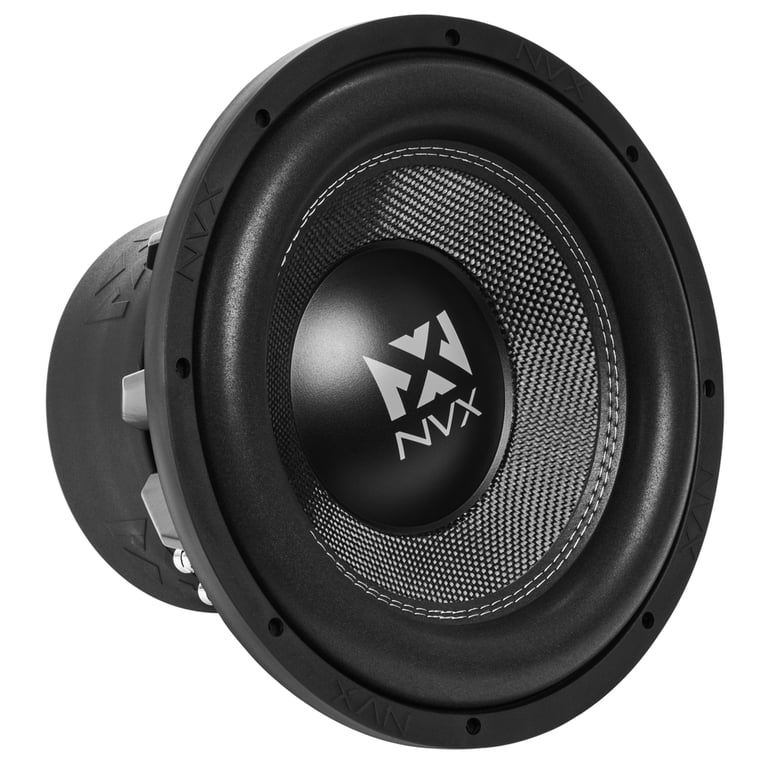

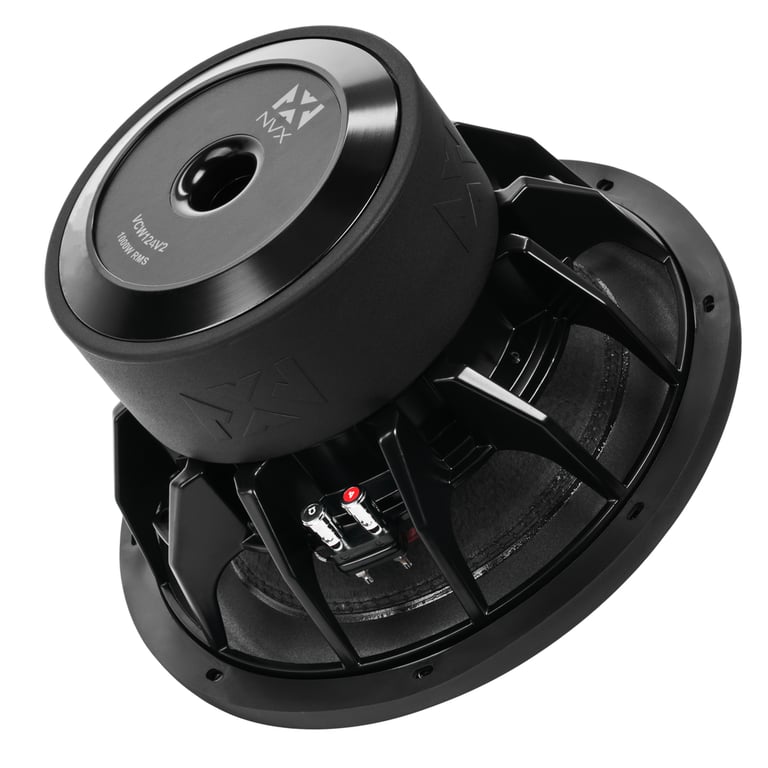

NVX VCW124 Version 2

2000W Peak (1000W RMS) 12" VC-Series Dual 4-ohm Car Subwoofer

NVX
Shop all NVX
highlight-star-icon

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Woven Fiber Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.02"
• Sensitivity: 85 dB

Learn more about the vcw124v2

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

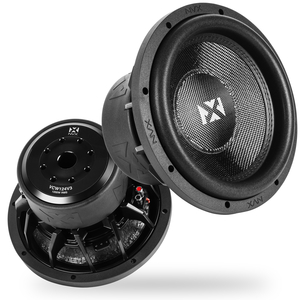

vcw124 thumbnail

NVX VCW124 Version 3 (VCW124v3)

OUR PRICE: $239.99

View item

Loading...
99-7505 main

Metra 99-7505 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 1995-2006 vehicles from Mazda (Black)

7
-50.02%

$14.99

List price $29.99

H7683 main

Cerwin Vega H7683

720W Peak (120W RMS) 6x8" HED Series 3-Way Coaxial 4-ohm Speakers

50
-16.67%

$79.99

List price $95.99

DPX305MBT main

Kenwood DPX305MBT

Double DIN Digital Media Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

15
-20.50%

$159.00

List price $200.00

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

XS-680GS main

Sony XS-680GS

460W Peak (80W RMS) 6x8“ GS Series 2-way 4-ohm Coaxial Car Speakers

1

$148.00

List price $149.99

Pioneer AVH-240EX

6.2" Double DIN DVD Touchscreen Multimedia Receiver Built-in Alexa

8
-13.16%

$329.99

List price $380.00

Description


NVX brand icon

Authorized dealer

Product Details:

  • 12" Dual 4 ohm VC Series Subwoofer
  • Power Handling:
    • Peak: 2000 watts
    • RMS: 1000 watts
  • Woven Fiber Pressed Paper cone
  • Custom High Roll Foam surround with nylon stitching
  • Heavy duty die-cast aluminum basket
  • 3" Aluminum voice coil
  • 20 mm Xmax
  • 195 oz. Triple Stacked magnet motor structure
  • Frequency Response: 20 - 200 Hz
  • Resonance Frequency (Fs): 26 Hz
  • Sensitivity: 85 dB
  • Recommended sealed box volume: 0.85 cubic feet
  • Recommended ported box volume: 1.85 cubic feet
  • Top-mount depth: 7.02"
  • Cutout diameter: 10.83"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

Product history:

NVX VCW124v3 thumbnail
(newest, current model)
NVX VCW124V2-2 thumbnail
(previous model, replaced by NVX VCW124 Version 3 (VCW124v3))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 NVX VCW124 Version 2 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 NVX VCW124 Version 2 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 NVX VCW124 Version 2 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 NVX VCW124 Version 2 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Series
VC Series
Subwoofer Size
12"
Peak Power Handling
2000 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Material
Aluminum
Voice Coil Diameter
3"
Frequency Response
20 - 200 Hz
Sensitivity
85 dB
Xmax (millimeters)
20 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Woven Fiber Pressed Paper
Woofer Surround
High Roll Foam
Magnet Structure
Triple Stacked
Magnet weight
195 oz.
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.85 cubic feet
Optimum Ported Box Volume
1.85 cubic feet
Top-Mount Depth (Mounting Depth)
7.02"
Cutout Diameter
10.83"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
26 Hz
Equivalent Compliance (Vas)
33.79 liters
Total Speaker Q Value (Qts)
0.465
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

VCW124V2-2

Weight:

30.00lbs

Internal SKU:

vcw124v2

Internal Product ID:

180473
