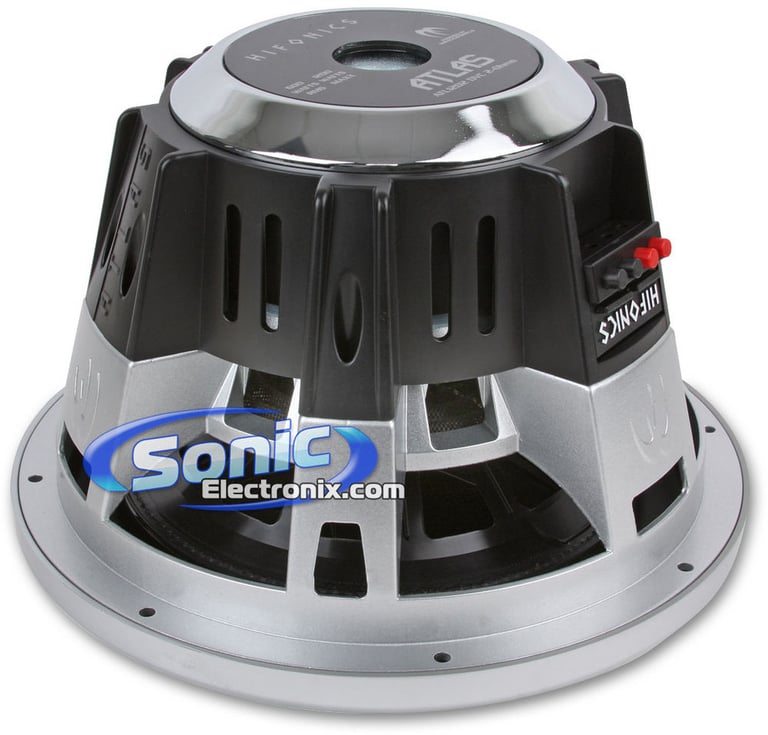

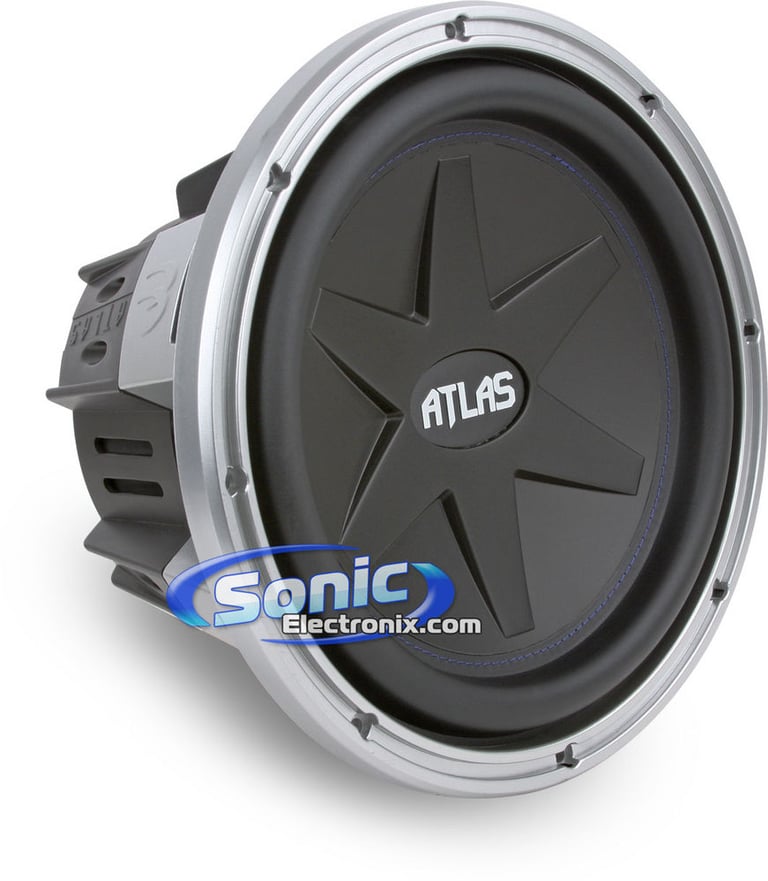

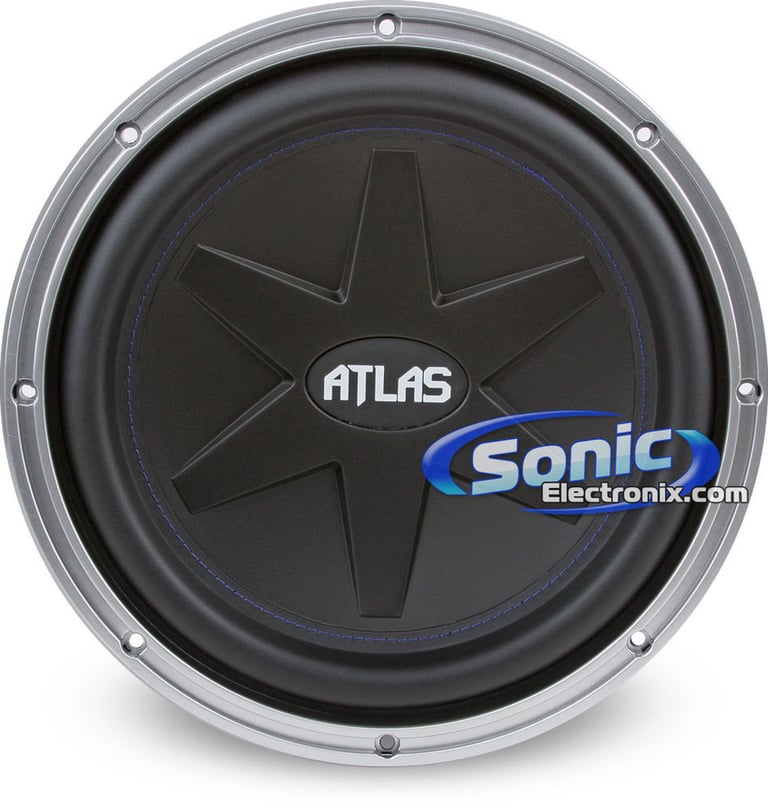

Hifonics ATL12D4

12" Dual 4 ohm Atlas Series Subwoofer

Hifonics
Shop all Hifonics
Product videos
highlight-star-icon

12" Dual 4 ohm Atlas Series Subwoofer • 1200W Max • 600W RMS • Polypropylene Cone Woofer with Woven Honeycomb Structured Support Body • Rubber Surround • Injection-Molded, Cone Neck Support

Learn more about the atl12d4

We apologize

This item has been discontinued


Loading...
NSB710 main

American International NSB710

6.5" or 6.75" Speaker Mounting Adapters for select 1995-2019 vehicles from Nissan, Infiniti, Suzuki

17
-64.74%

$11.99

List price $34.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Product Highlights


12" Dual 4 ohm Atlas Series Subwoofer • 1200W Max • 600W RMS • Polypropylene Cone Woofer with Woven Honeycomb Structured Support Body • Rubber Surround • Injection-Molded, Cone Neck Support

Description


Hifonics brand icon

Authorized dealer

  • 12" Dual 4 ohm Atlas Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Polypropylene cone woofer with woven honeycomb structured support body
  • Rubber surround
  • Injection-molded, cone neck support
  • Ported nickel-plated back plate
  • Single flat conex spider with woven tinsel leads
  • 2-1/2" Voice coil
  • 140 oz. Magnet structure
  • 1-year SonicElectronix.com warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Hifonics ATL12D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Hifonics ATL12D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Hifonics ATL12D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Hifonics ATL12D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
1200 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
87.6 dB
Xmax (millimeters)
29 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
.75 cubic feet
Maximum Sealed Box Volume
1.5 cubic feet
Minimum Ported Box Volume
1.5 cubic feet
Maximum Ported Box Volume
3.1 cubic feet
Top-Mount Depth (Mounting Depth)
7-1/4""
Cutout Diameter
12""
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ATL12D4

Weight:

30.00lbs

Internal SKU:

atl12d4

Internal Product ID:

18055

Product and How-to Videos


Customer Ratings & Reviews


Hifonics ATL12D4 thumbnail image

5 star
80%
4 star
20%
3 star
0%
2 star
0%
1 star
0%



Durability
4.4
Value
5
Features
4.6
Design
4.4
Usability
5

Customer Reviews

Sort by:

Loading...

Awsome

if u want some bump in your ride for a low price this is it. i have 1 in a 3 cuft ported box and it absolutly pounds and is flexes my windshield loud.

By juan on October 26, 2010

6 found this helpful


Handles abuse over Zues series

I owned the 12" Zues woofer but after 6 months I blew it over to high volume. The 2nd spider got damaged. I get more throw and deeper bass with this model and not worried about it failing at the same volume. Only have had it 7 days and yet to hear its full potential. Powered by my Alpine MRP-500 like my Zues was but very happy with it. For the price differnece its louder and better value!!!

By Justin on February 23, 2011

5 found this helpful


PROMPT SHIPPING!!! VERY HAPPY WITH SERVICE

I would like to say that buying from this company is a great idea. Was not to sure buying car electronics online. and now that i have, i am very glad that i did. Cant wait to put in these subs. I would definitely tell my friends about this place!

By Robert on September 4, 2009

5 found this helpful


Great Sub

Amazing sub. Have this hooked up to a 1500watt Hifonics Brutus, and this sub is loud, hits hard... shakes my car inside and out. Definitely one of the best subs I have owned.

Sounds great in ported box, you will feel every kick, and it hits most of the lows that you would choose a 15 for.

By B on April 26, 2010

4 found this helpful


Insane!

Hifonics has been around for years and it goes to show with their atlas subs. i built a ported box to the specs given for two subs and im one happy customer. subs hit so hard and low that my tailgate and liscense plate rattle. the roof of my truck flexes like a beast was in there. Shipping was actually fast this time so i couldnt be any happier. by the way, the subs arent even broken in yet. cant wait to hear them a month from now. for the price and the series, cant get better.

By Russel on June 9, 2009

4 found this helpful
