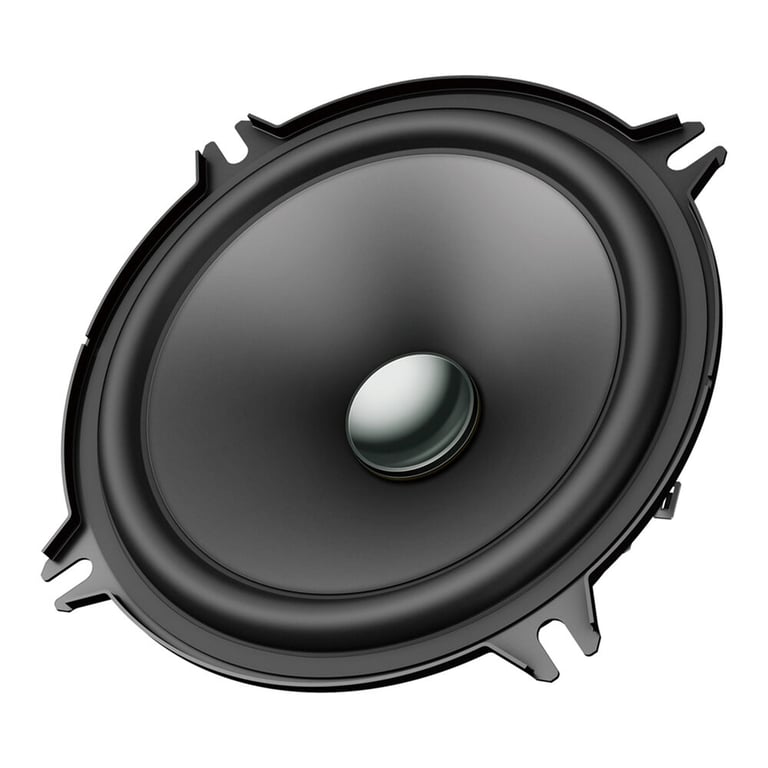

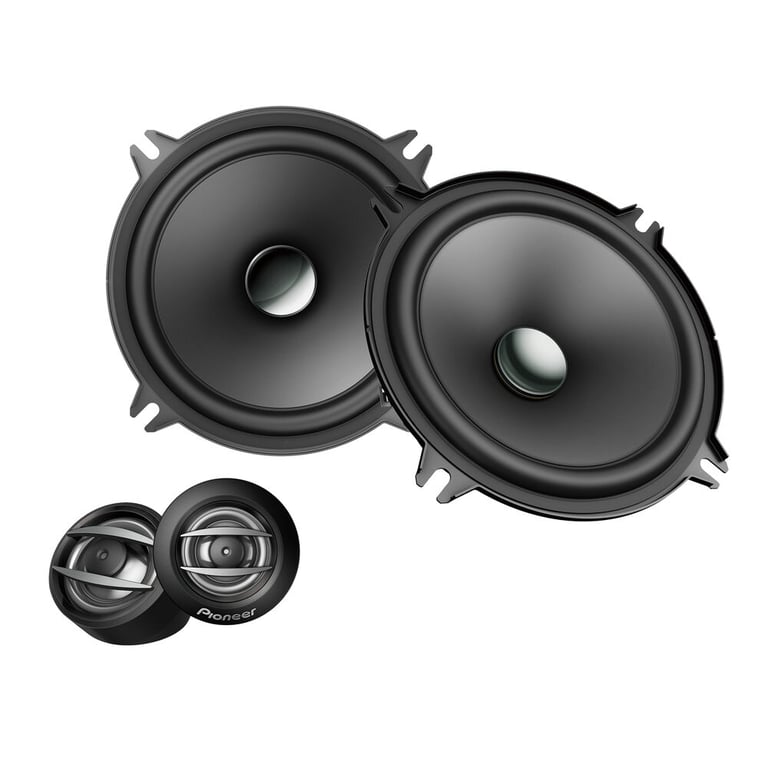

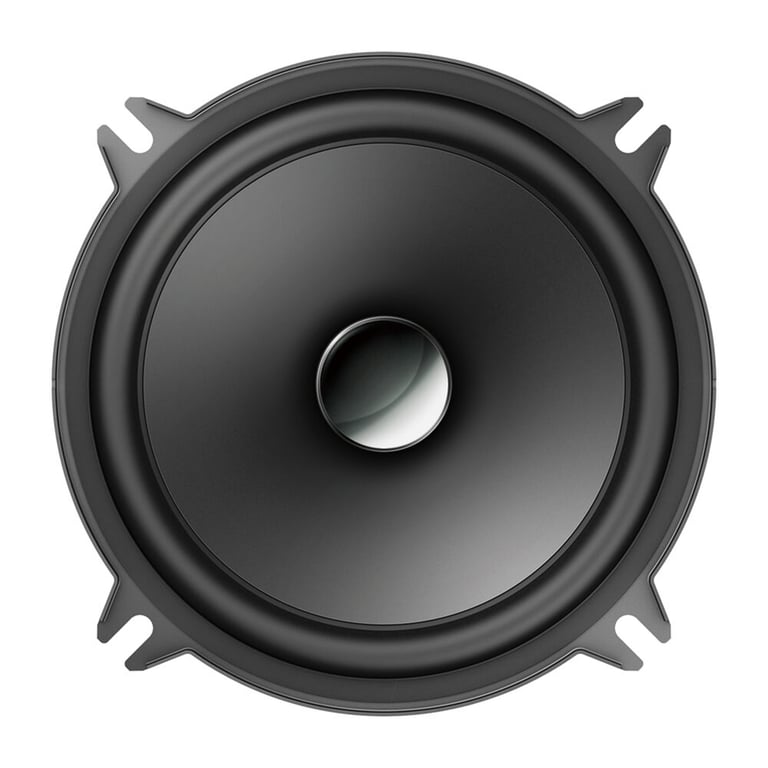

Pioneer TS-A1300C

600W Peak (100W RMS) 5.25” A-Series 2-way 4-ohm Component Speaker System

Pioneer
Shop all Pioneer
highlight-star-icon

• 300 watts Peak Each, 50 watts RMS Each
• 1" Polymide Dome tweeters
• Carbon and Mica Reinforced Injection Molded Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 87 dB

Learn more about the tsa1300c

We apologize

This item has been discontinued


Loading...
70-7901 main

Metra 70-7901 Wiring Harness

Install a new car stereo in select 1990-2001 vehicles from Mazda

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

P132 main

Rockford Fosgate Punch P1 P132

80W Peak (40W RMS) 3.5” Punch Series 2 Way Coaxial 4-ohm Speakers

43
DEH-S4220BT main

Pioneer DEH-S4220BT

Single DIN CD Receiver with Bluetooth and Amazon Alexa

9
-11.77%

$149.99

List price $170.00

Metra 99-7501 Dash Kit

Install a new Single-DIN car stereo in select 1984-1997 vehicles from Mazda (Matte Black)

7
-11.77%

$29.99

List price $33.99

Description


Pioneer brand icon

Authorized dealer

Pioneer TS-A1300C

Introducing the Pioneer A-Series speakers, your ticket to a premium audio experience that won't leave your wallet feeling lighter. These speakers not only deliver better audio details with rich bass notes, louder output, and clear and balanced audio but also do it in an affordable manner.

Their sound design purposefully matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high-impact bass that lets you hear and feel the music, all without breaking the bank. Pioneer’s OPEN & SMOOTH sound concept ensures a seamless transition between the midrange and tweeter drivers, delivering uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.

The A-Series lineup not only expands flexibility and improves acoustic performance but also does it affordably. The integrated inline crossover network allows for increased installation flexibility without the need for an outboard module. And as an added bonus, the Pioneer A Series includes multi-fit installation adapters and tweeter mounts (when applicable) to make upgrading your car's audio system easier on your budget. Enjoy premium sound without sacrificing your savings with Pioneer A-Series speakers.

Product Details:

  • 5-1/4" 2-way Component System Car Speakers
  • Power Handling:
    • Peak: 600 watts per set / 300 watts each side
    • RMS: 100 watts per set / 50 watts each side
  • CEA-2031 compliant
  • Carbon and Mica Reinforced Injection Molded Polypropylene cone material
  • Elastic Polymer speaker surround

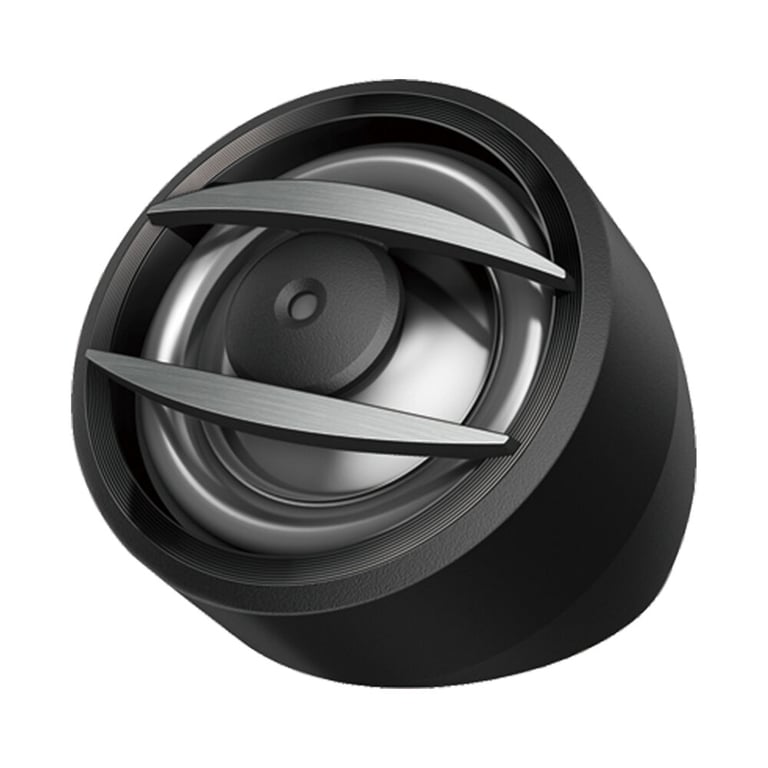

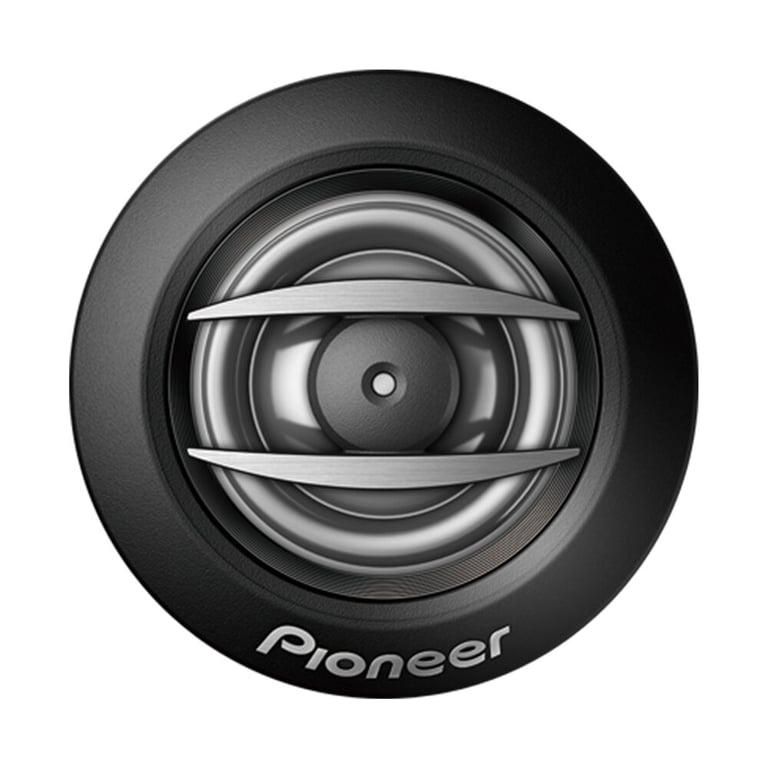

  • 1" Polymide Dome tweeters

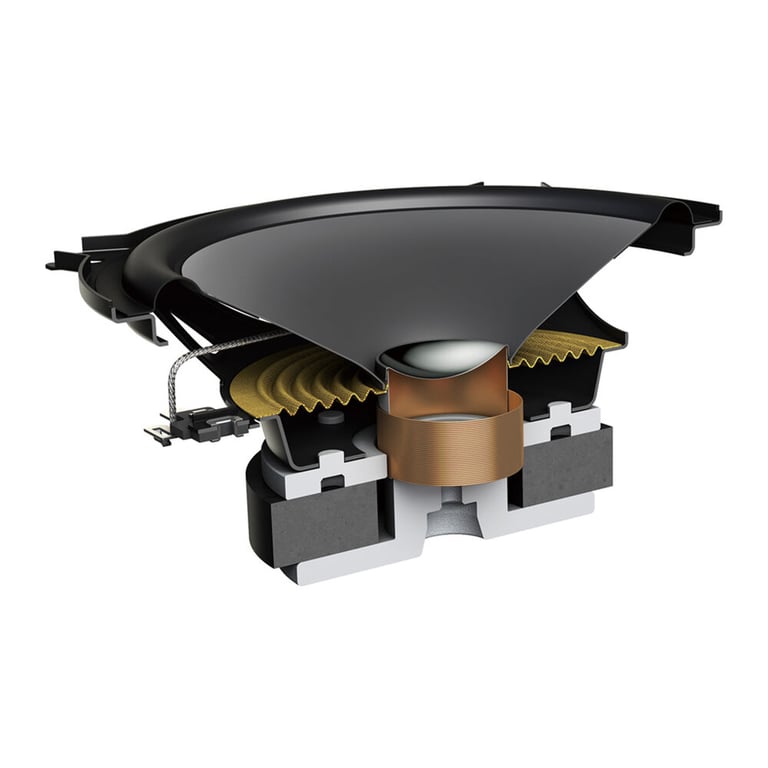

  • 7.76 oz. Ferrite magnet motor structure
  • Iron plate-press basket material
  • In-line crossover with 3,200 Hz frequency
  • Open & Smooth technology between the midrange and tweeter
  • CarSoundFit-compatible
  • Easy OE installation
  • Top-mount Depth: 2"
  • Cutout Dimensions: 5-3/8"
  • Impedance: 4 ohm
  • Frequency Response: 42 - 38,000 Hz
  • Sensitivity: 87 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

2
-30.01%

$349.95

List price $500.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00


Best selling similar products

Reference 5030cx small

Infinity Reference 5030cx (REF5030CX)

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(2)

$99.95

List price $249.95

REF507CF small

Infinity REF507CF (INFSPKRF507CFUS)

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Textile Edge Driven Dome Tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

$219.95

List price $249.95

DSK 130.3 small

Hertz DSK 130.3

• 120 watts Peak Each, 60 watts RMS Each
• 1" PEI (Polyetherimide) Dome-Cone tweeters with high-energy neodymium magnets
• Water-repellent Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

$199.99

List price $230.00

DB5252 small

Polk Audio DB5252 (DB 5252)

• 300 watts Peak Each, 100 watts RMS Each
• 3/4" dual Silk Dome tweeters
• UV-Resistant Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 91 dB

(4)

$200.00

List price $209.99

THUNDER51 small

MTX Audio THUNDER51

• 180 watts Peak Each, 90 watts RMS Each
• 1" Silk Soft Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(1)

$199.96

List price $239.95

VSP525KIT small

NVX VSP525KIT

• 375 watts Peak Each, 125 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 86 dB
• Mounting Depth: 2.04"

(27)

$99.99

List price $119.99

H525C small

Cerwin-Vega H525C

• 300 watts Peak Each, 100 watts RMS Each
• 1" PEI (Polyetherimide) Balanced Dome tweeters
• Responsive Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 86 dB

$189.99

List price $227.99

51KSS504 small

Kicker KSS5 (51KSS504)

• 200 watts Peak Each, 100 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

(2)

$249.99

List price $279.99

TS-A1301C small

Pioneer TS-A1301C

• 300 watts Peak Each, 50 watts RMS Each
• 1-3/16" Polyetherimide Hard Dome tweeters
• Injection Molded Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB

$140.00

List price $170.00

TERMINATOR52 small

MTX Audio TERMINATOR52

• 70 watts Peak Each, 35 watts RMS Each
• 1" Mylar Dome Tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 83.6 dB

(5)

$39.99

List price $129.95

Specifications & Details


Speaker Specifications
Series
A Series
Priced Per
Pair
Number of Speakers
2 Speakers + 2 Tweeters
Speaker Size
5-1/4"
Design
2-way Component System
Tweeter Design
Dome
Tweeter Size
1"
Tweeter Composition
Polymide
Woofer Composition
Carbon and Mica Reinforced Injection Molded Polypropylene
Woofer Surround
Elastic Polymer
Peak Power Handling
300 watts
RMS Power Handling
50 watts
Total PEAK Per Pair/Set
600 watts
Total RMS Per Pair/Set
100 watts
Sensitivity
87 dB
Frequency Response
42 - 38,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Magnet weight
7.76 oz.
Magnet Type
Ferrite
Top-Mount Depth (Mounting Depth)
2"
Cutout Dimensions
5-3/8"
CTA-2031 Compliant
Yes
General specifications
Hi-Res Certified
No
Color
Black
Speaker Grilles
No
Includes Damping Kit
without Damping Kit
What is in the box?
Paperwork
Warranty/Registration card
WITB: Speakers
Mounting Brackets/Hardware
Speakers (2)
Tweeters (2)
Tweeter flush mounts (2)
Tweeter surface mounts (2)
Mounting screws (4)
Mounting screws (8)
Mounting clips (4)
Speaker connection cables (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TS-A1300C

Weight:

2.90lbs

Internal SKU:

tsa1300c

Internal Product ID:

180961
