Description


JVC brand icon

Authorized dealer

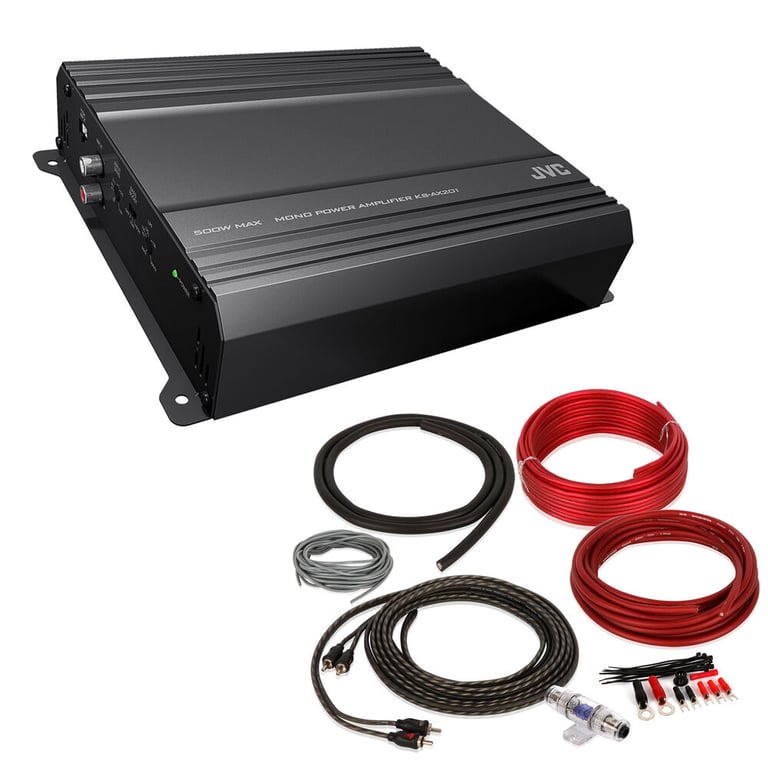

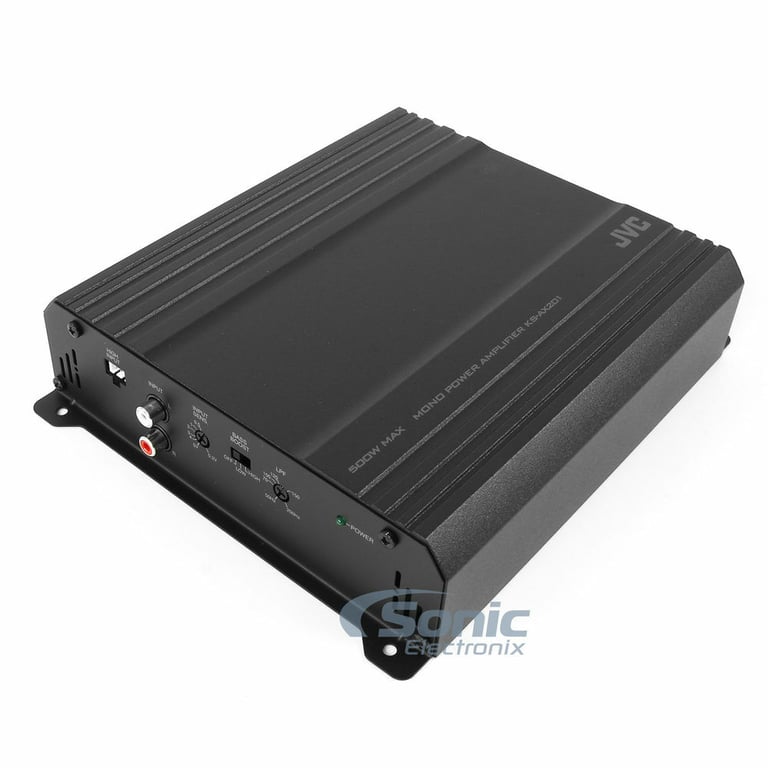

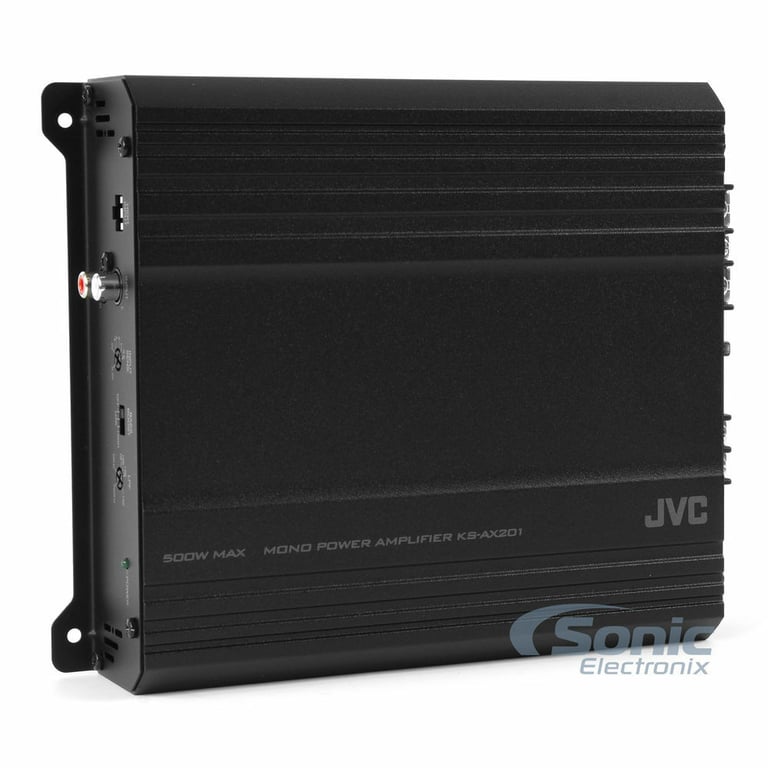

JVC KS-AX201

The KS-AX201 is a 2-Ohm stable Mono amplifier with 500 Watts Max power output and is perfect for connecting a single or pair subwoofers. It features high and low level inputs for connection to a factory or aftermarket stereo plus a low pass filter for use with a connected subwoofer. The CEA-2006 Compliant 250w RMS @2ohms is perfect for a humble system that does not require loud booming bass. Instead, the KS-AX201 is for the system that simply needs to fill the lack of low end.

High Level and Low Level Inputs

High Level and Low Level Inputs

The JVC KS-AX201 is set up to integrate into various applications. The Low Level RCA inputs allow for the amplifier to be installed in any traditional setup where the headunit provides RCA Preouts. In situations where there aren't any RCAs, like when integrating into an OEM Headunit, the amplifier has you covered, with its included High Level Inputs and Harness.

Small Frame

Small Footprint Means Big Use

At roughly 9.0" x 7.3" , the KS-AX201 can easily be hidden away in most vehicles where space comes at a premium. The amplifier fits under most seats, in trunk side cavities, under rear decks, and even in some kick-panels. The imagination is the only limitation to where an installer can hide the amplifier for a discreet install.

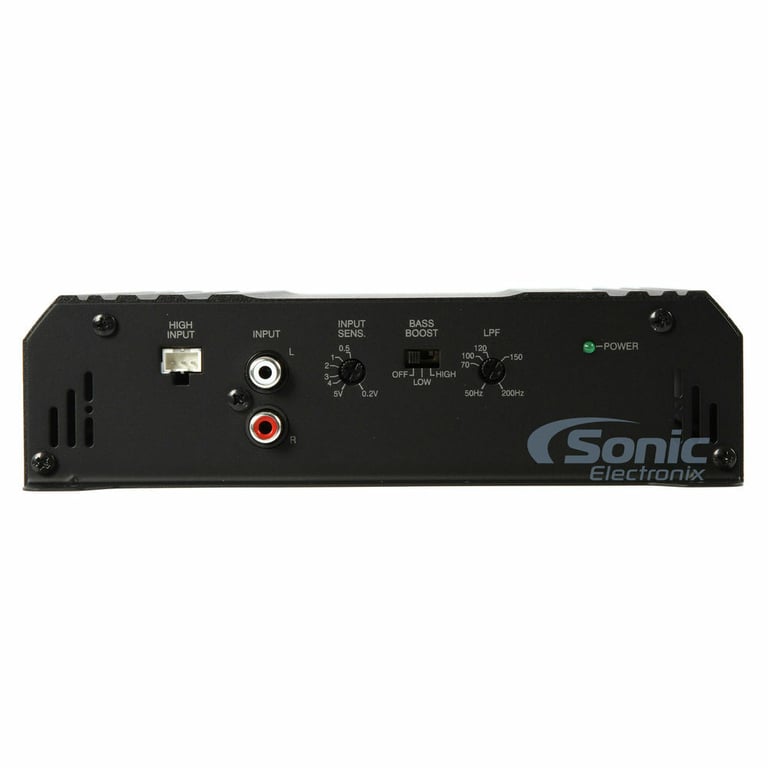

Bank of Settings

The Necessities

The KS-AX201 is intended to be as user friendly as possible. As such, the amplifier provides very easy to use settings, omitting the confusing knobs and switches of fancier amplifiers and leaving only the necessary. The LPF allows for the user to Filter out all harmful midrange and highs and the Input Sens. makes sure the amplifier matches the sensitivity of the headunit.



JVC KS-AX201

500W Max AX2 Series Class AB Monoblock Amplifier
Quantity: 1

General Features:

  • AX2 Series Monoblock Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 1 chan.
    • 2 ohm: 250 watts x 1 chan.
  • Max power output: 500 watts
  • CEA-2006 Compliant
  • Mono channel operation
  • Speaker-level (high-level) inputs

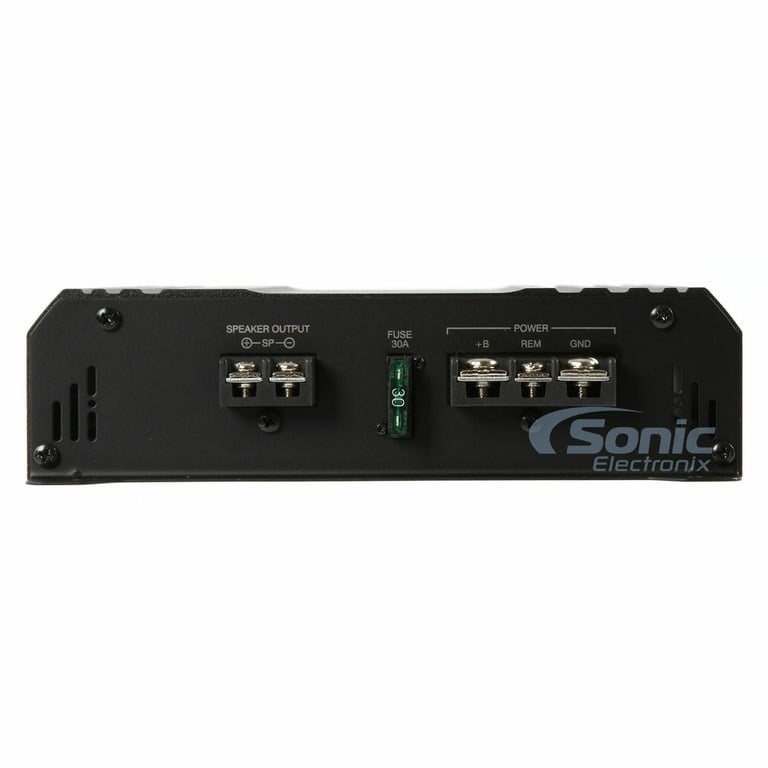

  • Power On Indicator (GREEN)/Protector Indicator (OFF)
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity: 200mV - 5V
  • Frequency Response: 20 - 200 Hz
  • Total Harmonic Distortion: 0.08% @100 Hz
  • Signal to Noise Ration: 80 dB
  • Variable low-pass filter: 50 - 200 Hz
  • Selectable Bass Boost: Off / Low (+6dB) / High (+12dB) bass boost at 45 Hz
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Fuse Rating: 30A x 1
  • Weight: 3.10 lbs
  • Dimensions: 7.31"W x 8.94"L x 2.00"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

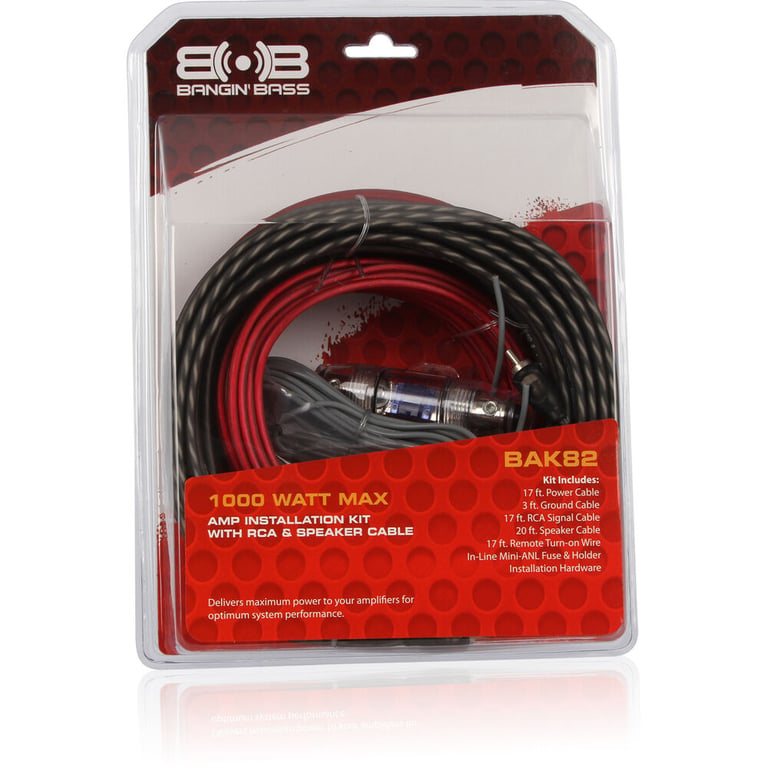

Belva BAK82

8 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 600 Watts - RED
Quantity: 1

Product Details:

  • 8 Gauge 2-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 600 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards

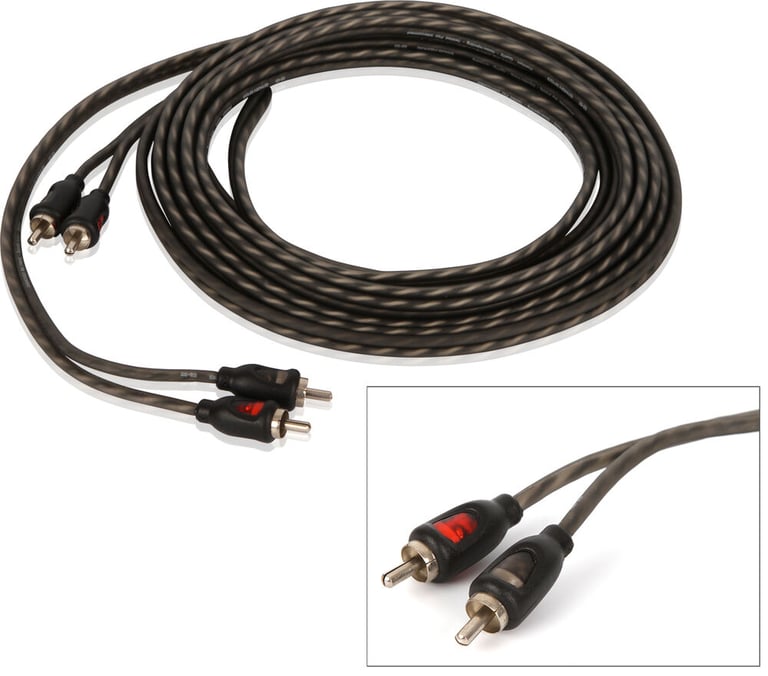

  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

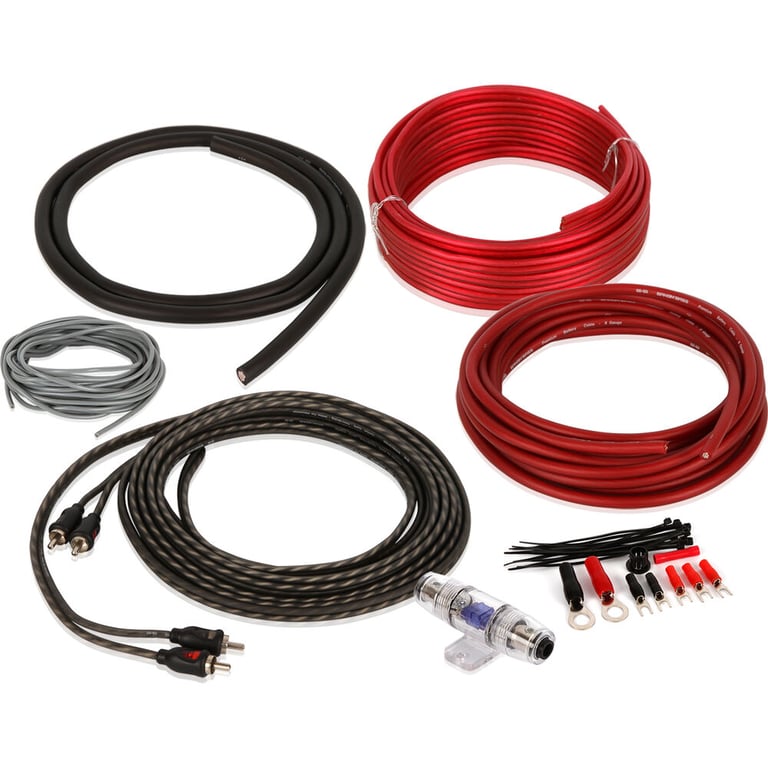

Kit includes:

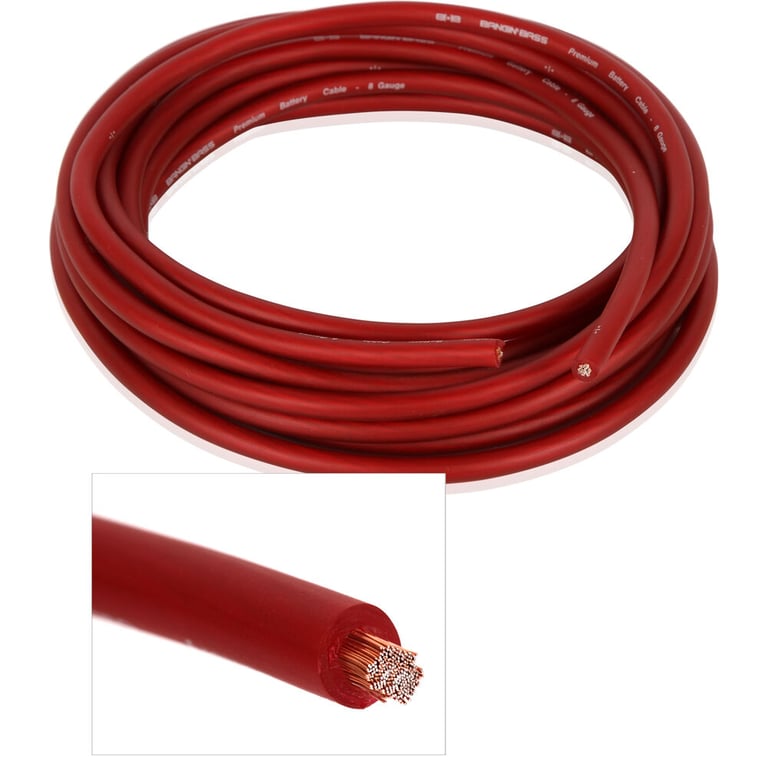

  1. 17 ft. Red 8 gauge power wire

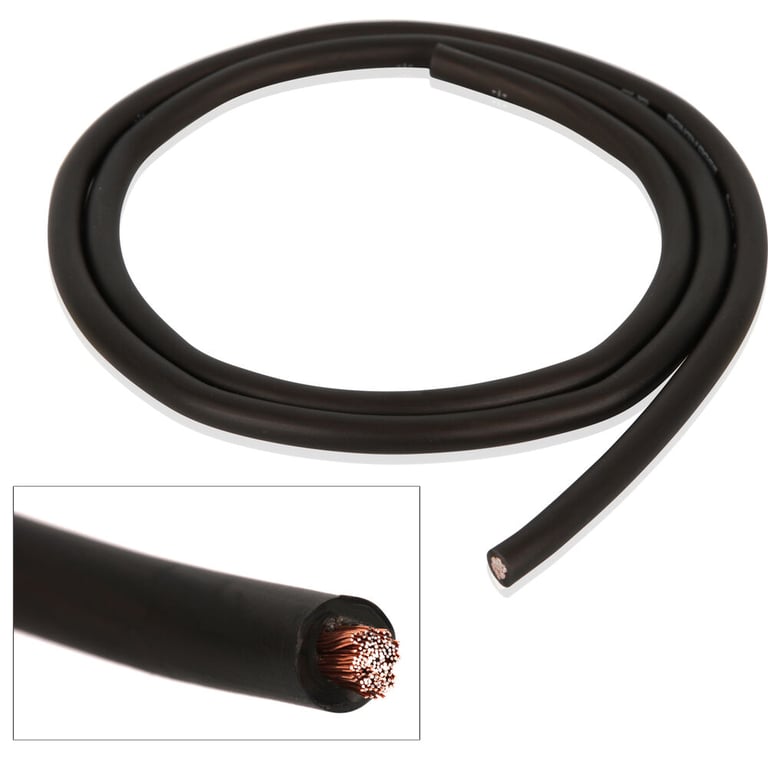

  2. 3 ft. Black 8 gauge ground wire

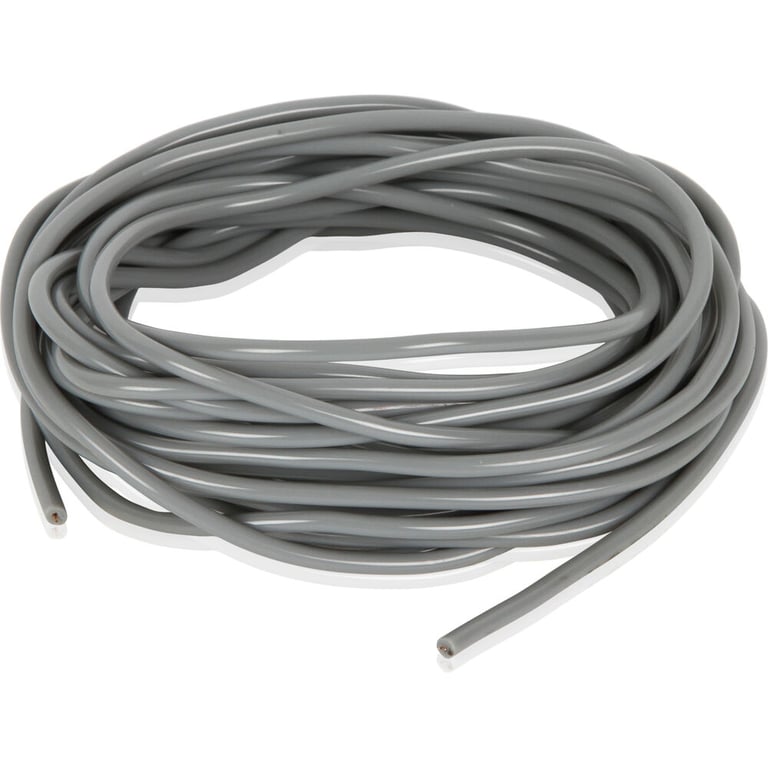

  3. 17 ft. Gray 18 gauge remote lead wire

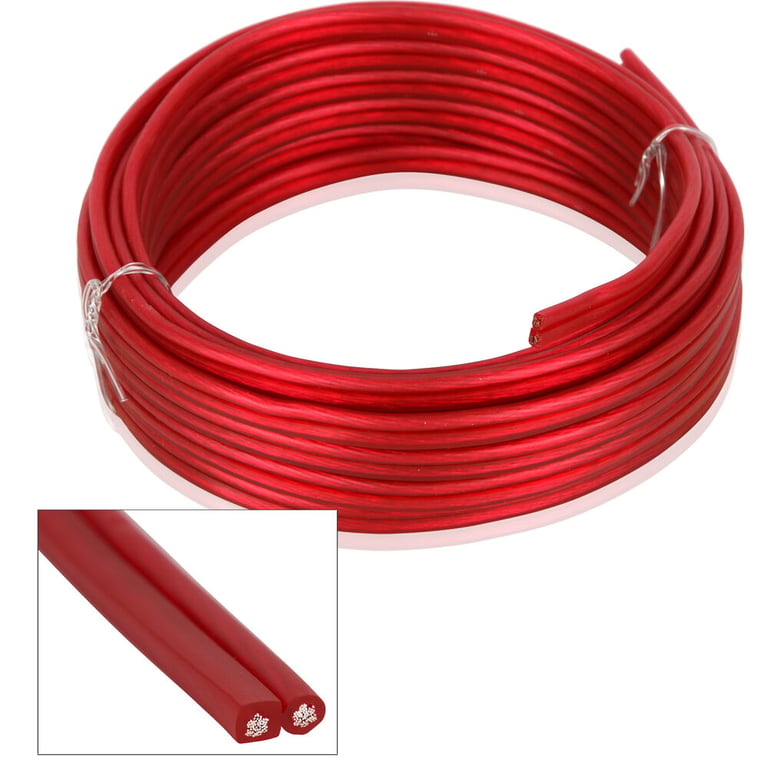

  4. 20 ft. 16 gauge speaker wire
  5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable

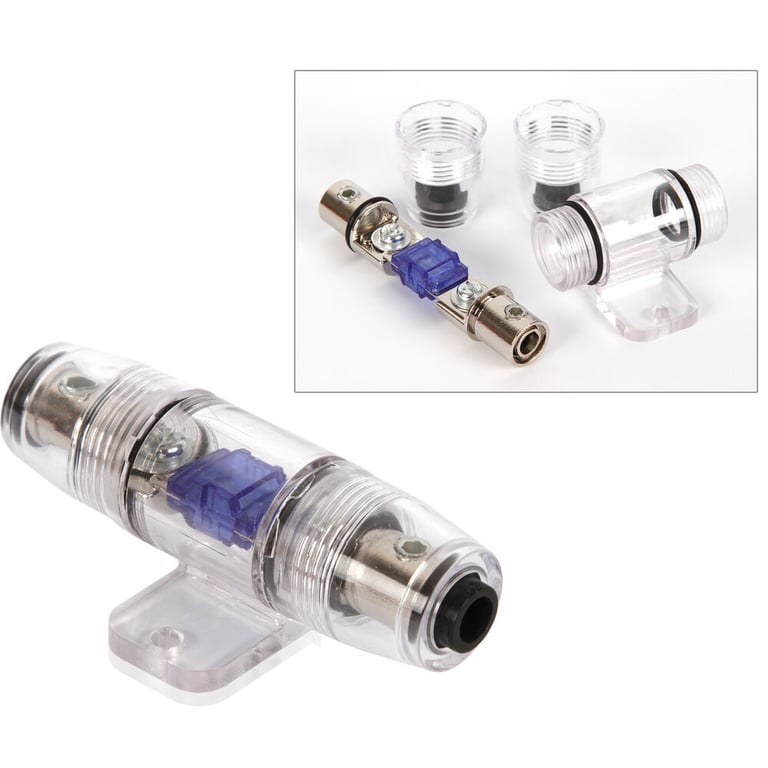

  6. One Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
  7. One Black rubber firewall grommet

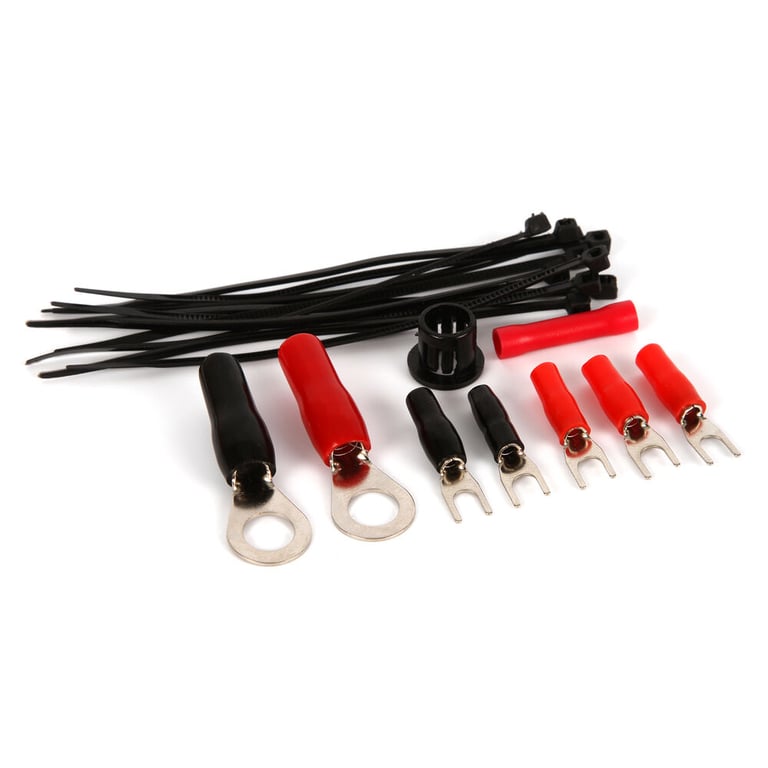

  8. Two 8 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

QBSTA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QBSTA & Two Pair 6.5" Speakers

• 11" Spare Tire Subwoofer System
• Built-In Class D Amplifier
• Top-mount amplifier controls
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(260)

$396.93

List price $581.43

NPKG212_65_69_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(260)

$491.43

List price $682.43

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(79)

$309.99

List price $369.98

AMPCBA754AM, XFLOC4, BAK84 small

JBL ClubA754 (Club A 754) + Free NVX XFLOC4 Line-Output-Converter + Amp Kit

• Class H Amp Technology
• 4 Ohm Stable Bridged: 200 Watts RMS x 2
• Variable High and Low-Pass Filters
• Variable Crossover
• Full On Board Protection

(68)

$319.95

List price $463.68

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(72)

$309.99

List price $369.98

BAK42,46CXA4001T small

Kicker 46CXA4001 with Amplifier Wiring Kit


• 150 Watts RMS x 1 @ 4 ohm
• 300 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 600 Watts
• Preamp RCA outputs to daisy chain multiple amps
• Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
• Includes Amplifier Wiring Kit

(45)

$199.99

List price $269.98

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
150 watts x 1 channel
RMS Power @ 2 ohms
250 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Total Peak Power Output
500 watts
Total RMS Power Output
250 watts
Maximum Input Gauge Size
Any Gauge with use of Spade Terminal AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.08%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 200 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
Selectable Off - Low - High
Remote bass/level controller
No
Fuse Rating
30A x 1
CEA-2031 Compliant
Yes
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JVC

Model Number:

KS-AX201, BAK82

Weight:

5.60lbs

Internal SKU:

ksax201_bak82

Internal Product ID:

181147

Customer Ratings & Reviews


JVC KS-AX201 + 8 Gauge Belva Amplifier Kit thumbnail image

5 star
74%
4 star
20%
3 star
7%
2 star
0%
1 star
0%



Durability
4.7
Value
4.7
Features
4.6
Design
4.7
Usability
4.7

Customer Reviews

Sort by:

Loading...

BAK 82

The following review is for BAK82, which is a part of the bundle you are viewing.

Nice package, quality wire but could more end connectors for the larger wire.

By Sam on June 19, 2014

203 found this helpful


Good product

The following review is for BAK82, which is a part of the bundle you are viewing.

It's exactly what you need for your car amp installation. I bought this kit with Kenwood KAC-1502S amp for 75 bucks. Good deal from Sonic Electronix.

By Collins on January 6, 2014

185 found this helpful


Great kit for the cost

The following review is for BAK82, which is a part of the bundle you are viewing.

Very nice kit for $18.
Wire seems adequately thick. Good quality fuse (not AGU) and fuse holder. RCA's feel durable. Decent assortment of accessories. All together a solid budget kit IMO.

By n2audio on September 24, 2014

185 found this helpful


Don't know what the other guy is talking about.

The following review is for BAK82, which is a part of the bundle you are viewing.

This kit was awesome and included with my package that I bought. In comparison to others for the same price, there is simply not a comparison and the other review is just wrong on so many levels I felt compelled to write this.

The reality is there are a lot of real shoddy amp kits and wire as a whole being used in car audio in terms of cheap amp kits that have over-insulating wires and fake gauge ratings, huge amounts of aluminum, lousy RCA cables, fuse holders and other accessories. BUT and a BIG BUT, this kit excels in those areas where others fall flat on their face. I have bought a few inexpensive 8 gauge kits in my day and XScorpion, Raptor, Install Bay and others haven't even given me the 8 gauge of wire that I paid for, and in some cases gave me wire that heated up to a dangerous level due to the actual make up of the wire.

I also literally laughed when I see that the other reviewer was intending to use spade terminals to connect his amp power and ground wire... It is for the SPEAKER wire knucklehead :-). I am an installer and the smaller accessories work just fine when you use them correctly. Most amps will still work with them when used with the speaker wire. Of course one can be used for the remote wire connection to the amp and the other end with the butt connector being used to connect to the stereo. The funny thing is, if you do not need them, who cares? It is like ordering this kit for a compact car or single cab pickup. You will not use all of the power wire for these applications, so do you complain that the manufacturer gave you extra wire? That just made me laugh.

Now, onto the other accessories. The AFS fuse and holder that are included are so far superior to others in this price range and the amount of copper (albeit CCA) is much better than others in the price range. Lastly, the RCAs included are awesome for the price. I cannot find ANYTHING to complain about here for $21.99.

All in all, you will not get a better value for the money.

By Double Down on August 14, 2012

180 found this helpful


Good product for the price

The following review is for BAK82, which is a part of the bundle you are viewing.

Good wiring package, good quality fuse holder and wires, I would like more connectors on it and maybe some tube for the power wire, but overall is a good kit.

By Alfredo on October 29, 2014

175 found this helpful


Good Purchase

The following review is for BAK82, which is a part of the bundle you are viewing.

I used this kit to install a 2 channel Boss amp. The quality of the pieces in this kit is five stars, but I'm giving it 4 because it is my belief that to do a clean install you need (4) 8 gauge terminals (one at the batt, one at the amp, one at ground, one at the amp), not just two. I had to spend an extra six bucks at Orchard for the extra terminals, but since the cost of the kit here at Sonic was only $20 at the time, it was still a good deal.

By Jumbo Dumbo on December 19, 2013

167 found this helpful


Good kit

The following review is for BAK82, which is a part of the bundle you are viewing.

Good kit for basic setups. Using it right now in my mothers system powering a simple 12. Could handle more if needed.

Pros: Handles power, Wires are HQ, More copper than rubber, Wires are good length, Fuse is HQ, Comes with lots of ties and rubbers.

Cons: None

I would recommend this kit to anyone who has a simple system. All around good kit.

By Mitch on January 31, 2014

174 found this helpful


Great wiring kit

The following review is for BAK82, which is a part of the bundle you are viewing.

works great on my MB Quart 2x100 watt amp.

By Eric on November 29, 2013

166 found this helpful


Good Kit

The following review is for BAK82, which is a part of the bundle you are viewing.

Great kit for the price. the price is good. Long wires.

By Joshua on December 8, 2013

162 found this helpful


Belva BAK82

The following review is for BAK82, which is a part of the bundle you are viewing.

Worked very well for the money, great value for my system! Only thing that kept me from giving this 5 stars across the board is the design of the fuse holder and how you have to change/connect the fuse, minimal complaint.

By Dwight on April 9, 2014

151 found this helpful



EO1200 small

DeLonghi EO-1200 (EO1200.1B)

De' Longhi Toaster Oven With Broiler

(2)

$69.99

List price $79.99

NV8416EX4 small

Aver Information, Inc. NV8416EX4

16 Channel Hybrid Capture Card Digital Video Recorder and Processor

$1799.00

List price $1477.00

EMS6588S small

Sanyo EMS6588S

1.0 Cu. Ft. Stainless Steel Microwave with 12-3/8" Glass Turntable

$94.99

List price $119.99

CP43139-2 small

Continental Electrics Cp43139

5 Speed Hand Mixer with Turbo Boost

$14.95

List price $29.99

004207-0NP-000 small

Oster 004207-0NP-000

Electric Wine Opener

$19.00

List price $19.99

HWHL071313 small

Herstal 2030071313

Cori Wine Rack Holds 12 Bottles (Gray)

$45.99

List price $87.00

NN-SN667B small

Panasonic NN-SN667B (Black)

1300W 1.2 cu. ft. Countertop Microwave Oven

$139.99

List price $199.99

ND-K778 small

American International ND-K778

Single DIN Stereo Dash Kit for select 2000-2003 Maxima

$9.99

List price $19.99

GDI-IRC6000 (Black) small

Grace Digital Audio Mondo GDI-IRC6000 (Black)

Desktop Pandora, SiriusXM, iHeartRadio, NPR, NOAA Weather Radio Player with 3.5-Inch Color Display

(4)

$129.99

List price $179.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2017 Lexus RX450h

2015 Scion iQ

2018 Dodge Durango

2014 Chrysler 300

2016 Ford Expedition

2008 Dodge Dakota

2004 Dodge Viper

2015 Ford Expedition

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
