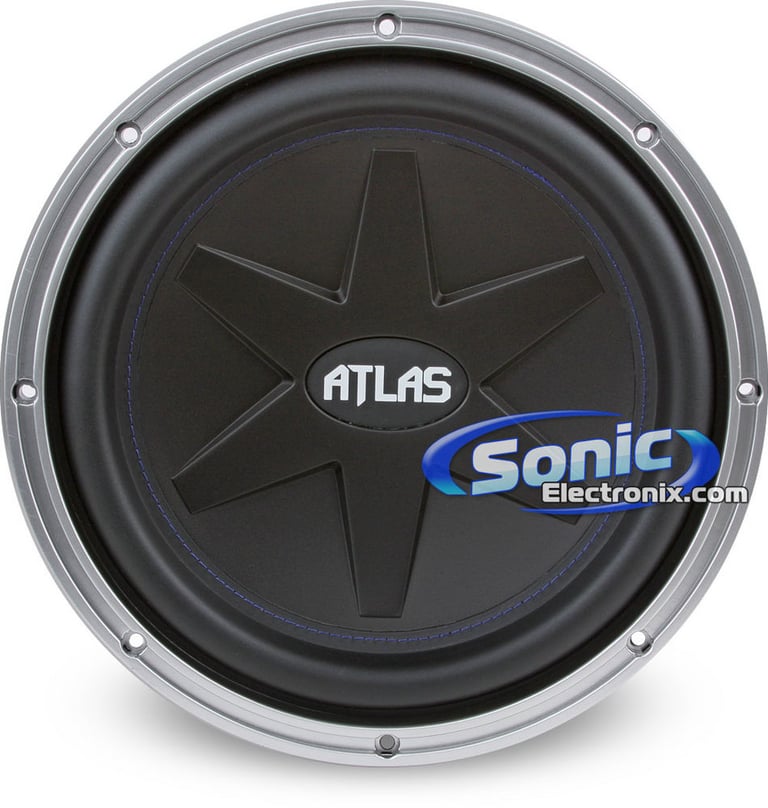

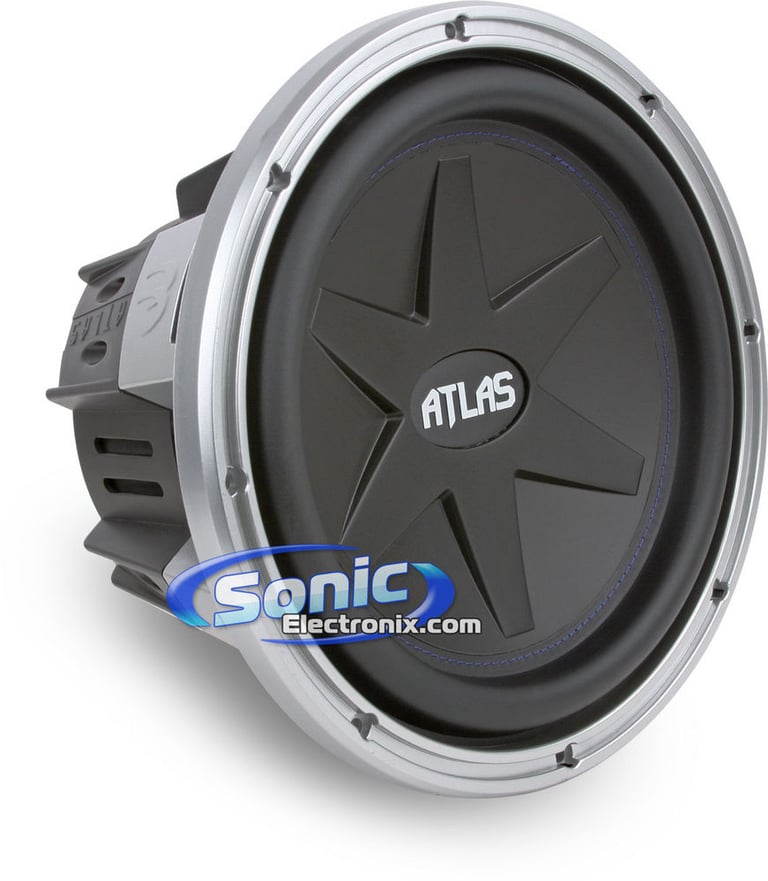

Hifonics ATL12D2

12" Dual 2 ohm Atlas Series Subwoofer

Hifonics
Shop all Hifonics
Product videos
highlight-star-icon

12" Dual 2 Ohm Atlas Subwoofer • 1200 Watts Max • 600 Watts RMS • Polypropylene Woven Honeycomb Structured Woofer Cone • Rubber Reinforced And Stitched Surround • Nickel-Plated Back Port • Flat Conex Spider •

Learn more about the atl12d2

We apologize

This item has been discontinued


Loading...
72-7800 main

Metra 72-7800

Install New Speakers in select 1990-2024 vehicles from Honda, Acura, Isuzu

90
-33.36%

$9.99

List price $14.99

82-6901 main

Metra 82-6901

5.25” or 6.5” Speaker Mounting Adapters for select 1977-2024 vehicles from Dodge, Chevrolet, Chrysler

39
-34.80%

$14.99

List price $22.99

70-1721 main

Metra 70-1721 Wiring Harness

Install a new car stereo in select 1998-2013 vehicles from Honda, Suzuki, Acura

27
HA08BCB main

Scosche HA08BCB Wiring Harness

Install a new car stereo in select 1998-2019 vehicles from Honda, Acura

4
-16.74%

$9.95

List price $11.95

AcuK862 main

American International AcuK862

Double DIN Stereo Dash Kit for select 1999-2003 TL and CL (Black)

-74.38%

$9.99

List price $39.00

95-7868B main

Metra 95-7868B Dash Kit

Install a new Double-DIN car stereo in select 1999-2003 TL and CL (Matte Black)

7
-40.49%

$24.99

List price $41.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

47
-42.51%

$22.99

List price $39.99

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154

Product Highlights


12" Dual 2 Ohm Atlas Subwoofer • 1200 Watts Max • 600 Watts RMS • Polypropylene Woven Honeycomb Structured Woofer Cone • Rubber Reinforced And Stitched Surround • Nickel-Plated Back Port • Flat Conex Spider •

Description


Hifonics brand icon

Authorized dealer

  • 12" Dual 2 Ohm Atlas Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Impedance: Dual 2 Ohm
  • Polypropylene woofer cone
  • Woven honeycomb structured cone support body
  • 1" Tall rubber reinforced and stitched surround for increased excursion

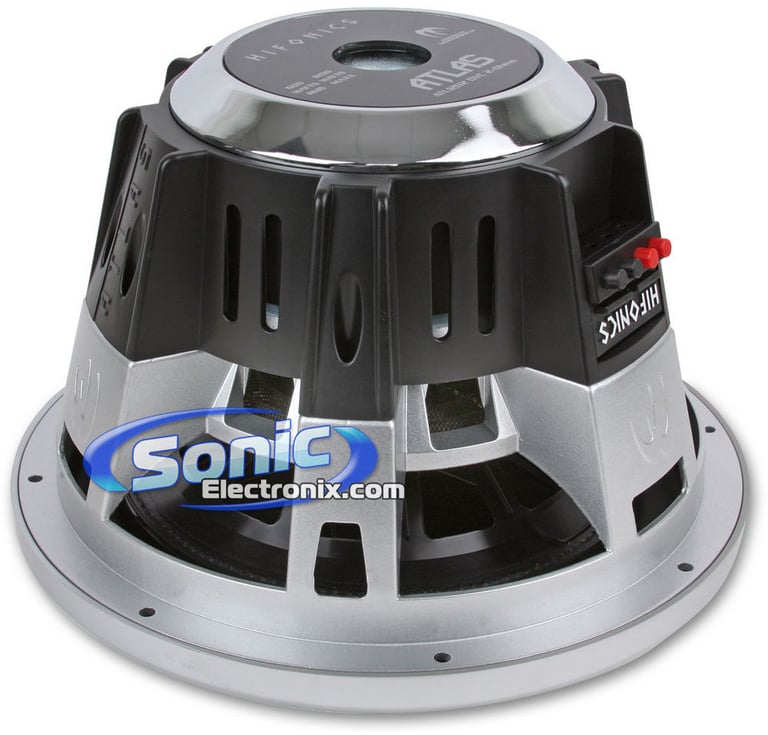

  • Nickel-plated back port provides increased heat dissipation
  • Injection molded cone neck support
  • Single flat conex spider with woven tinsel leads
  • Nickel-plated push terminals with bridging jumper pins in the terminal block
  • Supplied trim ring conceals mounting screws
  • High strength ABS motor cover
  • 2-1/2" Dual voice coil
  • 140oz double stack magnet assembly
  • Sensitivity: 93.5 dB
  • 1-year SonicElectronix.com warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Hifonics ATL12D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Hifonics ATL12D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Hifonics ATL12D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Hifonics ATL12D2 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.29%

$211.34

List price $232.98

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(2)

$599.99

List price $719.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

12W3v3-4 small

JL Audio 12W3v3-4

• RMS Power: 500 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 6.65"
• Sensitivity: 87.15 dB

(65)

$469.99

List price $469.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
1200 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Sensitivity
93.5 dB
Xmax (millimeters)
17 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
.75 cubic feet
Maximum Sealed Box Volume
1.50 cubic feet
Minimum Ported Box Volume
1.5 cubic feet
Maximum Ported Box Volume
2 cubic feet
Top-Mount Depth (Mounting Depth)
7-1/4"
Cutout Diameter
11"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ATL12D2

Weight:

29.00lbs

Internal SKU:

atl12d2

Internal Product ID:

18121
