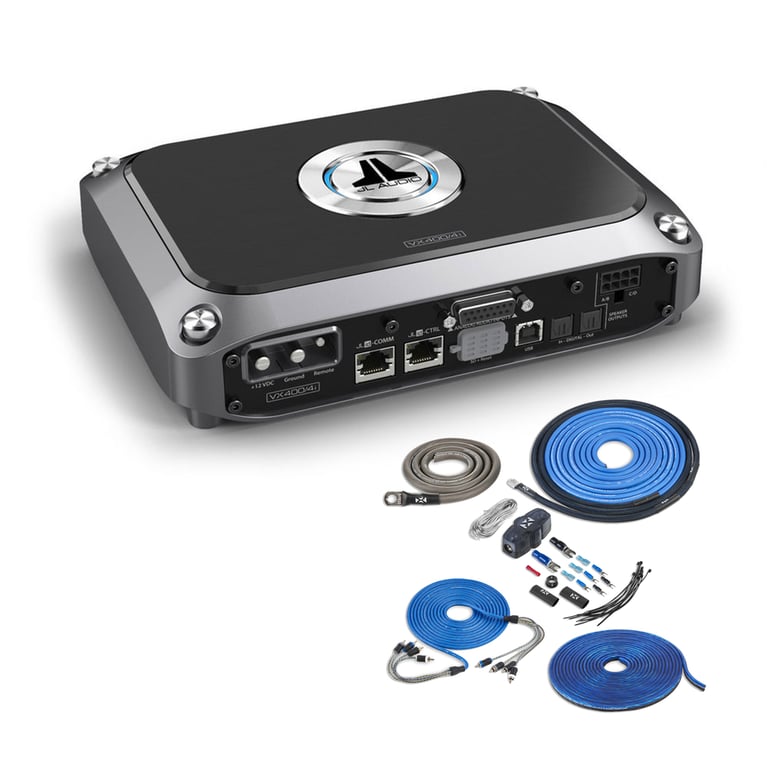

JL Audio VX400/4i with Amplifier Wiring Kit

400W RMS VXi Series Class D 4-Channel Amplifier with Built-In DSP

JL Audio
Shop all JL Audio
highlight-star-icon

• 75 Watts RMS x 4 @ 4 ohm
• 100 Watts RMS x 4 @ 2 ohm
• 200 Watts RMS x 2 @ 4 ohm, Bridged
• Built-In Digital Signal Processor
• Adjustments Controlled Through TüN App
• Chassis Hides Mounting Hardware
• Dimensions: 9.02" W x 6.62" L x 2.12" H
• Includes Amplifier Wiring Kit

Learn more about the vx4004i_xkit44

We apologize

This item has been discontinued


Loading...
82-5600 main

Metra 82-5600

5-1/4" / 6-1/2" Speaker to 6" x 8" Adapters for select 1981-2017 vehicles from Mercury, Mazda, Lincoln

3
-11.12%

$15.99

List price $17.99

72-5601 main

Metra 72-5601

Install New Speakers in select 1998-2024 vehicles from Ford, Lincoln, Mercury

6
-10.01%

$8.99

List price $9.99

Description


JL Audio brand icon

Authorized dealer

JL Audio
VXi Series Amplifiers

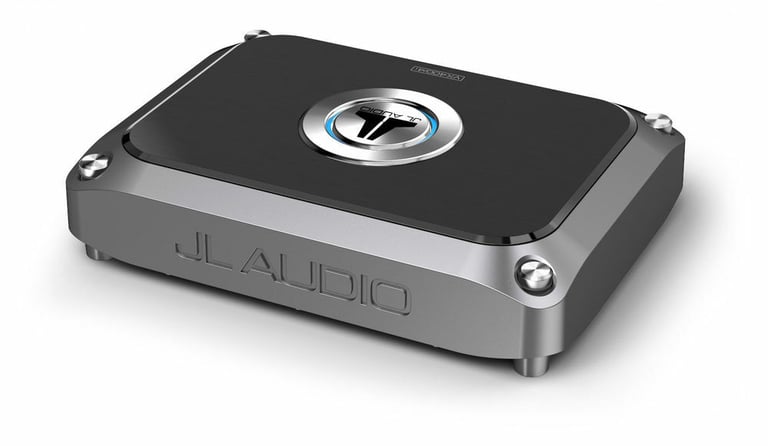

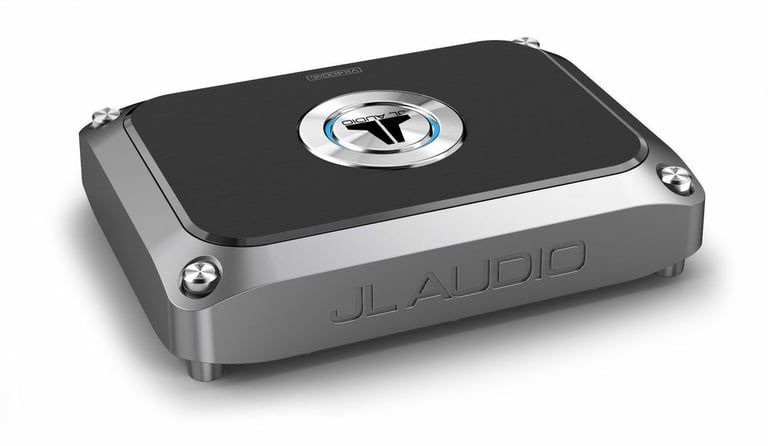

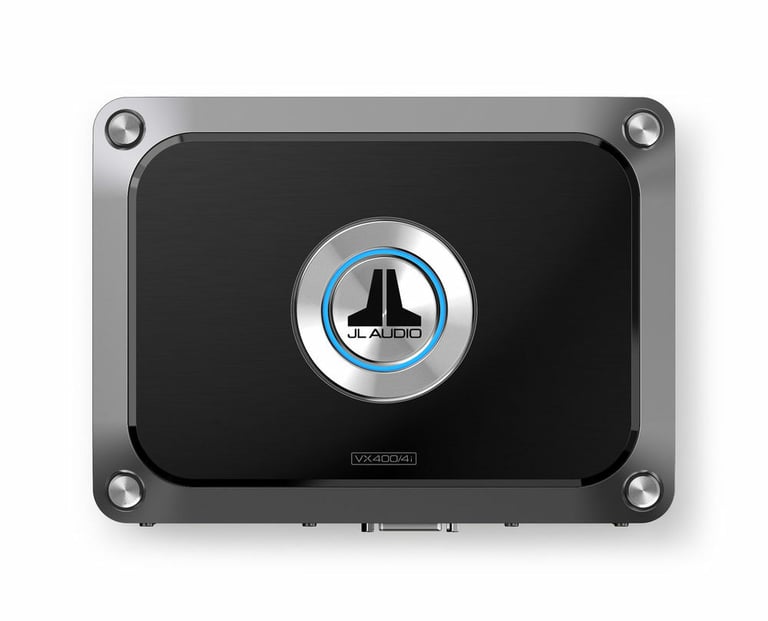

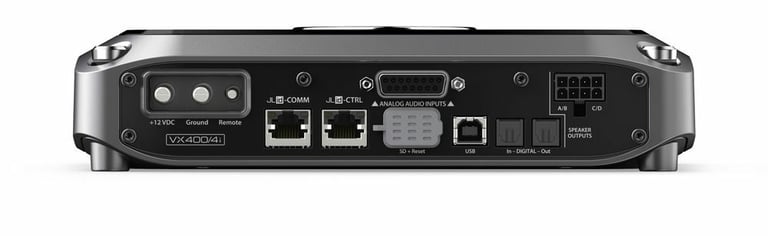

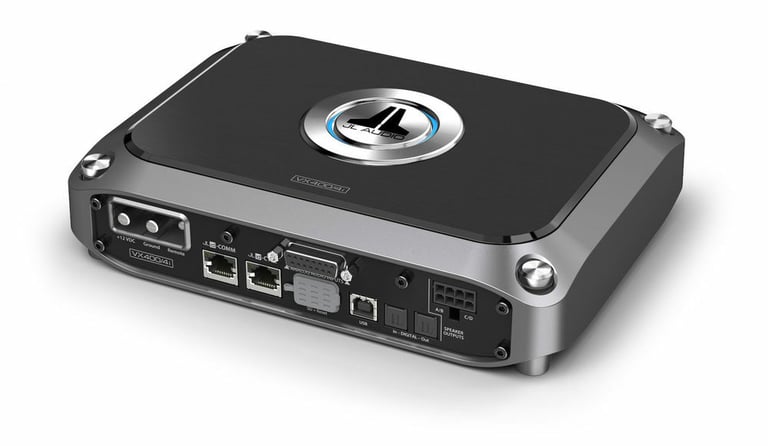

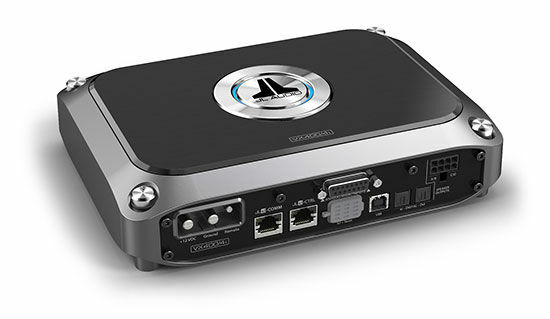

JL Audio VX400/4i

400W RMS Class D 4 Channel Car Amplifier with Built-in DSP
Quantity: 1

Product Details:

  • VXi Series Class D 2 ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 4 channel
    • 2 ohm: 100 watts x 4 channel
    • Bridged: 200 watts x 2 channel @ 4 ohm
  • Total power output: 400 watts
  • Wired Bass Remote JL Audio DRC-100 and JL Audio DRC-205 (sold separately)
  • Speaker-level (high-level) inputs (requires JL Audio XD-CLRAIC2-SW)
  • 1 pair of preamp outputs
  • Features no knob and switches
  • Free TüN software available for most devices
  • USB connection for device running TüN app (6-foot cable included)
  • Versatile design accepts speaker level signals without a LOCs
  • Delivers outstanding noise rejection
  • Advanced rollback protection circuitry
  • Fully configurable output channel via the TüN software interface
  • JLid protocol command for easy control for VXi and optional JLid accessories
  • Also includes integrated DSP technology
  • NexD2 switching technology for enhanced efficiency
  • Automatic turn-on options via signal-sensing or DC-offset sensing
  • Input sensitivity: 0.2 - 16 volts
  • Frequency Response: 12 - 21000 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 99 dB
  • Fuse Rating: 40A (AFS, AGU or MaxiFuse)
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 9.02" L x 6.62" W x 2.12" H
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty
  • MFR #: VX400/4i

NVX XKIT44

Full Spec 4 Gauge 100% (OFC) Oxygen Free Copper Complete 4-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1500 Watts
Quantity: 1

Product Details:

  • 4 Gauge 4-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1500 watts RMS
  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance

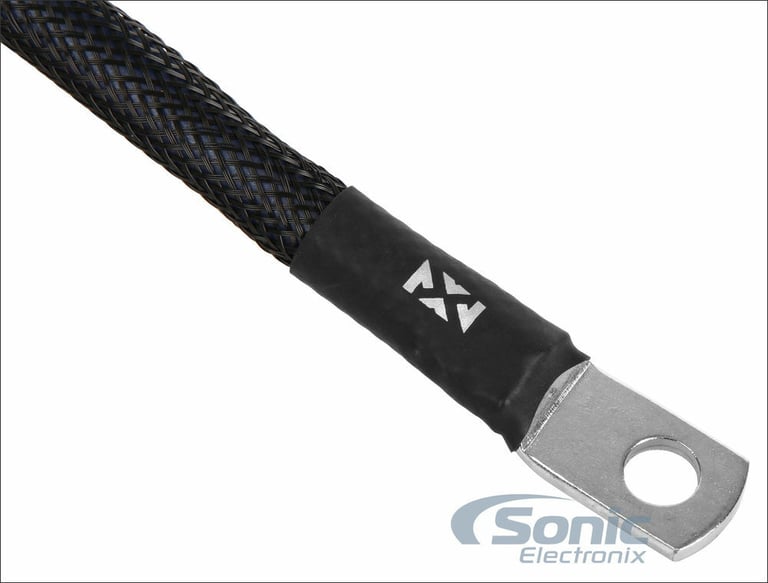

  • Pre-installed black nylon mesh covering protects the power wire from damage
  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant

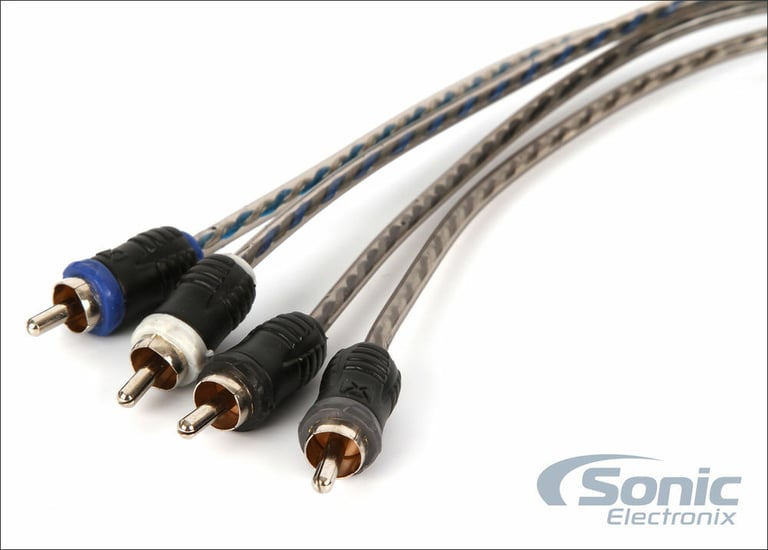

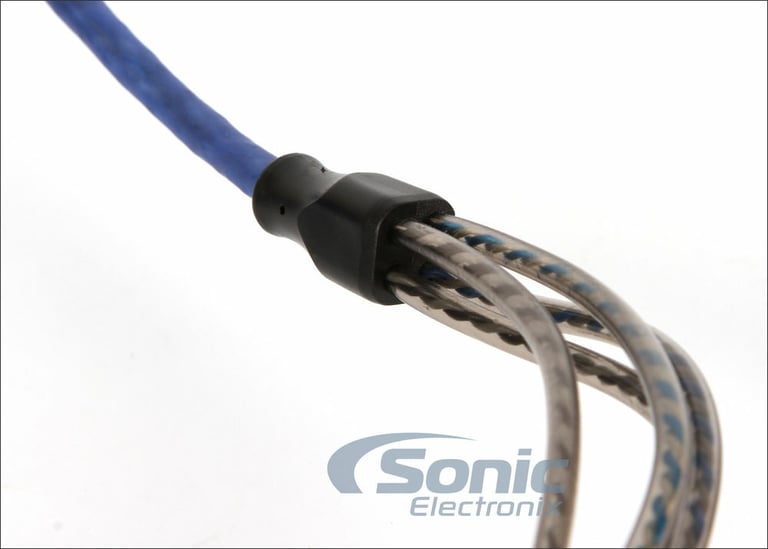

  • V-Series RCA Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Twisted-pair construction featuring two conductors per channel
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

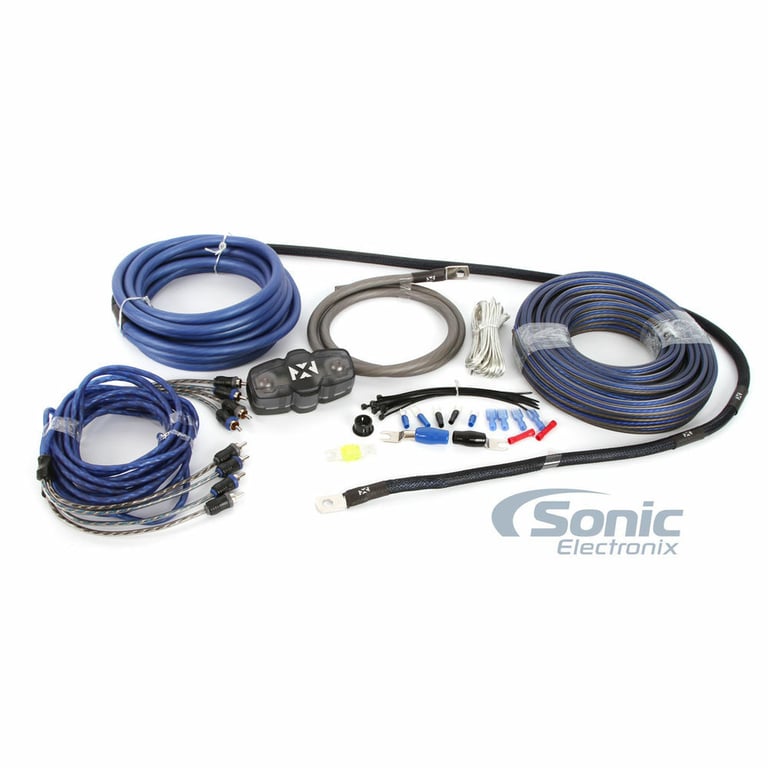

Kit includes:

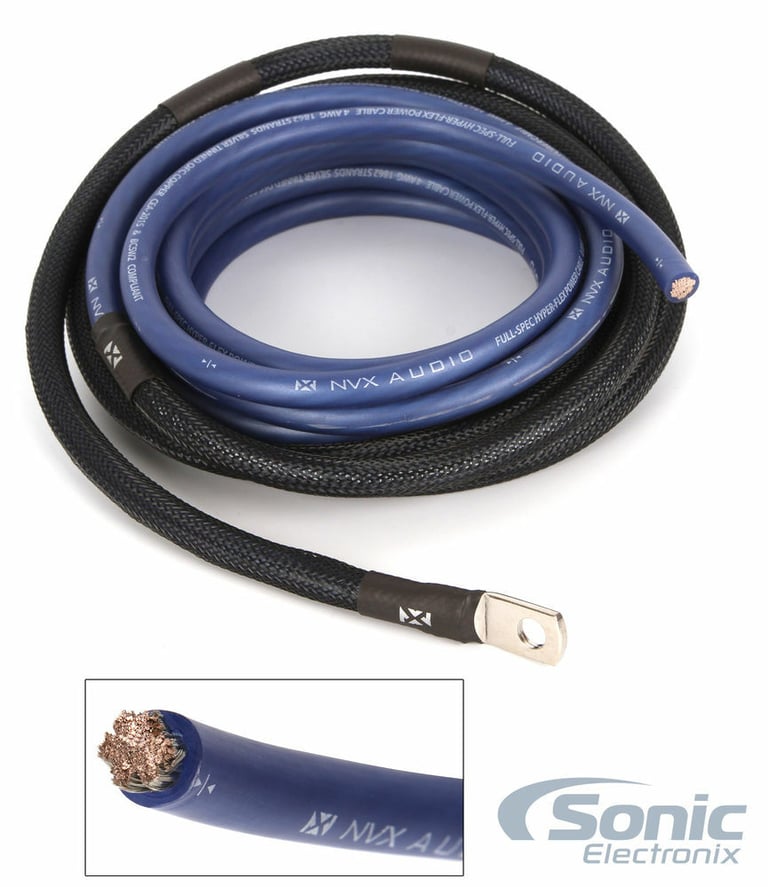

  1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal

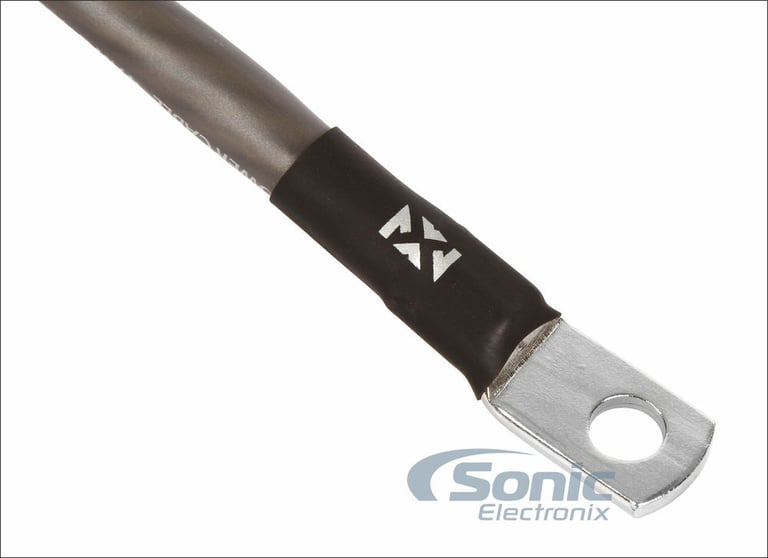

  2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal

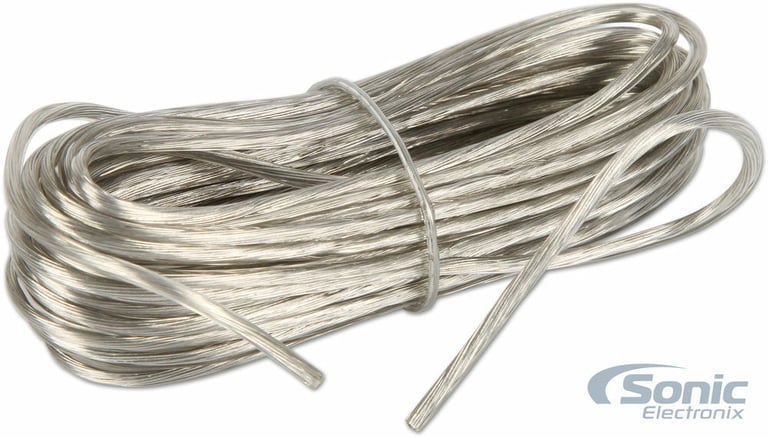

  3. 17 ft. Clear 18 gauge remote lead wire

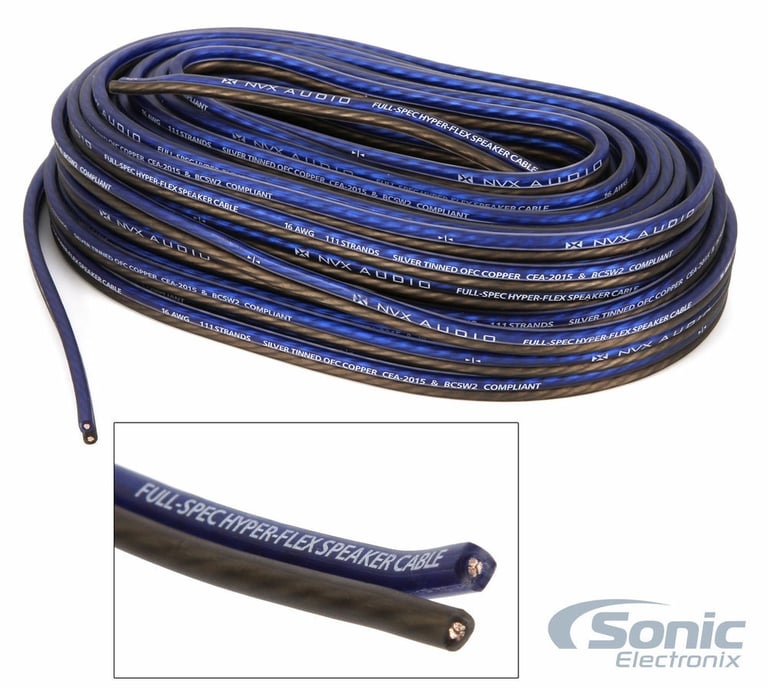

  4. 20 ft. Frosted Black/Blue 16 gauge speaker wire

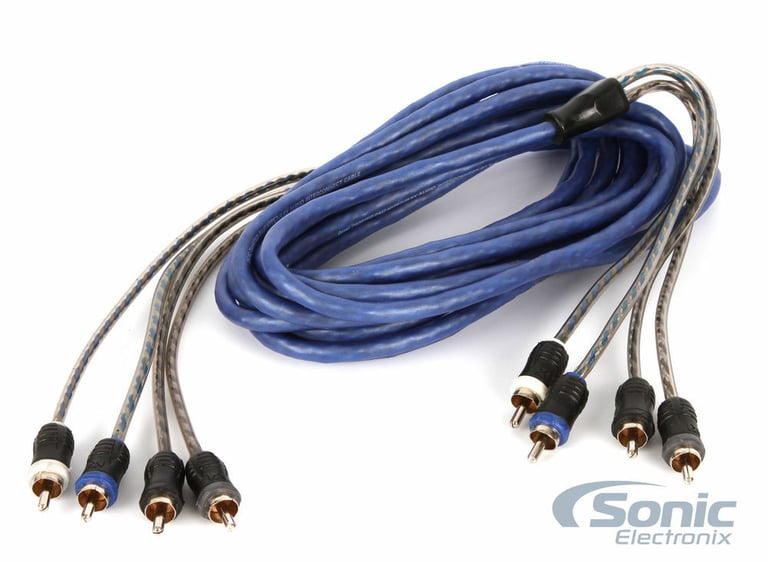

  5. One 16.4 ft. 4-channel dual twisted construction RCA interconnect Cable (NVX XIV45)

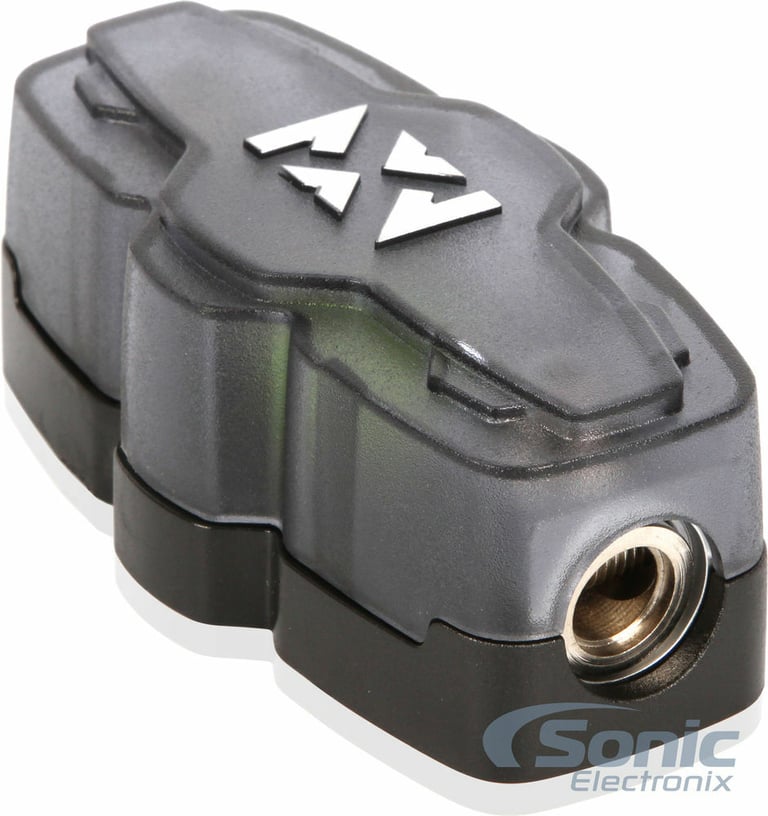

  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
  7. One Black rubber firewall grommet

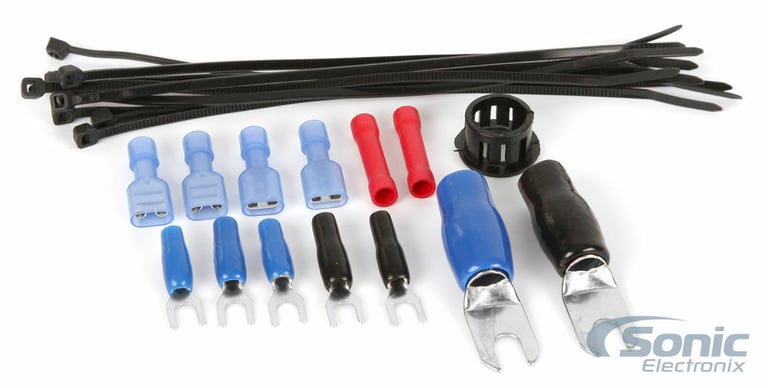

  8. Two 4 Gauge Nickel Plated spade terminals
  9. Four 18 Gauge Spade terminal
  10. Two 18 Gauge Red butt connectors
  11. Four 16 Gauge quick disconnect
  12. Five 16 Gauge Nickel Plated spade terminals
  13. Two Heat Shrink tubes with the NVX logo
  14. Ten 6" Black zip ties

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

BAK42BK,R500X1D small

Rockford Fosgate R500X1D 500 Watt Car Amplifier + Amp Wiring Kit Bundle

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(76)

$344.98

List price $369.98

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(257)

$486.93

List price $677.43

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(246)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

R2-500X1, XKIT42 small

Rockford Fosgate R2-500X1 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 500 Watts RMS x 1 @ 2 ohm
• CEA-2006 Compliant
• Top Mounted Control Panel
• Class-D Amplifier
• Includes Amplifier Wiring Kit

(137)

$364.98

List price $453.98

46CXA8001T, BAK42 small

Kicker 46CXA8001 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 600 Watts RMS x 1 @ 2 ohm
• 800 Watts RMS x 1 @ 1 ohm
• Efficient Class-D Monoblock Amplifier
• KickEQ™ 6dB variable bass boost for those additional low frequencies
• Includes Amplifier Wiring Kit

(188)

$324.48

List price $389.98

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
200 watts x 2 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
4-Channel
Total RMS Power Output
400 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.1%
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Remote bass/level controller
No
Fuse Rating
40A x 1
Total Fuse Rating
40
CEA-2031 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

VX400/4i, XKIT44

Weight:

16.20lbs

Internal SKU:

vx4004i_xkit44

Internal Product ID:

181391

Customer Ratings & Reviews


JL Audio VX400/4i with Amplifier Wiring Kit thumbnail image

5 star
90%
4 star
7%
3 star
1%
2 star
0%
1 star
1%



Durability
4.8
Value
4.8
Features
4.8
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

Good value

The following review is for XKIT44, which is a part of the bundle you are viewing.

This kit is true 4 gauge copper wire. Worked great for what I needed it for. Not much else to say besides it is also very flexible!

By Adam on March 14, 2014

121 found this helpful


Honda civic 2010 lx big 3

The following review is for XKIT44, which is a part of the bundle you are viewing.

This big 3 is a very nice setup and I haven't installed it just yet. Great quality wire and you can never go wrong with this product. The price is ok just a little over my budget lol

By Brandon on June 5, 2014

115 found this helpful


Honda civic 2010 lx big 3

The following review is for XKIT44, which is a part of the bundle you are viewing.

This big 3 is a very nice setup and I haven't installed it just yet. Great quality wire and you can never go wrong with this product. The price is ok just a little over my budget lol

By Brandon on June 5, 2014

108 found this helpful


Best kit money can buy

The following review is for XKIT44, which is a part of the bundle you are viewing.

This kit includes everything I needed for my 4-channel JL Audio amp. I love it. The look of the fuse holder is awesome and the braided cable protector is great under the hood too. The RCAs worked like a charm and I had plenty of speaker wire included. No complaints.

By Hamid on August 16, 2012

109 found this helpful


great

The following review is for XKIT44, which is a part of the bundle you are viewing.

Have not installed yet but it seems to be everything it claims to be. Did recomend itnto a friend but he didn't listen and spent way to much for a kitat a local best buy. Did a lot of research before I bought this kit and it looked like the best value for my hard earned money. Having not yet installed is why I didn't go all five stars. Soon it will be going into my 89 olds custom cruiser with 4 12s....

By Tyler on August 24, 2014

110 found this helpful


Great Amp Kit

The following review is for XKIT44, which is a part of the bundle you are viewing.

This is a high quality 4g amp kit for a great price .... nice 100 amp fuse box

By Kyle on June 13, 2014

108 found this helpful


Awesome kit!!!

The following review is for XKIT44, which is a part of the bundle you are viewing.

This wiring kit is the best I've used so far. It bends very easy in tight places and this is the size wire that I actually paid for. Don't waste $ on cheaper brands...NVX is AWESOME!!!

By jeremy on September 1, 2014

104 found this helpful


Great Complete Package

The following review is for XKIT44, which is a part of the bundle you are viewing.

I replaced all speaker wiring in my car with this kit. The quality of all the wires is very good. NVX is nice quality!

By detekk on June 29, 2013

105 found this helpful


great product

The following review is for XKIT44, which is a part of the bundle you are viewing.

This kit is very good and great quality. I would recommend this product for basic and some advanced systems.

By Brandon on December 30, 2014

108 found this helpful


Top of the line kit at decent price

The following review is for XKIT44, which is a part of the bundle you are viewing.

This kit has everything and is as good as you can buy. Better than jl, Rockford, stinger, and kicker. At a price less than or equal to those mentioned. True spec, silver tinned ofc

By Donnie on March 30, 2013

102 found this helpful



M6-10SGI-S-Gm small

JL Audio M6-10SGI-S-Gm

Grille Insert for JL Audio 10" M6 Marine Subwoofers (Gray)

$37.99

List price $37.99

RS-370 OL-MDB-ALL small

Excalibur RS-370 + OL-MDB-ALL Immobilizer Bypass Module

1-Way Paging Remote Start/Keyless Entry/Vehicle Security System w/ 4 Button Remote & sidekick remote + Multi-Platform Universal Doorlock Bypass CANBUS Integration Module

(20)

$129.94

List price $219.98

KXMA900.5, XKIT44 small

Kicker KXMA900.5 (48KXMA9005) + NVX XKIT44

400W RMS KXMA Series Class-D Marine 5-Channel Amplifier + NVX 4 Gauge 4-Channel Amp Wiring Kit

(80)

$635.95

List price $975.98

FS-52_EVO-ALL_THAR-FOR1_PK2 small

Crimestopper Fortress Series Remote Start Security System for Select 2007 - 2016 Ford C-Max, Edge, Escape, Flex and Transit Vehicles

2-Way FM/FM Keyless Entry and Remote Start Security System with LCD Transmitter, Bypass Module and Vehicle Specific T-Harness

(25)

$204.05

List price $564.93

08-09-pontiac-g8-spkg small

NVX Complete N-Series Speaker Upgrade Kit for 2008-2009 Pontiac G8

Pair of 3.5", 6.5" & 6x9" NVX N-Series Speaker Upgrade Kit | Fits select 2008-2009 G8

(201)

$184.99

List price $275.97

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2010 Toyota Corolla

1973 Chevrolet Nova

2011 Lincoln MKZ

2015 Lincoln MKZ

2018 Lexus GS450h

1992 Lexus ES300

1984 Ford Escort

2012 Hyundai Genesis

1998 Dodge Intrepid

1981 Buick Skylark

Vehicle
Store
Delete

2007 Harley Davidson FXSTSSE2 Screamin Eagle Softail Springer

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
