JBL CLUB-5501 + NVX NSW102v2 Subwoofer + Amp Kit

General Features:

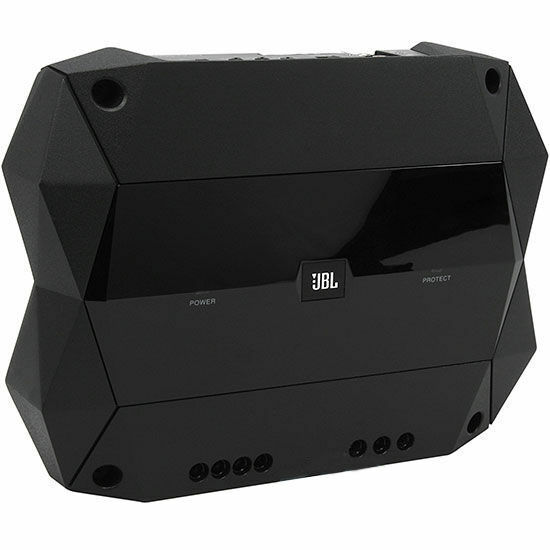

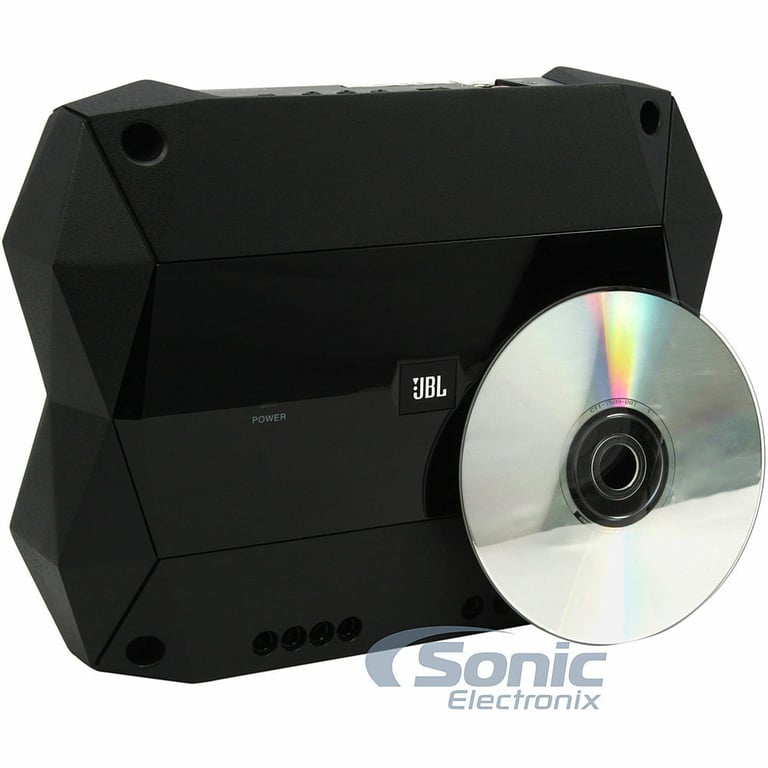

• JBL Club Series CLUB-5501 Class D Monoblock Amplifier
• RMS Power Rating:
• 4 ohms: 370 watts x 1 chan.
• 2 ohms: 550 watts x 1 chan.
• Total power output: 1300 watts
• Pulse Width Modulated MOSFET power supply
• LED power (green) and protect (red) indicators
• Soft start turn-on
• Mono channel operation
• High and low level speaker inputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)

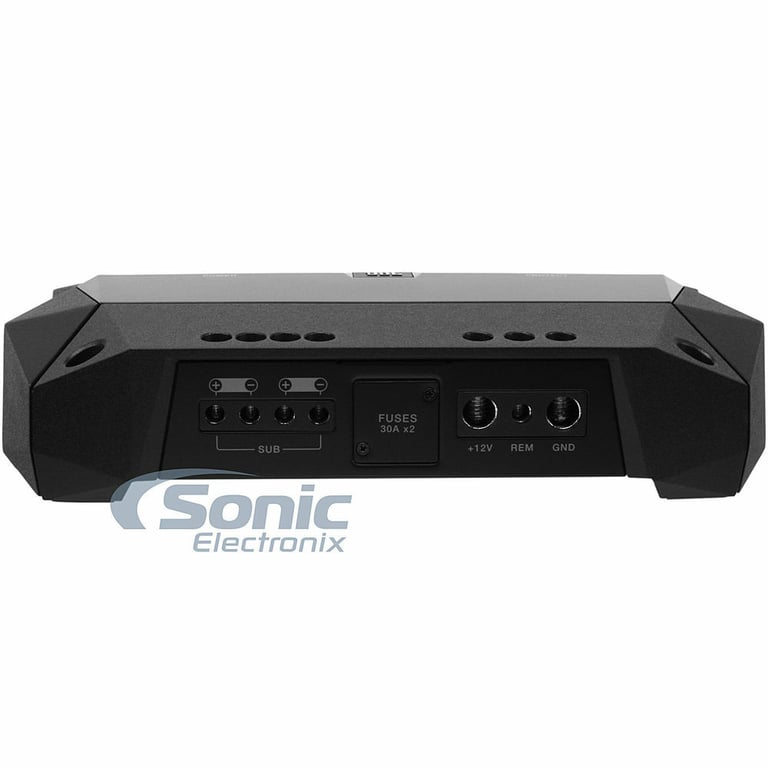

• Dual speaker terminals simplify the hookup of multiple speakers
• Heavy duty aluminum alloy heat-sink for extreme heat dissipation
• Slim Chassis design to fit more vehicles
• Variable low-pass filter: 32 - 320 Hz, 12 dB/octave
• Variable Bass Boost: 0 to +9 dB bass boost at 45 Hz
• Fuse Rating: 30 A x 2
• 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
• Dimensions: 9-5/8"W x 7-7/16"D x 2-3/8"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

What is Included

• 1 Club-5501 amplifier
• 2 High-level input wiring harnesses
• 2 spare fuses
• 2 2-color brand stickers
• 1 Quick start guide

Product Details:

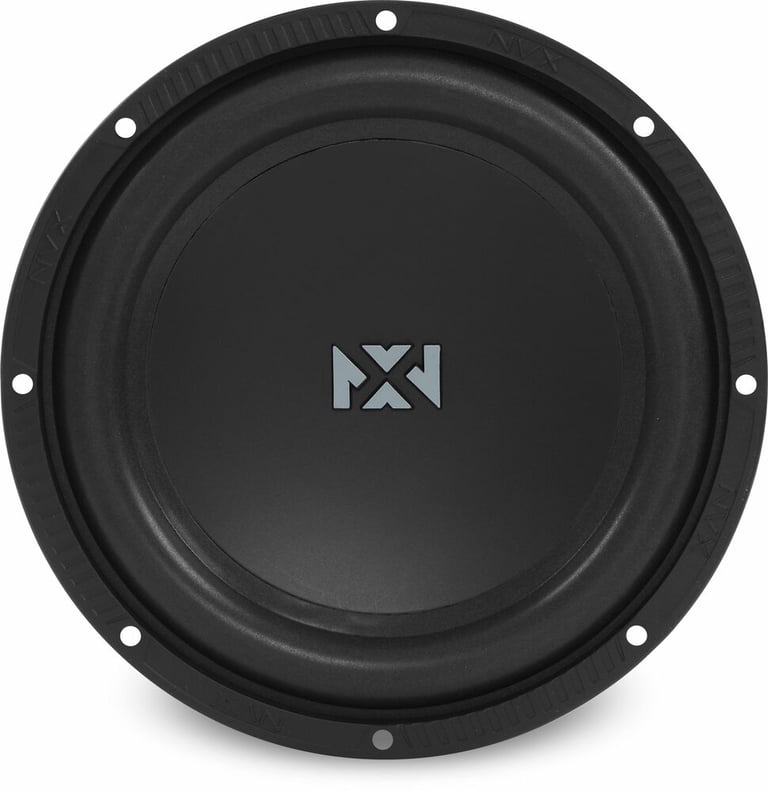

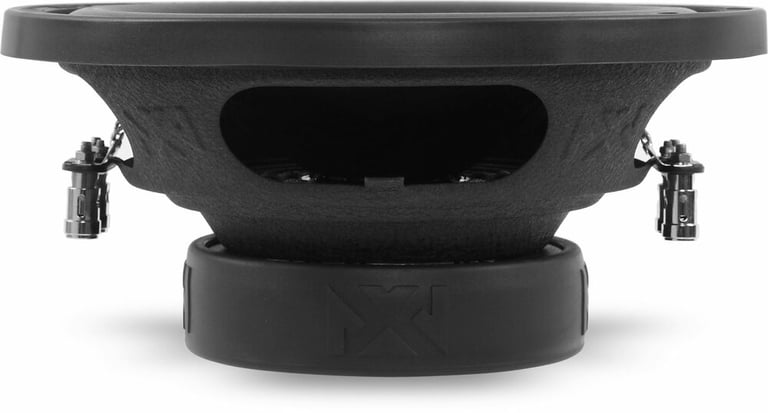

• 10" Dual 2 ohms ohm N Series Series Subwoofer
• Power Handling:
• RMS: 350 watts Watts
• Peak: 700 Watts
• Ultra-Light Non Pressed Paper Cone ensures accurate, responsive performance even at high volume levels
• Custom Blended High-Roll Foam Surround for extended excursion
• Specially designed high excursion strain-relieved tinsel leads
• 2” High Temperature Aluminum Voice Coil
• Top-mount depth: 4.20""
• Cutout diameter: 9.06""
• Frequency Response: 20-200 Hz
• Sensitivity: 84.8 dBdB
• High strength steel basket retains exceptional rigidity to minimize distortion

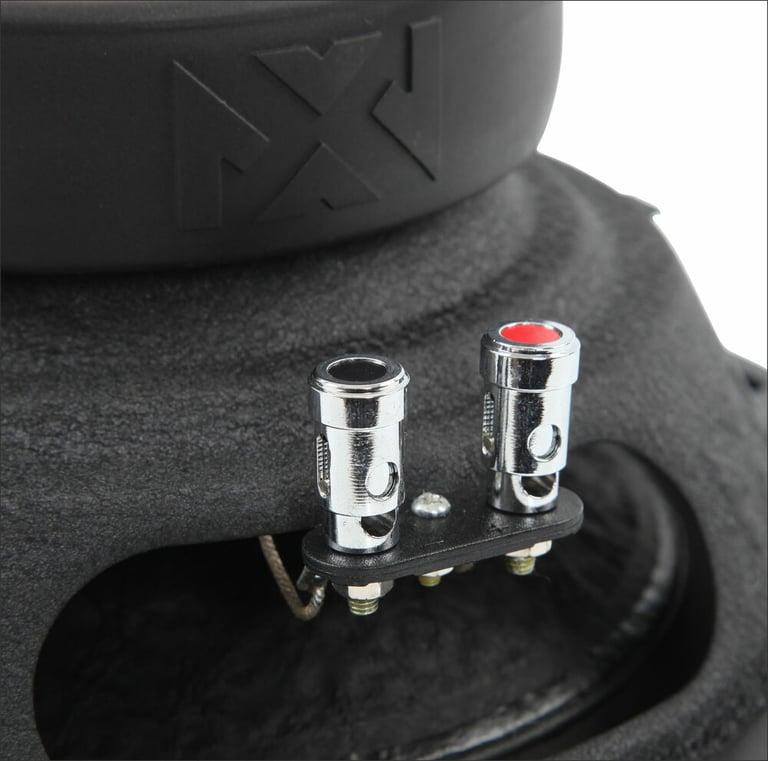

• Chrome plated, spring loaded push terminals for easy, secure installations
• High energy ferrite magnet motor structure allows for greater power handling and voice coil control during high excursions
• Subwoofer grille sold separately - NV10GR
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Enclosure Recommendations:

• Ported Enclosure:
• Recommended Volume: 1.25 ft³
• Tuning Frequency: 34 Hz
• Ideal Power RMS: 300W
• F3 (Hz): 31
• Sealed Enclosure:
• Recommended Volume: .75 ft³
• Ideal Power RMS: 350W
• F3 (Hz): 43
• FC (Hz): 49
• QTC: 0.862

Product Details:

• Complete 4 Gauge 2-Channel Amplifier Installation Kit
• Designed for car audio systems up to 1200 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Belva CCA wire is made from 30% copper while the competition uses only 10%
• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
• MINI-ANL Fuse holder with a 80 amp fuse offers ideal protection for high powered systems
• Complies to American Wire Gauge standards
• Also available in Blue and Red
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

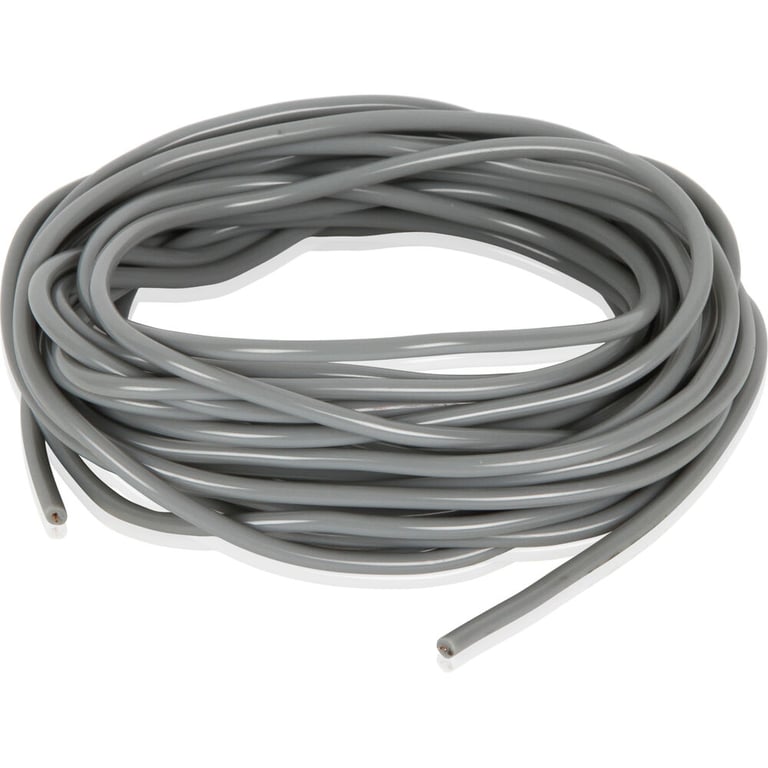

1. 17 ft. (5.2 meters) Gray 4 gauge power wire

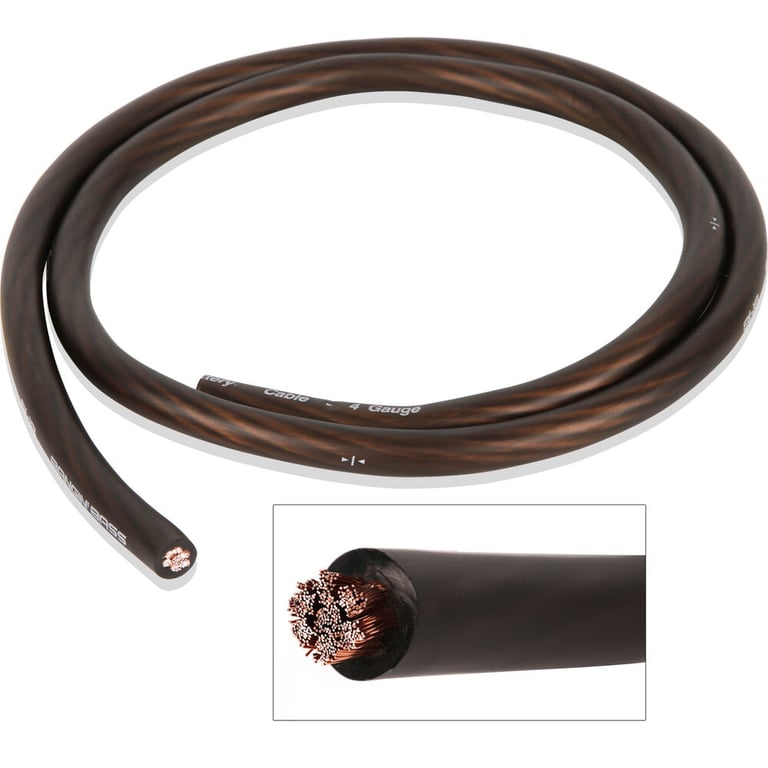

2. 3 ft. (.91 meters) Black 4 gauge ground wire
3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

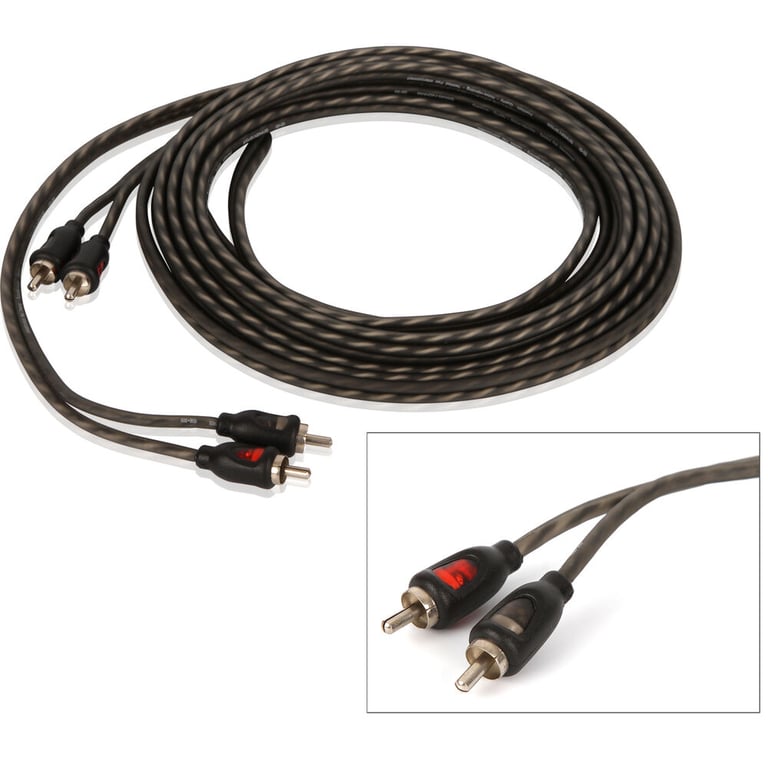

4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
5. 20 ft. (6.1 meters) 16 Gauge Speaker cable
6. One MINI-ANL Fuse Holder with a 80 amp fuse

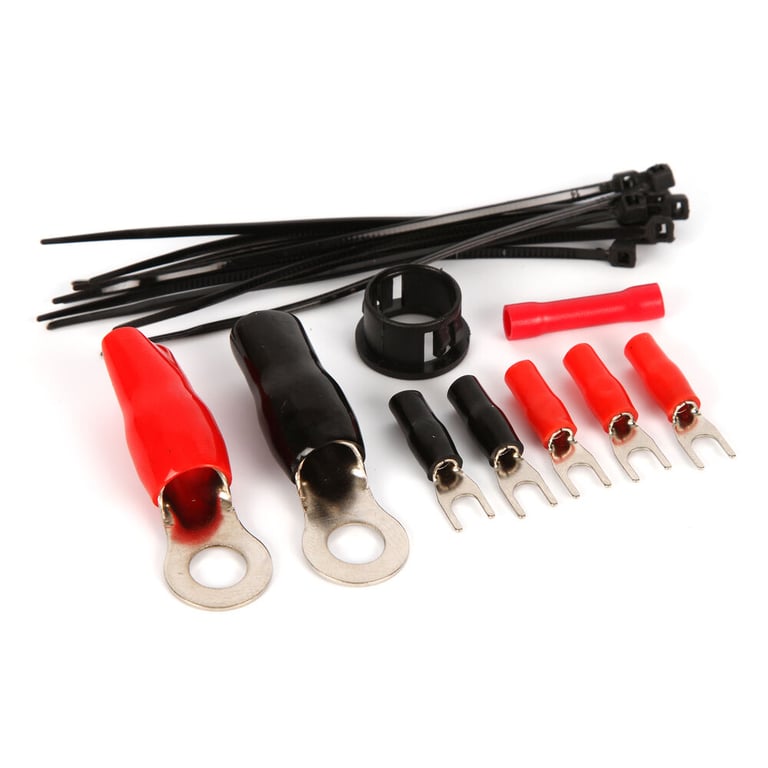

7. One Black rubber firewall grommet
8. One 4 Gauge Blue chrome plated ring terminals
9. One 4 Gauge Black chrome plated ring terminal
10. Three 18 Gauge Blue Spade terminal
11. Two 18 Gauge Black Spade terminal
12. One 18 Gauge Red butt connector
13. Ten 4" Black zip ties
