Rockford Fosgate Punch P1694 (Open Box, Great)

300W Peak (150W RMS) 6x9" Punch Series 4-way 4-ohm Coaxial Car Speakers

Rockford Fosgate
Shop all Rockford Fosgate
Product videos
highlight-star-icon

• 150 watts Peak Each, 75 watts RMS Each
• 1/2" PEI (Polyetherimide) Dome tweeters
• Mica Injected Polypropylene - MIPP cone material
• Impedance: 4 ohm
• Sensitivity: 91 dB

Learn more about the ls-09-p1694-u8

We apologize

This item has been discontinued

Product Highlights


• 150 watts Peak Each, 75 watts RMS Each
• 1/2" PEI (Polyetherimide) Dome tweeters
• Mica Injected Polypropylene - MIPP cone material
• Impedance: 4 ohm
• Sensitivity: 91 dB

Description


Rockford Fosgate brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.




Rockford Fosgate Punch P1694

A perfect system starts off with perfect aftermarket car speakers. If you are a fanatic of a great sounding speaker, then the Rockford Fosgate Punch Series is meant for you. It is a full-range speaker with a flex-fit basket to ensure compatibility. By utilizing slots instead of single sized screw holes, allows for a slight adjustment of the speaker when mounted. This becomes useful if you are mounting the speakers in an odd shaped factory speaker location. The integrated concealed crossover hides the crossover inside the basket, decreasing and simplifying installation time. Minimizing the time between taking the speakers out of the box to installing them in your vehicle, the Punch speakers feature an OEM Adapter plate system that allows full-range speaker to fit in certain openings. The adapter plate features “break-away” tabs that can be removed to fit all speaker sizes.

The Punch series speakers feature VAST (Vertical Attach Surround Technique) which increases a speaker’s effective radiating cone area without complicating installation. The design eliminates the large flat glue surface area which allows the surround to be shifted for increased cone area. With this, nominal efficiency and maximum output capabilities are improved. The P1694 is a 6" x 9" 4-Way speaker that has all the features mentioned above.



Product Details:

  • 6" x 9" Punch Series 4-way Coaxial Car Speakers
  • Power Handling:
    • Peak: 300 watts per pair / 150 watts each
    • RMS: 150 watts per pair / 75 watts each
  • CEA-2031 compliant
  • Mica Injected Polypropylene - MIPP cone material
  • Rubber speaker surround
  • 1/2" PEI (Polyetherimide) Dome tweeters
  • 1" voice coil
  • FlexFit basket design to fit with odd-shaped factory speaker locations
  • Integrated Concealed Crossover (ICC)
  • Vertical Attach Surround Technique (VAST) surround increases cone area up to 25%
  • Top-mount Depth: 3.07"
  • Cutout Dimensions: 5.77 x 8.51
  • Impedance: 4 ohm
  • Frequency Response: 40 - 21000 Hz
  • Sensitivity: 91 dB

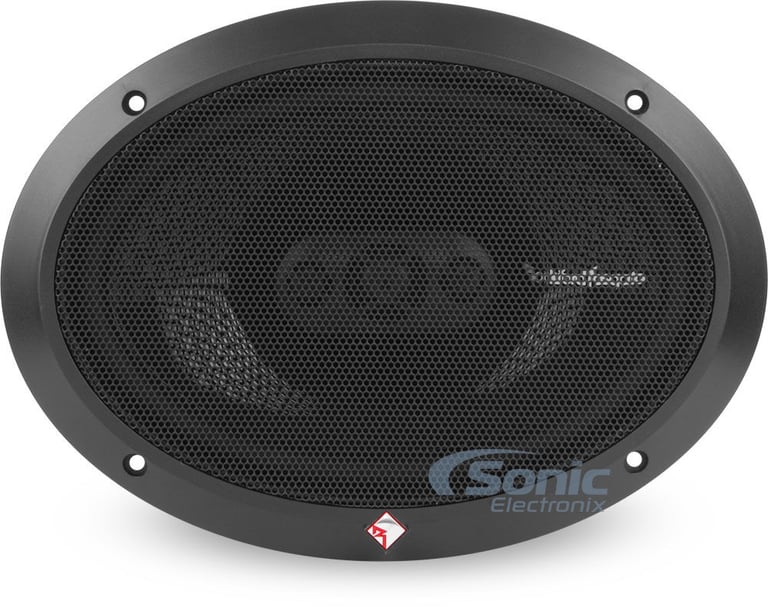

  • Two speaker grilles included
  • Authorized Internet Dealer
  • MFR #: P1694
  • 1-year Manufacturer's Warranty

  • Priced Per Pair

Specifications & Details


Speaker Specifications
Series
Punch Series
Priced Per
Pair
Number of Speakers
2
Speaker Size
6" x 9"
Design
4-way Coaxial
Tweeter Design
Dome
Tweeter Size
1/2"
Tweeter Composition
PEI (Polyetherimide)
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Rubber
Peak Power Handling
150 watts
RMS Power Handling
75 watts
Total PEAK Per Pair/Set
300 watts
Total RMS Per Pair/Set
150 watts
Sensitivity
91 dB
Frequency Response
40 - 21000 Hz
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
1"
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
3.07"
Cutout Dimensions
5.77 x 8.51
CTA-2031 Compliant
Yes
General specifications
Hi-Res Certified
No
Color
Black
Illumination
None
Speaker Grilles
Yes
Includes Damping Kit
without Damping Kit
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Speakers
Mounting Brackets/Hardware
Speakers (2)
Grilles (2, attached)

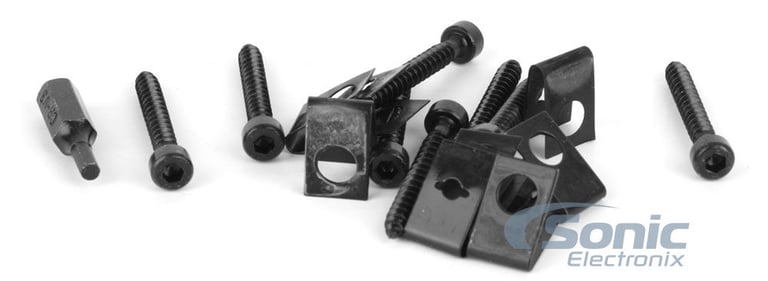

Mounting screws (8)
Mounting clips (8)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

LS-09-p1694-u8

Weight:

10.00lbs

Internal SKU:

ls-09-p1694-u8

Internal Product ID:

211956
