Bazooka BTA10250D

The Bass Tube Difference:

Adding quality bass to your car has never been easier! With the Bazooka bass tube, installing a subwoofer becomes fast, simple, and provides excellent results. No matter what size of vehicle you have, Bazooka has a bass tube solution for you. Included in the box is a factory interface harness that is compatible with all cars. It does not matter if you have a compact Mini Cooper or a full size Chevrolet Suburban, the Bass Tube will give your vehicle low bass that it was lacking with it's factory audio system. When a subwoofer is installed, you will experience a 30% increase in your music. Bass is necessary to complete the sound stage of any listening experience. It is the subwoofer in the car's audio system that gives music its fullness and enhances the playback of each instrument's sound. For quality bass you can rely on, a Bazooka Bass Tube is exactly what you are looking for!

Acoustic Dampening Fiber

Quick Links:

• Product Overview and Description
• BassTube Details
• BassTube Features
• How Do I Install a Bazooka Bass Tube?
• What's in the Box?

Bazooka BTA10250D Features:

• Bazooka Powered 10" Amplified Bass Tube
• Built-in Class D amplifier
• Power Handling:
• Peak: 300 watts
• RMS: 275 watts @ 2 ohms
• RMS: 200 watts @ 4 ohms
• Treated foam surround
• Paper cone with polypropylene dust cap
• Mounting straps, wire harnesses and hardware included
• 4 Ohm Impedance


  Bazooka's Patented Tube Enclosure

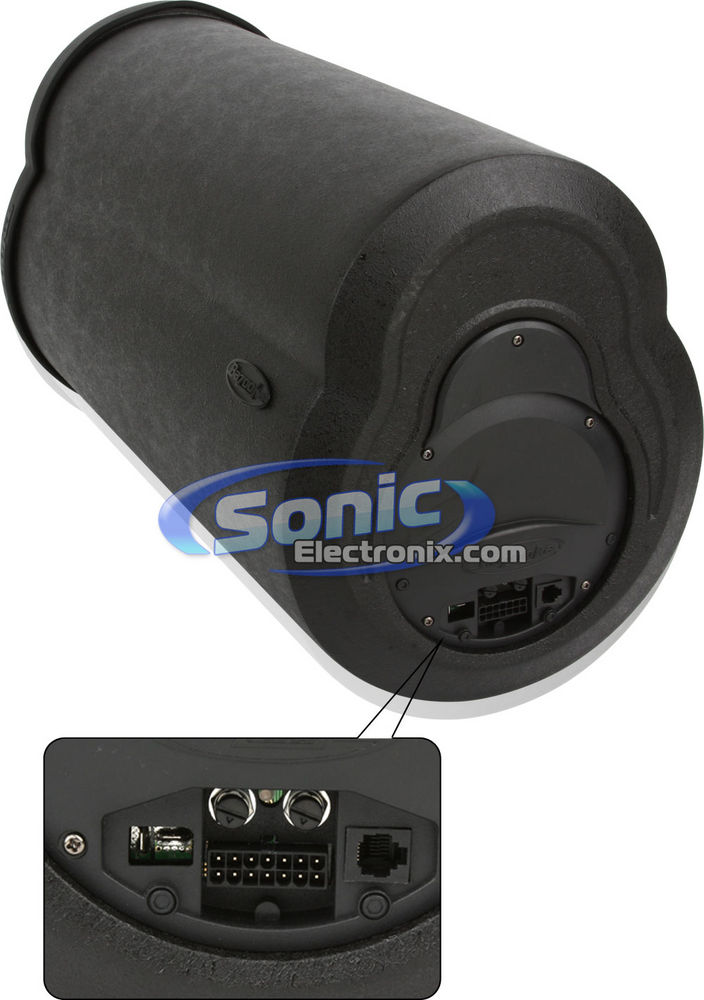

• Preamp inputs
• Speaker-level inputs
• Optional speaker-level outputs for connecting a 2nd Bass Tube
• Plastic woofer grille
• Adjustable low-pass filter: 80-250 Hz
• Frequency Response: 35-250 Hz
• Sensitivity: 104 dB
• Dimensions: 10-3/8"W x 12-1/4"H x 20-3/4"D
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

Bazooka Bass Tube Unique Features:

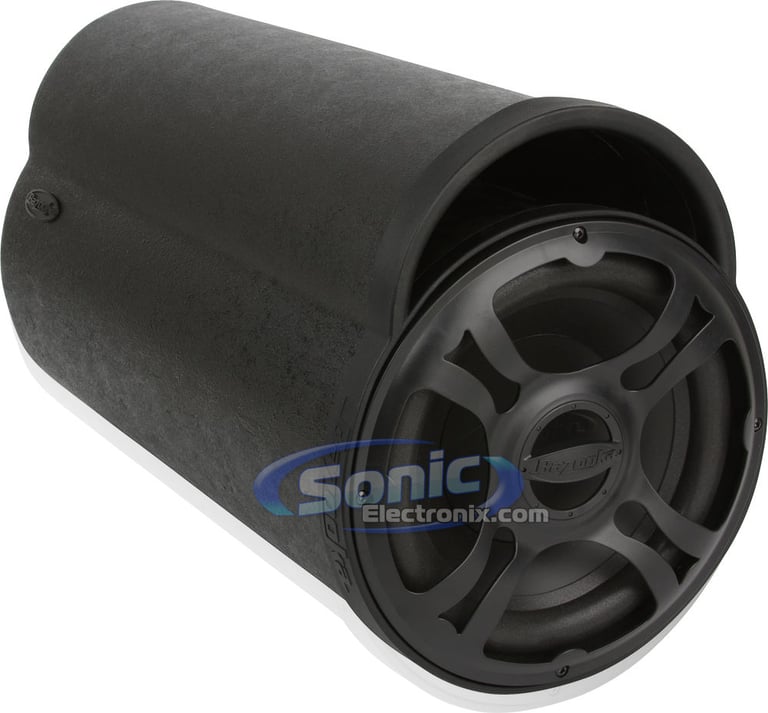

Woofer
Bazooka's highly efficient, customized woofers are specially designed and reinforced for use in the Bazooka Bass Tube enclosure, producing a pure piston action and generating the maximum bass output possible.

Edge Roll
All Bazooka Woofers used in Bass Tube enclosures feature large, high excursion, lightweight foam edge rolls to maximize their efficiency and overall bass output.

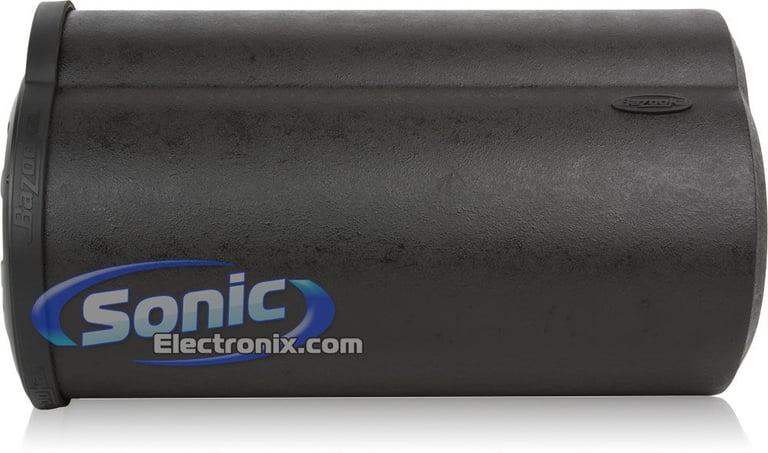

Tube Enclosure
A tube is a natural pressure vessel, and Bass is about pressure. The patented Bass Tube enclosure creates a natural, uniform, hydraulic transfer of the Bass energy produced by the woofer.

Port
The port opening between the Tube Enclosure and the Port Tube allows for efficient transfer of bass. Bass Tubes enclosures utilize "Bass Reflex" technology to take advantage of both the forward and backward of the woofer, wasting no bass energy.

Port Tube
The bass energy created by both the forward and backward motion of the woofer are time aligned so that 100% of the woofer's output is concentrated into one output point.

Acoustic Damping Fiber
The acoustic damping material helps lower the resonance of the enclosure and simulates an increased air space.

Integrated Amplifier
The integrated amplifiers are performance matched to the specific woofers used in Bass Tube enclosures to ensure that every watt of power is efficiently turned into bass performance. Having the amplifier integrated into the enclosure simplifies the installation and eliminates power loss.

Corner Loading
Bass Tube enclosures are specifically designed to take advantage of the natural amplification characteristics that occur when a subwoofer is placed into the corner of a vehicle. The corner acts like a megaphone, substantially increasing bass performance.

back to top of description

How Do I Install a Bazooka Bass Tube?

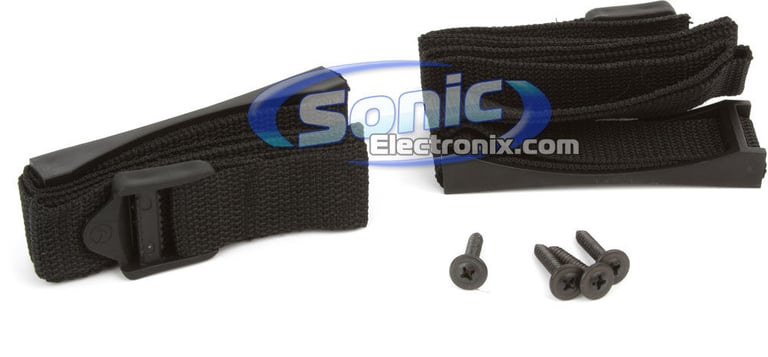

Installation is Simple! The bass tube comes with straps to keep the sub securely mounted, while still making removal quick and easy if you need even more cargo room. Optional Chrome-Plated UMS Brackets give a flashier look, as well as a more secure, permanent mounting when removal isn't a problem.

back to top of description

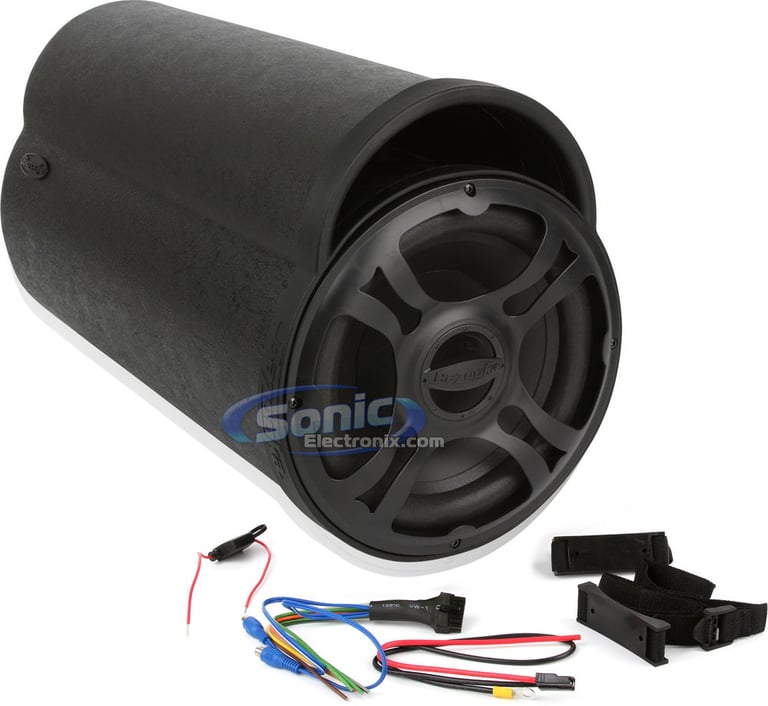

Package Contents:

1. Bazooka BTA10250D BT Series 10-Inch 250W Class D Amplified Tube

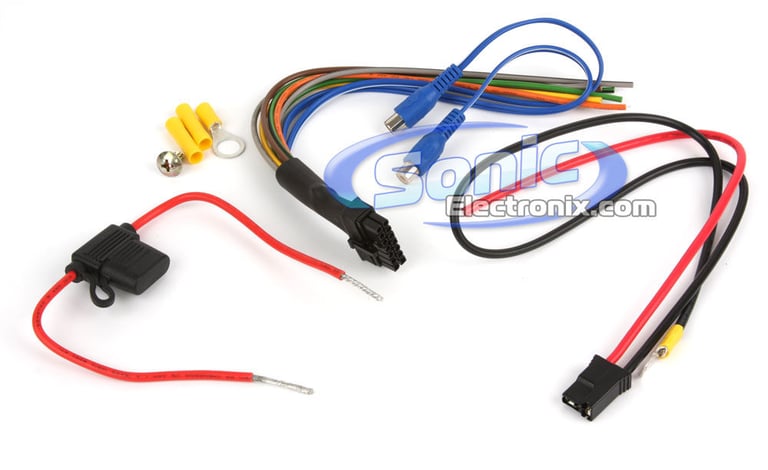

2. Wiring Harness
3. Installation Hardware
4. Instruction Manual
