NVX XAD21 (Open Box, Good)

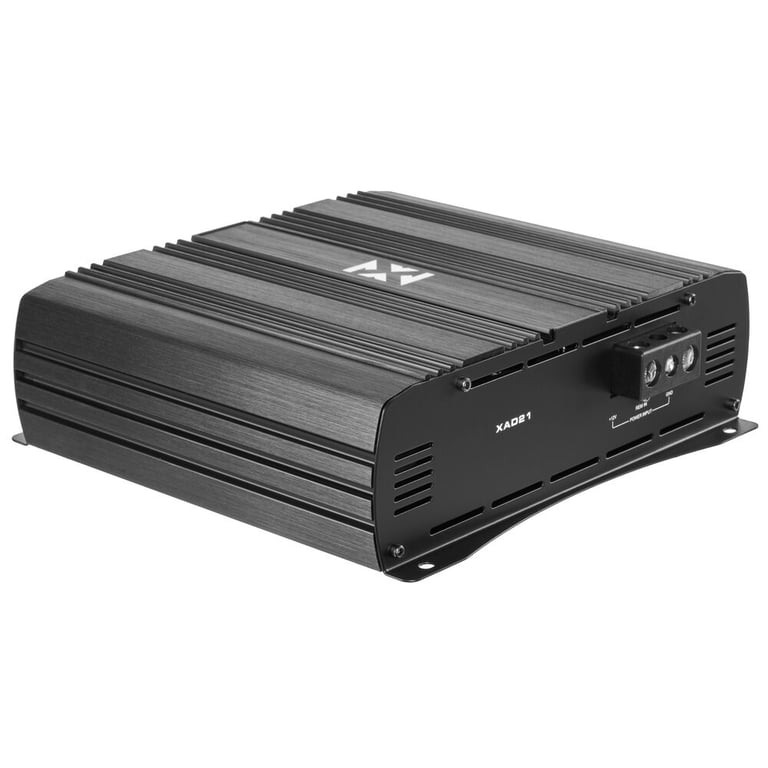

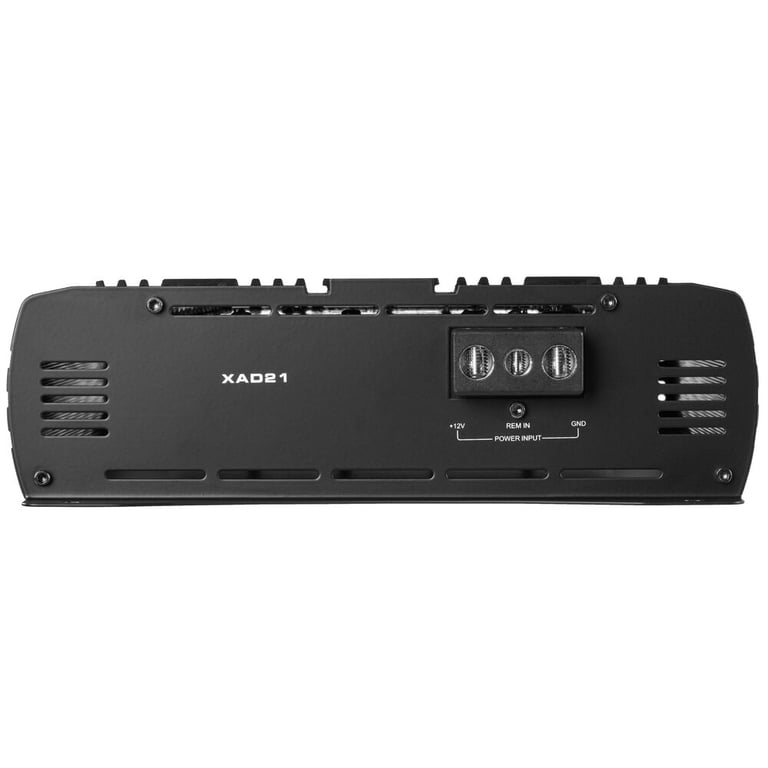

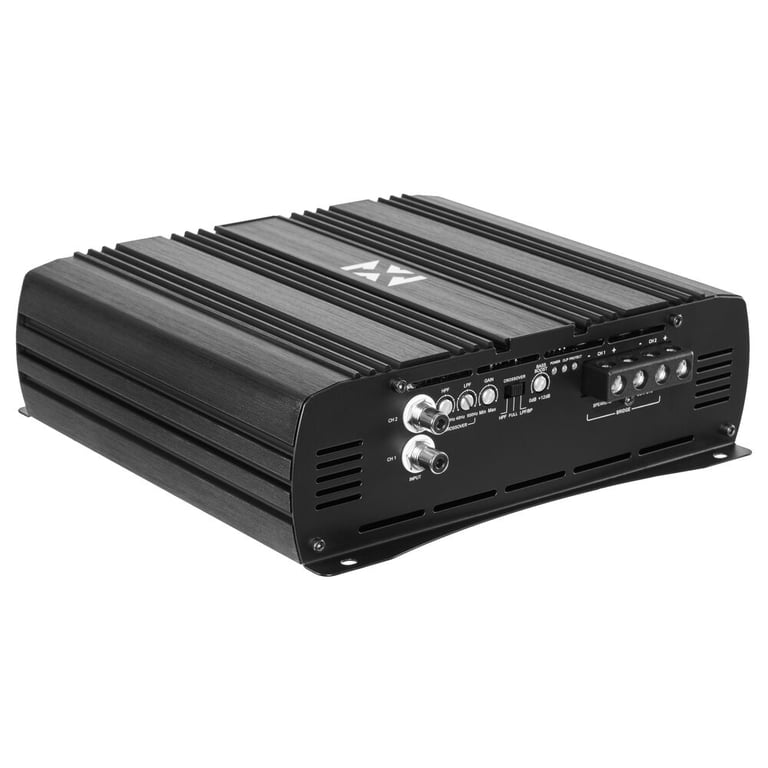

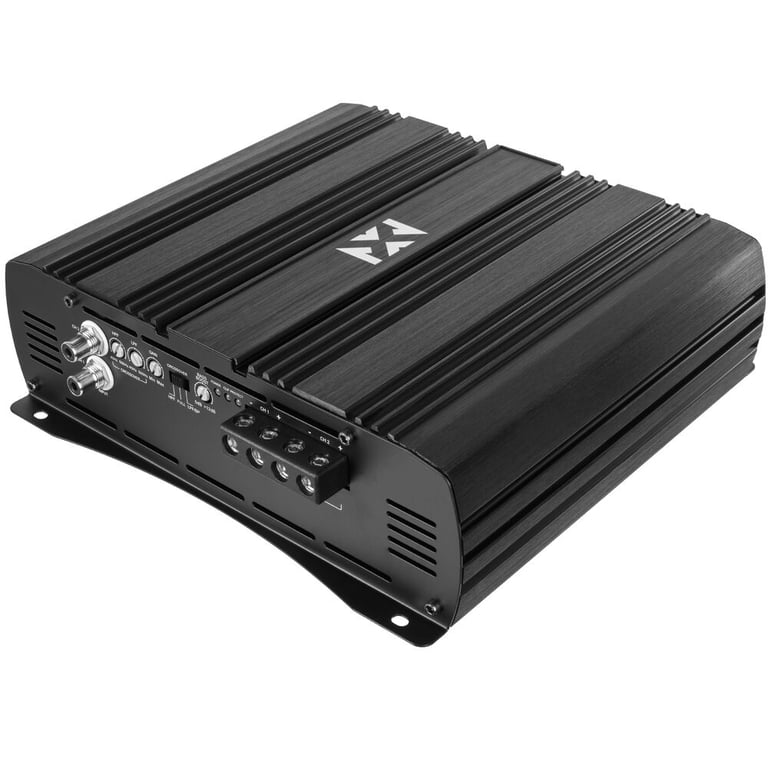

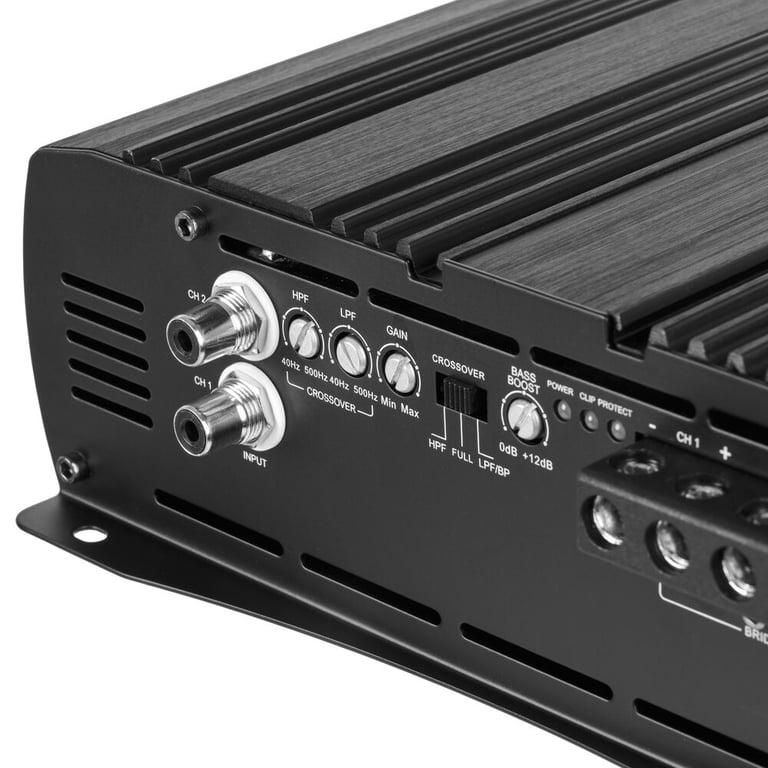

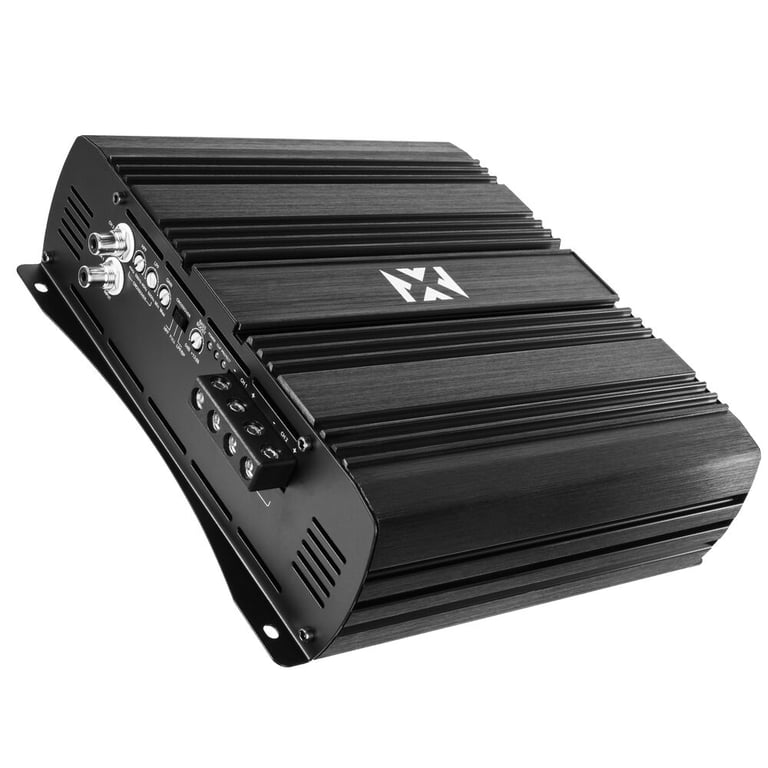

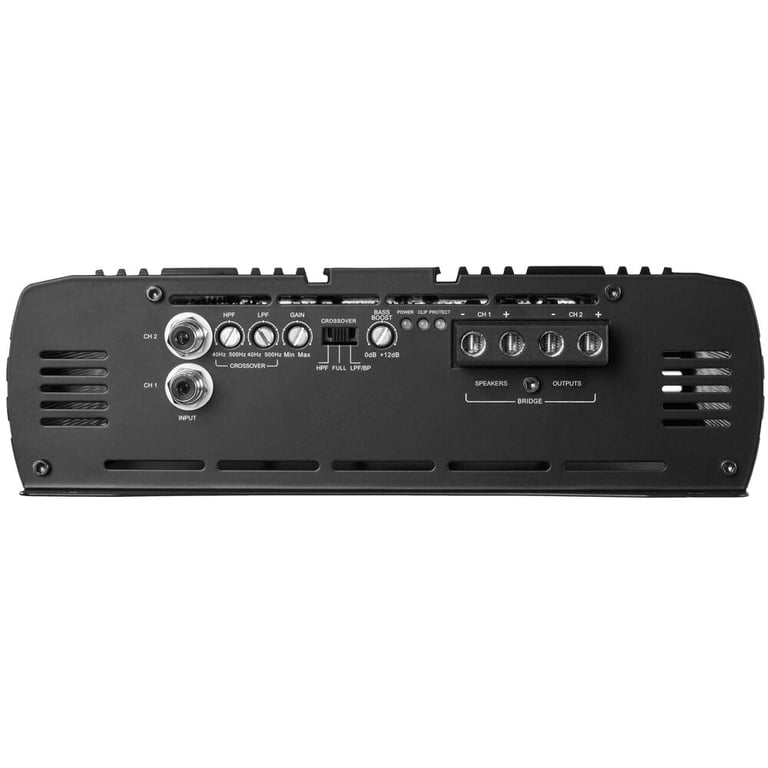

2000W RMS X-Series Full-Bridge Class D 1-Ohm Stable 2-Channel Amplifier

NVX
Shop all NVX
highlight-star-icon

• 250 watts x 2 channel @ 4 ohm
• 550 watts x 2 channel @ 2 ohm
• 1000 watts x 2 channel @ 1 ohm
• Total RMS Power: 2000 watts
• CEA-2006 Compliant

Learn more about the ls-xad21-u7

We apologize

This item has been discontinued

Description


NVX brand icon

Authorized dealer

Item Condition - Open Box, Good:

This product is used, but it will work like new and is in overall good condition. It will show signs of wear that can include scuffing, scratches, fingerprints, dents, and worn corners or installation marks. May be missing non-essential parts, accessories or original packaging.

2 Channel Class D Amplifier
1 Ohm Stable Bridgeable Down To 2 Ohm Small Chassis
Mosfet Power Supply

Product Details:

  • NVX X-Series XAD21
  • Class D 1 ohm Stable 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 250 watts x 2 channel
    • 2 ohm: 550 watts x 2 channel
    • 1 ohm: 1000 watts x 2 channel
    • Bridged, 4 ohm: 900 watts x 1 channel
    • Bridged, 2 ohm: 1600 x 1 channel
  • Total power output: 2000 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity: 200mV
  • Frequency Response: 10Hz - 20kHz
  • Signal to Noise Ratio: 100 dB
  • Variable high-pass filter: 40 - 500 Hz, 24 dB/octave
  • Variable low-pass filter: 40 - 500 Hz, 24 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
  • 4 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 7.375"W x 8.75"L x 2.5"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
pdf icon Check out the NVX X-Series 2-Channel Amplifier Owner's Manual

Specifications & Details


Key Features
Amplifier Key Features
Bass Boost
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
250 watts x 2 channel
RMS Power @ 2 ohms
550 watts x 2 channel
RMS Power @ 1 ohm
1000 watts x 2 channel
Bridged RMS Power
900 watts x 1 channel
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
500 watts x 2 channel
Peak Power @ 2 ohms
1100 watts x 2 channel
Peak Power @ 1 ohm
2000 watts x 2 channel
Bridged Peak/Max Power
1800 watts x 1 channel
Amplifier Specifications
Series
X Series
Amplifier Class
D
Number of Channels
2-Channel
Total Peak Power Output
4000 watts
Total RMS Power Output
2000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
2 ohms
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
40 - 500 Hz
Low-Pass Crossover Frequency
40 - 500 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Amp Bluetooth Connectivity
No
What is in the box?
WITB: Amplifiers
Amplifier
Wired gain knob (wire separate)
Gain knob wire
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

XAD21-2

Weight:

6.00lbs

Internal SKU:

ls-xad21-u7

Internal Product ID:

207571
