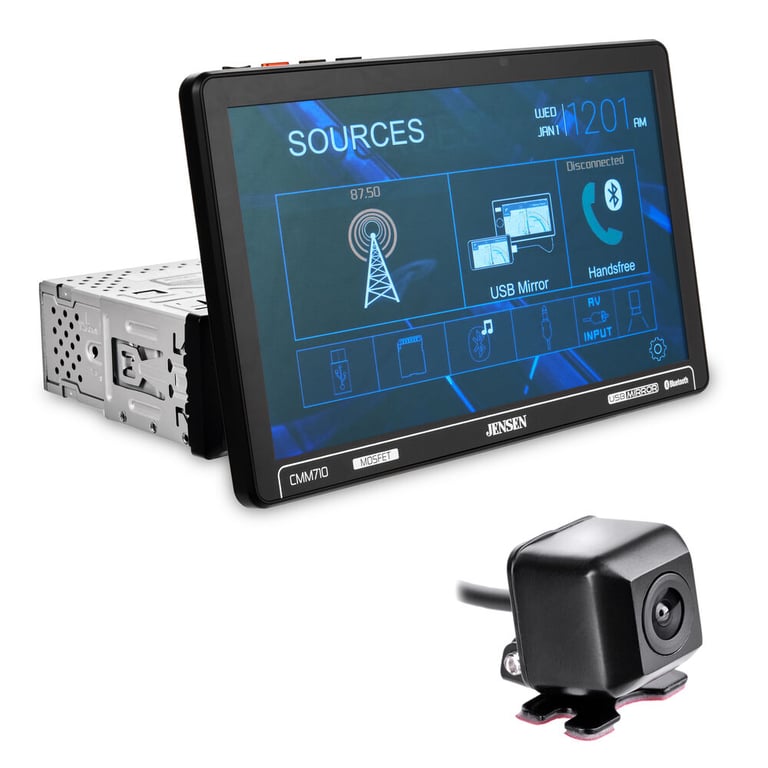

Jensen CMM710 + NVX Backup Camera

General Features:

• Digital Media receiver with Remote

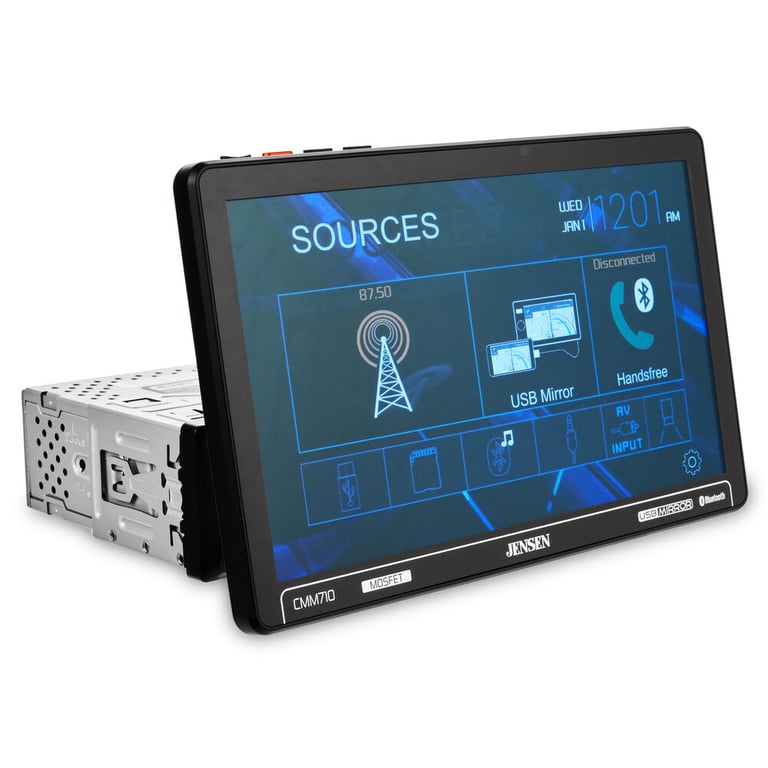

• 10.1” LED Backlit LCD touchscreen (1024p x 600p)
• Built-in Bluetooth for hands-free and audio streaming
• USB Screen mirroring
• CEA-2006 compliant amplifier
• Power Output:
• Peak: 50 watts x 4 channels
• RMS: 17 watts x 4 channels

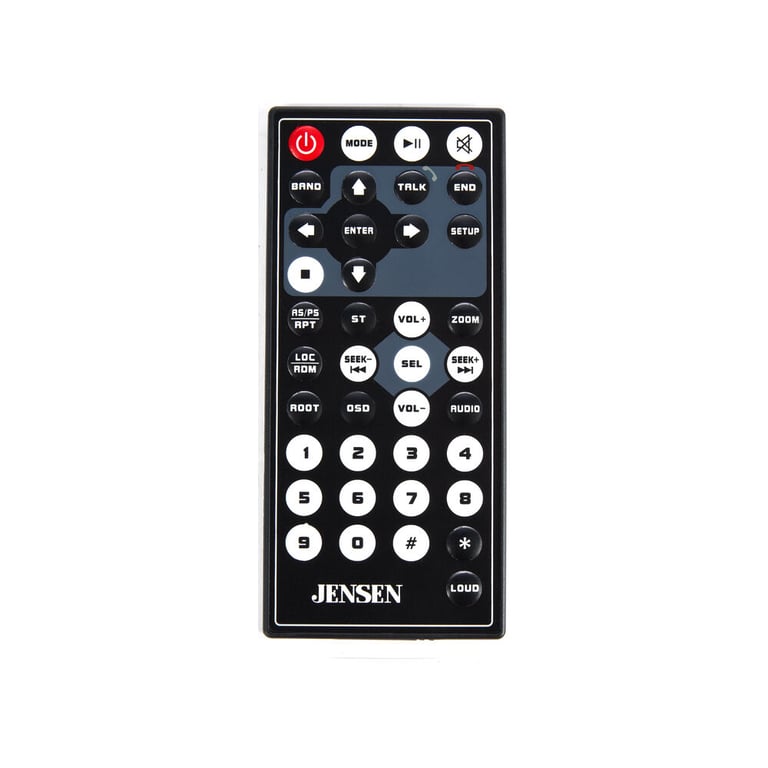

• Wireless remote control included
• CD text information display
• MP3 ID3 Tag Display (Title/Artist/Album)
• Authorized Internet Dealer
• 2 Year Manufacturer's Warranty

Playback and Audio Features:

• AM/FM tuner with 18FM/12AM presets
• Compatible with Apple iPhones and Android Phones
• Electronic Shock Protection (ESP)
• 7-band parametric equalizer with 7 selectable tone curves

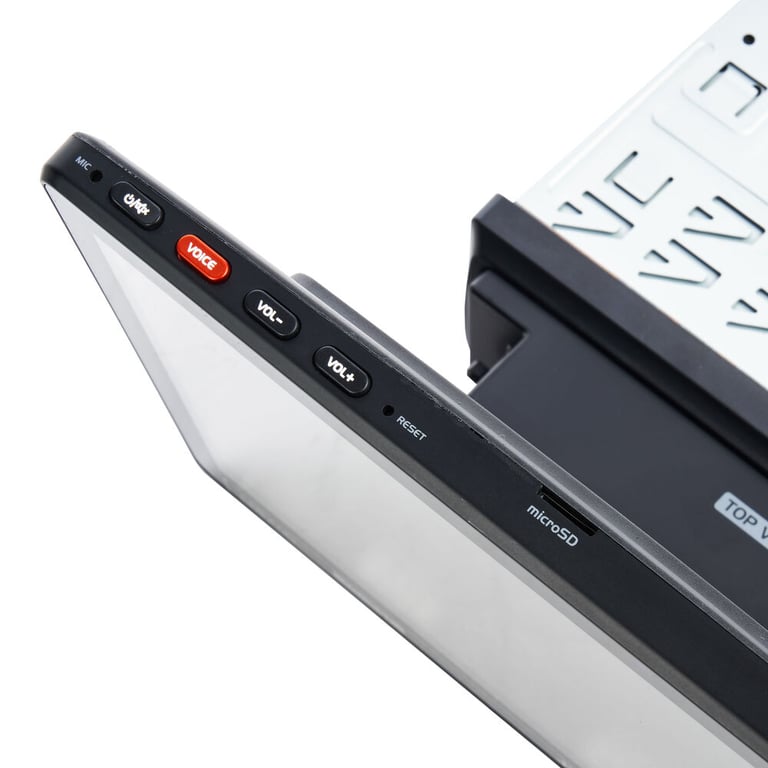

• MicroSD Card reader for (audio and video) playback

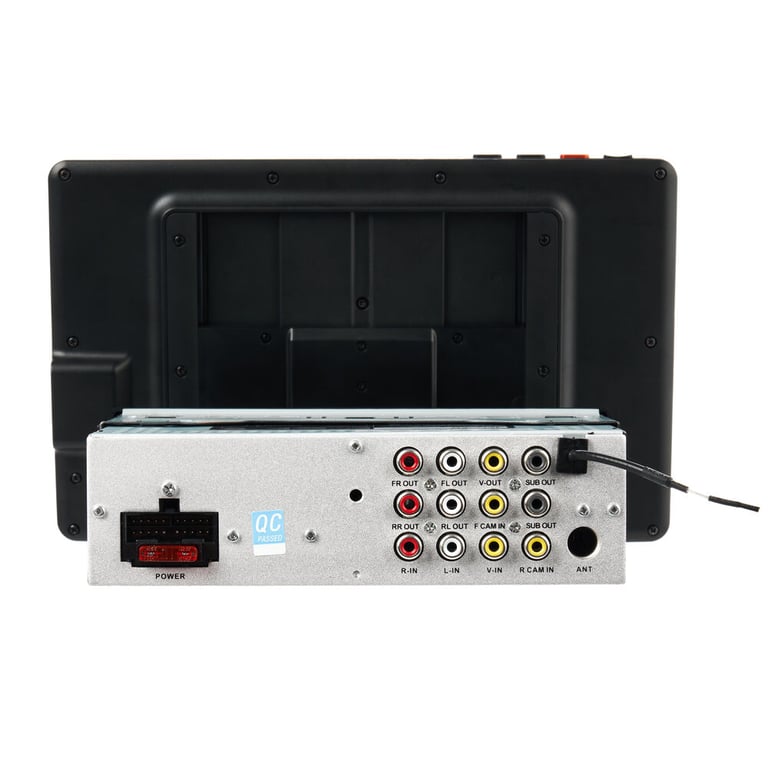

Expandability Options:

• 3 Sets of 4V preamp outputs (front, rear and subwoofer)
• Bluetooth Ready
• iPod and iPhone Ready: Standard USB-to-iPod Cable compatible

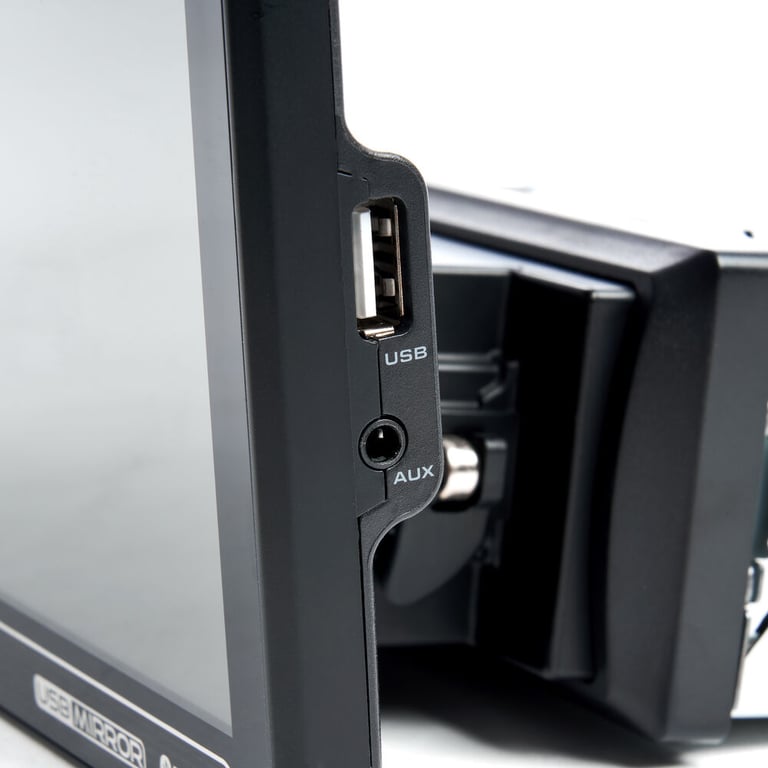

• Front Auxiliary Input: 3.5mm headphone jack allows connection to portable media devices such as MP3 players
• Front USB Input: USB port allows connection to digital devices such as flash drives, portable media players, etc.
• Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input.
• Steering Wheel Control Ready: PAC ControlPRO (SWI-CP5) or the Axxess ASWC-1 required and sold separately
• Rear RCA Video Output: Used for connection to separate monitors and other devices

Bluetooth Features:

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Bluetooth version 4.1 +EDR certified
• Bluetooth range up to 5 meters
• Supports SMS message notifications and A2DP audio streaming
• Bluetooth Profiles Supported:
• HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
• HSP: Headset Profile enables a Bluetooth headset to connect to a compatible mobile phone
• PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
• A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
• AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
• OPP: Object Push Profile for sending basic "objects" such as pictures and other virtual material
• SYNC: Synchronization Profile enables the synchronization of Personal Information Manager (PIM) items
• SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
• Works with most Bluetooth enabled cell phones
• Includes a (external wired/built-in) microphone for clear, convenient, distortion-free talking

Check out the Jensen CMM710 User Manual

Product Details:

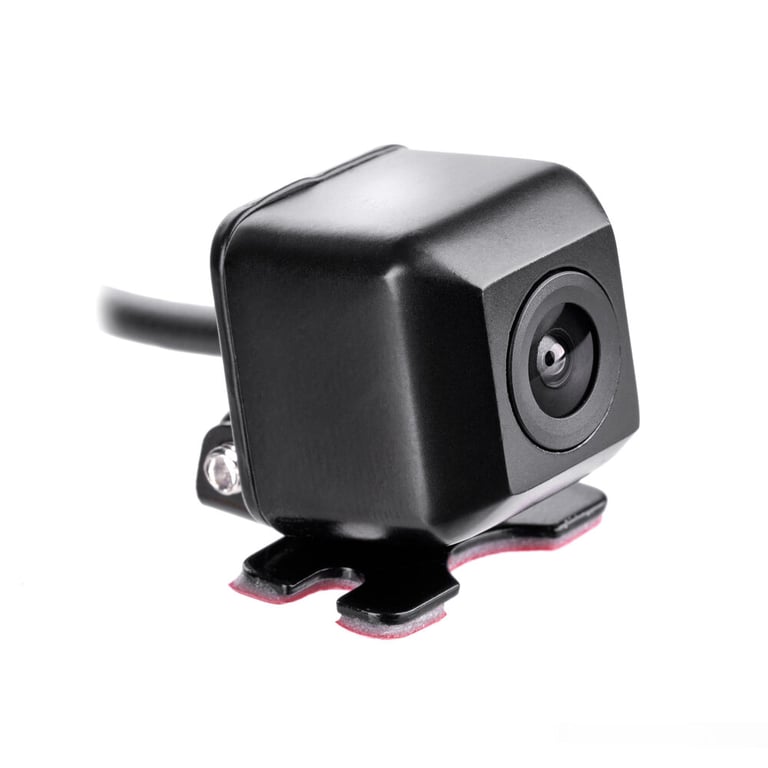

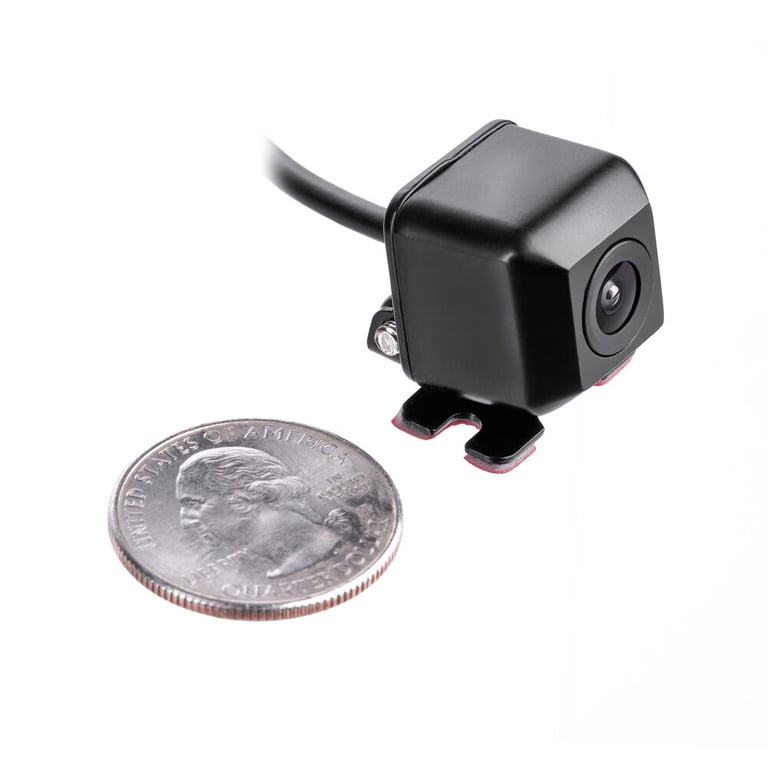

• Rear View Backup Camera with universal vehicle fitment
• Unique All Metal Body - built to be strong and durable to outlast the cheap, plastic competitors
• High Resolution 1089HDCCD Image Sensor
• Wide 170° viewing angle for greater visibility behind the car
• IP68-rated Waterproof - can withstand dust, dirt and sand, and are resistant to submersion up to a maximum depth of 1.5m underwater for up to thirty minutes
• Equipped with distance mark feature
• Guidelines Can be turned ON or OFF
• Can be used as a Front or Rear Camera
• Install with simple 4-pin connector, rather than bulky RCA
• 19 foot extension wiring harness included - assures you can install in even the largest vehicles
• NTSC Video Signal Out (RCA)
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Why You Need This

• Keep an eye on your trailer or an eye out for your cat
• Don't worry about hitting anything when you're backing up
• Don't strain yourself looking over your shoulder when backing up
• To not hit a pole and mess up your clean paint job
• Make sure your trailer is still attached
• Simply make things more convenient and safe when driving
• You deserve it

Specifications

• High Resolution 1089 HDCCD Image Sensor
• Resolution: 800 x 533 Resolution
• System: NTSC
• VTL: 540TV lines Video output
• 4 Pin Din Harness (for clean, easy installation)
• Signal to Noise Ratio: +50dB
• Viewing Angle: 170°
• Min illumination: 0.05Lm
• Power Supply: 12V DC

What's in the box?

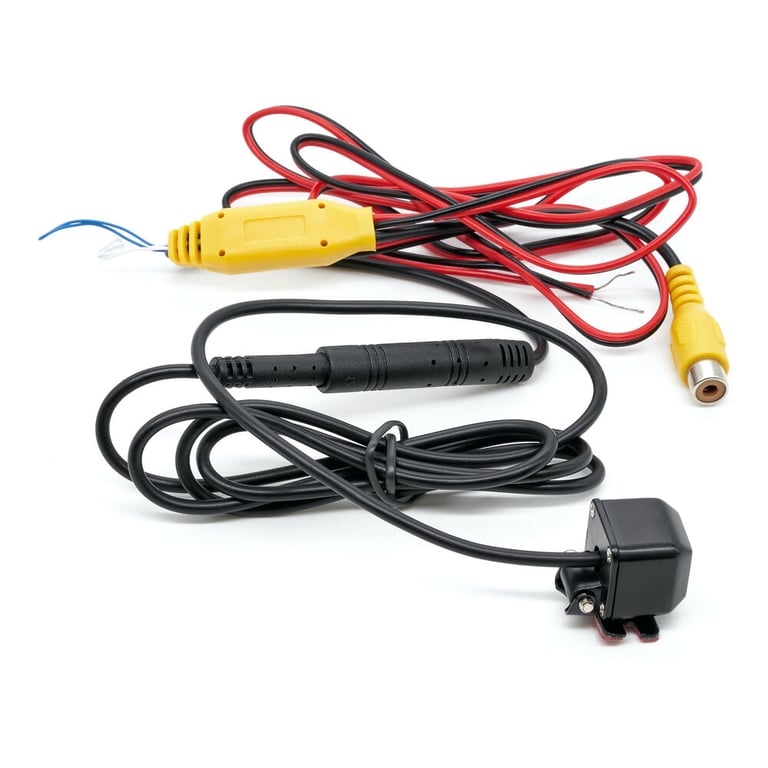

• Camera attached to main wiring harness with 4-pin connector with guideline + reverse view loops
• 3M adhesive strip

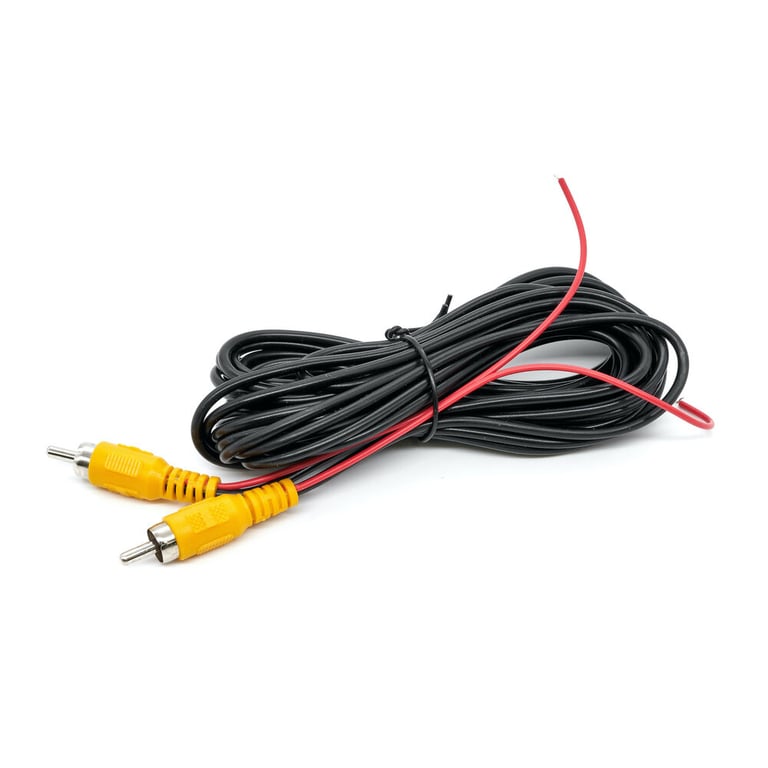

• 19ft extended connection cable
• Mounting screws
• Owner's manual with installation guide
