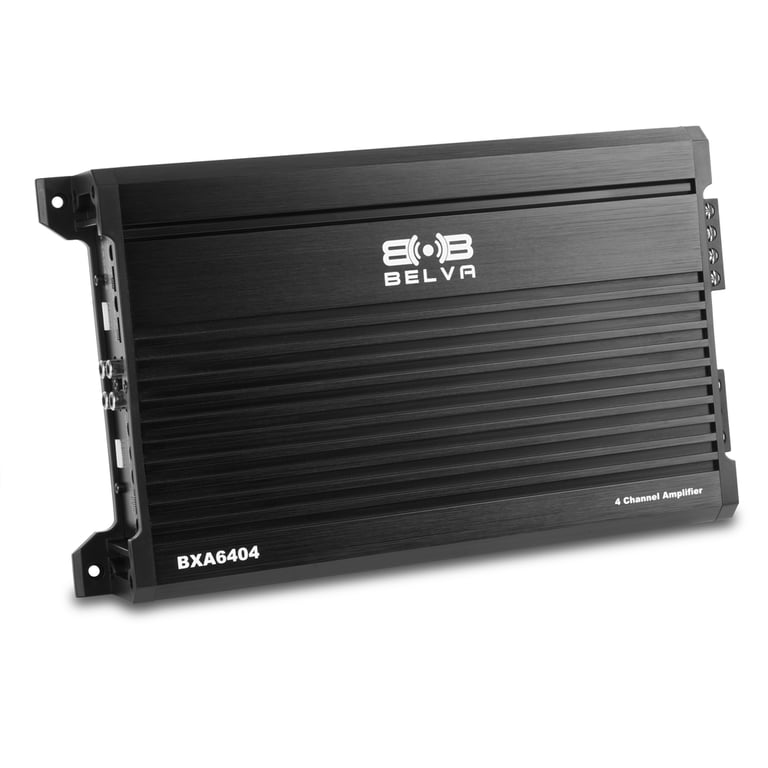

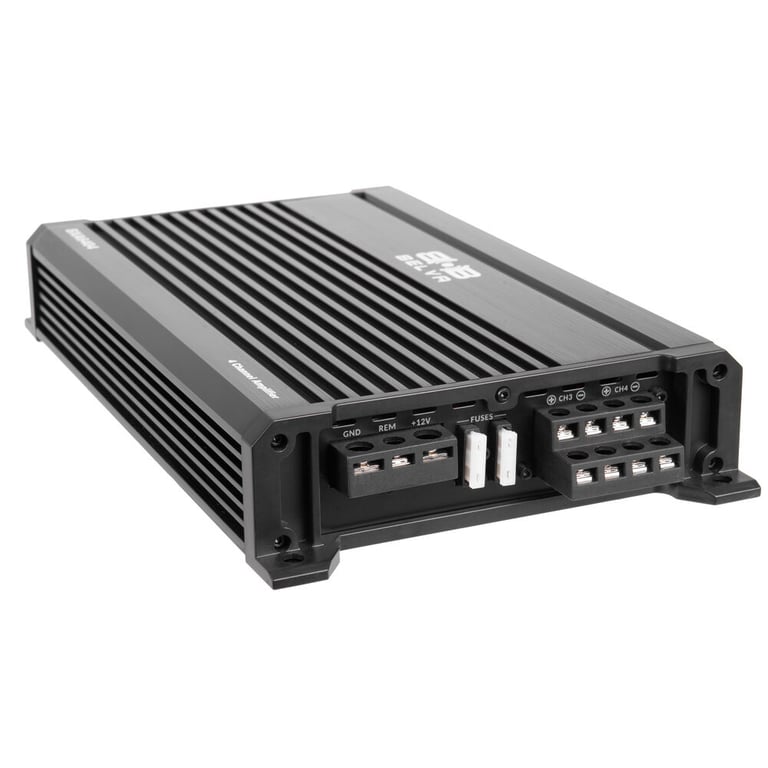

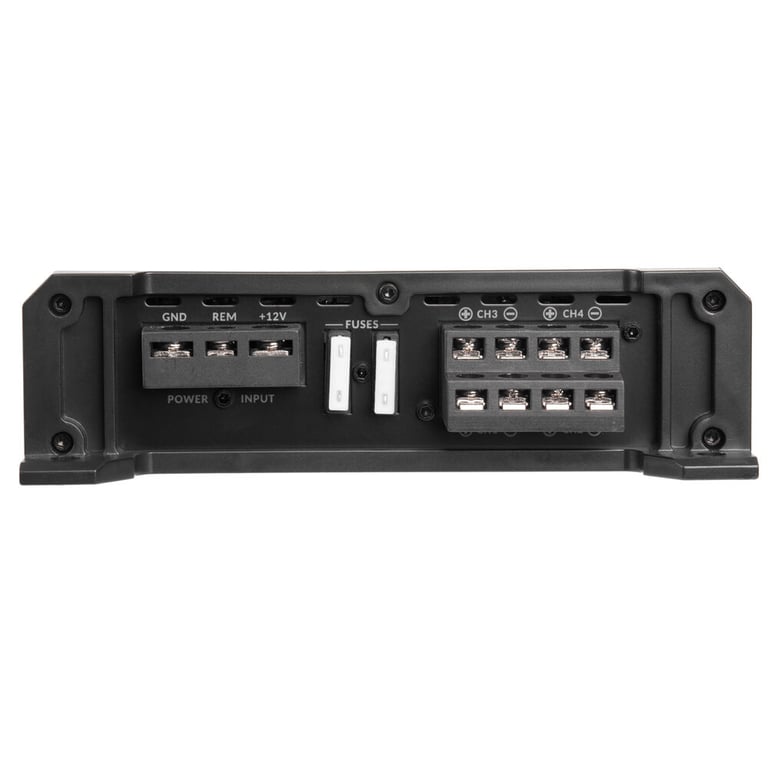

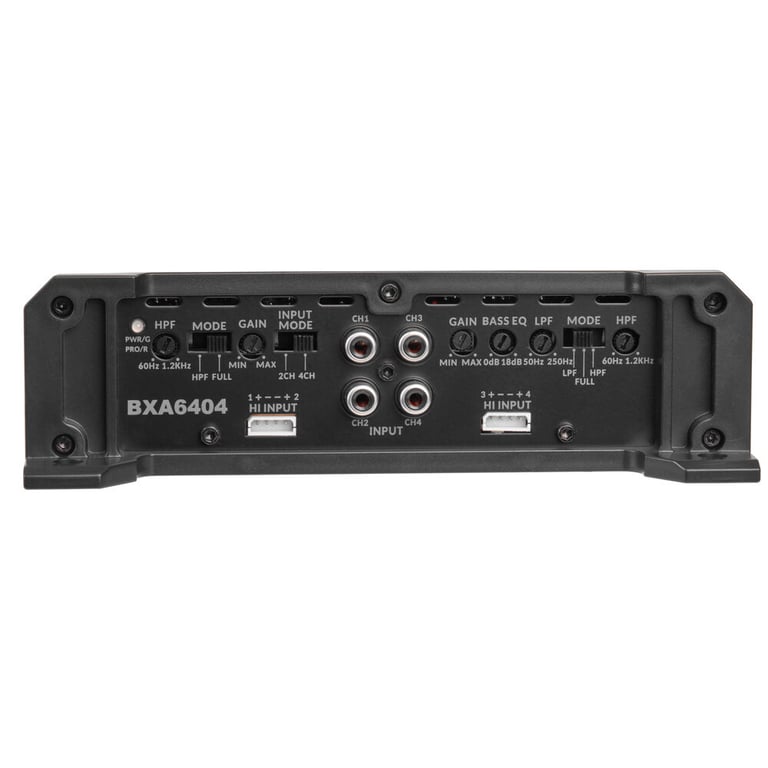

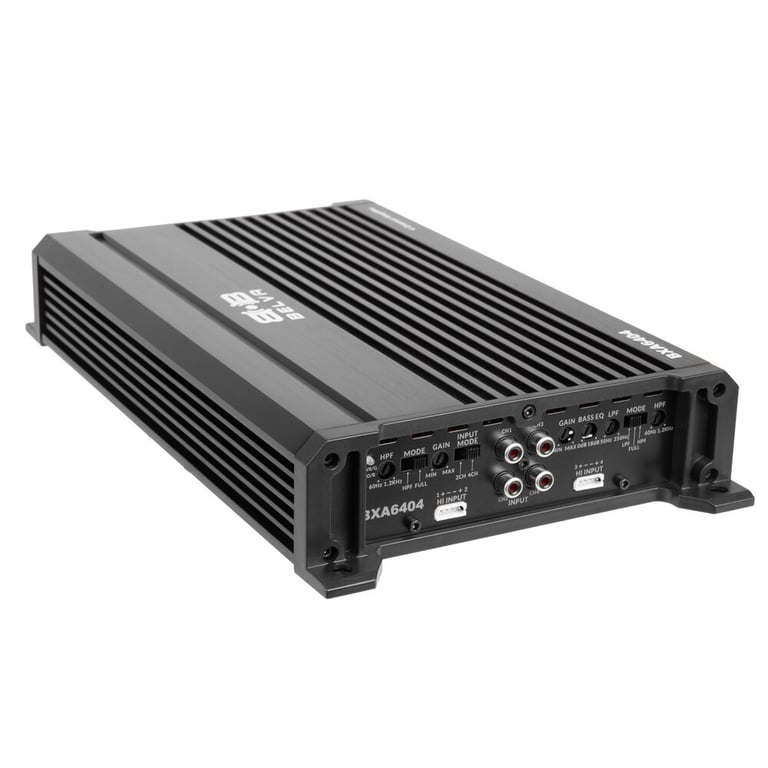

Belva BXA6404 (Like New (Open Box))

640W Peak BX-Series Class A/B 4-Channel Car Audio Amplifier

Belva
Shop all Belva
Product videos
highlight-star-icon

• 80 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total Peak Power: 640 watts
• Class A/B 2 ohm Stable 4-Channel-Channel

Learn more about the ls-bxa6404-u9

We apologize

This item has been discontinued

Product Highlights


• 80 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total Peak Power: 640 watts
• Class A/B 2 ohm Stable 4-Channel-Channel

Description


Belva brand icon

Authorized dealer

Item Condition - Like New (Open Box):

This product works and looks like new. It may have been opened for a visual demo or product video. In some cases there may be signs of an attempt at installation like opened packaging or mounting screw holes used, but there is no real sign of use or wear. Includes all original parts, packaging and accessories (or suitable replacement)

Product Details:

  • BX Series Class A/B 2 ohm Stable 4-Channel-Channel Amplifier
  • Peak Power Rating:
    • 4 ohm: 80 watts x 4 channel
    • 2 ohm: 160 watts x 4 channel
    • Bridged, 4 ohm: 320 watts x 2 channel
  • Total power output: 640 watts
  • Pulse Width Modulated MOSFET power supply
  • LED Power/Protect Light
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: 200mV - 8 volts
  • Frequency Response: 10 - 30,000 Hz
  • Total Harmonic Distortion (THD): 0.05%
  • Signal to Noise Ratio: 96 dB
  • Variable high-pass filter: 80 - 1,200 Hz
  • Variable low-pass filter: 50 - 250 Hz
  • Variable Bass Boost: 0 - 18 dB
  • Fuse Rating: 50A
  • 8 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 7.48" W x 11.02" L x 2.00" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
PDF IconBelva BXA6404 owner’s manual

Specifications & Details


Power Specifications - Full Range Channels
Peak Power @ 4 ohms
80 watts x 4 channel
Peak Power @ 2 ohms
160 watts x 4 channel
Bridged Peak/Max Power
320 watts x 2 channel
Amplifier Specifications
Series
BX Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
640 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Frequency Response
10 - 30,000 Hz
THD at Rated RMS Power
0.05%
Speaker Level Inputs
Yes - with included adapter
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
80 - 1,200 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
96 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
25A x 2
Total Fuse Rating
50A
Strappable
No
Sonic Certified Amplifier
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
200mV - 8 volts
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BXA6404-4

Weight:

5.62lbs

Internal SKU:

ls-bxa6404-u9

Internal Product ID:

208070
