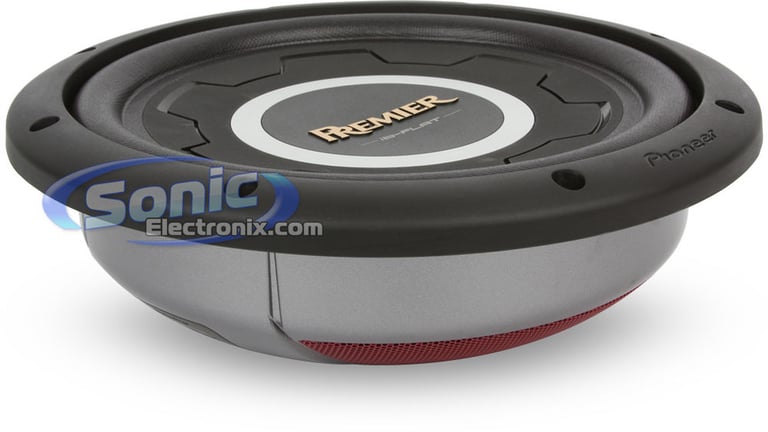

Name: Pioneer Premier TS-SW1201S2
Brand: Pioneer
SKU: tssw1201s2
Price: 99.99 USD
Availability: Discontinued
Rating: 4.6667 (6 reviews)

Shop all Pioneer

by Pioneer

About
Wiring Guide
Specs & Details
Product Videos
Reviews
Add-ons
Similar Products
Related Searches

Product videos

Product highlights

12" Shallow-mount Subwoofer • Single 2 ohm • 1500 Watts Max • 400 Watts RMS • Interlaced Basalt and Carbon Reinforced IMPP Cone Woofer • 3-Layer Urethane and Fiber-Woven Radial Surround • Air Suspension Control

Learn more about the tssw1201s2

Product Highlights

Description

Authorized dealer

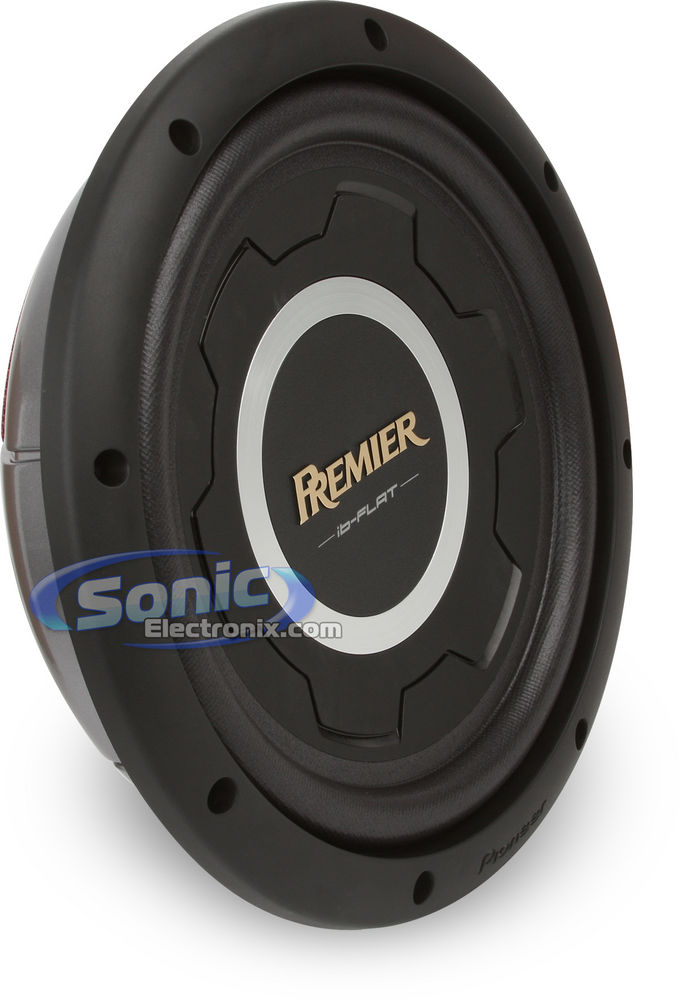

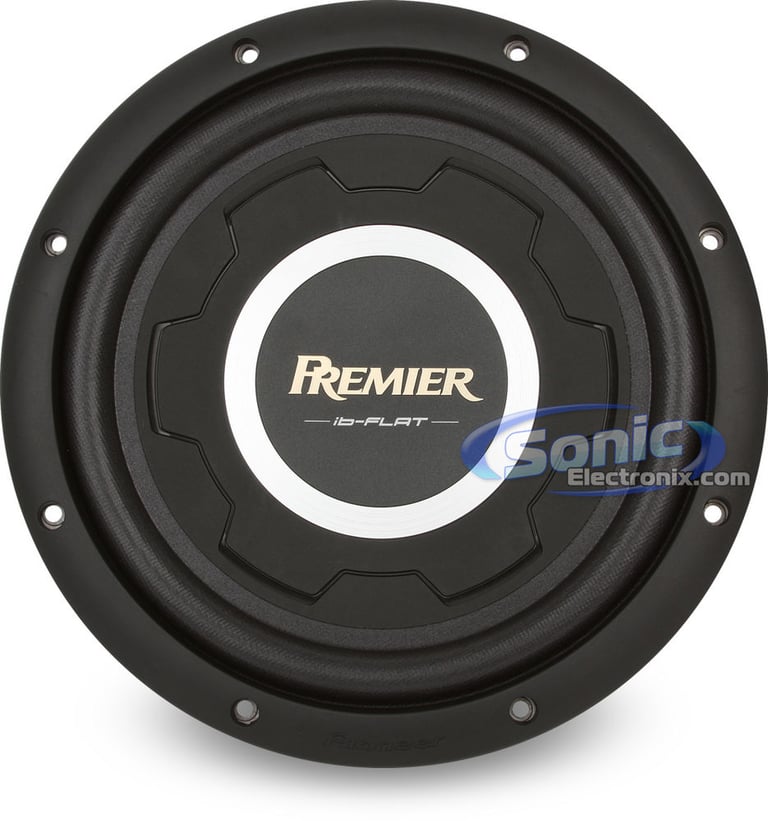

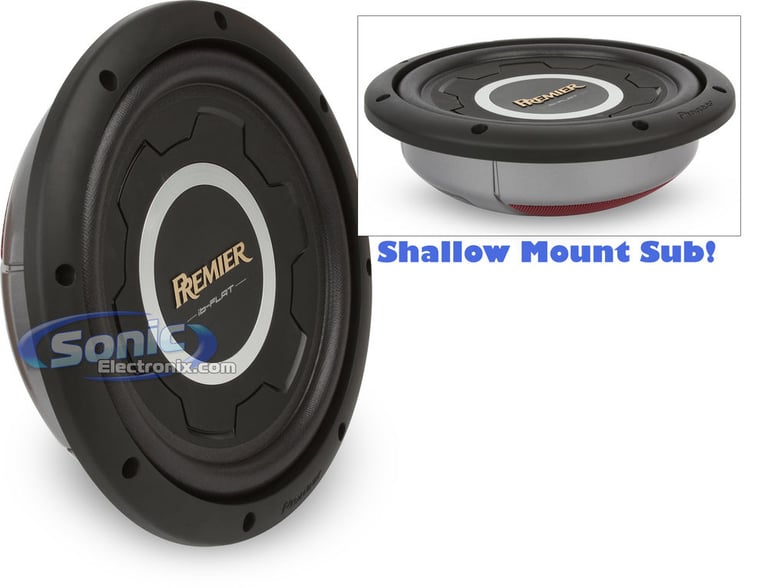

Shallow-mount 12" Single 2 ohm Subwoofer
Perfect for mounting underneath seats, behind seats, and in other locations that do not have a lot of space
Power Handling:

Peak: 1500 watts
RMS: 400 watts

Impedance: Single 2 ohm
Double cone with air suspension control system
Interlaced basalt/carbon fiber reinforced IMPP cone
Basalt interlacing in the cone produces natural bass, while being lightweight and rigid
3-Layer fiber woven radial surround with M-shape cross-section

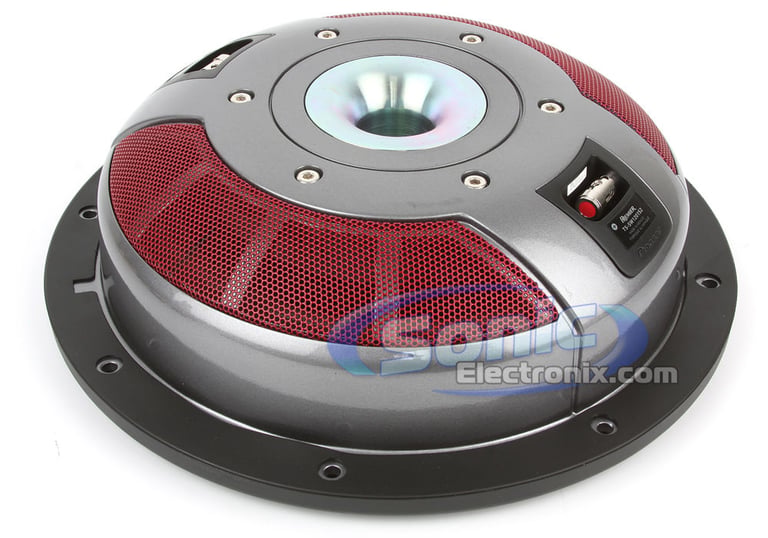

Cast aluminum basket with fin-shaped design
Air Suspension system locks air in-between the main cone and the drive cone to create a spring like effect
Spiderless design is made possible with the Air Suspension system
Spring compression wire terminals
T-Pole yoke top plate
Projected pole yoke with a vented pole
Dual 4 layer with long voice coils
Aluminum voice coil wire
Phenol resin glass cloth voice coil bobbin
Strontium magnet
Ideal for small box installations, requiring only 0.5-1.0 cubic feet of air space
Frequency response: 20-230 Hz
Sensitivity: 93 dB
1-year SonicElectronix.com warranty

Product history:

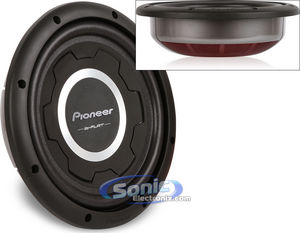

	Pioneer TS-SW3001S2 (newest, current model)
	Pioneer Premier TS-SW1201S2 (previous model, replaced by Pioneer TS-SW3001S2)

Subwoofer Wiring Guide

Wiring Guide to Wire 1 Pioneer Premier TS-SW1201S2 Subwoofer

Mono Amp

Wiring Guide to Wire 2 Pioneer Premier TS-SW1201S2 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer Premier TS-SW1201S2 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Pioneer Premier TS-SW1201S2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp

Specifications & Details

Subwoofer Specifications

Subwoofer Size

12"

Peak Power Handling

1500 watts

RMS Power Handling

400 watts

Voice Coil(s)

Single

Impedance (Per Voice Coil)

2 ohms

Frequency Response

20 - 230 Hz

Sensitivity

93 dB

Xmax (millimeters)

5.8 mm

Subwoofer Design

Round / Circle

Main Cone Color

Black

Woofer Composition

Injection Molded Polypropylene with Carbon, Glass Fiber

Woofer Surround

Fiber Woven Radial

Subwoofer Grille

Re-Cone Kit Available

Recommended Enclosure Specifications

Recommended Enclosure Type

Ported / Vented
Sealed

Minimum Sealed Box Volume

.5 cubic feet

Maximum Sealed Box Volume

1 cubic feet

Minimum Ported Box Volume

.65 cubic feet

Maximum Ported Box Volume

1 cubic feet

Top-Mount Depth (Mounting Depth)

3-3/16"

Cutout Diameter

10-7/8"

Shallow Mount Installation

Yes

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Sonic Electronix

Customer Ratings & Reviews

Rate or review product

Overall rating distribution

5 star		67%
4 star		33%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4.7
Value		5
Features		4.7
Design		4.5
Usability		4.9

Customer Reviews

Sort by:

Flat sub, full-sized performance!!!

This has to be the best flat sub woofer on the market in terms of value and performance. This sub woofer can be used in very small sealed enclosures, and being a flat sub it surprisingly works well in a ported enclosure as well! I built an enclosure in my 08 Sport Trac, built to manufacturer specs, and it is loud, accurate, and handles lots of power.

By Robin on August 23, 2010

found this helpful.

Helpful? Report abuse

Great Product

These speakers don't lack quality or sound due to the slim style! Excellent product and a great value!

By jason on March 28, 2010

found this helpful.

Helpful? Report abuse

Great Sub!!

I have a 12" 2ohm svc version of this sub in the trunk of my SC300... Just one... powered by a JL audio 500/1 amp...and it surprised me.... I am planning on getting two 10" and power them by another JL 500/1 amp for my 08 Tahoe.... This sub requires minimal air space and thumps pretty hard... It is NOT just a pickup truck speaker... and a one in the trunk will rattle your rear view LOL...

By Robert on March 5, 2011

found this helpful.

Helpful? Report abuse

Great Value!

Great sub for the price. Sounds good but do not over power it. I fried mine just running 500W RMS.

By Tim on May 9, 2010

Helpful? Report abuse

Great Product

Very High Sensitivity - good thing! Rolls off steeply at 35Hz. Just perfect for my application. Great for spare wheel well install. Need Poly-fil to maximize bass output. Running 350 RMS. No problems yet.

By Edge on March 2, 2010

Helpful? Report abuse

Impressed

Wow this sub was surprising! I currently have one running under the back seat of my f150 in a custom box with an rms of 300 watts. IT sounds great. It doesn't have that much thump as I have noticed with regular sub but its sound reproduction was very noticeable. IT does a great job on reproducing low notes and sounds great with rap, hip hop, country, rock, pop you name it.

By Get low on July 30, 2010

Helpful? Report abuse
