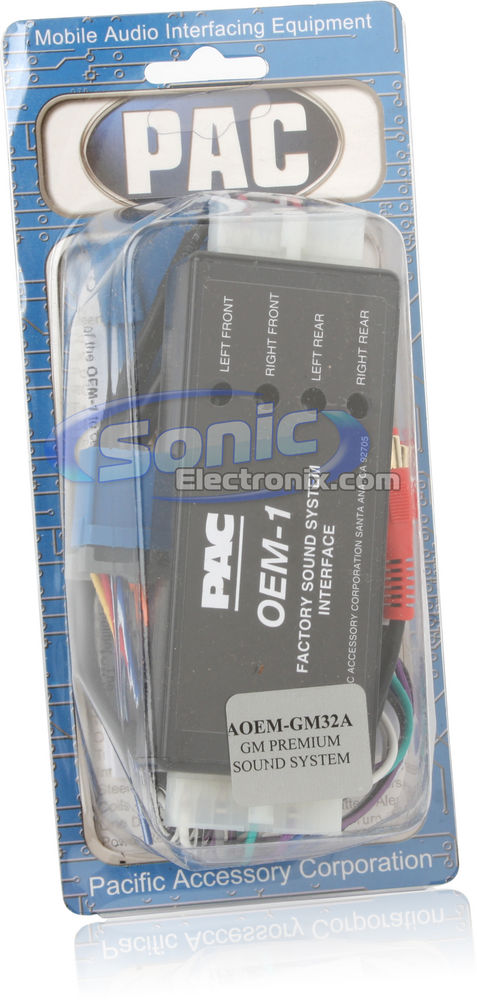

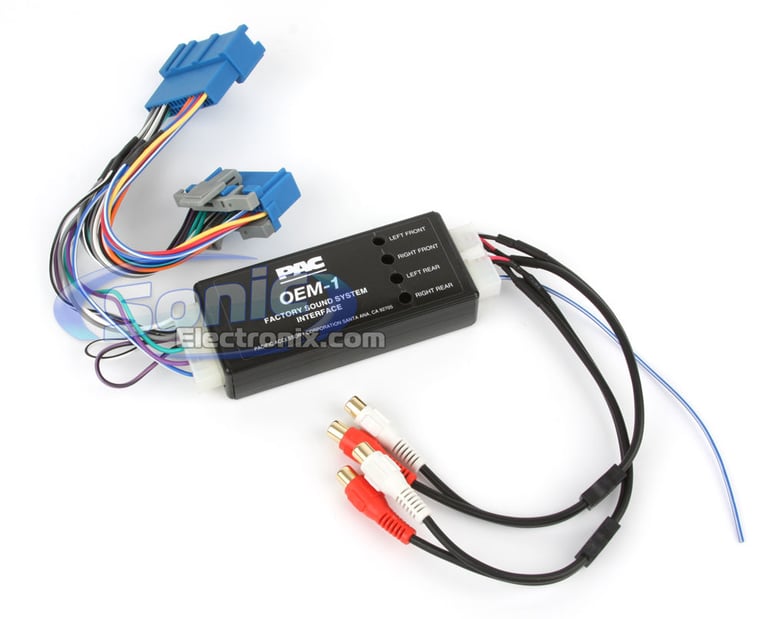

PAC AOEM-GM32A

Interface that Allows Replacement or Addition of an Amplifier in Select GM Vehicles with Premium Delco / Bose Sound System

PAC
Shop all PAC
highlight-star-icon

Allows the Replacement or Addition of an Amplifier in Select GM Vehicles With A Premium Delco/Bose Sound System • Interface Is Transformer Isolated • Maintains Phase • Linear From 20-20,000Hz • Provides 2:1 Gain

Learn more about the aoemgm32a

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
40-GM10 main

Metra 40-GM10

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

54
95-3304 main

Metra 95-3304 Dash Kit

Install a new Double-DIN car stereo in select 2005-2013 vehicles from Chevrolet, Hummer, Buick (Matte Black)

6
-12.00%

$21.99

List price $24.99

AXDI-CL2 main

Axxess AXDI-CL2

Install a New Car Stereo and Retain Steering Wheel Controls, Factory Chimes, and Other Factory Features in select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

10
-10.75%

$82.99

List price $92.99

Description


PAC brand icon

Authorized dealer

General Features:
  • Interface that Allows the Replacement or Addition of an Amplifier in Select GM Vehicles with a Premium Delco/Bose Sound System
  • Interface is transformer isolated
  • Maintains phase
  • Linear from 20-20,000 Hz
  • Provides 2:1 gain and infinite attenuation
  • Input connectors plug into factory stereo and vehicle harness
  • Four female RCA output jacks connect to amplifier
  • 1-year Manufacturer's warranty
Compatible with the following vehicles:
  • Oldsmobile:
    • 1998 - 2000 Bravada

    This AOEM Kit Includes the following:

    Connections:
    • Yellow – 12V Constant
    • Red – 12V Accessory
    • Black - Ground
    • Orange – Dash Light Dimmer/Illumination
    • Green – Left Rear Speaker (+)
    • Green with Black Stripe Left Rear Speaker (-)
    • White – Left Front Speaker (+)
    • White with Black Stripe – Left Front Speaker (-)
    • Purple – Right Rear Speaker (+)
    • Purple with Black Stripe – Right Rear Speaker (-)
    • Gray – Right Front Speaker (+)
    • Gray with Black Stripe – Right Front Speaker (-)
