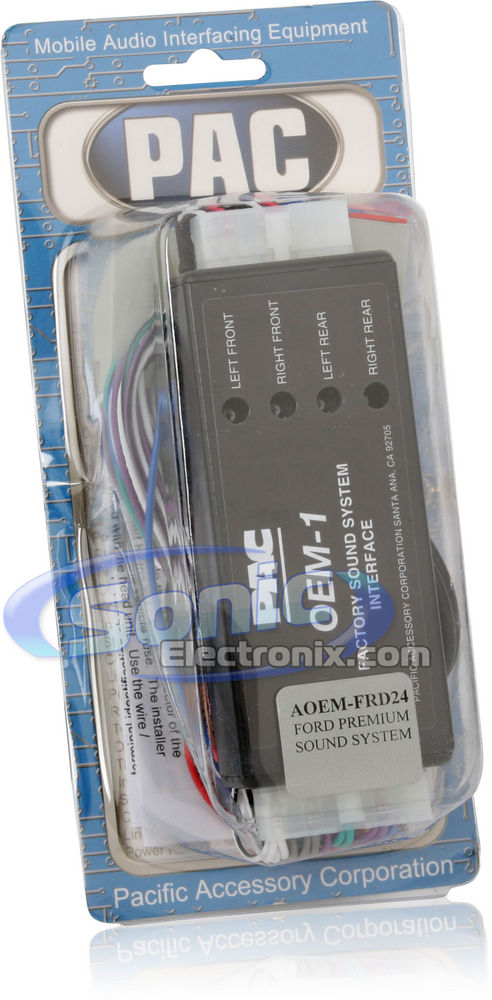

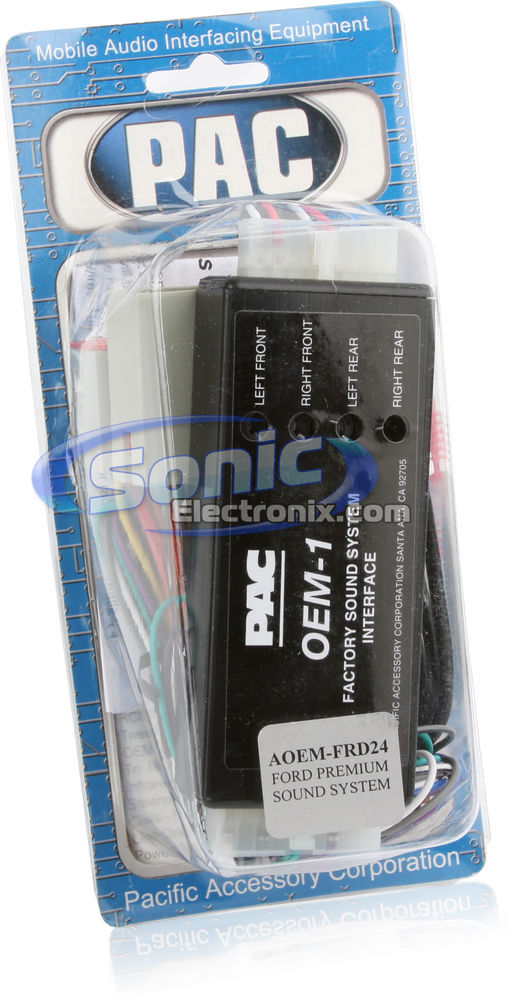

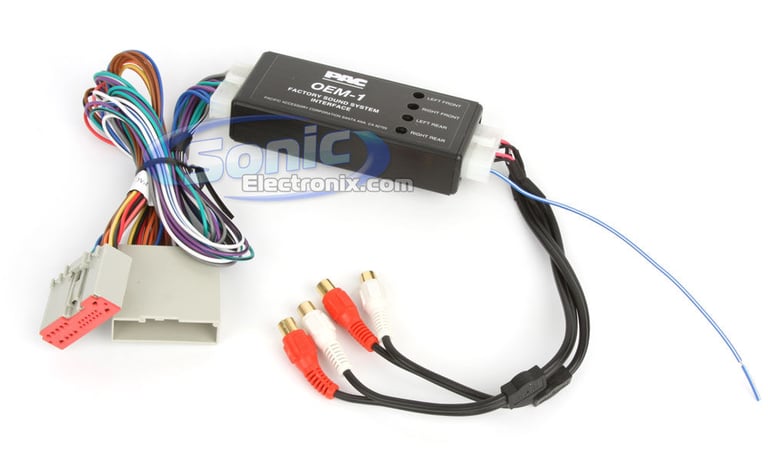

PAC Ford Amplifier Integration Interface (AOEM-FRD24) Open Box, Very Good Condition (Used)

Product Features:

• Interface that Allows the Replacement or Addition of an Amplifier in Select Ford Vehicles without Factory Amplified THX or Sony amplified systems
• Not compatible in vehicles equipped with the THX or Sony amplified systems
• Plug in installation retains factory wiring integrity
• Interface is transformer isolated
• Maintains phase
• 4 channel RCA output
• Amplifier turn-on trigger wire
• Linear 20-20,000Hz sound reproduction based on input signal
• Provides 2:1 gain and infinite attenuation

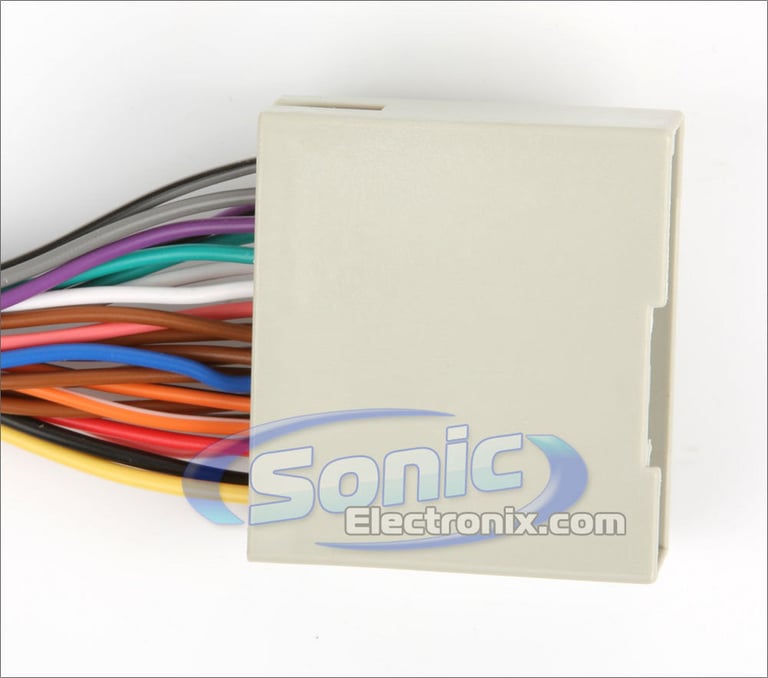

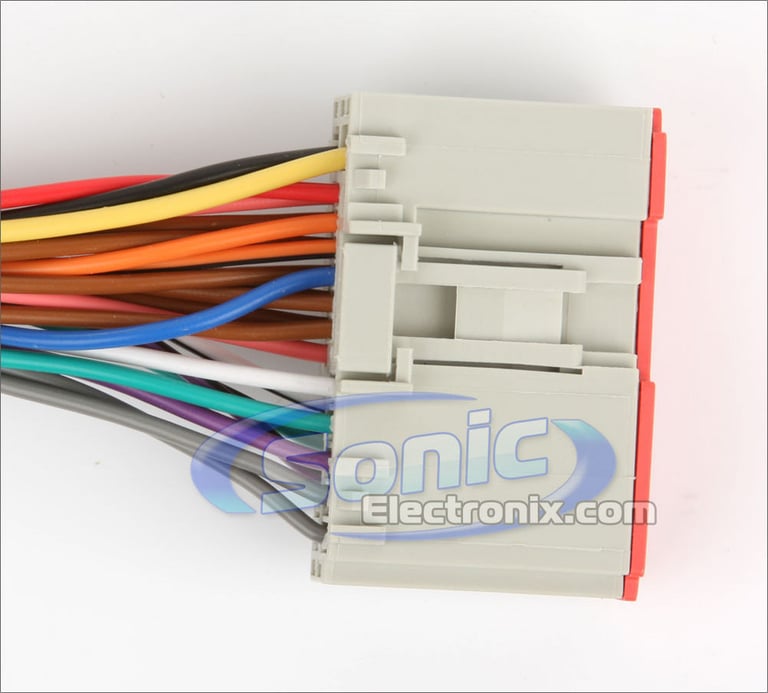

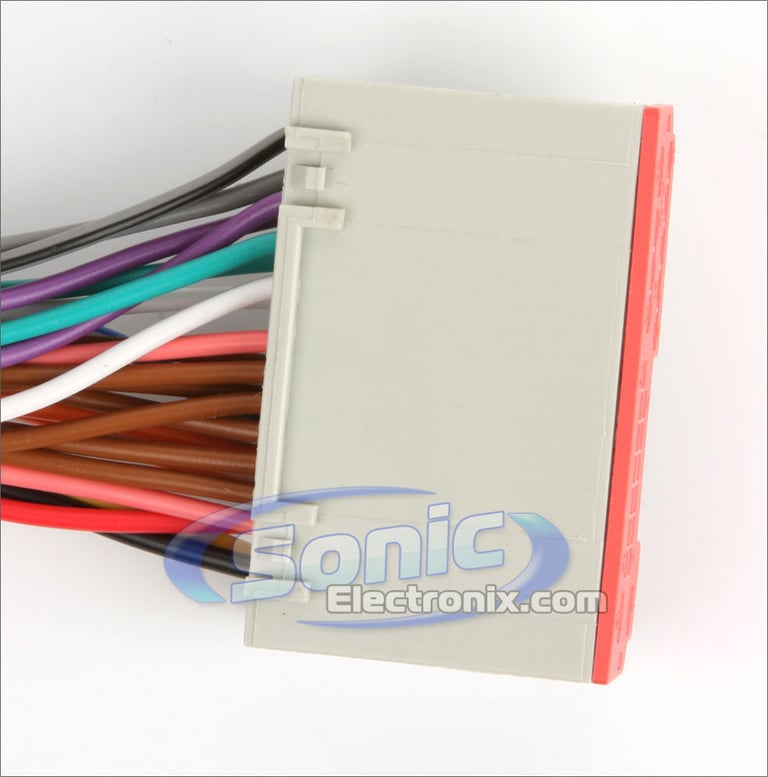

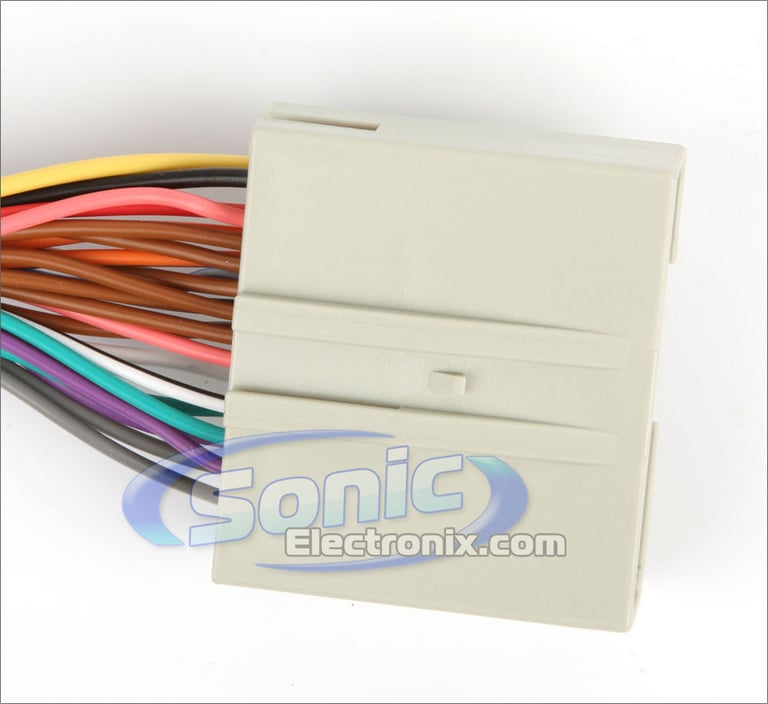

• Input connectors plug into factory stereo and vehicle harness
• Four female RCA output jacks connect to amplifier
• 90 Day Sonic Electronix Warranty

Compatibility List:

• Ford:
• 2007 - 2009 Edge
• 2005 - 2010 Escape
• 2005 - 2005 Excursion
• 2004 - 2010 Expedition
• 2006 - 2010 Explorer
• 2007 - 2010 Explorer Sport Trac
• 2004 - 2012 F-150
• 2005 - 2010 F-250
• 2005 - 2010 F-350
• 2005 - 2010 F-450
• 2005 - 2007 Five Hundred
• 2009 - 2009 Flex
• 2005 - 2010 Focus
• 2004 - 2007 Freestar
• 2005 - 2007 Freestyle
• 2006 - 2010 Fusion
• 2005 - 2014 Mustang
• 2008 - 2010 Taurus
• 2008 - 2009 Taurus X
• Lincoln:
• 2006 - 2008 Mark LT
• 2009 - 2009 MKS
• 2007 - 2010 MKX
• 2007 - 2010 MKZ
• 2003 - 2010 Navigator
• 2006 - 2006 Zephyr
• Mercury:
• 2005 - 2010 Mariner
• 2006 - 2010 Milan
• 2005 - 2007 Montego
• 2004 - 2007 Monterey
• 2006 - 2010 Mountaineer
• 2008 - 2009 Sable

This AOEM Kit Includes the following:

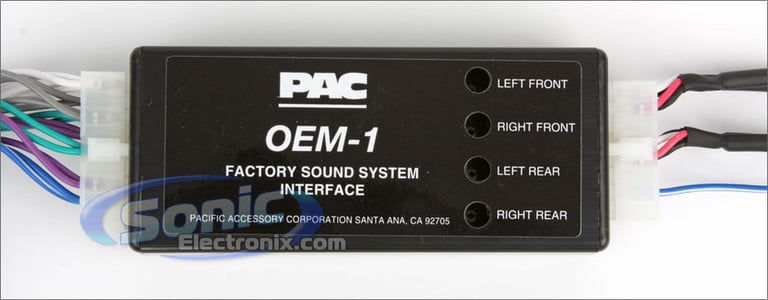

• PAC OEM-1
• PAC AMP-RCA
• PAC ADD-FRD24

Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)
