See all parts that fit your 2016 Sierra 3500 HD

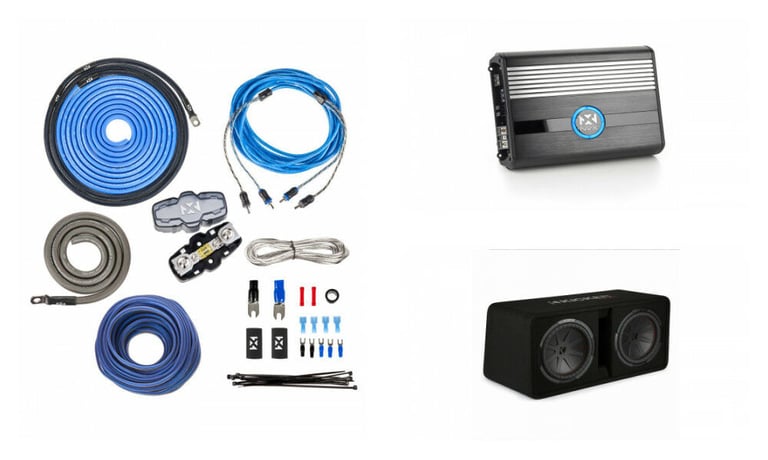

Kicker 48DCWR122 + NVX BDA7501 Amplifier + 4 Gauge Amp Wiring Kit

2000W Max (1000W RMS) 12" Subwoofers in a Vented Enclosure + True 1500W Peak Amplifier + XKIT42

Kicker
Shop all Kicker
Lowest price in 30 days
highlight-star-icon

• 1000 Watts RMS
• 2000 Watts Max
• Polypropylene Cone
• Ribbed Santoprene Surround
• Frequency Response: 25 - 500Hz
• Sensitivity: 98dB
• MDF enclosure construction
• Custom Kicker embroidery

Learn more about the 48dcwr122_bda7501_xkit42

We apologize

This item has been discontinued


Loading...
82-3006 main

Metra 82-3006

6" to 6.75" Speaker Mounting Adapter for select 2003-2024 vehicles from Chevrolet, GMC, Cadillac

23
-50.01%

$16.99

List price $33.99

72-4573 main

Metra 72-4573

Install New Tweeters or Speakers in select 2015-2024 vehicles from GMC, Chevrolet, Cadillac

6
FRING65 main

NVX FRING65

Universal 6.5" or 6.75" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

43
-10.01%

$17.99

List price $19.99

C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42

JBL Stage3 637F (STAGE3637FAM)

270W Peak (90W RMS) 6.5" Stage3 Series 3-Way Coaxial 3-Ohm Speakers

2
-18.19%

$89.95

List price $109.95

Description


Kicker brand icon

Authorized dealer

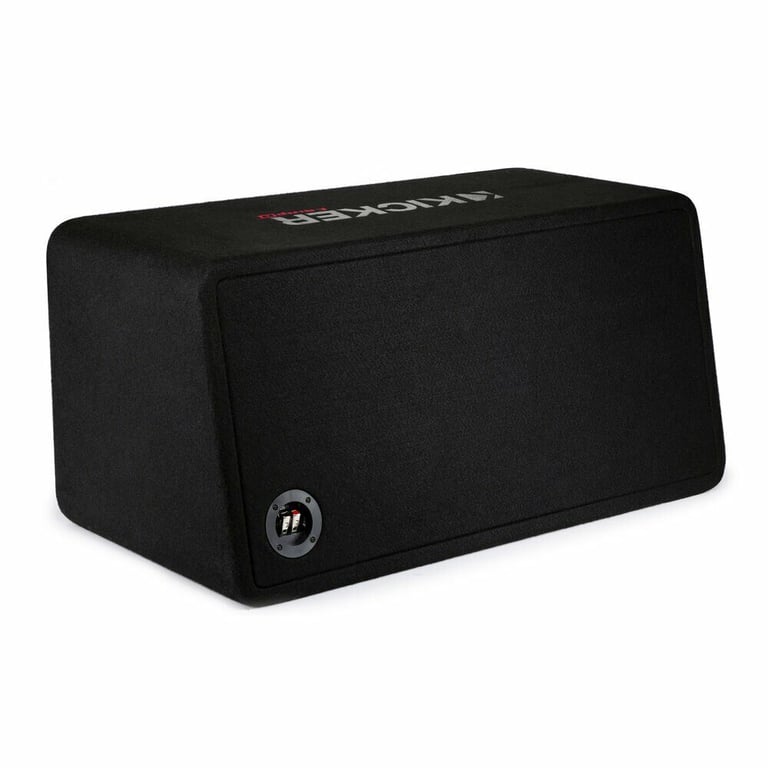

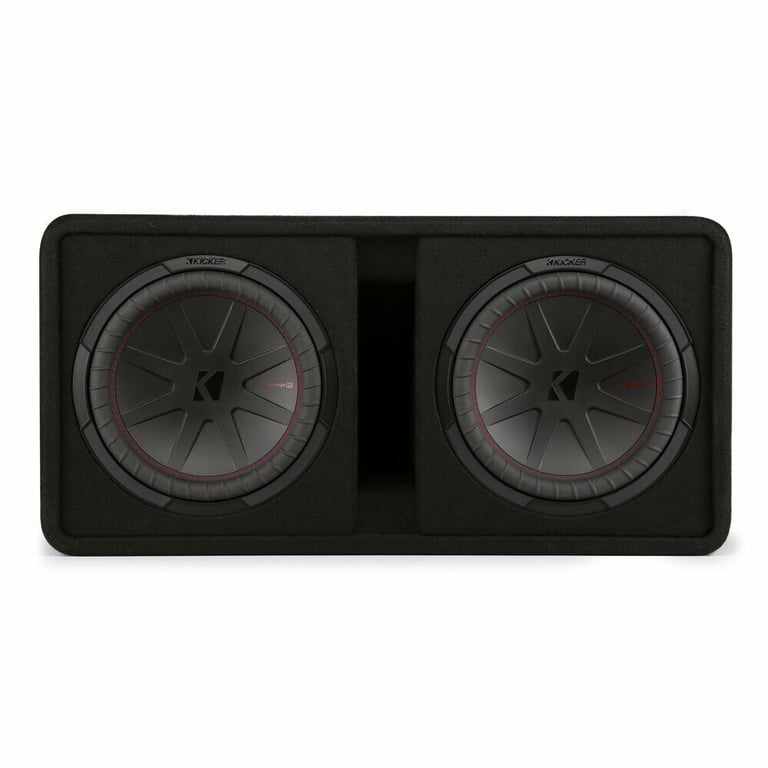

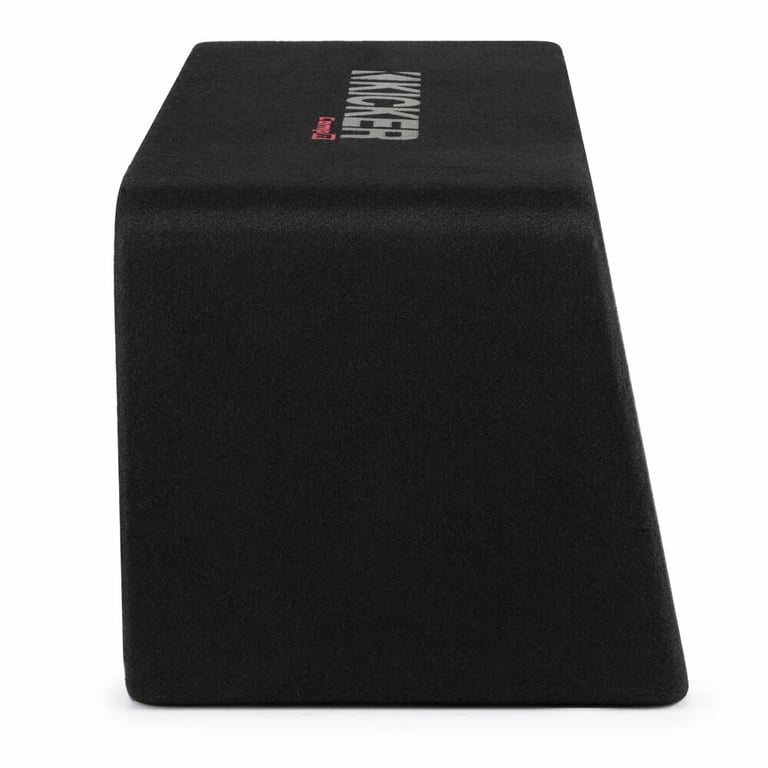

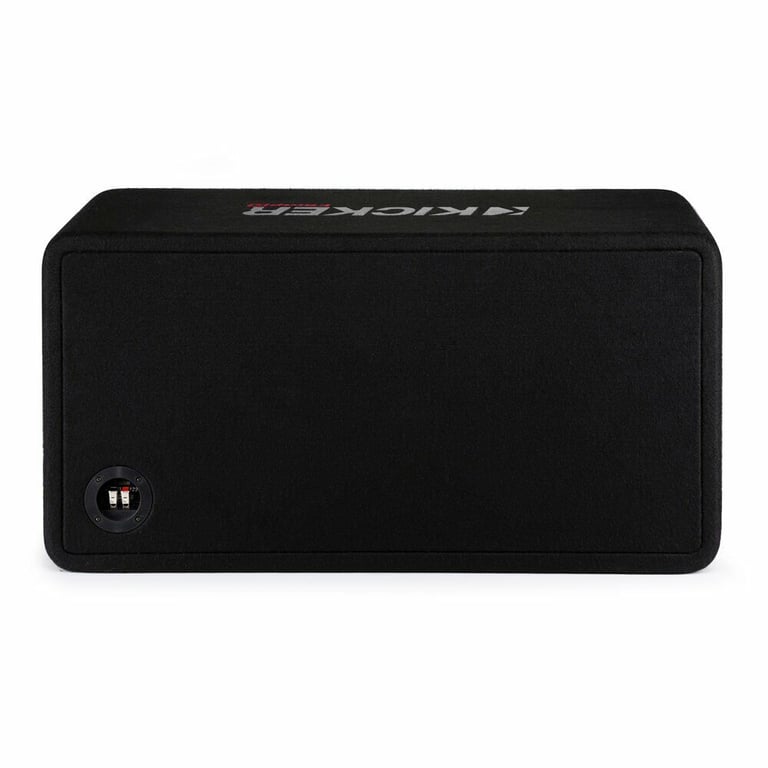

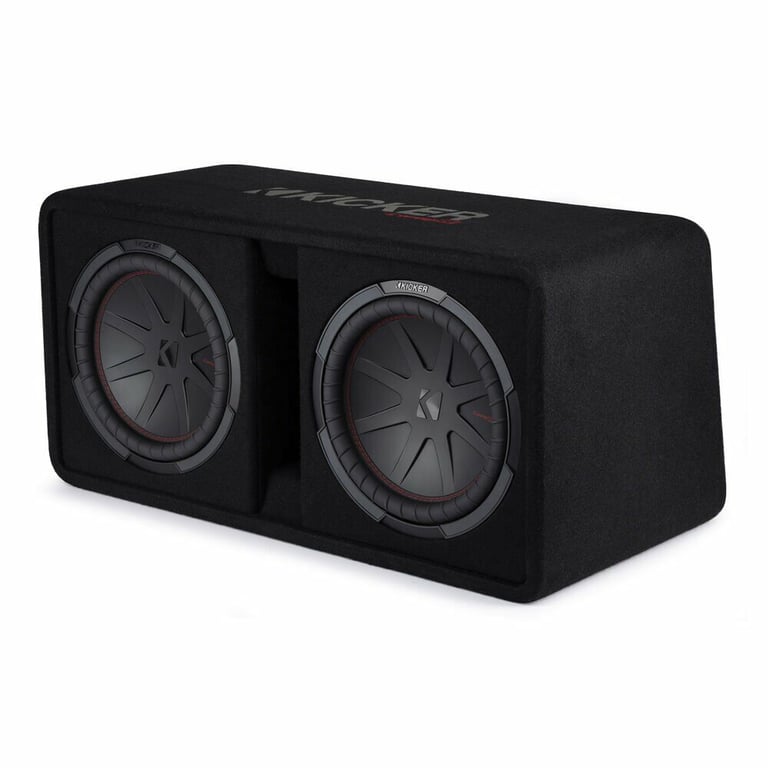

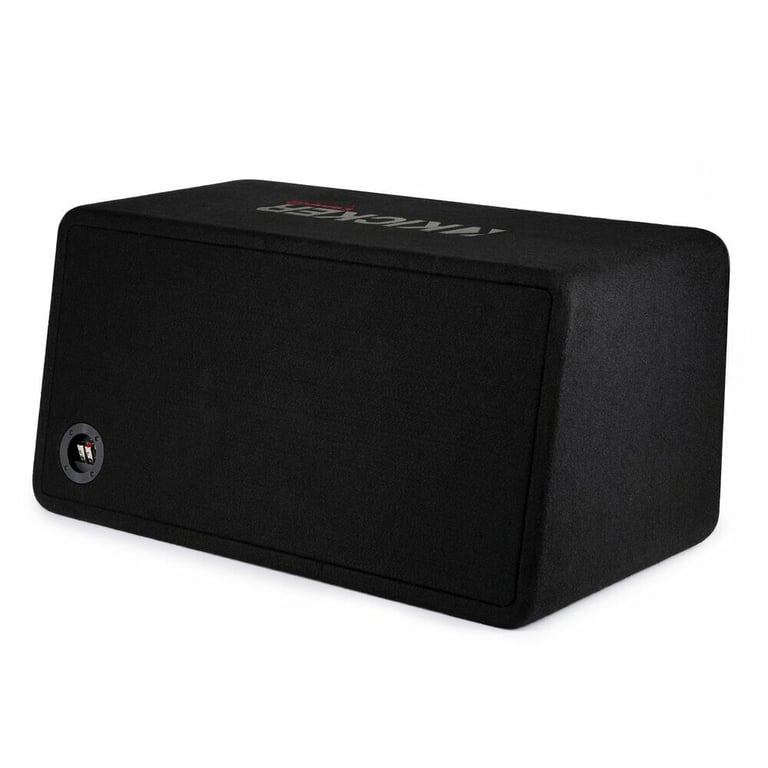

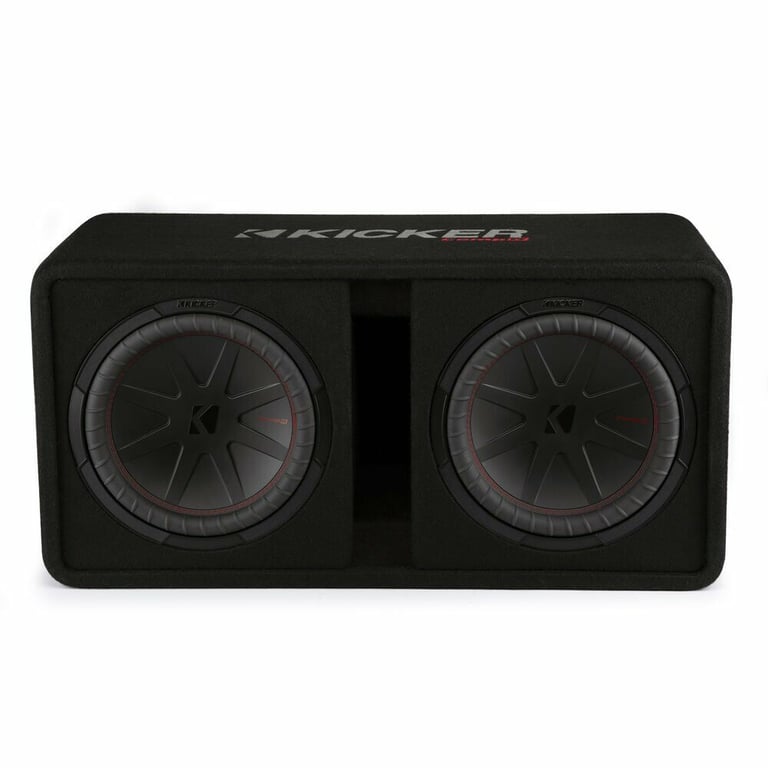

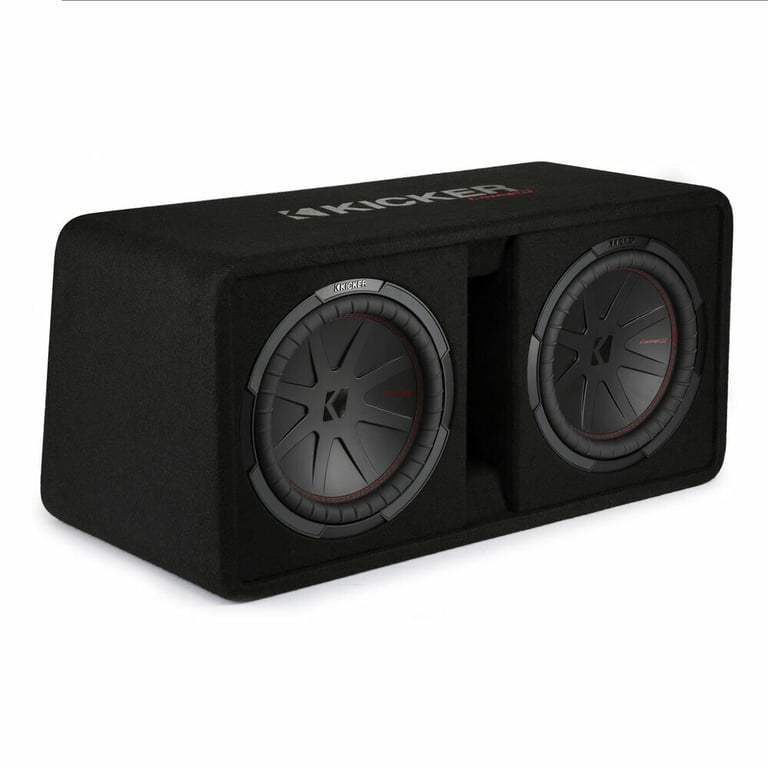

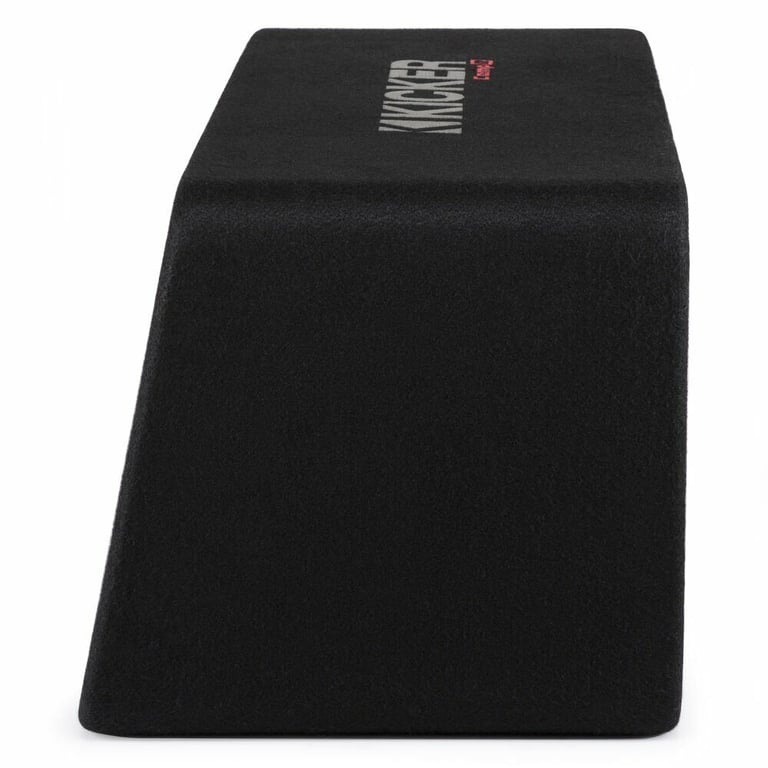

Kicker DCWR122 (48DCWR122)

2000W Peak (1000W RMS) Loaded Dual 12" Vented Enclosure
Quantity: 1

Product Details:

  • Ported enclosure with 2 12" CompR Series Subwoofer
  • Medium-density fiberboard construction covered with Carpet
  • Power Handling:
    • Peak: 2000 watts
    • RMS: 1000 watts
  • Final Impedance: 2-ohm
  • Polypropylene cone
  • Ribbed Santoprene surround
  • Extensive internal bracing
  • Suspension and heat management system
  • Vented back brace design
  • Forced air-cooling increases cooling to 25%
  • Front-facing tuned port design
  • Frequency Response: 25 - 500 Hz
  • Sensitivity: 95.8 dB
  • Dimensions: 32-3/8" L x 16" H x 14" W x 17-1/4" W2
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

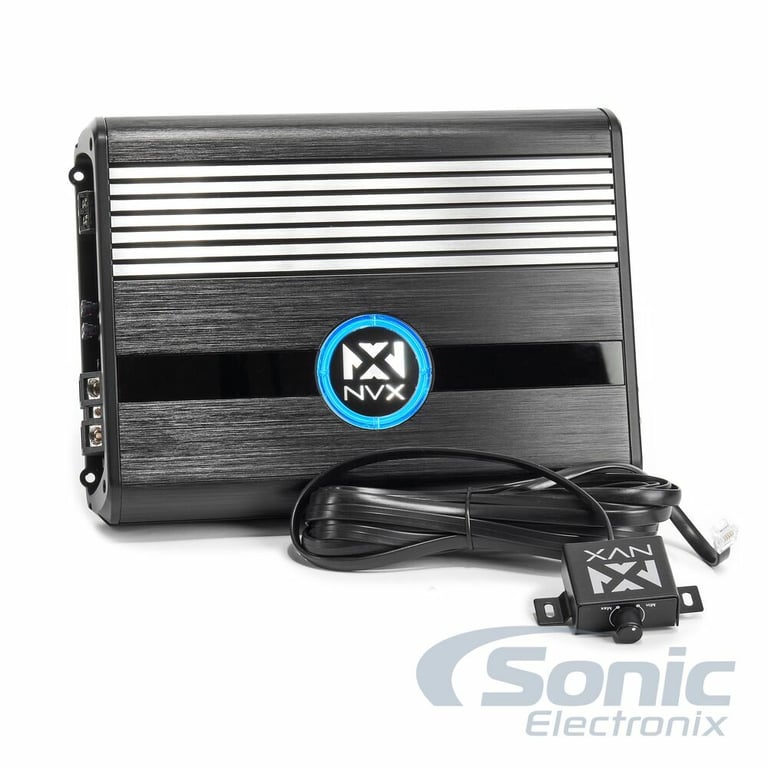

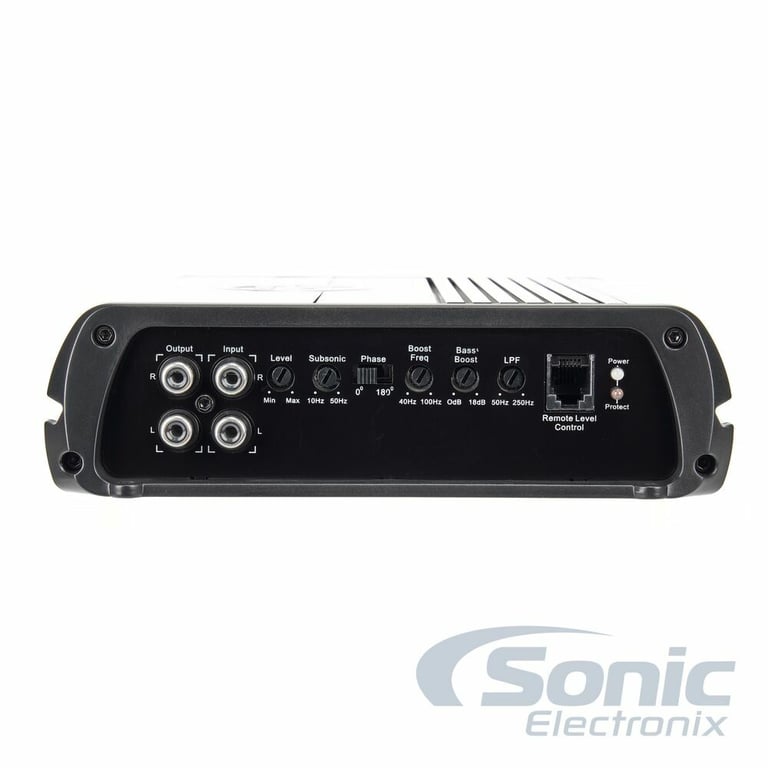

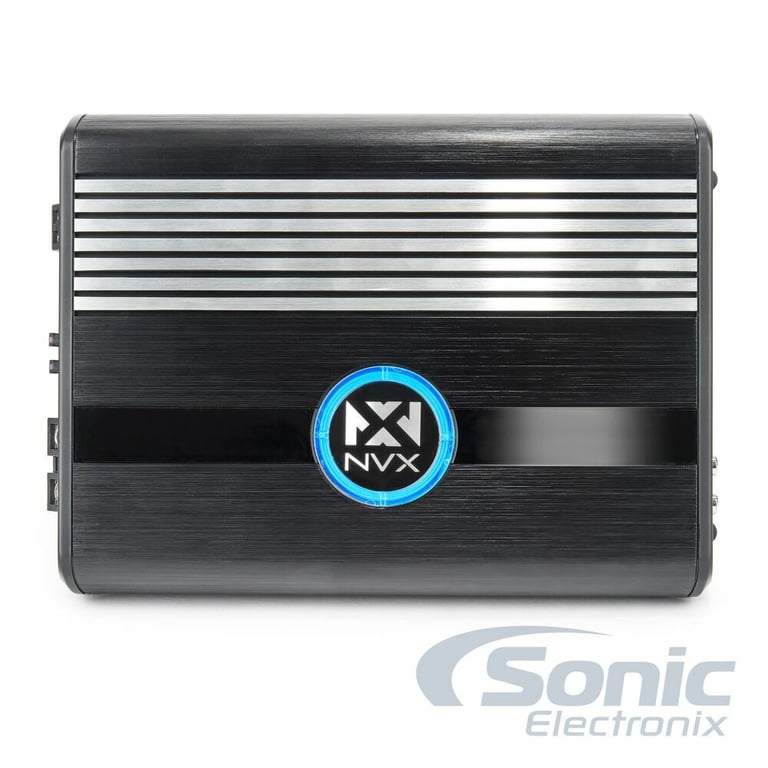

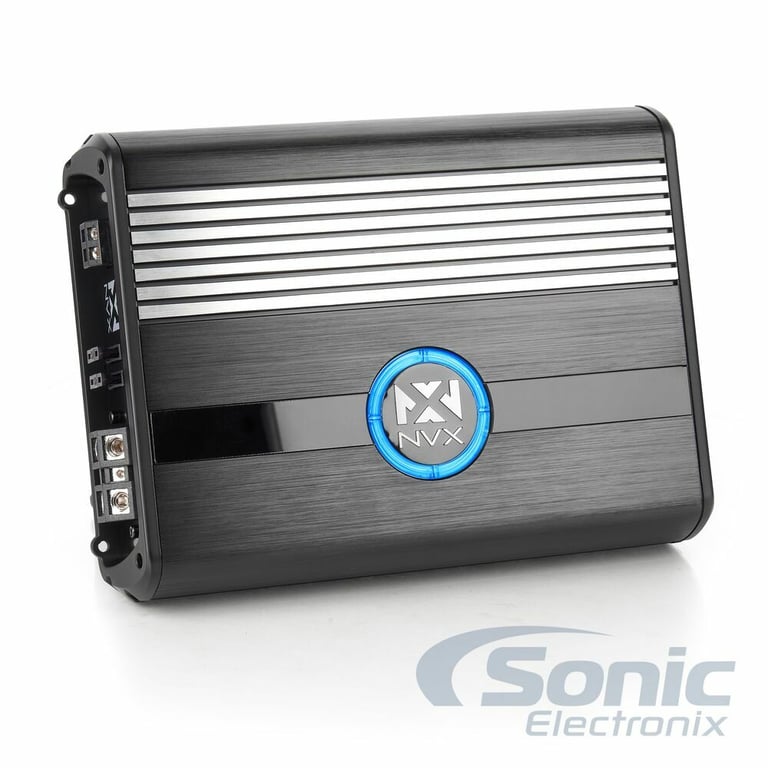

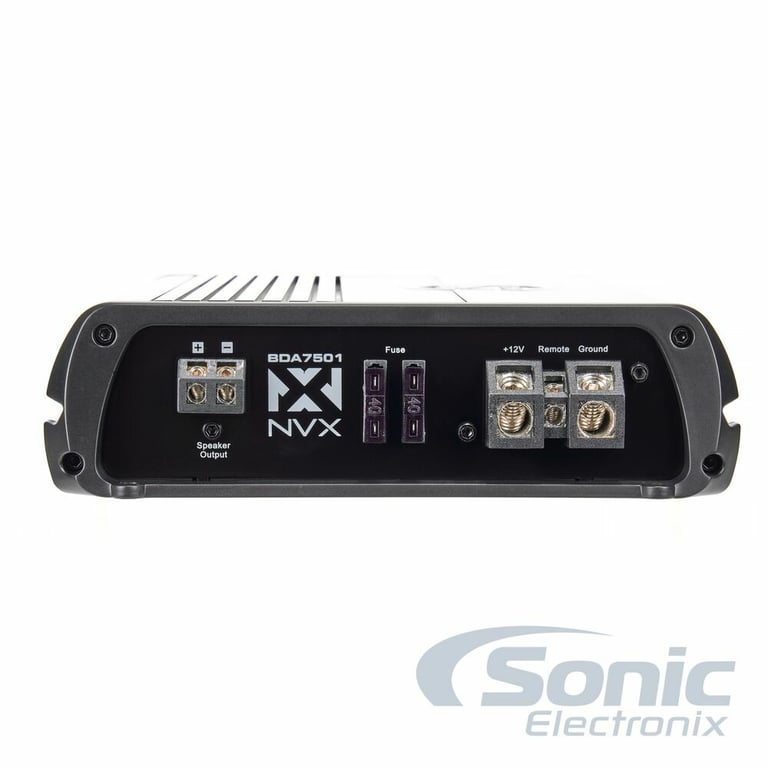

NVX BDA7501

750W RMS BD-Series Class D Monoblock 2-Ohm Stable Amplifier
Quantity: 1

Product Details:

  • NVX BDA7501
  • BD-Series Monoblock Class D Car Amplifier
  • True RMS Power Rating:
    • 4 ohm: 450 watts x 1 chan.
    • 2 ohm: 750 watts x 1 chan.
  • Sonic Electronix Certified Power Rating*:
    • 4 ohm: 451 watts x 1 chan.
    • 2 ohm: 782 watts x 1 chan.

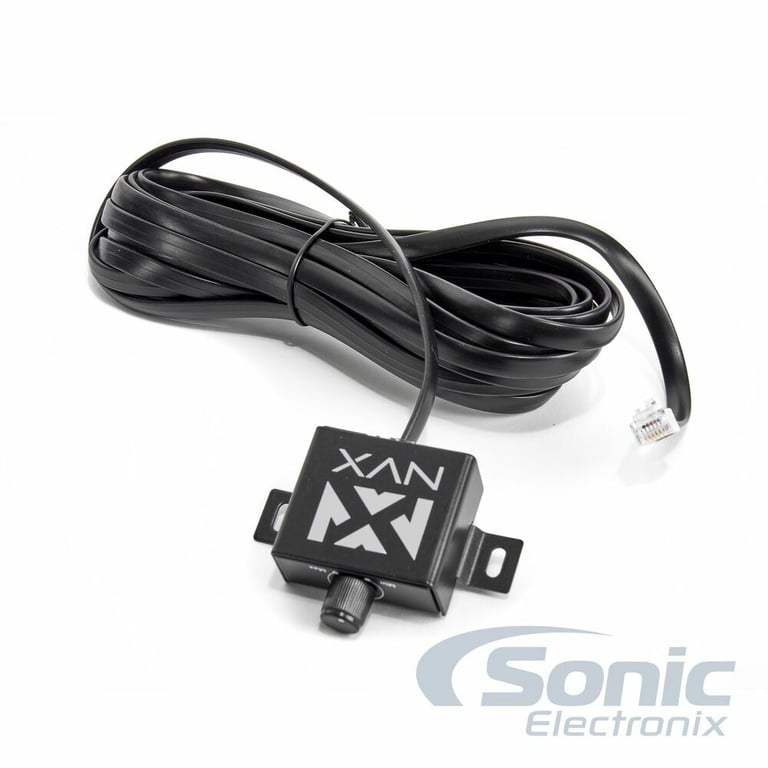

  • Wired remote bass level control included
  • Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
  • Mono channel operation
  • Variable low-pass filter (50-250 Hz, 24 dB/octave)
  • Subsonic filter (24 dB at 15 Hz)
  • Frequency Response: 20-500 Hz
  • Signal to Noise Ratio: 90dB
  • Input Sensitivity: .25-6.0 V
  • High quality platinum finish connections provide solid electrical connection and resist corrosion
  • Integrated overload, short circuit, thermal and reverse polarity circuit protection
  • 4 gauge power and ground wiring is required for installation
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 7"W x 9.75"L x 2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.

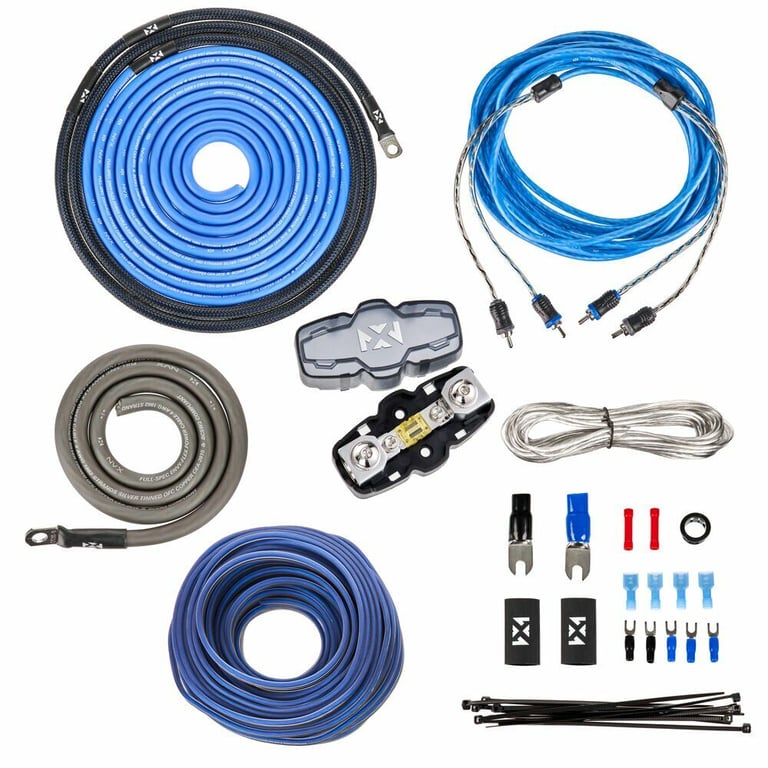

NVX XKIT42

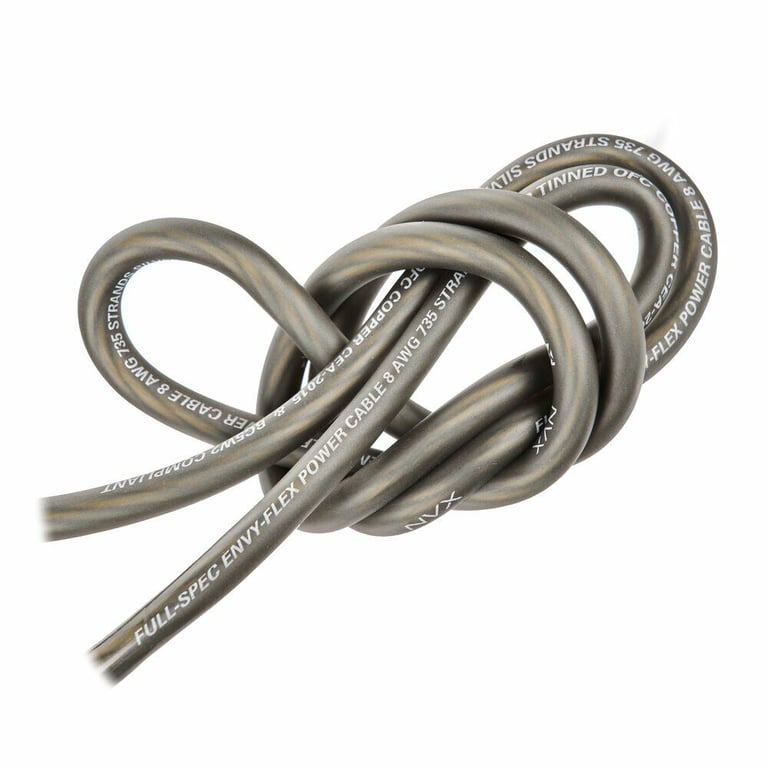

Full Spec 4 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1500 Watts
Quantity: 1

Product Details:

  • 4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1500 watts RMS
  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects the power wire from damage
  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant

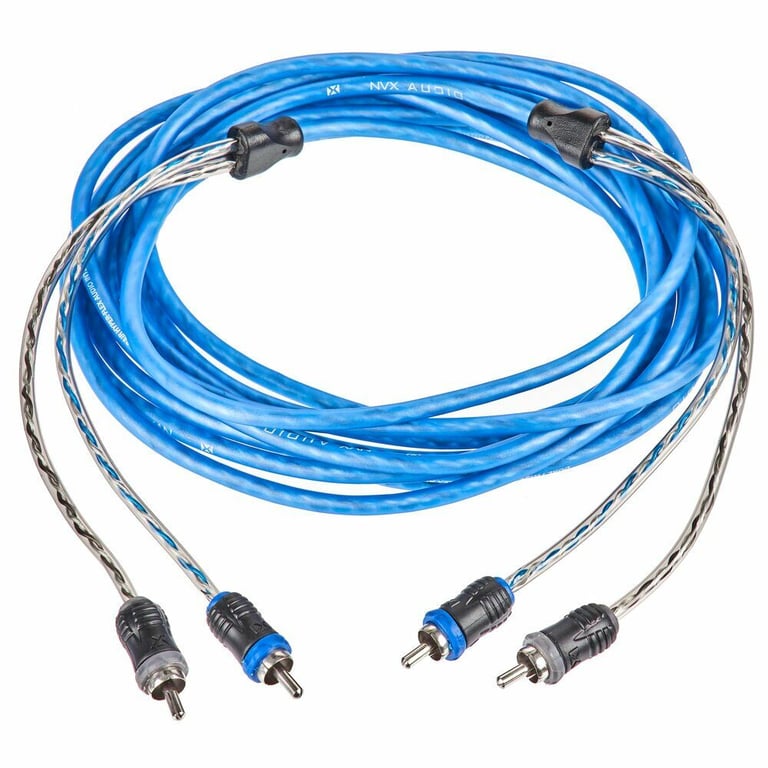

  • V-Series RCA Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Twisted-pair construction featuring two conductors per channel
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

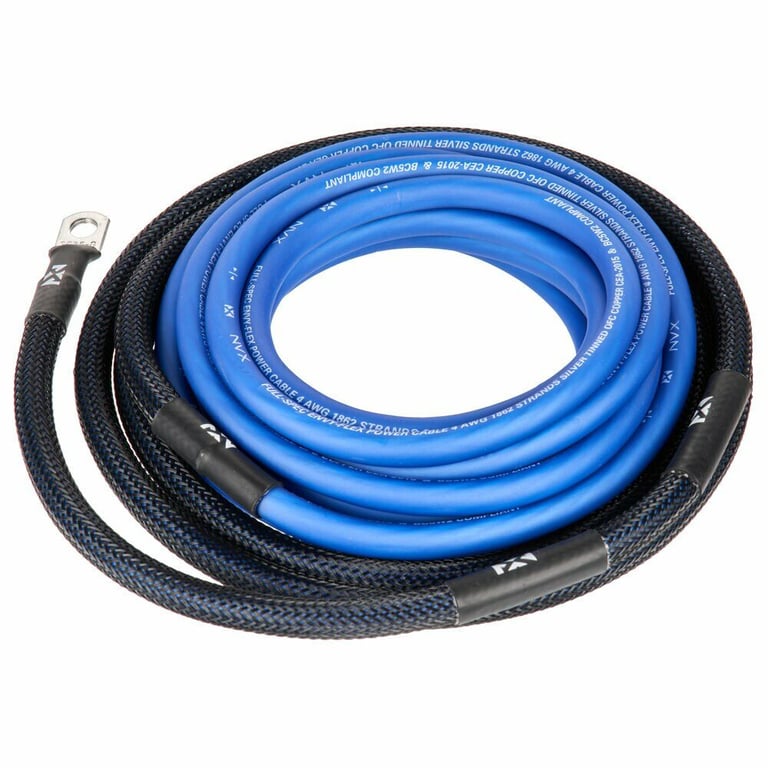

  1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal

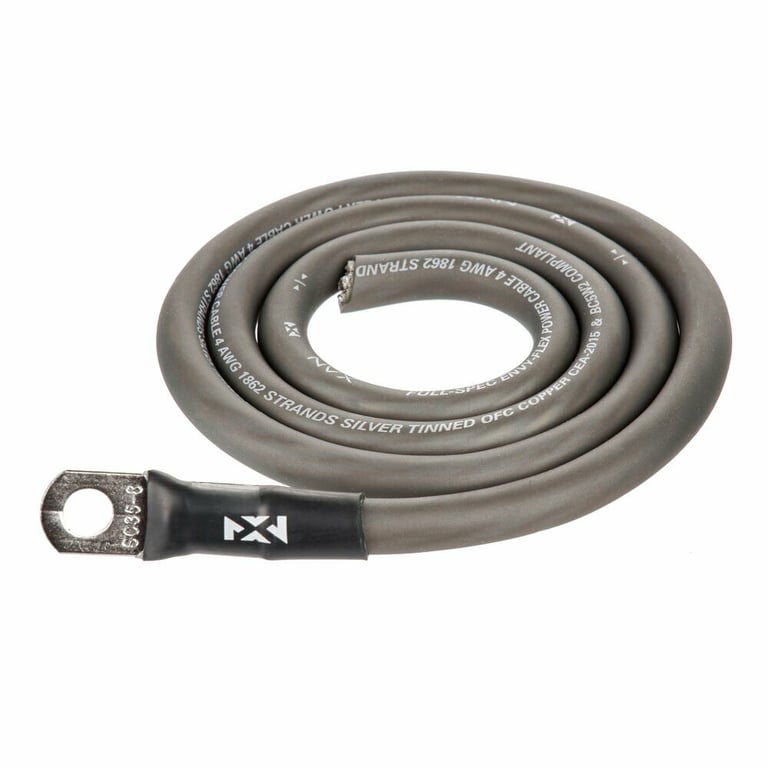

  2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal

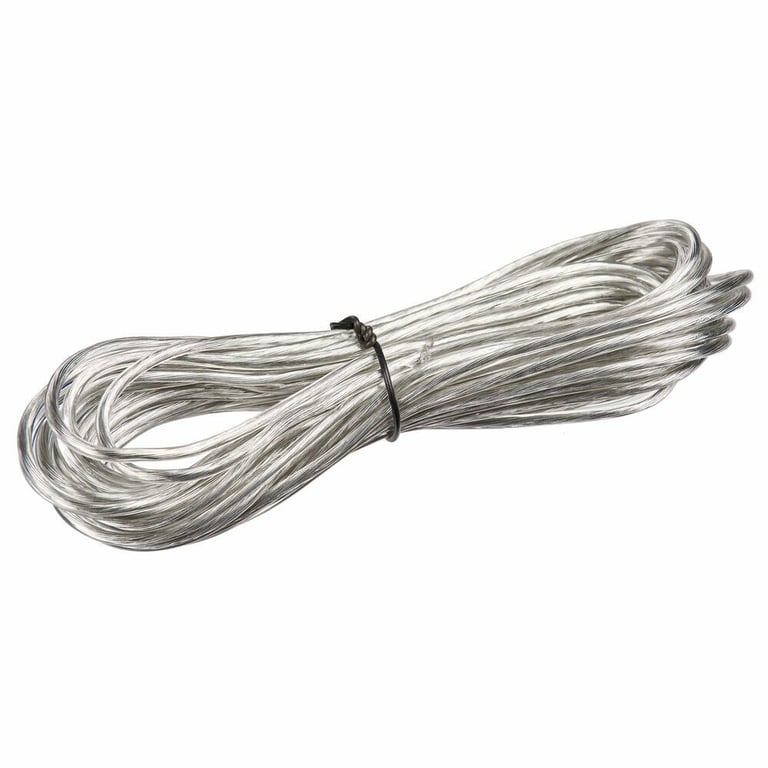

  3. 17 ft. Clear 18 gauge remote lead wire

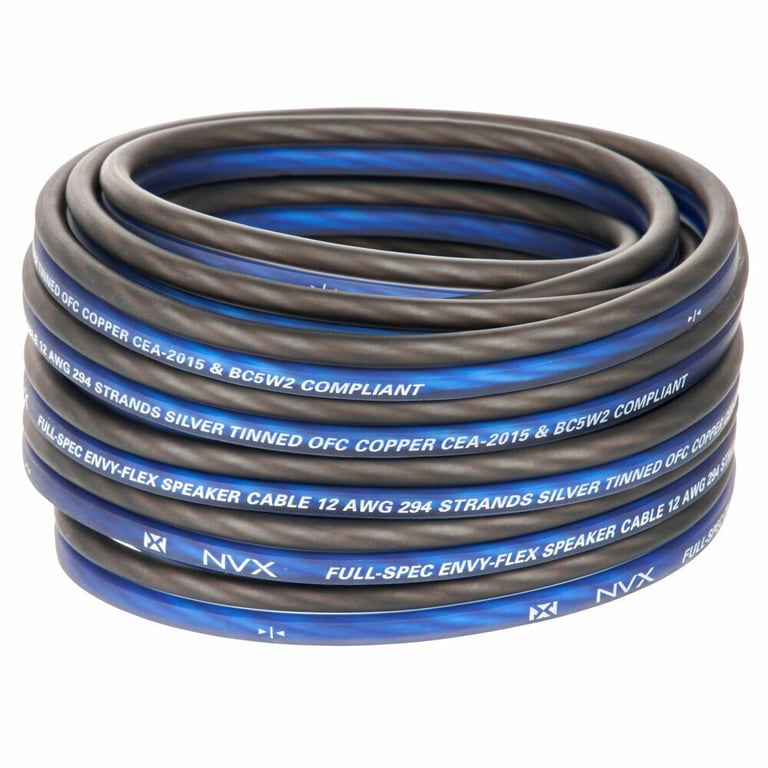

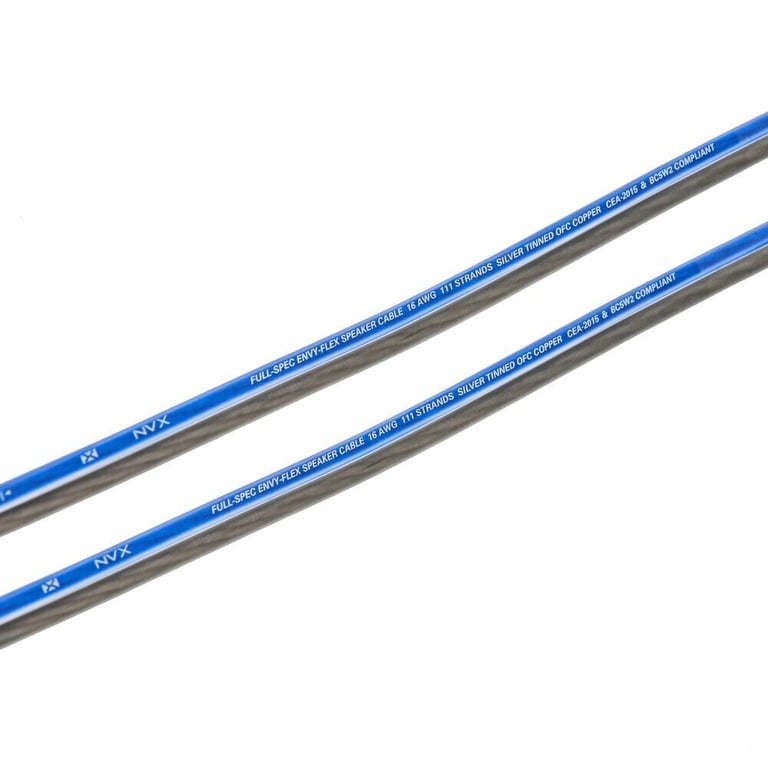

  4. 20 ft. Frosted Black/Blue 16 gauge speaker wire
  5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)

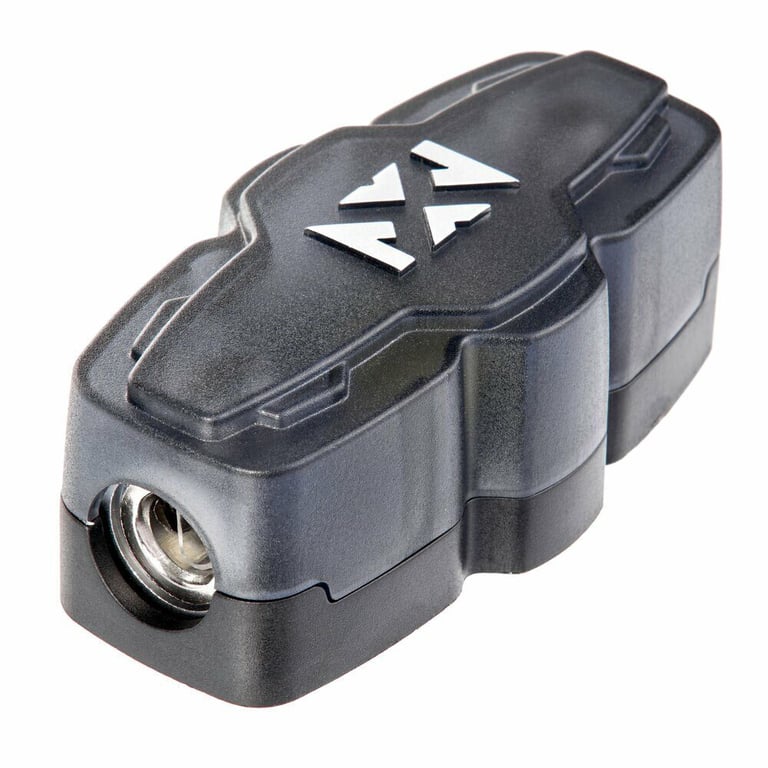

  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse

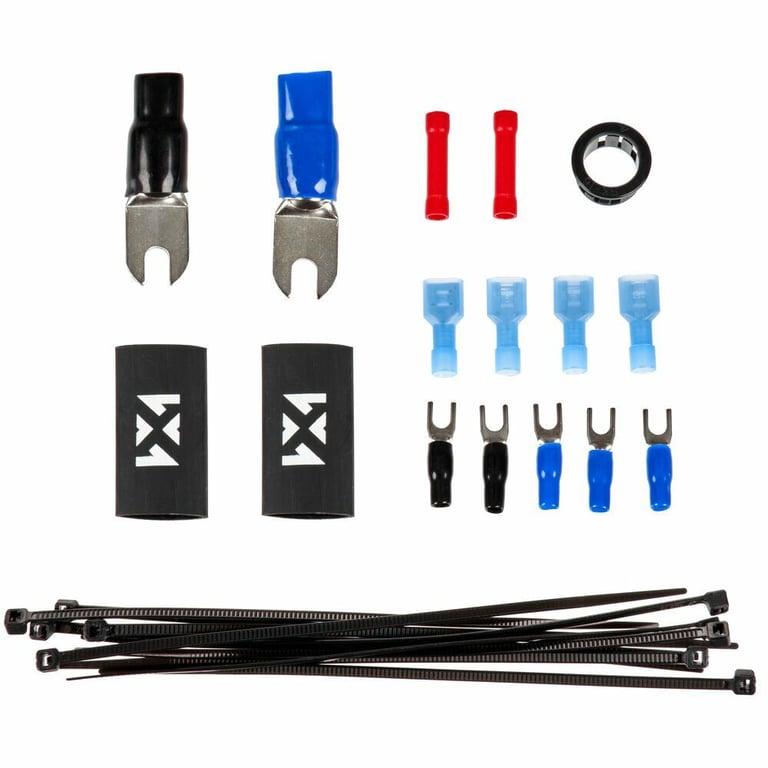

  7. One Black rubber firewall grommet
  8. Two 4 Gauge Nickel Plated spade terminals
  9. Four 18 Gauge Spade terminal
  10. Two 18 Gauge Red butt connectors
  11. Four 16 Gauge quick disconnect
  12. Five 16 Gauge Nickel Plated spade terminals
  13. Two Heat Shrink tubes with the NVX logo
  14. Ten 6" Black zip ties

Product history:
