NVX SDVK4 - 90mil 2.3mm THICK (4-Pack)

Versa Kit - 16 Square Feet of Sound Dampening Material (Four 18" x 32" Piece)

NVX
Shop all NVX
highlight-star-icon

• Eliminates Road Noise

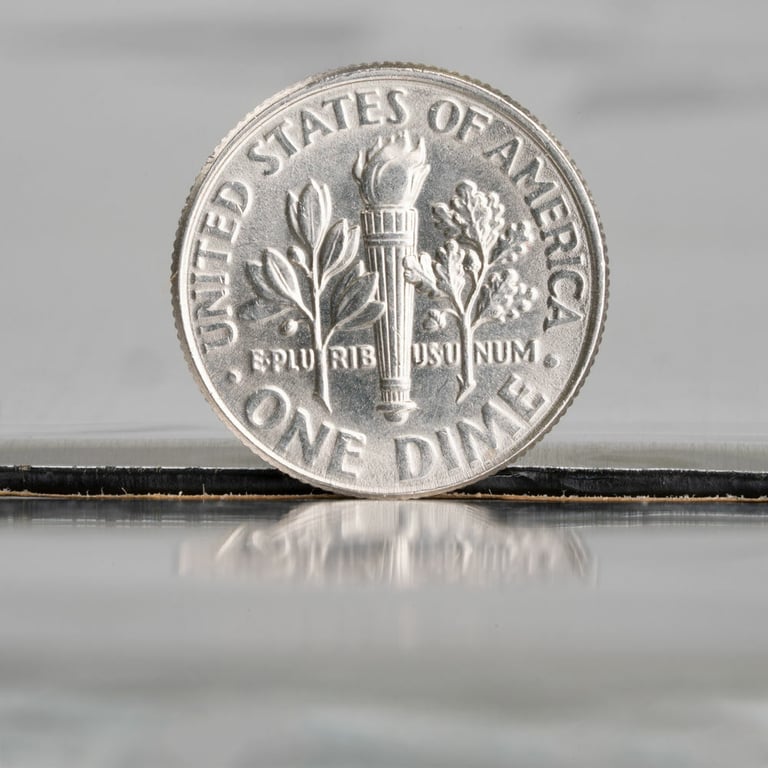

• 2.3mm (90.55mil) thick for better performance
• Quiets Vibrations
• Stops Rattles
• Increases SPL
• Reduces Heat
• Simple To Install
• Easy To Form Aluminum

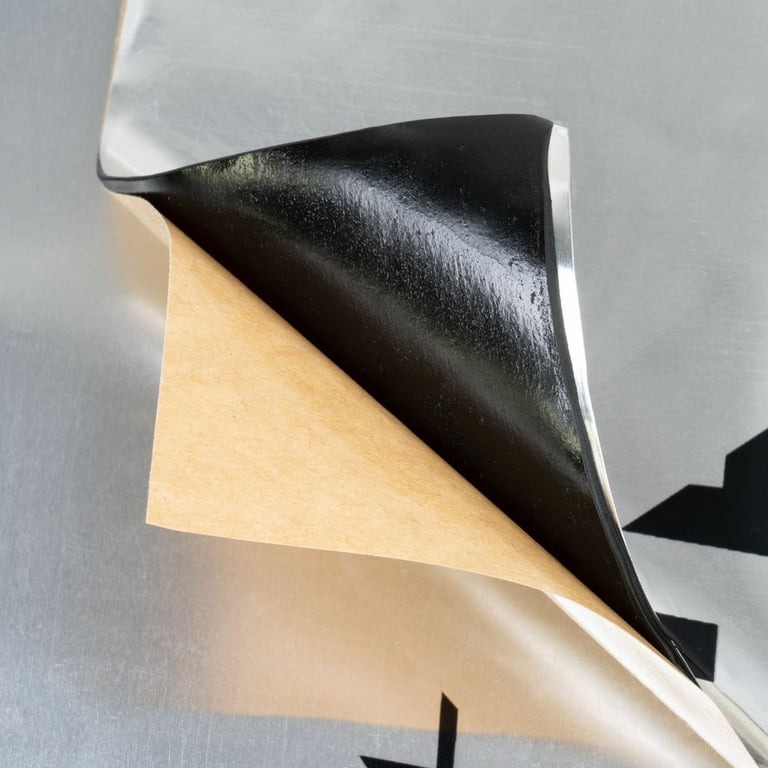

• Four Step Peel and Stick Installation

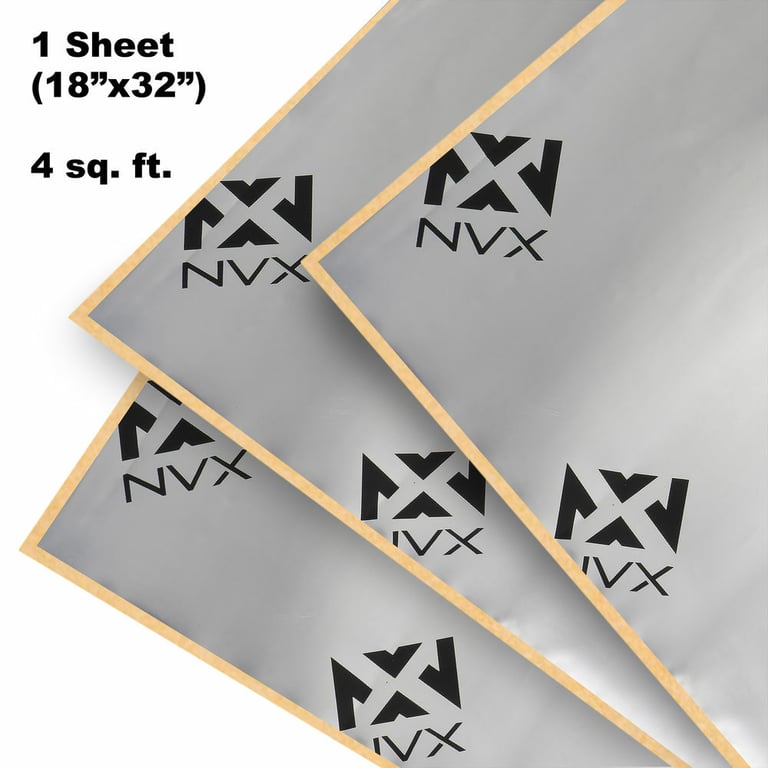

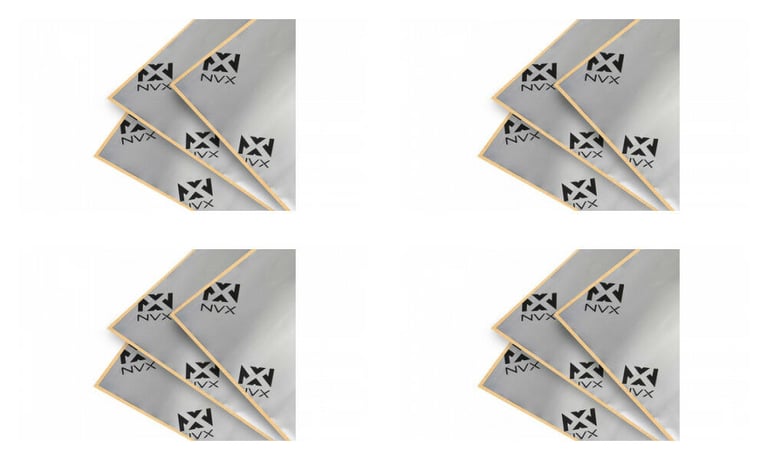

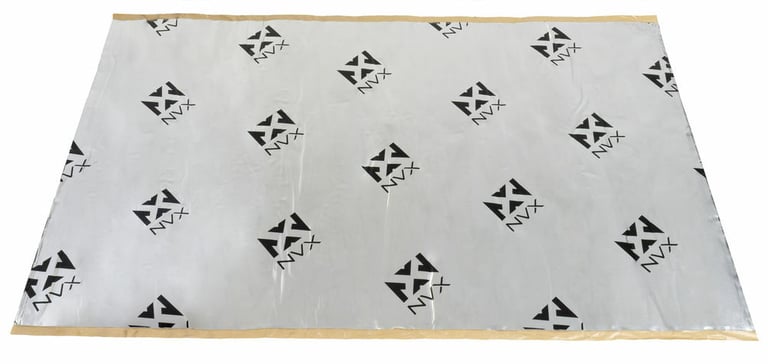

• Four 18" x 32" Piece

Learn more about the sdvk4_4

We apologize

This item has been discontinued

Description


NVX

Authorized dealer




Benefits of Sound Damping

Sound dampening material is key to reducing the rattles and shakes in your car. It effectively reduces the amount of road noise that is let in through the thin panels of your vehicle. It also lessens vibrations that are created by playing music through your speakers. It works by adding weight to the desired panel, which lowers the resonating frequency. You will notice by adding this material to your car, your sound system will likely get noticeably louder. If you have subwoofers, this is the perfect kit for your vehicle.

Thicker Than the Competition

NVX is one of the world's leading manufacturers of sound dampening material, and is up to 30% thicker than the other brands. Don't pay ridiculous amounts of money to kill those rattles, when you can get everything you need from NVX for a fraction of the price. With the SDVK4 dampening material, you will notice a higher quality sound from your system as well as a drastic reduction of road noise. With 4 square feet of material, you will have enough to cover all of those problem areas that have been bothering you for so long!

  Best Value!


NVX SDVK4



Dynamat 10425



NVX SDVK4

Dynamat 10425

Stinger RKX4

Price

$19.99

$29.99

$19.99

Total Sq. Ft.

4 Sq. Ft. 4 Sq. Ft. 4 Sq. Ft.

Total Thickness

2.3mm 1.7mm  2.0mm

Material

100% Butyl Rubber &
Aluminum Foil
Butyl Rubber &
Aluminum Foil
 Butyl Rubber &
Aluminum Foil

Self-Adhesive Back


Dimensions

One Sheet:
12" x 36"

One Sheet:
18" x 32"

Two Sheets:
12" x 24"




Product Features

  • Four 18" x 32" Piece of Sound Dampening Material
    • 90.55mil thick (2.3mm)! There are cheaper, inferior solutions at 50-80mil, but we do not recommend that thin of a solution as it will not perform as well.
  • 16 Square feet total
  • Made from 100% Butyl Rubber
  • Eliminates road noise
  • Quiets vibrations
  • Increases sound quality and output of car audio system
  • Stops rattles
  • Increases SPL
  • Reduces heat
  • Easy to form aluminum conforms to desired area of vehicle with ease
  • Four step peel and stick design for easy installation
  • Up to 30% thicker than the leading competitors
  • Dimensions: 18"L x 32"W
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty




How to Install Sound Damping Properly

Sound damping can be a very beneficial accessory to reduce noise and vibration. To take full advantage of this soundproofing, read these instructions carefully and follow them till the end. It’s important to familiarize yourself with all the details to install the sound damping correctly. Incorrect installation will result in less than desirable results.

Step #1

The first step is to decide which location in your car you want to insulate. These locations include the floorboards, roof, door panels, trunk or firewall. We recommend soundproofing all metal surfaces for maximum sound deadening performance. Next, refer to your vehicle’s service manual for information on how to dismantle the trimming panels. Be careful when removing the panels to avoid breaking the fixing clips.

Step #2

Once the trimming is dismantled, remove the remainder of the factory insulation if it is damaged. If it is still intact, there is no need to permanently remove it. Next, you need to properly clean, dry and degrease the prospective surface. Sound deadening won't adhere properly if applied to a wet or dirty surface. Use a metal surface cleaner or degreaser along with a dry, clean rag. Make sure to use gloves and apply the degreaser in a well-ventilated space.

Step #3

For this step, measure the prospective surface you are going to treat. To make things easier, make a template of the appropriate size on a large sheet of paper and then transfer it to the damping material. That will make it easier to install it more accurately and avoid wasting material. Use a utility knife to cut the desired shape and size. Be careful and use gloves to protect your hands.

Step #4

Place a sheet of sound damping to the surface without removing the protective film. If it covers the surface properly, you are ready to install it. Gradually remove the protective paper film as you apply it to the surface for better adhesion. Once on the surface, press it down firmly until it is set in place. Flatten it with your hands to avoid unnecessary air bubbles. Use a rolling tool like the NVX SDRLR1 to press the mat down to the metal surface. Go across the entire surface with the roller to ensure that the sheet is installed properly.

Step #5

Once all sound deadening is in place, simply reinstall all trim pieces and carpet back to its original placement. Now you are ready to enjoy higher sound quality with fewer vibrations.

Specifications & Details


Sound Damping Specifications
Installation Location
Door
Material Thickness
0.091
Total Amount of Material
4 square feet
Material Use
Vibration Dampener
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

SDVK4_4

Weight:

14.92lbs

Internal SKU:

sdvk4_4

Internal Product ID:

187543

Customer Ratings & Reviews



5 star
87%
4 star
11%
3 star
2%
2 star
0%
1 star
0%



Durability
5
Value
4.9
Features
4.9
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

Everybit as good as the more well known products

The following review is for SDVK4, which is a part of the bundle you are viewing.

This came free with a bundled purchase,.. and I also purchased some Rattletrap Extreme as this wasn't enough for the car. I was expecting this to be mostly unusable due to the Name.

I was wrong.. it was every bit as good in thickness and adhesion as the more expensive brand I had bought. So if you can get this cheaper than other Sound material,.. go for it.

By Jared on February 8, 2014

93

found this helpful.

NVX SDVK4

The following review is for SDVK4, which is a part of the bundle you are viewing.

Works great at a great price. I have it under my trunk lid and it keeps it from rattling too bad.

By Smuck on January 9, 2014

92

found this helpful.

Good product, not the easiest

The following review is for SDVK4, which is a part of the bundle you are viewing.

Used a few sqft of this material, along with the equivalent from Streetwires (PartsExpress) and a ton of Peal 'n Seal (Lowe's) for the rest.

I would say that Peal 'n Seal was the easiest to apply, but also the thinnest (an cheapest). So if you are doing some serious job you may want to double or triple the layers.

The NVX material was the thicker of the three I used, and once it's glued it stays soft which is very good. But beware, you will never get it off again. The only thing I would reproach is that the aluminum is quite thick, which makes it hard sometimes to comply with shapes. But it is good to fill in big gaps or openings and add some rigidity.

My preferred material is the Streetwire stuff, which is a bit cheaper. It was thick enough and compliant enough to make it really easy to install and it sticks like crazy while being forgivable if you make a mistake.

Have fun!!!

By Adrien on November 10, 2014

85

found this helpful.

awesome

The following review is for SDVK4, which is a part of the bundle you are viewing.

simply amazing before i installed it i could not hear a clean bass at all by trunk was rattling so much but now my trunk is solid and i'm enjoying the bass it's cheap and awesome NVX for the win

By hassan on October 21, 2014

86

found this helpful.

NVX better than the Rest

The following review is for SDVK4, which is a part of the bundle you are viewing.

Great price, great quality. Plus delievery came fast. Will buy again for rear door.

By OMAR on July 6, 2014

89

found this helpful.

awesome

The following review is for SDVK4, which is a part of the bundle you are viewing.

this is the best stuff for the best price now

By Joseph on March 14, 2014

86

found this helpful.

NVX SDVK4

The following review is for SDVK4, which is a part of the bundle you are viewing.

I USED THIS PRODUCT TO INSULATE THE SHEETMENT AT THE KICKPANELS AND THE FLOOR AREA BEHIND MY REAR SEAT IN MY1972 VW SUPER BEETLE. THIS PRODUCT WORKED OUT GREAT FOR ME, NO VIBRATION, REALLY QUIETED THE ROAD NOISE ALSO. OVERALL A GREAT PRODUCT.

By REED on September 2, 2013

83

found this helpful.

Great product!

The following review is for SDVK4, which is a part of the bundle you are viewing.

This is the first sound dampening material that I've used so far and I have to say that I am quite impressed with the product. I used it to reduce the vibrations generated from my sub at the back of my car. Since then, sound quality has improved considerably. For the price, I strongly recommend this product.

By JBlanch on January 28, 2013

81

found this helpful.

works great

The following review is for SDVK4, which is a part of the bundle you are viewing.

Less weight than other sound proofing I have used, cuts easy and with a hair dryer it will mold to any contour .

By Timothy on April 25, 2014

81

found this helpful.

Perfect kit foe speaker installs or a single door.

The following review is for SDVK4, which is a part of the bundle you are viewing.

This deadener works wonders for vibration and outside noise. It is thicker than Dynamat and will eliminate that horrible resonance caused by lower frequency notes transferred through sheet metal and rattles in plastic. It also improves sound quality and SPL.

By DonnieE on December 5, 2012

77

found this helpful.
