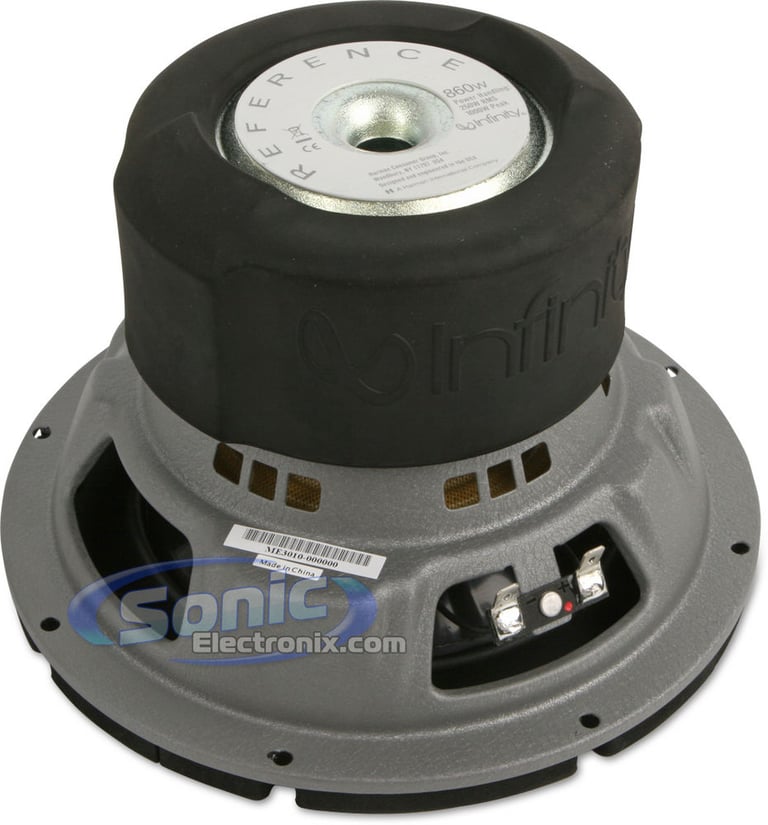

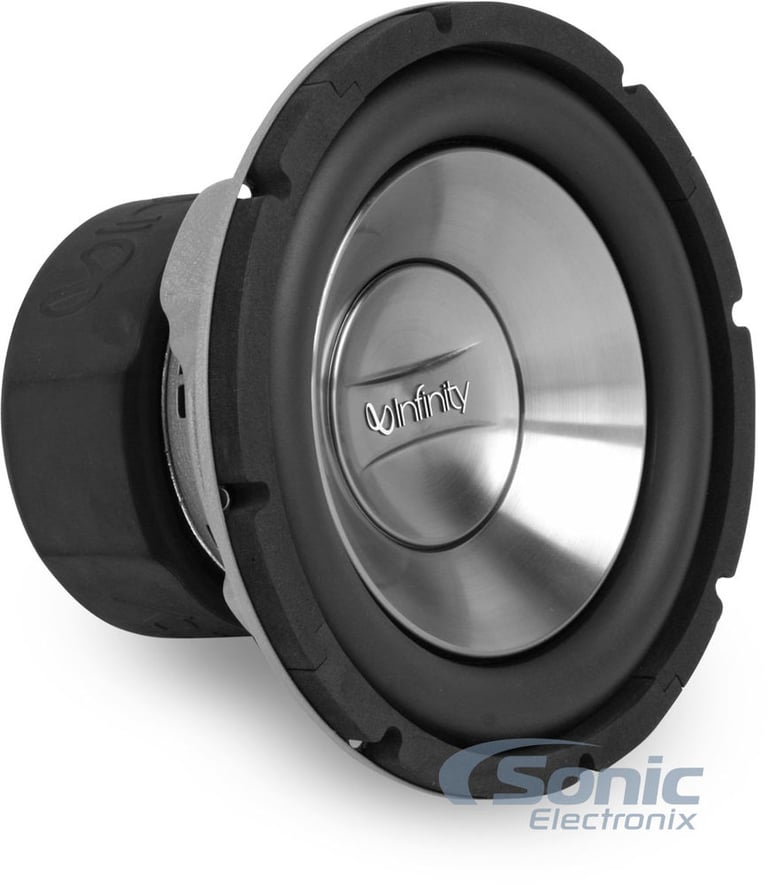

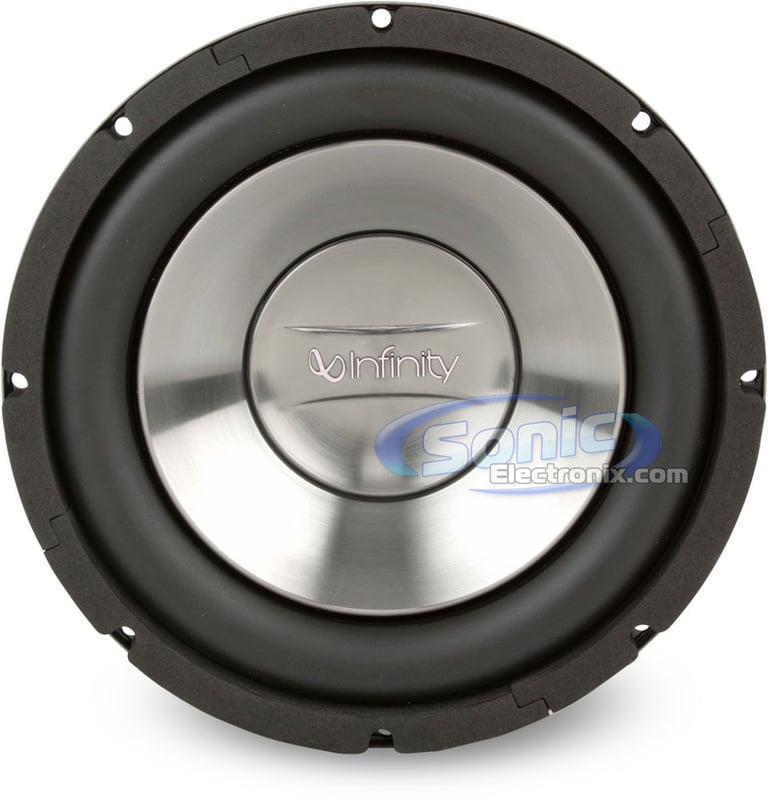

Infinity Reference 860W

250W 8" Reference Series Single 4 ohm Subwoofer

Infinity
Shop all Infinity
Product videos
highlight-star-icon

• 1000W Peak
• 250W RMS
• High-Gloss Polypropylene Woofer
• Large-Roll Rubber Surround
• 2" Voice Coil
• Vented Pole Pieces

Learn more about the 860w

We apologize

This item has been discontinued


Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

107
-33.36%

$9.99

List price $14.99

95-5026 main

Metra 95-5026 Dash Kit

Install a new Double-DIN car stereo in select 2002-2006 vehicles from Ford, Lincoln, Mercury (Black)

18
-41.68%

$13.99

List price $23.99

FD1428B main

Scosche FD1428B / FD1428 Dash Kit

Install a new Double-DIN car stereo in select 2001-2006 vehicles from Ford, Lincoln, Mercury (Black)

39
-9.51%

$11.99

List price $13.25

70-5701 main

Metra 70-5701 Wiring Harness

Install a new car stereo and retain factory amplifier in select 1998-2003 Mountaineer and Explorer

9
-10.26%

$34.99

List price $38.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

P1683 main

Rockford Fosgate Punch P1 P1683

260W Peak (130W RMS) 6x8" Punch Series 3 Way Coaxial 4-ohm Speakers

85

Product Highlights


• 1000W Peak
• 250W RMS
• High-Gloss Polypropylene Woofer
• Large-Roll Rubber Surround
• 2" Voice Coil
• Vented Pole Pieces

Description


Infinity brand icon

Authorized dealer



To Infinity, and Beyond Your Normal Woofer

Don’t let this 8 inch Infinity Reference subwoofer fool you; it has no problems pumping out deep, clean bass when you’re tight on space. At 1000 watts of peak power, it takes the heat without stepping out of the kitchen. All of this without sacrificing sound quality or cutting sensitivity.

Infinity’s product quality and excellence stem from their passion for music. This fact is evident in each of their lines, with no exception to their Reference Series subwoofers. Whether you listen to rock, hip-hop, jazz, country or anything else, these woofers will shine through with every note. High-gloss polypropylene woofer cone is lightweight which assures maximum efficiency which produces high output with modest amplifier power. This in no way means the Reference woofers don’t have a sound quality side, far from it. Sound quality is the name of Infinity’s game, and every beat will be smooth, crisp, and hard hitting. The large-roll rubber surround absorbs distortions that travel through the cone, ensuring clean bass response. Vented polepieces help cool the motor structure which allows for an increase in power handling. Engineering at Infinity is state-of-the-art and a great deal of computer aided design software is used to devise their products. This commitment shows in all of their product lines, and with such a good reference, it’s a no brainer.

The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.



General Features:

  • 8" Single 4 Ohm Reference Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 250 watts
  • Impedance: Single 4 Ohm
  • High-gloss polypropylene woofer cone ensures maximum woofer efficiency
  • Large-roll rubber surround absorbs distortions
  • Vented pole pieces provide additional cooling of the motor
  • 2" Voice coil
  • Also found as: REF860W
  • Frequency response: 30-400 Hz
  • Sensitivity: 91 dB
  • Mounting Depth: 5-3/16"
  • Cutout Diameter: 7-5/16"
  • Authorized Internet Dealer
  • 1 year Manufacturer's warranty

Product history:

Infinity 860W thumbnail
(newest, current model)
Infinity 850W thumbnail
(previous model, replaced by Infinity Reference 860W)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Infinity Reference 860W Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Infinity Reference 860W Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Infinity Reference 860W Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Infinity Reference 860W Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

VCW82v3 small

NVX VCW82 Version 3 (VCW82v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(12)

$169.99

List price $203.99

DB-SA2508 D1 small

Deaf Bonce Apocalypse DB-SA2508 D1

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 5.22"
• Sensitivity: 84.7 dB

(1)

$229.90

List price $229.90

47KBRW8 small

Kicker 47KBRW8 ReFLEX™

• 8" ReFLEX™ Passive Radiator
• Rubber covered plastic Cone
• Rubber Surround

(1)

$49.99

List price $59.99

VCW84v3 small

NVX VCW84 Version 3 (VCW84v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(15)

$169.99

List price $203.99

8W3V3-4 small

JL Audio 8W3V3-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 4.63"
• Sensitivity: 83.24 dB

(45)

$349.99

List price $349.99

L7S82 small

Kicker L7S82 (44L7S82)

• Peak Power: 900 watts
• RMS Power: 450 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 4-3/4"
• Sensitivity: 82.37 dB

(1)

$175.96

List price $239.99

SPK-8S4 small

AudioControl SPK-8S4

• RMS Power: 500 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 4.291"
• Sensitivity: 81.9876 dB

(1)

$179.00

List price $229.00

KAPPA 83WDSSI small

Infinity Kappa 83WDSSI (INFSUBKA83WDSSIAM)

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 5.42"
• Sensitivity: 91 dB

(2)

$149.95

List price $289.95

8W1v3-4 small

JL Audio 8W1v3-4


• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 3.86"
• Sensitivity: 84.8 dB

(10)

$199.99

List price $199.99

CWRT84 small

Kicker CWRT84 (48CWRT84)

• Peak Power: 600 watts
• RMS Power: 300 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 2-11/16"
• Sensitivity: 81.8 dB

(4)

$151.96

List price $209.99

Specifications & Details


Subwoofer Specifications
Series
Reference Series
Subwoofer Size
8"
Peak Power Handling
1000 watts
RMS Power Handling
250 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
30 - 400 Hz
Sensitivity
91 dB
Xmax (millimeters)
13 mm
Subwoofer Design
Round / Circle
Main Cone Color
Silver
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
.35 cubic feet
Maximum Sealed Box Volume
.35 cubic feet
Minimum Ported Box Volume
.6 cubic feet
Maximum Ported Box Volume
.6 cubic feet
Top-Mount Depth (Mounting Depth)
5-3/16"
Cutout Diameter
7-5/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
29.6 Hz
Equivalent Compliance (Vas)
15.23 liters
Total Speaker Q Value (Qts)
.45
Electrical Q Value (Qes)
.483
Electrical Resistance of Voice Coil (Re)
3.3 ohm
Mechanical Q Value (Qms)
6.1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

860W

Weight:

11.00lbs

Internal SKU:

860w

Internal Product ID:

18896

Product and How-to Videos


  • Harman International: The Pursuit of Great Sound
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Infinity Reference 860W thumbnail image

5 star
81%
4 star
15%
3 star
3%
2 star
1%
1 star
0%



Durability
4.7
Value
4.9
Features
4.6
Design
4.8
Usability
4.8

Customer Reviews

Sort by:

Loading...

Blown away yet again.

My buddy is running four of these in a 3 cu ft sealed box wired at 1 ohm to a hifonics txi750 to break them in. In a 2003 Saturn Vue.

Man these sound cleann~

They're extremely punchy and accurate in the sealed setup crossed over with the fronts so well, you can't tell where they roll off -- exactly how it should be. From outside his car, his his hatch doesn't rattle at all, but from inside his car, the bass is powerful enough to move my shirt about a 1/2 inch. These are definitely louder than my MTX 9515 despite being a hell of a lot cleaner.

He's ordering 3" aeros and tuning the box to 34 hz and getting a Soundstream TX1.2000 feeding each sub ~400+rms after box rise.

I'll post an update on how this setup sounds. He's also contemplating running 8 of them off that same amp.

By Sze on August 13, 2011

60 found this helpful


Awesome Sub!!!

I purchased this sub for a footwell project in my miata. It's powered by a Rockford Fosgate 351s amp getting a lil over 350 watts rms. And Wow, not even broken in and it sounds amazing. The sub is mounted in a sealed box slightly under what it calls for. I listen to all types of music and this sub plays it all. Fills the entire car full of bass, which was difficult for a convertible. I highly recommend this sub!!!

By Jordan on January 29, 2014

54 found this helpful


sub

Perfect sound in my f150 in a shallow truck box.

By Lee on August 12, 2014

52 found this helpful


suprising

I have just one in a ported subwoofer bass tube and it hits pretty hard, it honestly hits harder than my 10''. im getting the infinity reference 12's soon and will be keeping this 8 in my car aswell. im pushing 500 watts into it at 4 ohms and it handles it with ease. it doesn't have and distortion and this subwoofer, for an 8'' woofer has a HUGE excursion. I love this woofer, its great for a little 8'' and I would recommend it to anyone.

By Tyrus on February 20, 2013

47 found this helpful


Wow.

These are the best 8's ive ever herd. I have them in prefabricated 1.40 cu ft box tuned @ 34hz in my minivan and wows anybody who hears it. not only does it have ACCURATE sound reproduction but they hit low and clean. The box can be found at mobilesoundworks.com. People thought i had my SA-12 by Sundown in there lol. They've been receiving about 600 rms daily with abuse for about 3 months now, i love them!

By Parker on December 9, 2013

46 found this helpful


Some of the best

I have two 8" and I'm pushing them with a 850 watt renagade amp and it sounds like 10" subs the sound is sweet with the right box I would recommend people buying this product if they want to be noticed more lol you won't be disappointed

By kevin on July 21, 2011

47 found this helpful


The best 8" sub made

I have 2 of these in a 2005 F150 crew cab. Im running them each on 300 watts of old school alpine v12 power... all i can say is amazing sound. They handle everything i throw at them and ask for more. If you are looking for a sub this size, there is non better.

By nate on August 16, 2011

45 found this helpful


Clean to a whole new level.

I hooked up two of these along-side an MTX 9500 15". These were hooked to a Rockford Fosgate r1000 giving each ~550 watts. (only because my friend let me borrow his before he gets two more)

Upon adding these, all the mid-bass my 15 couldn't reproduce, is back.
These subs alone sound cleaner and deeper than my 15 (Not anywhere near the spl, silly) but the three of them really shine because they just don't have the low extension like a 15. After adding them, I definitely feel cabin-pressure I didn't have before. In the trunk of a fully-deadened 2002 grand prix (oh and what difference sound proofing makes)

HUGE HUGE HUGE output from these 8's. More than any 8 I've ever heard. Definitely comparable to two CVR 12s in SPL with a HUGE improvement in sound quality.

I've never gotten good results from mixing woofers, ever, but in this case, it sounds clean and articulate, and accurate at low levels.

Someone looking to just add near-perfect bass without rattling their car should look into running these babies UNDER their RMS cause the output from one is just too much if THAT'S the sound you're going for.

Thinking about running 8 tuned at 29 hz.

By Sze on July 31, 2011

45 found this helpful


best subs ive ever had.....

Running two of these in a 1.4 cu ft slot ported enclousure tuned @ 34hz and wow, it's sounds amazing. Been doing car audio for almost 10 years now and have had alot of competition gear as well as SQ - from JL to DD audio. Decided to grab a pair of these 8's since i was so happy from the 12 and 10" version. The response on Rock and Country is DEAD ON perfect. LOUD! Hip-hop and Decaf (slowed and bassboosted) Dubstep slams! Depending on your box (mines a starndard L-port) you'll be rocking hard. Running off a JL 500/1v2 im upgrading to a 1K JBL amp. Keep in mind i could fit 2 15's but choose to run these.

By Parker on September 1, 2014

44 found this helpful


Sweet little sub

Swapped out an REXv2 for this because that sub couldn't take take the 250 watts my Kicker IX 500.4 puts out in bridged mode. Thankfully this Infinity handles that power level just fine, in fact it seems like it could take even a little more juice (400?)

The Infinity is not the loudest thing, don't let the high sensitivity fool you... based on other speakers I've used I'd say its more like 87 dB. Currently I've got it in a slightly oversized sealed box so that might be limiting its volume potential. Big box = deeper bass but less volume. For an 8" it gets pretty low and smooth, maybe a touch better then my old Kicker L5 8" with the same power & similar box. This is really well built sub with a big surround, double magnets, rubber cover and vent pole. I know it kicks much harder / moves further then the REXv2 because I had to remount my grill cover because the 860W surround was hitting it on deep bass notes! The only downside is the cheap spade style connectors.

I've got Infinity Reference components for my mids and highs in both my 350Z and Dodge Dakota so I know they are a good line of products.

By JMII on January 28, 2015

40 found this helpful




RVCCH-75W small

Crux RVCCH-75W

Rear-view Integration System for Jeep Wrangler Vehicles w/ MYGIG Systems 2007-Up

$267.30

List price $415.80

4206 small

Python Responder LE 4206P

Super Code 2-Way Responder LE Remote Start and Keyless Entry System

$149.99

List price $349.99

BassLink-II small

Infinity BassLink II

10" Square Powered Subwoofer

(13)

$236.95

List price $424.95

10DM small

Atrend 10DM

Empty Dual 10" Medium Sealed Subwoofer Enclosure

(1)

$99.99

List price $129.99

HA1567B small

Scosche HA1567B

Single DIN Stereo Dash Kit with Pocket for select 2001-2005 Civic (Black)

(30)

$13.99

List price $14.95

VFDB2 small

VFDB2

Dual MANL V12 Series Fused Distribution Block w/ 1/0 Gauge Input and Two 4/8 Gauge Output

(10)

$38.99

List price $43.99

460-MAX small

Python 460 MAX - 3105P

1-way Car Alarm Vehicle Security System, Includes Two 1-way Remotes

(10)

$69.99

List price $239.99

CLOC+D small

Cache CLOC+D

Line Output Converter & Line Driver

(10)

$39.99

List price $99.99

GL712 small

Kicker GL712 (08GL712)

Square Grille for Kicker 12" Solo-Baric L7 Subwoofers

(13)

$34.99

List price $34.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2002 Ford Explorer

1996 Eagle Vision

1990 Eagle Premier

2011 Ford Explorer

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
